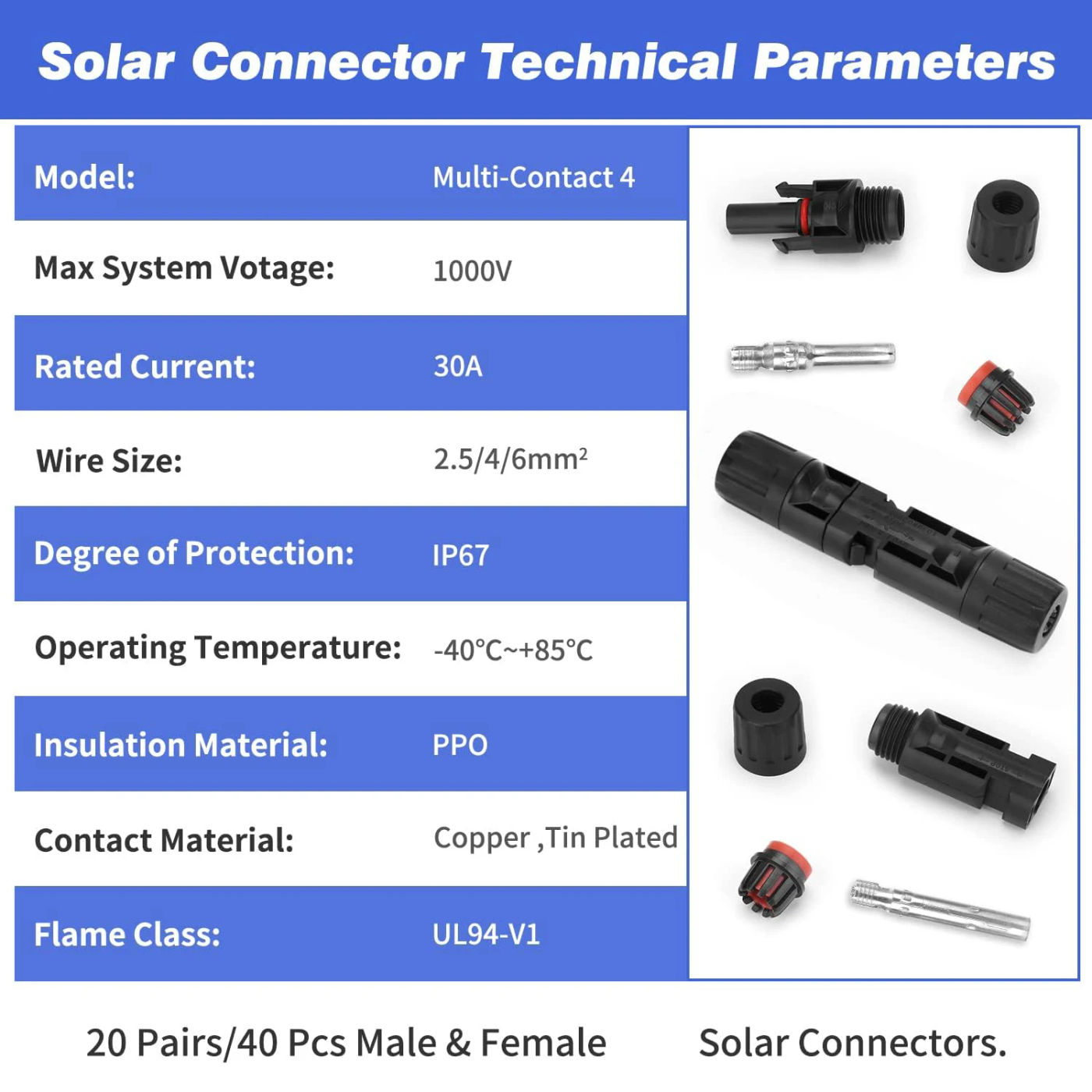

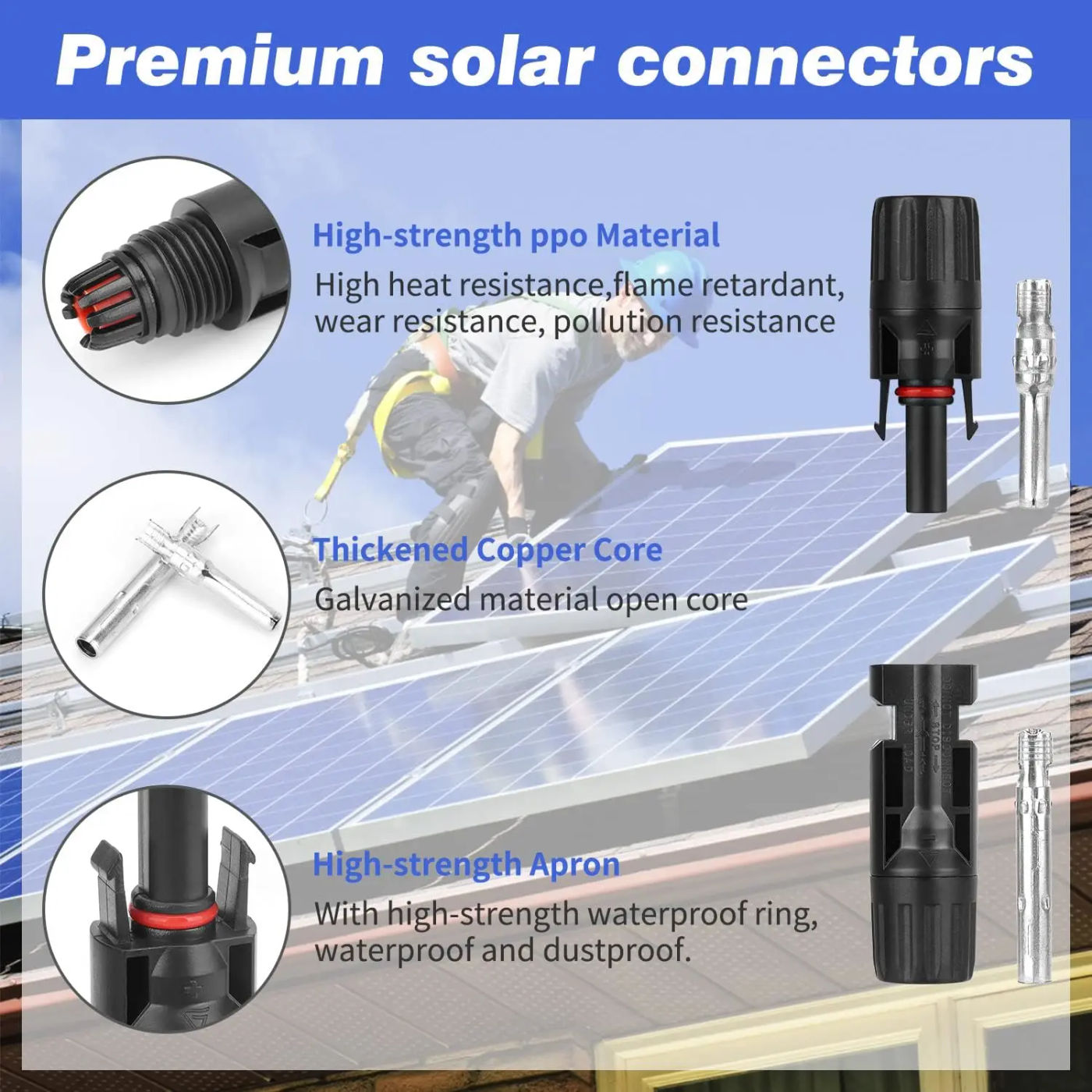

• 40PCS Solar Connector with Spanners IP67 Waterproof Solar Panel Cable Connectors Male/Female 20Pairs(10AWG)-1 Spanner Features: • VALUE FOR MONEY: With 22 pairs of solar panel connectors£¨Male & Female£and 22 pairs of photo voltaic connector pins (Male & Female) In addition, we will reward a couple of spanners to you to be able to smooth your installation • CONDUCTOR PIN IS TINNED COPPER: It makes a rock-solid connection after crimping the pin into the twine and tighten the connectors, also, those solar connectors can keep working completely beneath heavy load • WIDE APPLICATIONS RANGE: Compatible with PV cables (Solar Cable) with assorted insulation diameters (13AWG to 10 AWG), which is acceptable for solar cables in various specs for sale • WATERPROOF DESIGN & EASY INSTALLATION : Waterproof ring on connection is perfect to seal out water and dust to prevent corrosion Quick & simple assembly processing and simple removing of plugs Specification:  Rated current: 30A (2)  Rated voltage: 1000V DC  Connector touch resistance:≤ 0Ω  Degree of waterproof: IP67  Flammability rating: UL94-V0  Safety: II  Adapter Wire: OD 5mm-7mm  Insertion force: less or equal to 50N  Withdrawal force: over or equivalent to 50N  Operating temperature range: -40℉~ 221℉  Suitable cable: AWG 14/13/12/11/10  Connector conductor material: copper, Tin  Connector Insulation material: PPO or PBT Package included: • 20 × male photo voltaic connectors ( with photo voltaic connector pins ) • 20 × feminine solar connectors (with photo voltaic connector pins ) • 3 × photo voltaic connector spanners 1 Key faraway from Fire 2 Due to includeing small parts,please keep away from Children under Three 3 Please go away 5 megastar suggestions if you&;re satisfied with our merchandise advert service, we are able to respect it 4 If the goods you obtained become damaged or to any extent further question, please be happy to touch us

•
•
•
•
•
