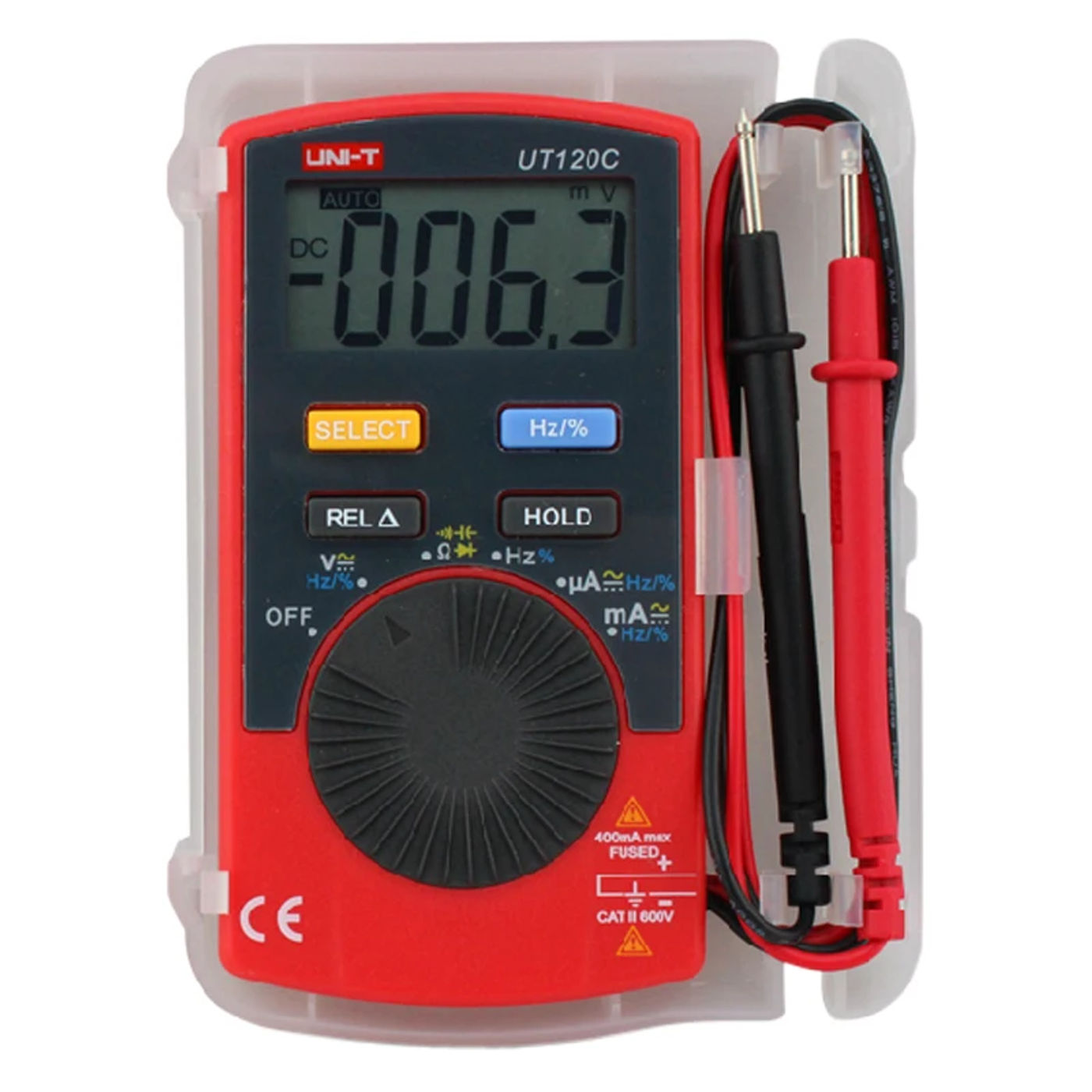

• Models in UT120 Series: UT120A, UT120B, UT120C UT120 Series Pocket Size Digital Multimeters UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems advancement and electronics circuits It is a straightforward and portable multimeter for each electronics engineer Features of UT120 Series Pocket Size Digital Multimeters Certifications: CE, UKCA, cETLus (UT120A/UT120B) ● Auto energy off ● Auto vary ● 4000 exhibit rely ● Data keep and relative mode Specifications of UT120 Series Pocket Size Digital Multimeters Specifications Range UT120A UT120B UT120C DC voltage (V) 600V ±(0%+1) ±(0%+1) ±(0%+1) AC voltage (V) 600V ±(1%+3) ±(1%+3) ±(1%+3) DC latest (A) 400mA ±(1%+3) AC recent (A) 400mA ±(1%+5) Resistance (Ω) 40MΩ ±(1%+2) ±(1%+2) ±(1%+2) Capacitance (F) 100μF ±(4%+3) ±(4%+3) Frequency (Hz) 10MHz ±(0%+3) ±(0%+3) ±(0%+3) Features Display count 4000 4000 4000 Auto range √ √ √ Duty cycle 0%~99% √ √ √ Diode √ √ √ Auto strength off Around half-hour √ √ √ Continuity buzzer √ √ √ Low battery indication ≤2 √ √ √ Data keep √ √ √ Relative mode √ √ √ Input impedance for DCV Around 10MΩ √ √ √ General Characteristics Power 3V battery (CR2032) Display 43mm x 22mm Product color Red and grey Product internet weight 76g Product size 110mm x fifty eight x 10 Standard accessories Battery, carrying case Standard particular person packing Blister, English handbook Standard number according to carton 100pcs Standard carton size 750mm x 275mm x 490mm (0 in line with export carton) Standard carton gross weight 20kg UT120C： Specifications Range Best Accuracy Model UT120C DC Voltage(V) 4V/40V/400V/600V ±(0%+3) AC Voltage(V) 4V/40V/400V/600V ±(1%+3) DC Current (A) 400μA/4mA/40mA/400mA ±(1%+3) AC Current (A) 400μA/4mA/40mA/400mA ±(1%+5) Resistance(Ω) 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ ±(1%+2) Capacitance (F) 4n/40n/400n/4μ/40μ/100μF ±(4%+3) Frequency(Hz) 99~99 ±(0%+3) Features Display Count 3999 Auto Range √ Duty Cycle 0%~99% √ Diode √ Auto Power Off Around 30 minutes √ Continuity Buzzer √ Low Battery Indication ≤2 √ Data Hold √ Relative Mode √ Input Impedance for DCV ≥10MΩ √ General Characteristics Power 3VBattery (CR2032) LCD Size 43mm X 22mm Product Color Red and Grey Product Net Weight 76g Product Size 110mm X fifty eight X 10 Standard Accessories Battery 、Carrying Case Standard Individual Packing Blister 、English Manual

•
•
•
•
•
