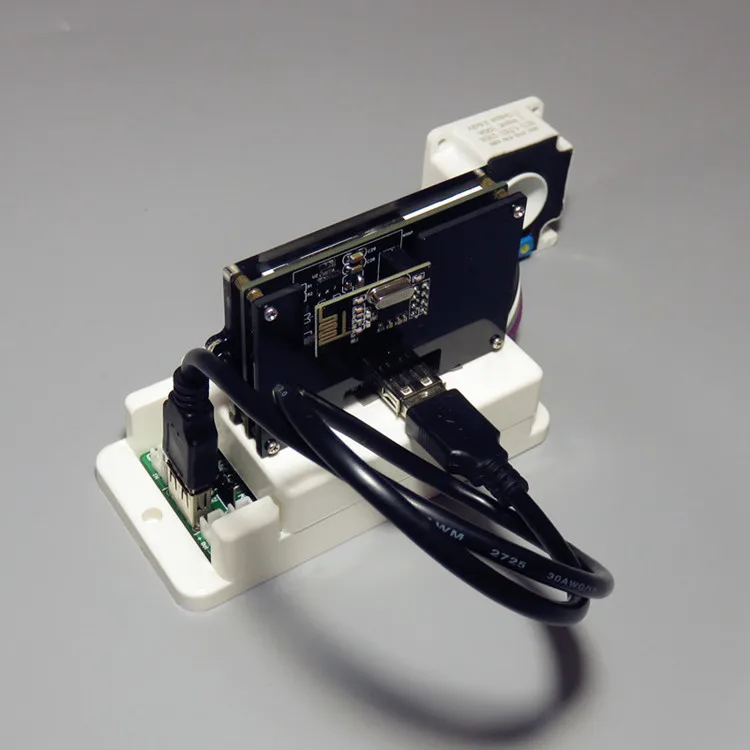

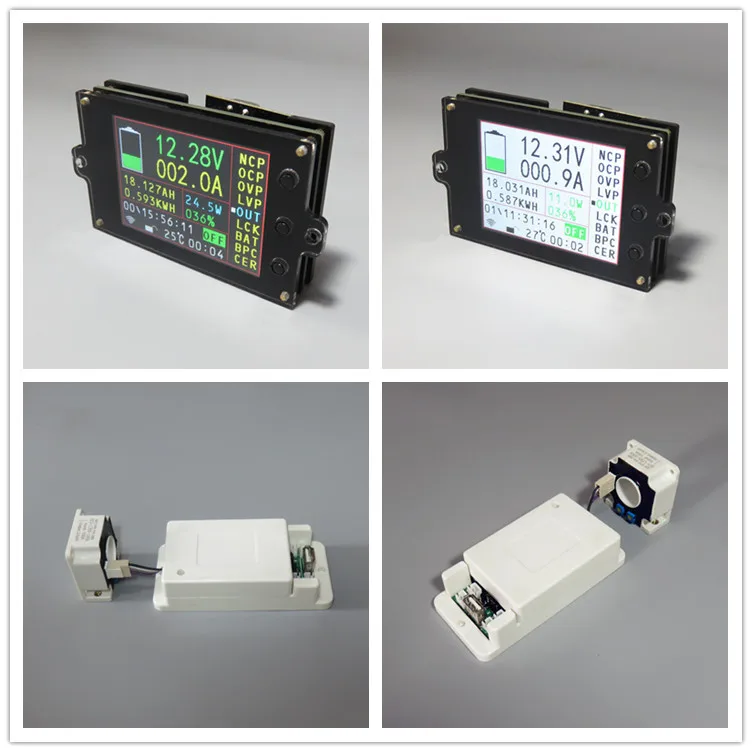

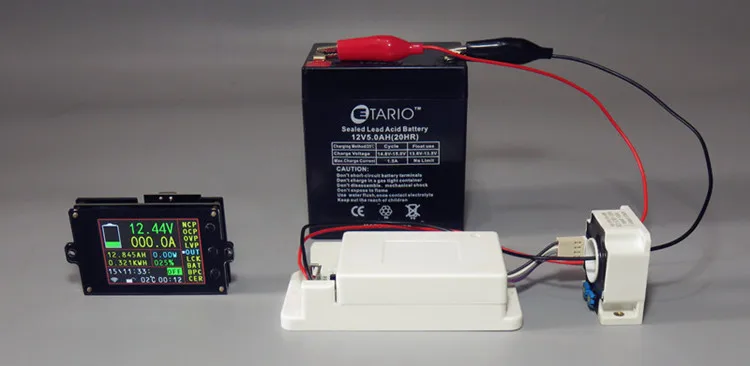

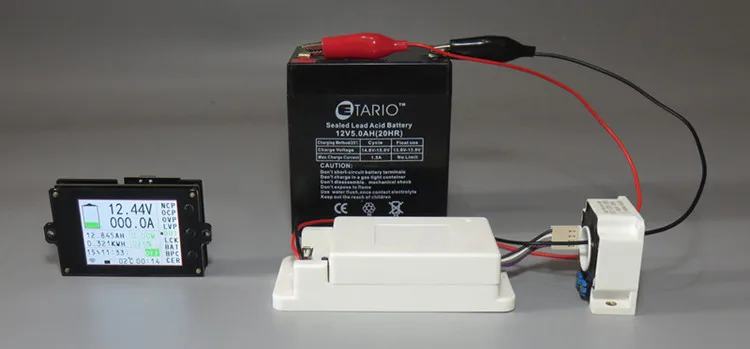

• RM13077316469147DC 500V Multimeter Digital Voltmeter Ammeter Battery Charging Coulometer Power Energy Watt Volt Amps Voltage Meters DC 500V Multimeter Digital Voltmeter Ammeter Battery Charging Coulometer Power Energy Watt Volt Amps Voltage Meters The software panel could be powered via a standard 5V energy adapter (such as a cellular phone charging head), you also can use the USB port on the size board for the display panel power delivery The tool in the course of the charging and discharging relay interface with its personal relay could be carried out routinely change payment and discharge, you also can manually switch by pressing the button fee and discharge The device has a total of 18 functions, each function to help clients more handy and faster entry to extra accurate size outcomes (Don&;t have the temperature dimension operate ) (1) NCP: set the worth of price over-current protection, with the relay could be executed when charging over-current protection; (2) OCP: set the release over-current protection value, with the relay can be carried out when the discharge over-current protection; (3) OVP: Set the payment overvoltage defense value (the voltage exceeds the set voltage can mechanically fill the capacity), with the relay could be packed with computerized disconnection function; (4) LVP: set the discharge over-voltage protection value, with the relay would be performed automatically disconnect the release function; (5) OUT: The change output operate of the wireless management relay can be realized via clicking OUT (6) LCK: key lock function, if necessary, you can lock the keys to forestall misoperation; (7) BAT: the default whole battery capacity; reference price as a proportion of capacity; (8) BPC: preset last battery potential share and final battery capacity; (9) CER: latest return to 0 function, when the no-load current isn't 0, you can click on this feature to clear the current; (10) RET: WH and run-time cost reset function, to facilitate a higher measurement; (11) LNG: language switching function, the instrument has integrated Chinese and English languages, you possibly can change languages via this option; (12) STI: set the relay power-on default state, open or closed; (13) SFH: machine search function, via this option can be one-to-many communication; (14) DEL: set the relay put off working time; to achieve the security of the relay put off motion (15) FCH: verbal exchange tackle modification function, if a number of groups of modules on the similar time each organization of modules to set a different deal with to prevent interference; (16) SNR: set the screen current, when the SNR is greater than 0, and the display screen time value isn't 0, you could possibly obtain automatic display screen function, and when the charging recent is less than this value, the cumulative charging ability is not to circumvent floating charge The impression of the skill value, when the current is bigger than this value LCD screen robotically lit (17) SNT: Set the screen time price When the SNT price is 0, the LCD panel by no means goes out When the SNT cost is greater than zero and the SNR also is more than 0, the automated display and shiny screen purposes can be learned (18) RFS: reveal coloration change function, this device has two colour matching clients can favor diversified shade in keeping with their preferences The leading features 1, wireless transmission of data, to circumvent the complex wiring between the display and detection modules to deliver interference, whereas wiring is more simple 2 Hall sensor is used to realize non-contact detection current without disconnecting wires, which is safe, dependable and convenient 3, voltage, current, power, temperature, capacity, share of final capacity, running time is displayed on the similar time 4, double relay interface, you could possibly manage charge and discharge separately 5, with fee over voltage, discharge below voltage, payment over-current, discharge over-current defense 6 The memory function of the breakpoint, power-on and power-off, and the number of AH and WH before power-off can be memorized Project parameters Display:2 inch TFT LCD show Self-power measurement vary of 6V ~ 80V Measurement vary 0~500V when exterior power delivery Input latest dimension vary 0~100A External delivery voltage 6-60V Display mode 2 inch colour LCD exhibit Voltage 0~500V Current 0~50A 100A 200A 300A 500A can desire Capacity 0~65000 Energy 0~9999KWH Time 0 ~ a hundred hours Power value 999KW Temperature 1~100°C Voltage ± 1% + 2 words Current ± 2% + 5 phrases Temperature ± 1 ℃ Measurement fee 5 times / second Relay postpone time (0-60)S Communication distance Open single group 10 meters OVP (overvoltage protection) 0~500V LVP (undervoltage protection) 0~500V OCP (Charge Overcurrent Protection) 0-500A NCP (discharge overcurrent protection) 0-500A Display board length 87 * forty nine * 14 (mm) Measuring plate size 114 * 54 * 28 (mm) 1 Remaining battery capacity Column 8 Accumulated cost of unmarried run time 2 Accumulated remaining AH quantity 9 Output popularity display directory 3 Accumulated Energy four The time it takes to fully price or discharge the battery (calculated in response to payment and discharge recent and capacity) five wi-fi verbal exchange sign indicator 6 Key lock indication 7 Real-time dimension of temperature A Percentage of Battery Remaining Capacity B Power value C function suggestions listing D Actual voltage cost E Actual measured current 1 discharge relay control interface 2 charging relay control interface 3 USB2 interface (for show panel power supply) four Voltage Measurement Interface five External energy delivery interface 6 exterior power delivery and its own number of energy interface 7 relay switch button Wiring Note: If the measured battery (power) voltage (6-80) V vary can be battery (power) its own strength delivery wiring, if the measured battery voltage is greater than 80V or lower than 6V ought to be used for external strength supply wiring; voltage if no longer (6-80) V range, please do not use their own power supply wiring, this may injury the measuring device (1) its personal energy supply wiring diagram NOTE: If the examined battery (power supply) can work with its personal strength delivery voltage (6-80V) during usual operation, first adjust the jumper cap of the power supply choice interface to "2W", and then join The nice and negative poles of the battery (power supply) are linked to the voltage size port “+Bat-”; observe that “+” connects to the high-quality terminal of the battery (power supply), and “-” connects to the unfavourable terminal of the battery (power supply) The high quality and detrimental poles of the ability supply must not be linked Wrong or reverse, the battery (power) is connected to the high-quality pole of the load, the negative pole of the battery (power) is connected to the adverse pole of the load throughout the Hall sensor When the current flowing throughout the Hall sensor and the Hall sensor power-on arrow When the path is the same, the measured current will demonstrate a good value, in any other case the measured recent will show a damaging cost (2) External energy supply wiring diagram Note: If the voltage differ of the examined battery (power supply) isn't within the vary of (6-80V) during typical operation, the external power supply connection mode can be used First, alter the jumper cap of the ability supply alternative interface to “3W” to connect the external strength supply Positive and negative poles are connected to “+Vext-” Note that “+” is hooked up to the effective pole of the external power supply, and “-” is attached to the unfavorable pole of the exterior strength source; then join the high-quality and damaging poles of the battery (power supply) to the voltage size port “+Bat - "Department, pay attention to" + "connected to the battery (power) positive," - "battery (power) negative The high quality and adverse poles of the battery (power supply) should not be related wrongly or reversed Connect the positive pole of the battery (power supply) to the wonderful pole of the load The detrimental pole of the battery (power supply) is hooked up to the damaging pole of the burden through the hall sensor when passing in the course of the hall sensor Of the present path and the path of the Hall sensor power-up arrow when the measured recent may be displayed as positive, whereas the measured latest is displayed as a unfavorable price (3) discharge relay wiring diagram Note: The relay&;s working energy is supplied by means of an exterior power delivery If it's connected to a relay, it must present an external power supply with a similar operating voltage because the relay Connect the control port of the relay to the interface of the release controller If you want to management the superb side of the discharge, move the high quality line during the relay If you would like control the damaging facet of the discharge, join the detrimental line to the relay When the relay is on, the OUT lamp It will light, off when off as a reminder (4) charging relay wiring diagram Note: The relay&;s operating strength is provided by an exterior strength delivery If it is connected to a relay, it should present an exterior strength delivery with the same operating voltage as the relay Connect the management port of the relay to the interface of the charging controller If you prefer to control the positive side of charging, move the fine line during the relay If you want to control the negative aspect of charging, connect the unfavorable line to the relay When the relay is on, "IN" light It will light, off when off as a reminder Package include: 1pcs Display Module 3pcs 2P cable 1pcs Male to Male usb 2 cable 1pcs tester Module(Include1pcs test board 1pcs Hall Sensor )

•
•
•
•
•
