Descriptions

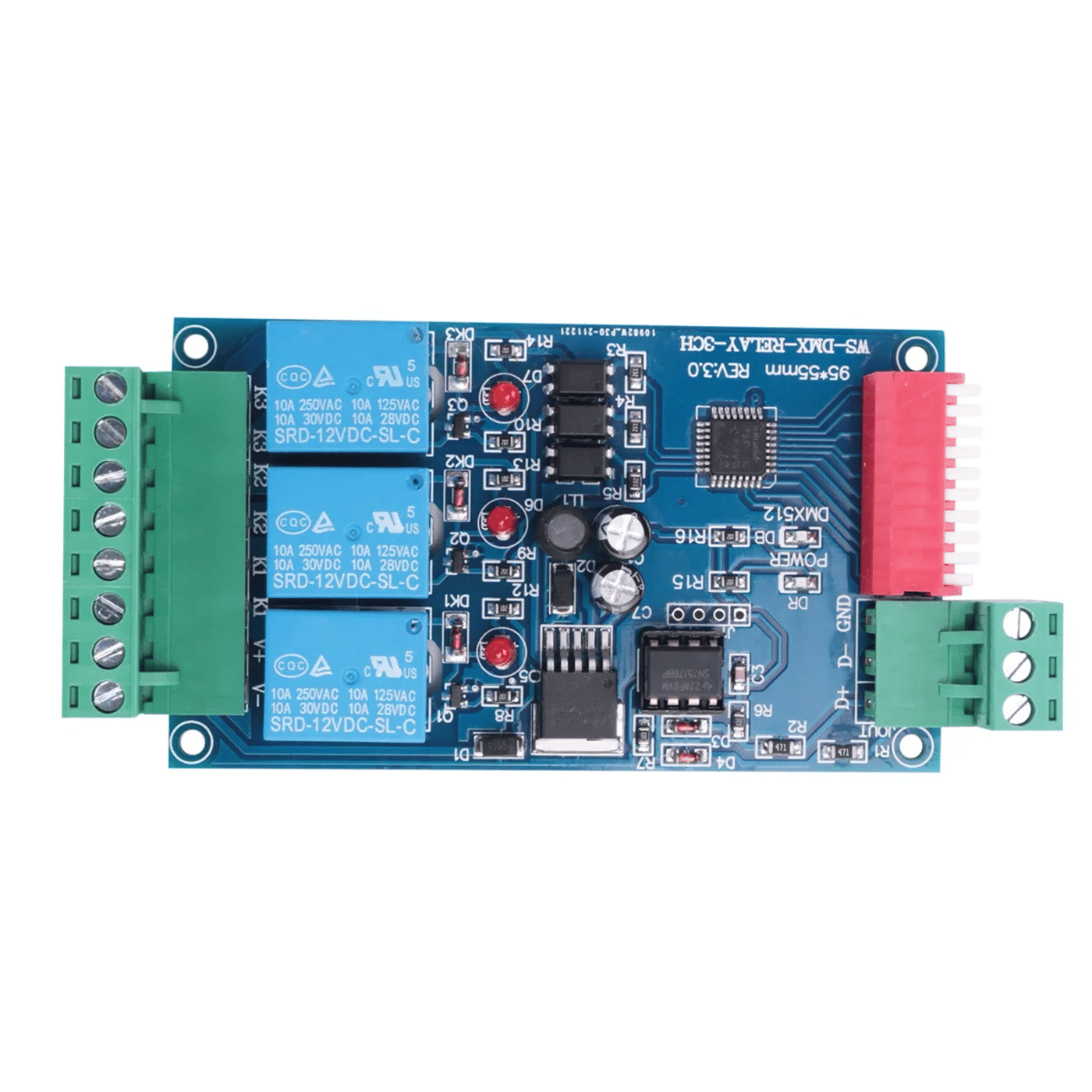

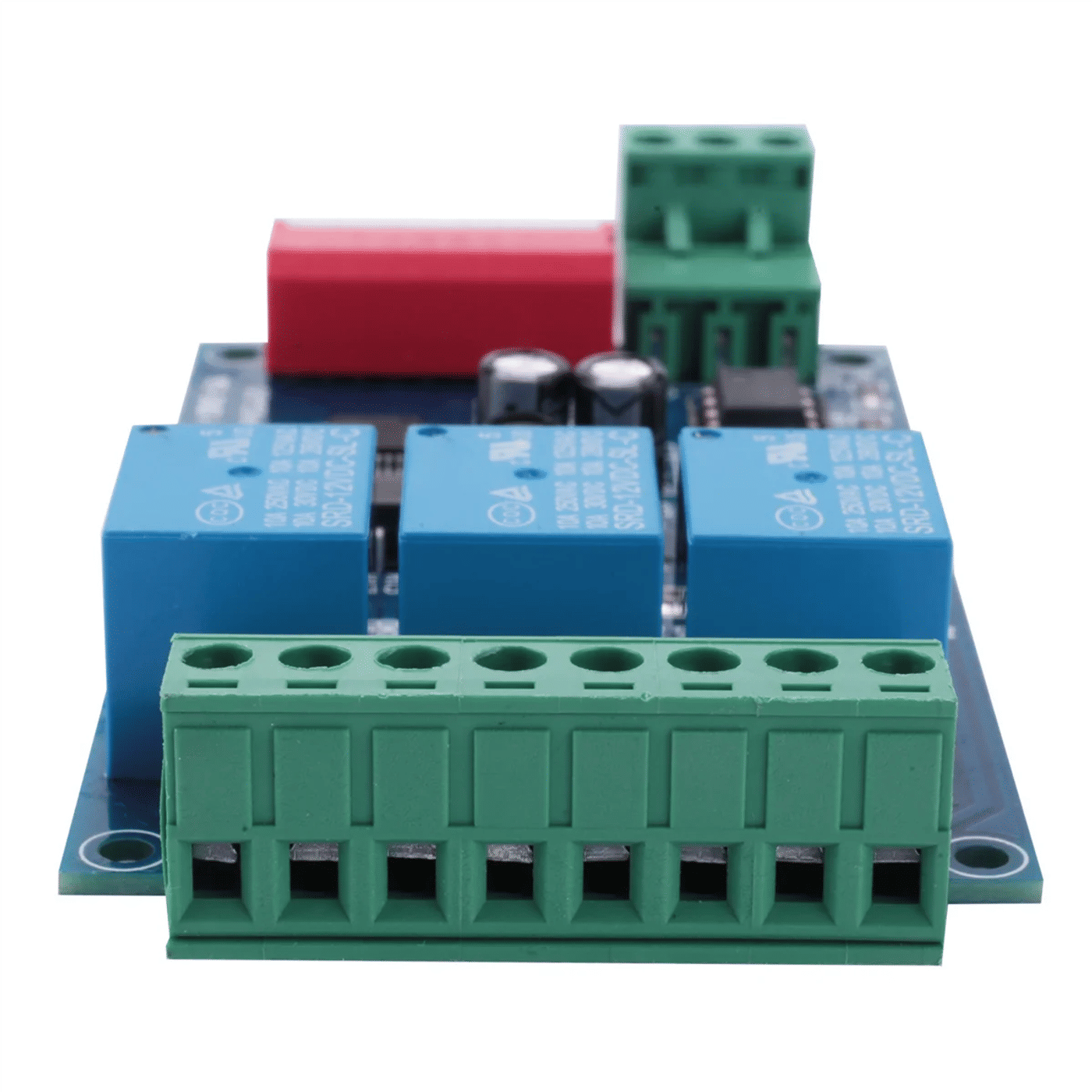

• Built in replacement mode, you need to modify by approach of dialing code DMX512 handle code would be set through DIP three relay outputs,5A consistent with channel Working voltage: DC12V-24V Relay load: 5A in line with channel Controller: DMX512 3P D mx512 Data: 0-127 Relay Switch OFF,128-255 Relay Switch ON Size: 120*55*20mm color: blue material: plastic DIP10 function key (FUN). DIP10 (FUN) is OFF, as DMX512 mode, acquire standard DMX512 signal. Occupies 3 take care of code, (R, G, B for each channel), DIP1-DIP9 handle code setting. When less than 127 DMX512 information relay off DMX512 data is greater than 127 when the relay is closed DIP10 (FUN) is ON, the integrated replace mode and doesn't receive common DMX512 signal. DIP1-DIP9 to invoke the integrated effects settings. Package Contents: 1 x Relay Switch Note: Light taking pictures and assorted exhibits could cause the colour of the object in the photograph considerably diversified from the real thing. The size allowed error is +/- 1-3cm.

•
•
•
•
•
