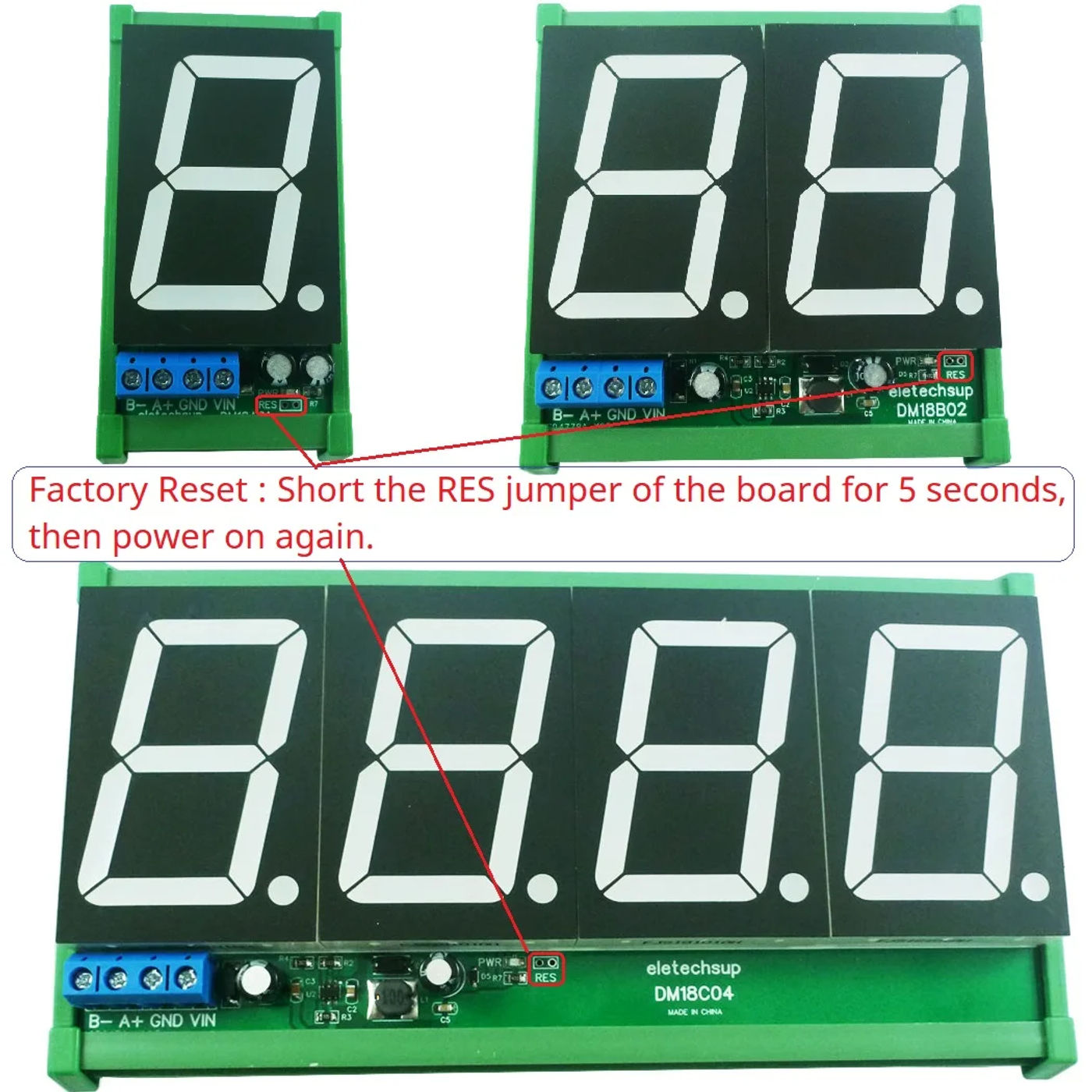

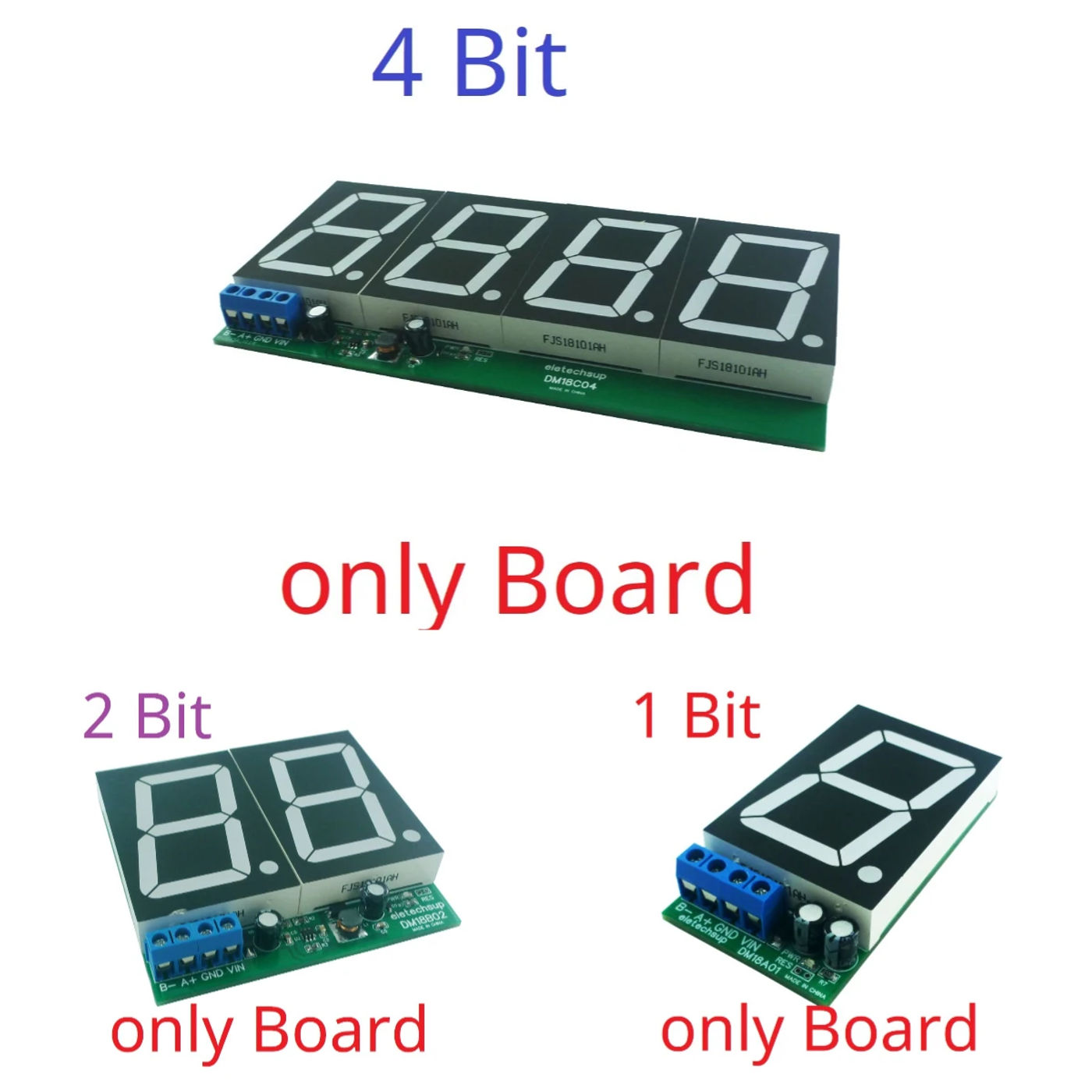

• Product Name : DC 12V 24V 1 inch 1-4 Bit ASCII Characters Letters Display Module with DIN shell RS485 Modbus RTU PLC Digital Tube LED Board Packing list: 1 PCS 1/2/4 bit DM18A01_DM18B02_DM18C04 RS485 1 Inch Digital Tube Module Description:Power delivery voltage: DC 6~28V Working current (12V): 1 Bit 10~48mA, 2 Bit 10~82mA, four Bit 10~150mA (the operating current is expounded to the brightness of the electronic tube) MODBUS RTU protocol, 03 learn command, 06 or sixteen write command Device address: 1~247, default 1, by way of editing the 485 address, as much as 247 modules can be utilized in cascade (more than 32, please use RS485 repeater) Digital tube color: crimson Digital tube digits: 1/2/4 Bit 1 inches Communication interface: RS485 Function: It can reveal numbers, ASCII characters, letters, floating-point numbers, damaging numbers, etc, and the brightness can be adjusted; it helps electronic label function, and the initial exhibit content could be set after power-on; Supported baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200 Parity: No parity (default) Even parity (Even Parity) Odd parity (Odd Parity) Dimensions (only Board ): 38 X seventy two X 12MM (1 Bit), seventy six X 72 X 12MM (2 Bit), 152 X 72 X 12MM (4 Bit) Dimensions (with DIN shell): forty four X 86 X 12MM (1 Bit), 82 X 86 X 12MM (2 Bit), 158 X 86 X 12MM (4 Bit) Weight (board only): 34 grams (1 Bit), sixty three grams (2 Bit), 119 grams (4 Bit) Weight (with DIN housing): 75g (1 Bit), 128g (2 Bit), 231g (4 Bit) Note: The module will restore manufacturing unit settings and reboot mechanically after five seconds of shorting the RES port For protocol details, please consult with the &;&;DM18A01 DM18B02 DM18C04 MODBUS RTU Command&;&; Wiring diagram: Digital Tube Size: Characters that may be displayed:

•
•
•
•
