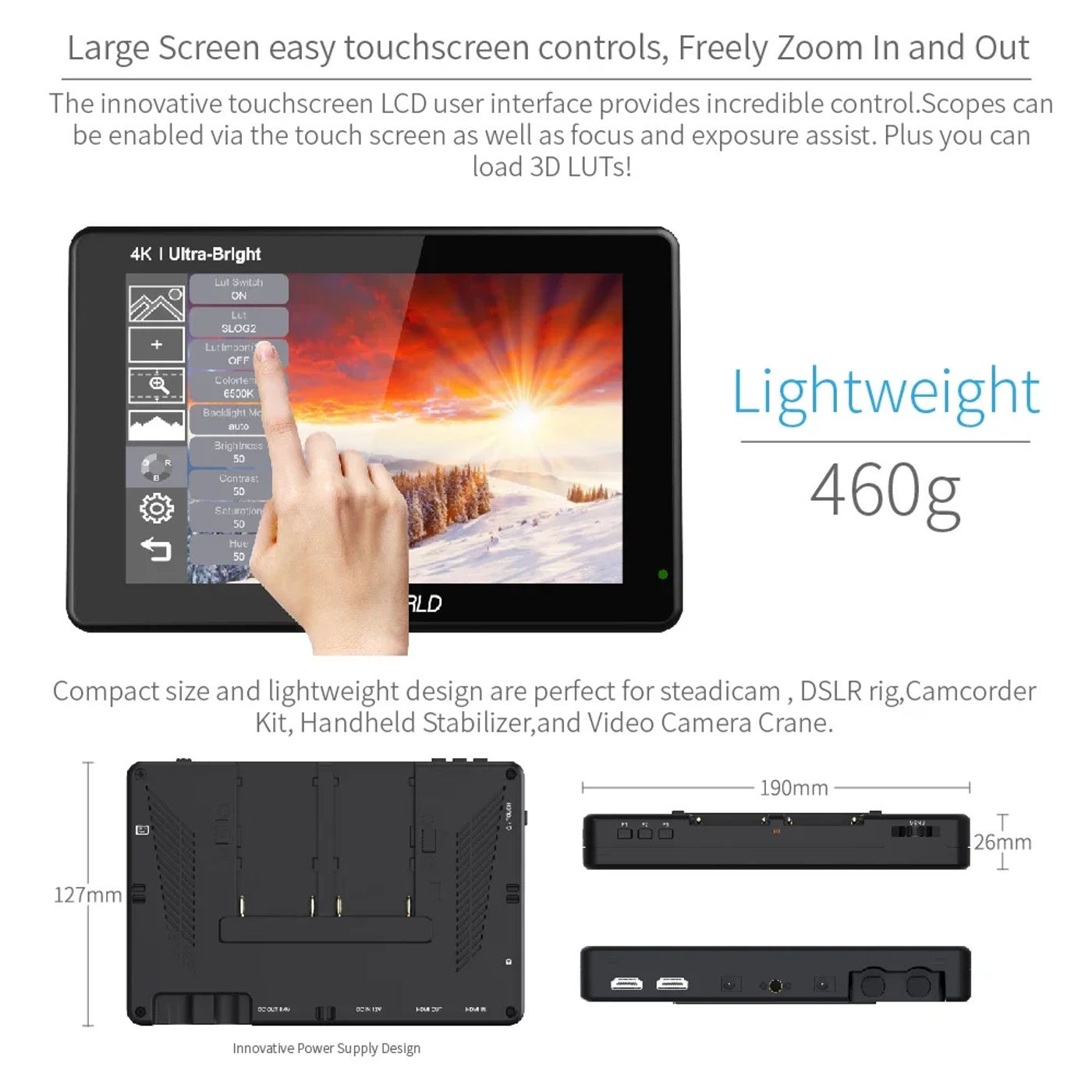

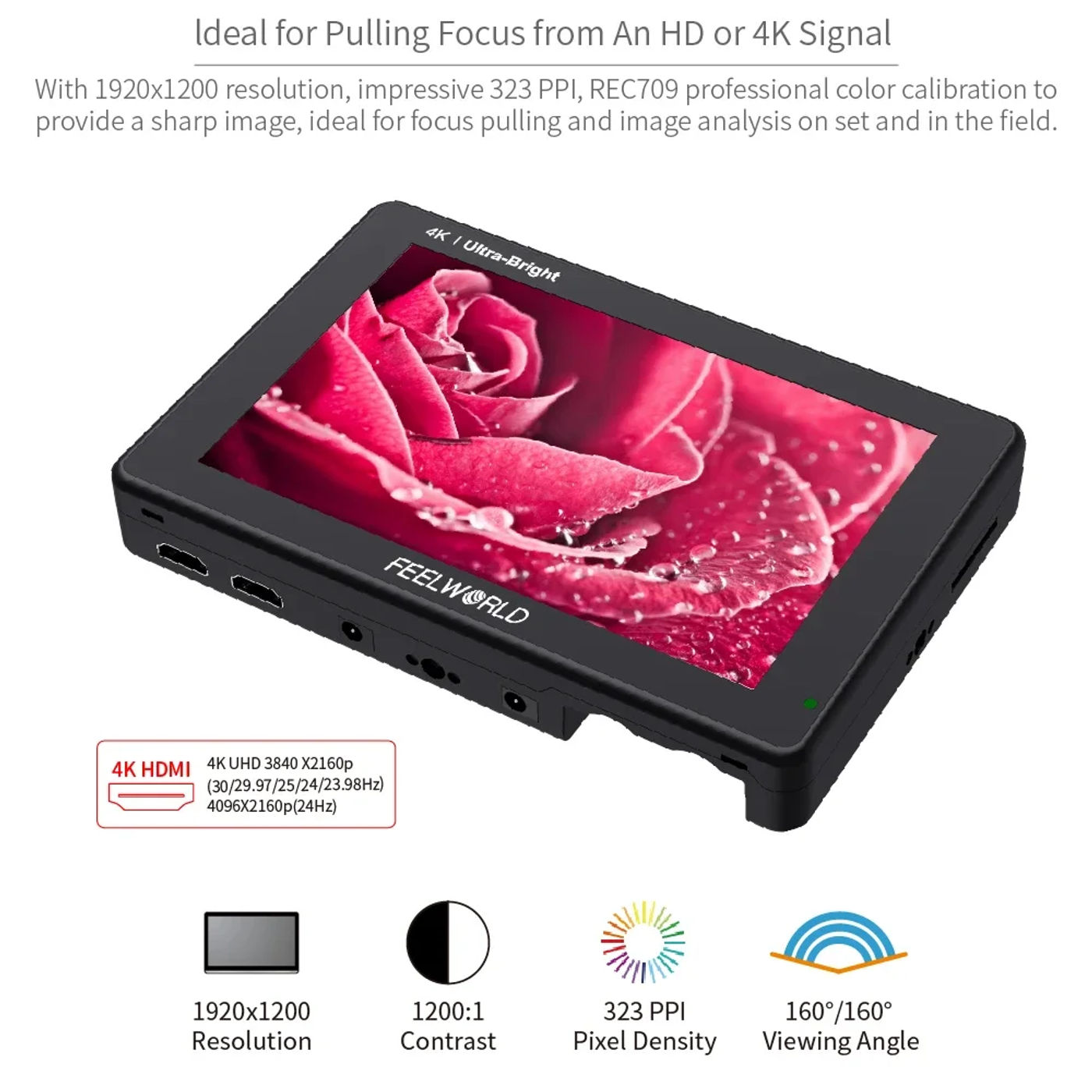

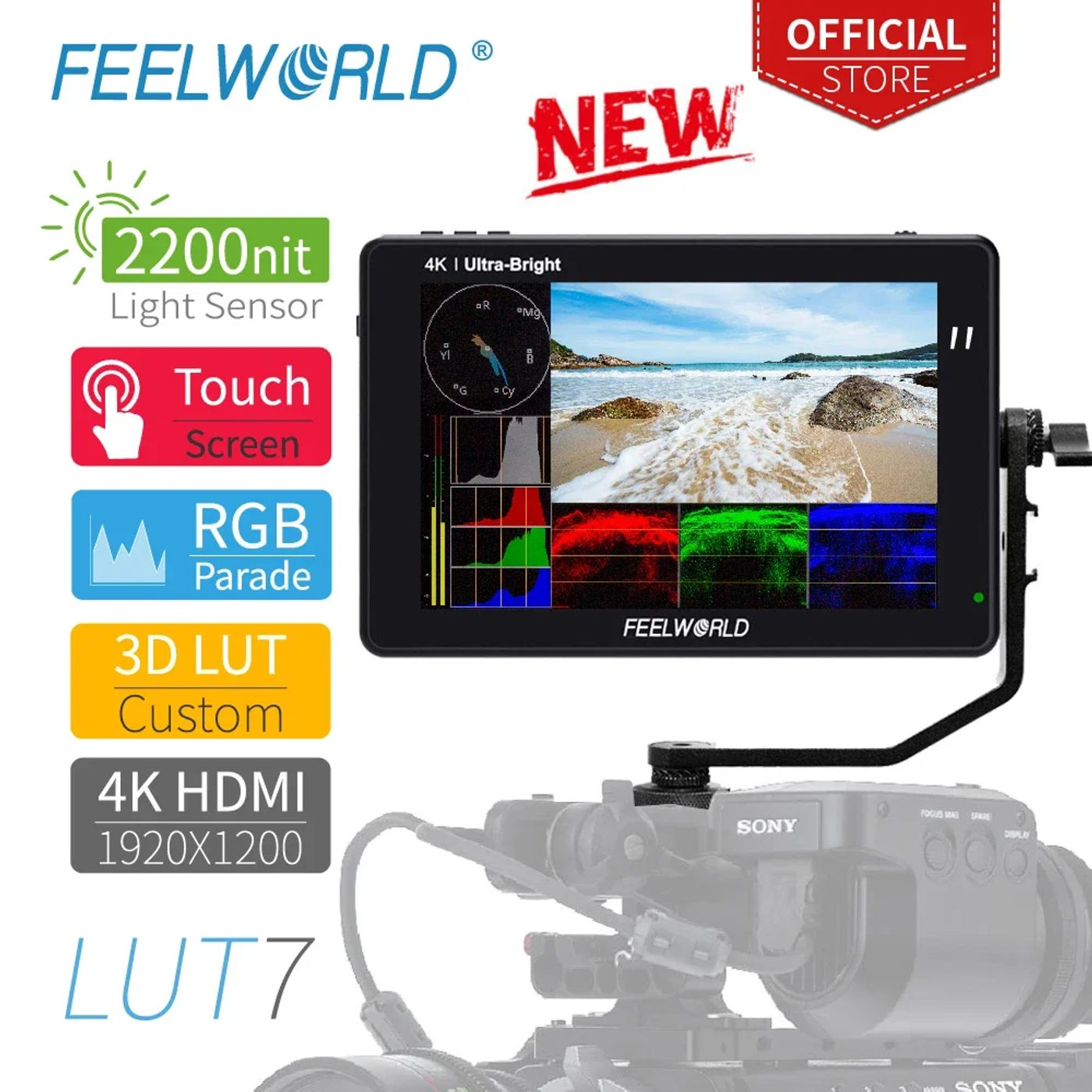

• FEELWORLD LUT7 7 Inch 3-D LUT 2200nits Touch Screen DSLR Camera Field Monitor with Waveform VectorScope Histogram The LUT7 7" 1920 x 1200 visual display unit not just has the decision and pixel density to make each shot look amazing, the excessive vivid 2200nit display screen at nearly four occasions the brightness of conventional field monitors enables you to shoot outdoors without reflections washing out your image This makes it clean to peer exterior and not using a hood, making it smooth for outside taking pictures in vibrant daytime ! Light Sensor for Auto Dimming And LUT7 has an ambient light sensor that detects ambient gentle stages and mechanically adjusts the display screen brightness It ensures that the screen is readable in different environments and continually protects your eye Increasing the display screen brightness compensates for vibrant daylight when used outdoors, while a dimmer display is more comfortable on the eyes when viewing at the hours of darkness Large Monitor with Easy Touch Controls The progressive touchscreen LCD user interface offers unimaginable control You can uses uncomplicated tap and swipe gestures for the main monitoring functions Scopes would be enabled through the contact display screen in addition concentration and publicity assist There&;s also an in depth differ of settings all controlled from the large LCD Plus you can load 3-D LUT! Load Custom three-D LUTs to Recreate Film Looks! Some cameras can output logarithmic colorspace to maintain the dynamic range, which is superb for later put up production, however when those information are viewed on a display screen they will look flat and washed out three-D LUTs clear up this concern as a result of they allow you to use a "look" to the visual display unit so you get an idea of how the completed pictures will seem like when modifying You may perhaps use built-in LOG to Rec video or upload information LUT7 permits you to load internally as much as tradition LUTs, looks or profiles at any time via the SD Card Slot and directly choose between them, holding creative intent, continuously Accurate waveform monitoring When you should analyze image high quality extra accurately than simply looking at the picture then use LUT7&;s built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram and audio phase and point displays, and get broadcast accurate waveform monitoring that displays all the things it is best to know technically about your video and audio alerts The functions would be opened separately, and also help one key to open all scope mode LUT7 is perfect for live production tracking and removes the will for separate costly scopes! More Resolution, Less Reflection The FEELWORLD LUT7 allows clean and precise area tracking and image evaluation during daytime shoots It reveals your stills and tracking content material at advanced shade fidelity and 1920 x 1200 maximum resolution on a 7-inch reveal The panel is made from optically bonded glass with an anti-reflective coating, which allows completely happy daylight hours subject tracking But what surely units it apart is its light-emitting diode (LED) backlighting, which outputs a brightness of 2200 nits and displays a 1200:1 contrast ratio and sRGB / Rec Color Gamut, resulting in exceptional display screen clarity even in intense lights situations With the computer screen exhibiting your content material at 323 pixels consistent with inch (PPI), you may shoot in broad daytime with self belief and refine your content material prompt The wide 160º viewing attitude makes it clean for multiple participants of the crew to observe it at the same time Combines Reliability with Useability The LUT7 equips filmmakers with the advantages of a massive on-camera display with out making the digicam set up feel bulky FEELWORLD LUT7 is packed with high finish tracking elements in a small, light-weight package that can be connected to virtually any camera The entrance encompasses a vast high resolution, daylight hours viewable LCD touchscreen, there are video connections at the backside and SD card slot at the side, and area for two NP-F batteries on the again The outer body facets ordinary ¼" mount aspects on the bottom, left and correct for attaching it to cameras and rigs This design element makes the LUT7 clean to connect to a digicam and simple to proportion with a group member or client on set True Color · Professional Color Calibration Use Rec colour typical FEELWORLD uses the pro Rec HD shade standard, and uses the colour calibration technology, with the professional instrument calibration at the factory, it is going to achieve computer screen calibration efficiently and get accurate colour replica easily, don't distort the color, display the genuine picture when you taking pictures video Accurate Color Reproduction FEELWORLD visual display unit assist ITU criteria and HD video Rec usual constant shade space, progressed image processing technology, so that the image obviously presented, the colour is amazingly natural, to ensure accurate coloration reproduction, to reproduce the bodily nature of shooting, enabling users to precisely compare the quality of assorted input video signals Support Touch Screen and Button Control Menu You can also get a short glance at your menu settings and contours with a straightforward faucet at the screen It additionally helps physical buttons management Tap/Rotate the wheel button for speedy alternative and function settings Tap the ability swap to show off the touch function, designed to forestall Touch Screen Operating Instruction 1 When the computer screen and touch are both on, continually click on the display twice to go into the major menu 2 Swipe up from the lowest of the display to open the shortcut menu and click on the corresponding menu to open or set the corresponding function Double-click the shortcut menu operate and select the function atmosphere with the "<" or ">" key 3 On the left facet of the screen (1/2 split screen), you may directly alter the brightness of the display screen backlight; on the correct side of the display (1/2 cut up screen), you might instantly alter the volume 4 Click any area beside menu to exit the menu Simple OS, Sophisticated Shots Our bendy OS is packed with an intensive suite of scopes, all 1-touch away and straightforward to use The Video OS entails tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, concentration peaking, zoom, zebra, false color, frame guides, secure area, etc) together with a flexible three-D LUT implementation (use integrated LOG to Rec video or add files) and options for anamorphic de-squeeze monitoring Video Analysis Assistant Pattern Waveform / Vector scope / Histogram Waveform This predominant function assists with the calibration of pro video cameras It shows the final brightness of the picture aiding the video legitimate in correcting exposure The waveform characteristic additionally checks the evenness of the lighting when lighting fixtures a chromakey or background Vectorscope Vector scope shows how saturated the picture is and the place the pixels in the image land at the colour spectrum It can also be displayed in varied sizes & positions, that permits customers to monitor color gamut differ in real time RGB Histogram RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms Suitable for HD-SDI and HDMI signal tracking Brightness Histogram Peaking Focus Assist False Color Zoom In (100%～300%) Image magnification is HD sign in any part, an amplification for top of the range close-up The contact panel can help you zoom in quickly, zoom out and circulation the image after zooming in Connect to Consumer or DSLR Camera With 4K HDMI inputs, you possibly can join it to person digital camera or DSLR camera You additionally get loop thru outputs, so that you can display reside video or develop reveal on external monitors or projectors with embedded audio You also can visual display unit audio utilizing the 3 stereo headphone jack For power, there&;s a 12V DC enter and two NP-F battery slots 4K HDMI Loop-out The LUT7 has 4K HDMI in and loop-out, permitting it not to only show dwell signals, but additionally send them out to different monitors concurrently It&;s the flexibility to display live photograph on a number of displays without delay whereas nonetheless conserving the original video high quality Connect to Wireless Transmitter Transmission to film workforce director monitoring on the similar time Without the cable more bendy to transition between scenes effortlessly for out of doors capturing Connect to Director Monitor Display reside picture on multiple exhibits concurrently Power Your DSLR or Mirrorless Camera The FEELWORLD LUT7 is an ideal camera-top monitor for DSLR and mirrorless digital camera shooters Because the LUT7 presents auxiliary strength out; permitting shooters to power their cameras With a battery adapter cable (Optional), the LUT7 extends digital camera run-time, whereas offering a more usable exhibit Attach to Cameras, Equipment Carts or Hang It Anywhere The standard sized mounting facets make it clean to mount and fit with 1/3 social gathering rigging kit There are three mounting facets situated on the bottom, left and appropriate Using the lowest 1⁄4 inch hole, you might securely connect it to the end of your digicam because the ideally suited viewfinder! The 1⁄4-inch holes at the left and appropriate sides could be fixed on other kit with magic arm, bracket, etc, for the whole staff to monitor the display screen Convenient Mounting - Tilt Arm Every LUT7 visual display unit will ship with a chilly shoe mounted Tilt Arm Shooters may have a secure method to position their video display while holding a low profile • Allows the LUT7 visual display unit to rotate 360 degrees for viewing comfort • Secure and lightweight mounting by way of shoe mount or 1/4"-20 thread • Includes a shoe mount of its personal for equipment like a microphone, LED light, or wireless receiver, and so on Innovative Power Supply Design The new design additionally aspects upgraded batteries and supports two ordinary Sony L Series batteries You get 2 rear battery slots for mounting Sony L Series batteries, so that you have satisfactory power for the brighter monitors Plus with 2 battery slots, you might change batteries without interrupting monitoring! A 12v universal energy delivery can be utilized on studio or on location ● Compatible Sony Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70 QM51D QM51 FM71 FM70 collection Noted: Battery and power twine aren't included They need to be obtained seperately Standard Accessories: 1× Mini/ Micro HDMI to HDMI Cable 1× Tilt Arm 1× Manual

•
•
•
•
•
