Descriptions

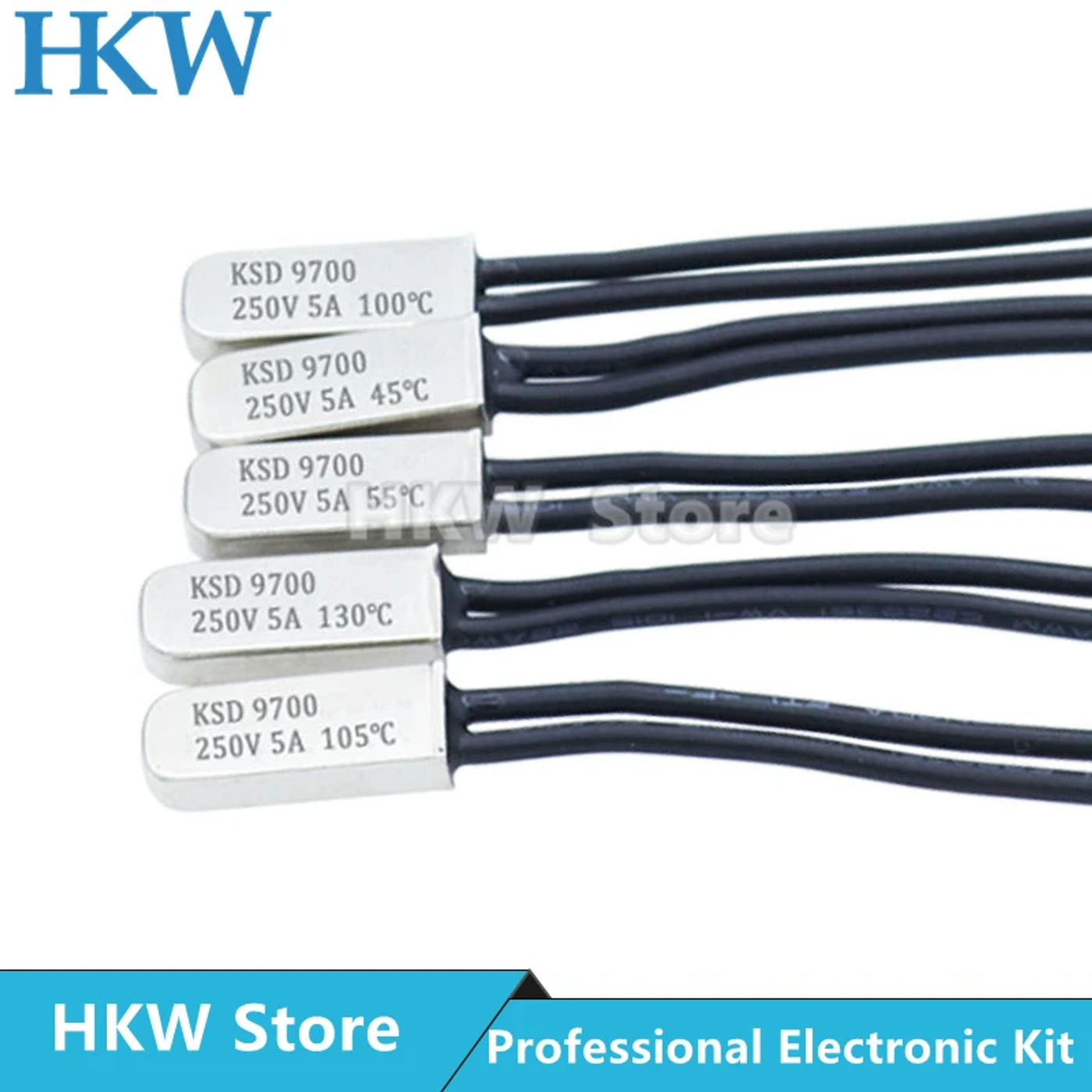

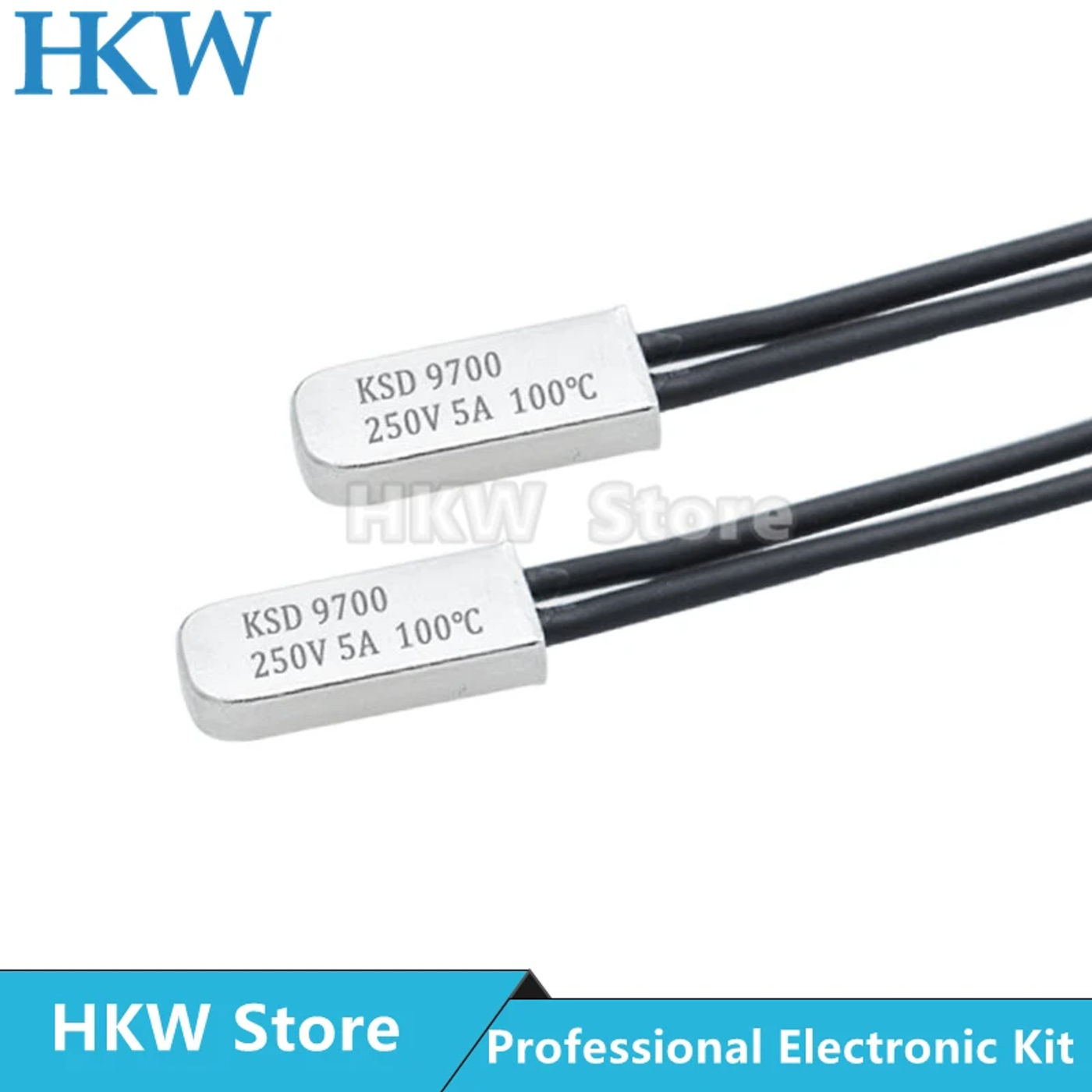

• Specifications Rated Voltage: AC250V 50～60Hz Rated Current: 5A of Resistive Load Switch Type and Number of poles: 1 pole opener IP-Protection Degree: IP00 Action Type: 1A Operation Cycles: ten thousand cycle Insulation material PTI value:175V Resistance of Contact:≤50mΩ(original state) Resistance of Insulated:>100MΩ(DC500V normality) Test Voltage : ≥ 1250V/1min(nomality)1 or 2 Temperature Control Switch Model : KSD9700 Material : Metal case Contact : NC(Normal Closed)/NO(Normal Open) Temperature : 15°C~155°CRated Power : 250V 5A Lead Wire Length : 7 / 2" Head Dimension : 20 x 7 x 3/0" x 0" x 0"(L*W*T)Precautions for use:1 Do no longer deform or crumple the casing throughout installation!2, this product isn't appropriate to be used within the air temperature, just for touch temperature! (Can be fixed by way of tie wire, iron wire, solving seat or 704 silicone rubber)3, the steel case is charged, not appropriate for working in water The plastic case should not be immersed within the insulating seal when it is placed in the water When the product is installed, the temperature management switch should be near to the mounting surface of the managed appliance So as to not be touchy to temperature

•
•
