Descriptions

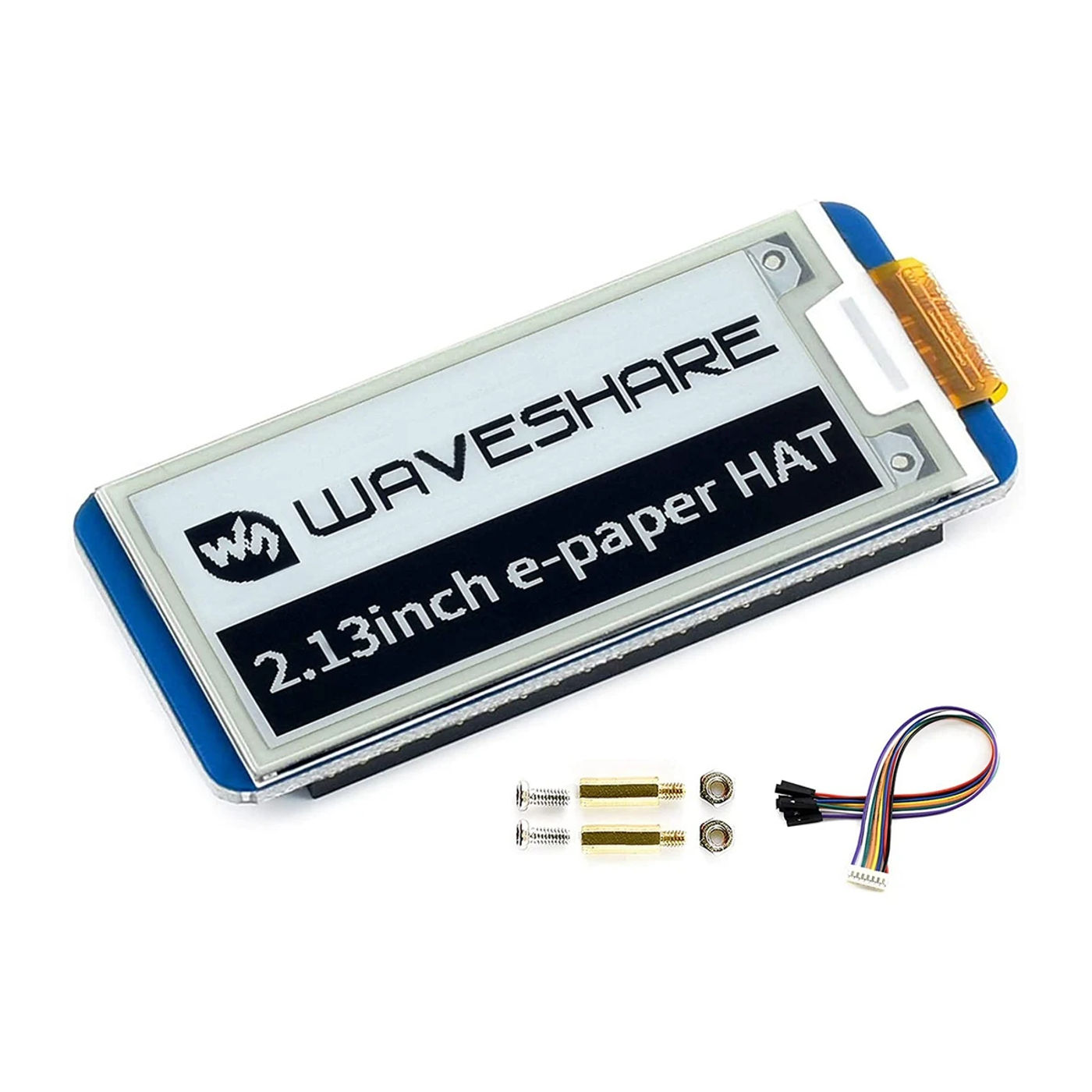

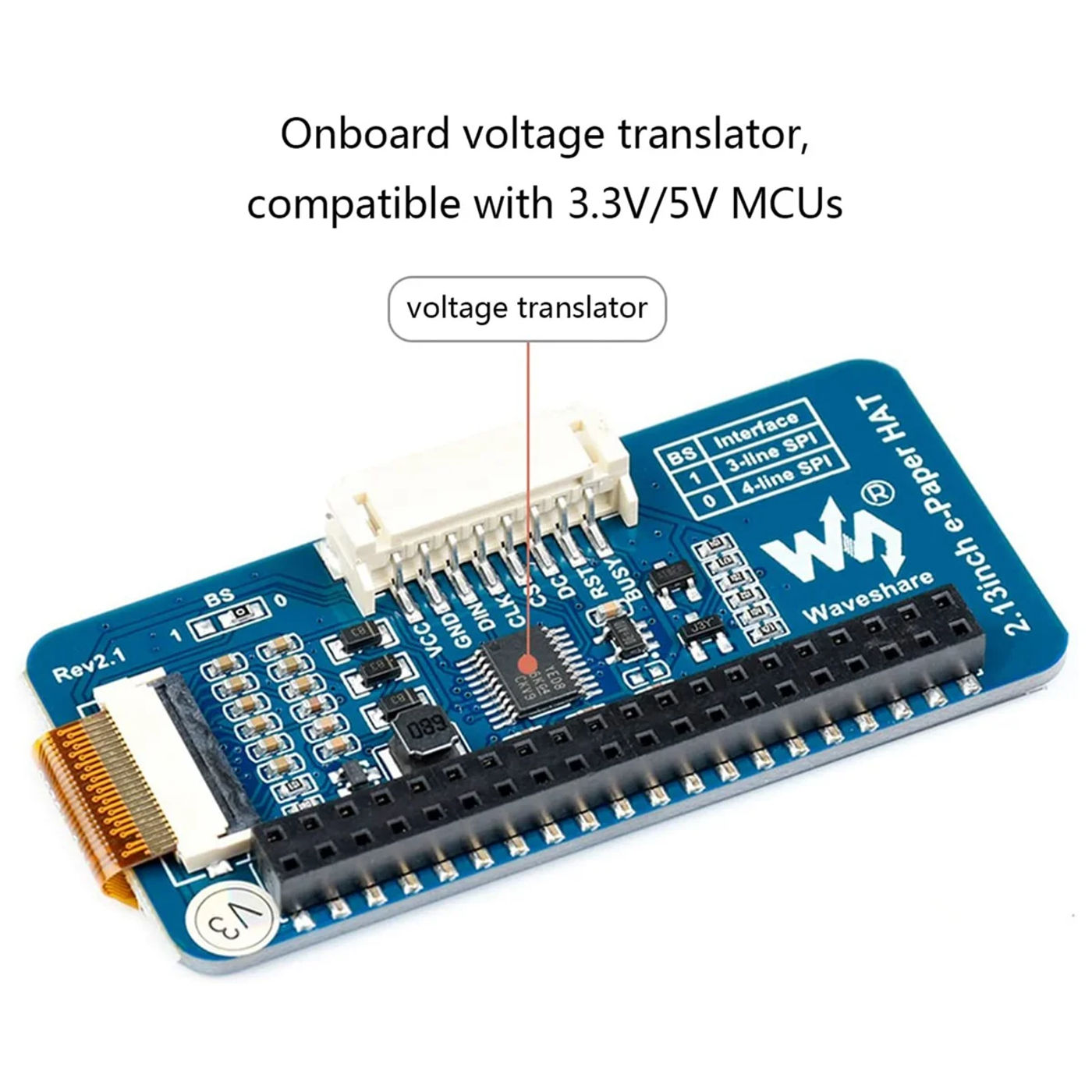

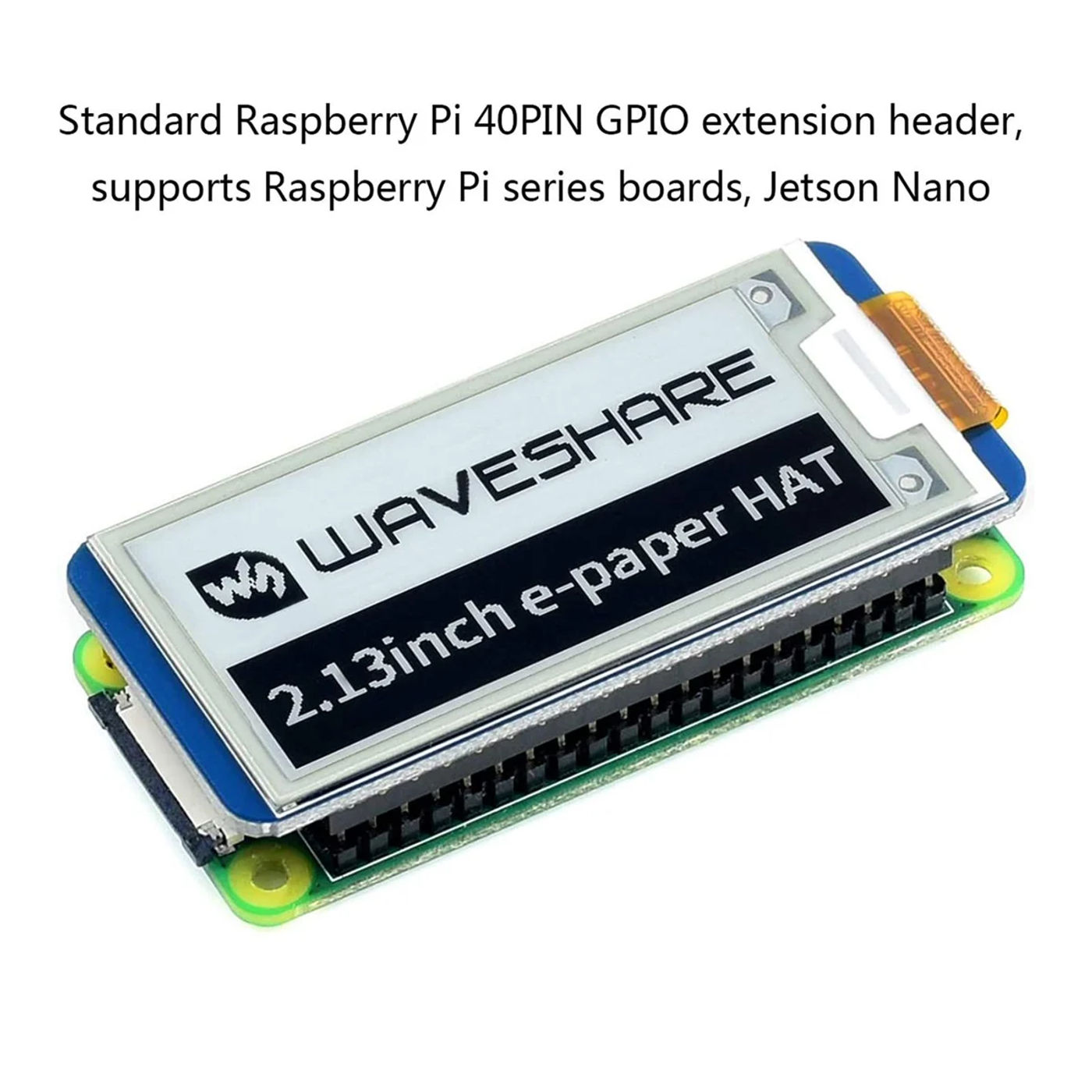

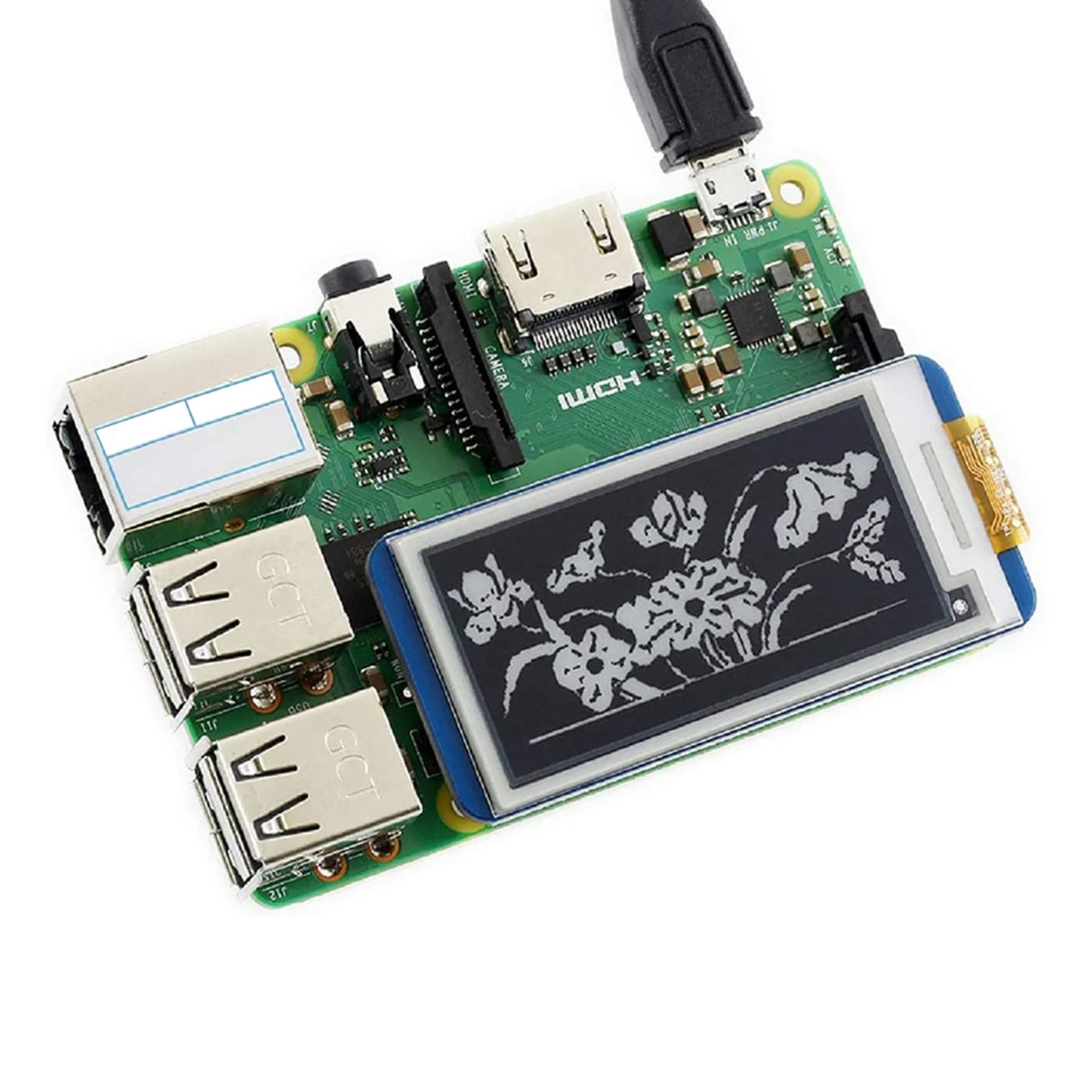

• This is 2 E-Ink display HAT for Raspberry Pi,250x122 resolution, with embedded controller, speaking through SPI interface, supports partial refresh. Due to the advantages like extremely low energy consumption, extensive viewing angle, clear show with out electricity, it is a ultimate choose for applications resembling shelf label, enterprise instrument, and so on. No backlight, keeps exhibiting final content for many years even when power down Ultra low power consumption, if truth be told energy is barely required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, helps Raspberry Pi series boards, Jetson Nano. Preserved solder pads for SPI interface, for connecting with different controller forums like Arduino/Nucleo, etc voltage translator, well suited with 3/5V MCUs Operating voltage: 3/5V. Interface: SPI. Outline dimension: 65mm x 30. Display size: 23 x 48. Dot pitch: zero x 0. Resolution: 250 x 122. Display color: black, white. Grey level: 2. Partial refresh time: 0. Full refresh time: 2s. Refresh power: 26(typ.). Standby power: 170°. color:Blue Material:PCB Package Contents: 1 x 2 e-Paper HAT 1 x RPi screws pack 1 x 20cm 8Pin Cable Only the above package content, assorted item are not included. Note: Light capturing and sundry reveals can cause the colour of the thing in the photograph a little bit diversified from the genuine thing. The measurement allowed error is +/- 1-3cm.

•
•
•
•
•
