Description

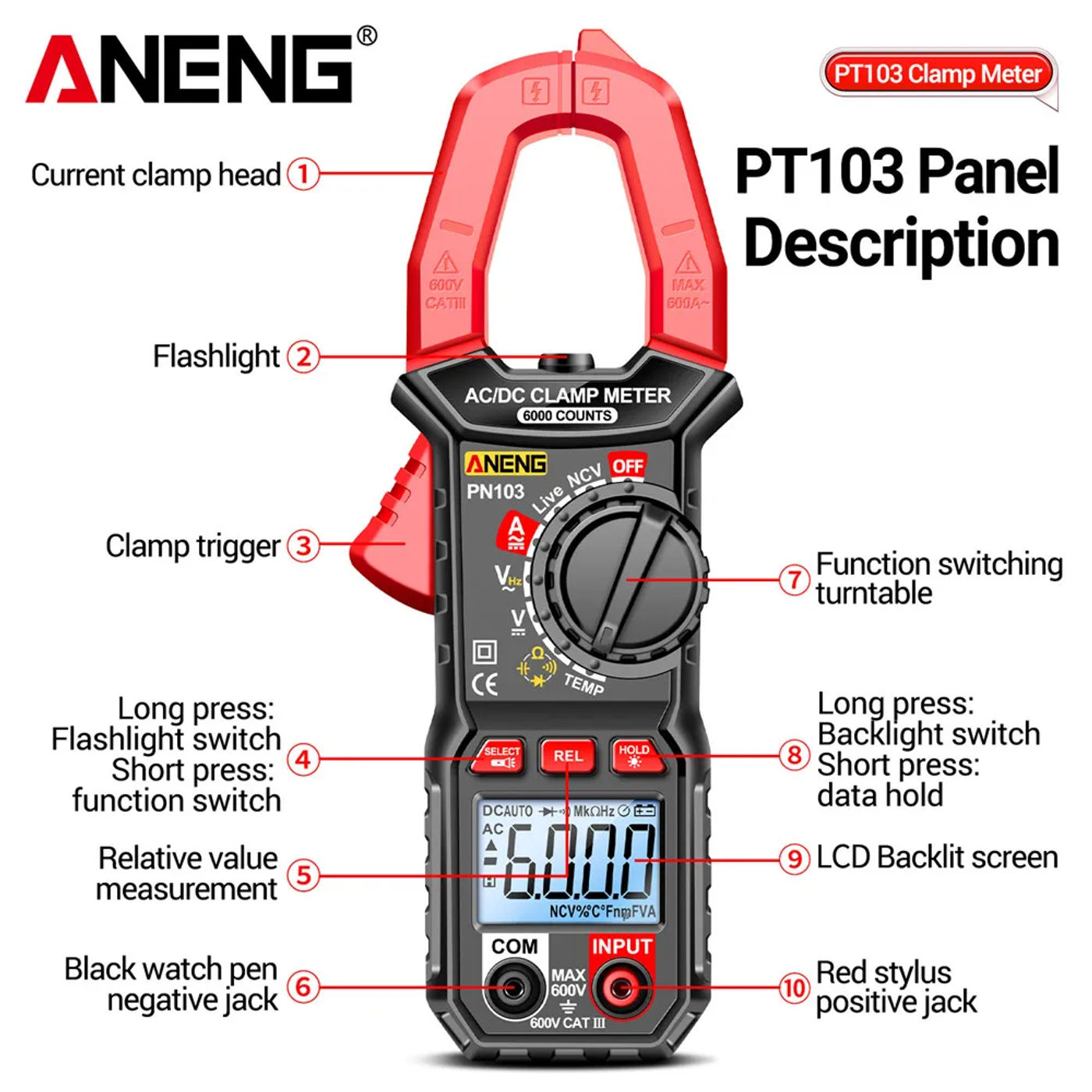

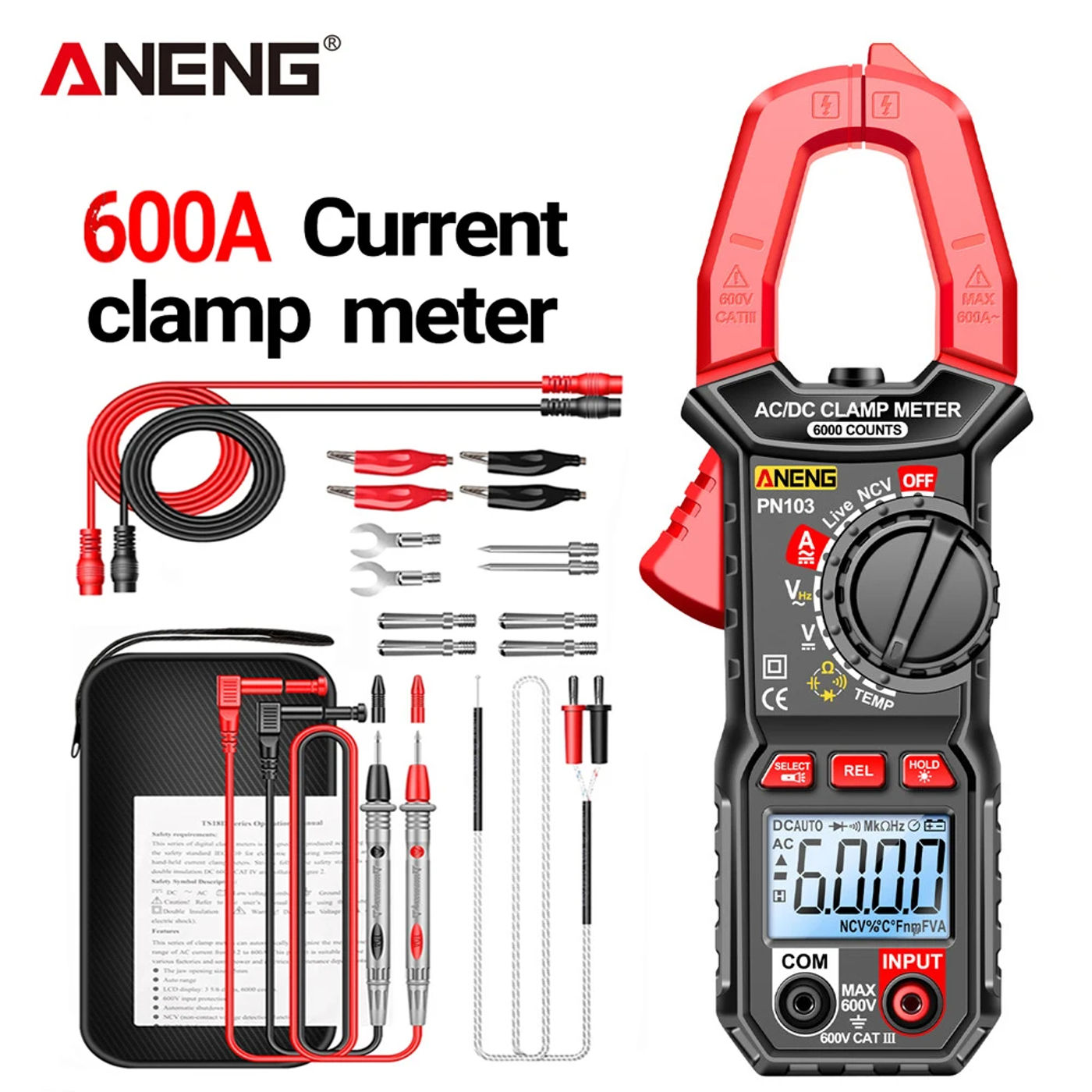

• ANENG PN103 AC/DC Current Clamp Meter 6000 Counts True RMS Digital Multimeter 600A Clamp Meter A: 1-1 This sequence of clamp meters can automatically respect the measurement vary of AC current from 0 to 600A 1-2 Overload protection during the range 1-3 Max voltage between measurement terminal and ground:700V DC or 600V AC 1-4 Max value:6000 digit 1-5 Overrange display: The best possible role shows"OL"; 1-6 Low voltage display:"Low voltage image "symbol appears; 1-7 Power: AAA 1 battery(not include); B: Function Range Accuracy AC/DC Current 60A/600A +-(2%+10) DC voltage 600mV/6V/60V/600V +-(0%+5) AC voltage 6V/60V/600V +-(1%+5) Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ +-(0%+3) Capacitor 10nF/100nF/1uF/10uF/100uF/1mF/60mF +-(2%+20) Temperature (0~250)℃ - Frequency 10Hz/100Hz/1kHz/20kHz +-(1%+5) Diode:yes NCV:yes Line on/off:yes date:yes Auto:yes C: 1* PN103 Clamp meter 1* test pen 1* temperature probe 1* instruction manual

•
•
•
•
•
