Description

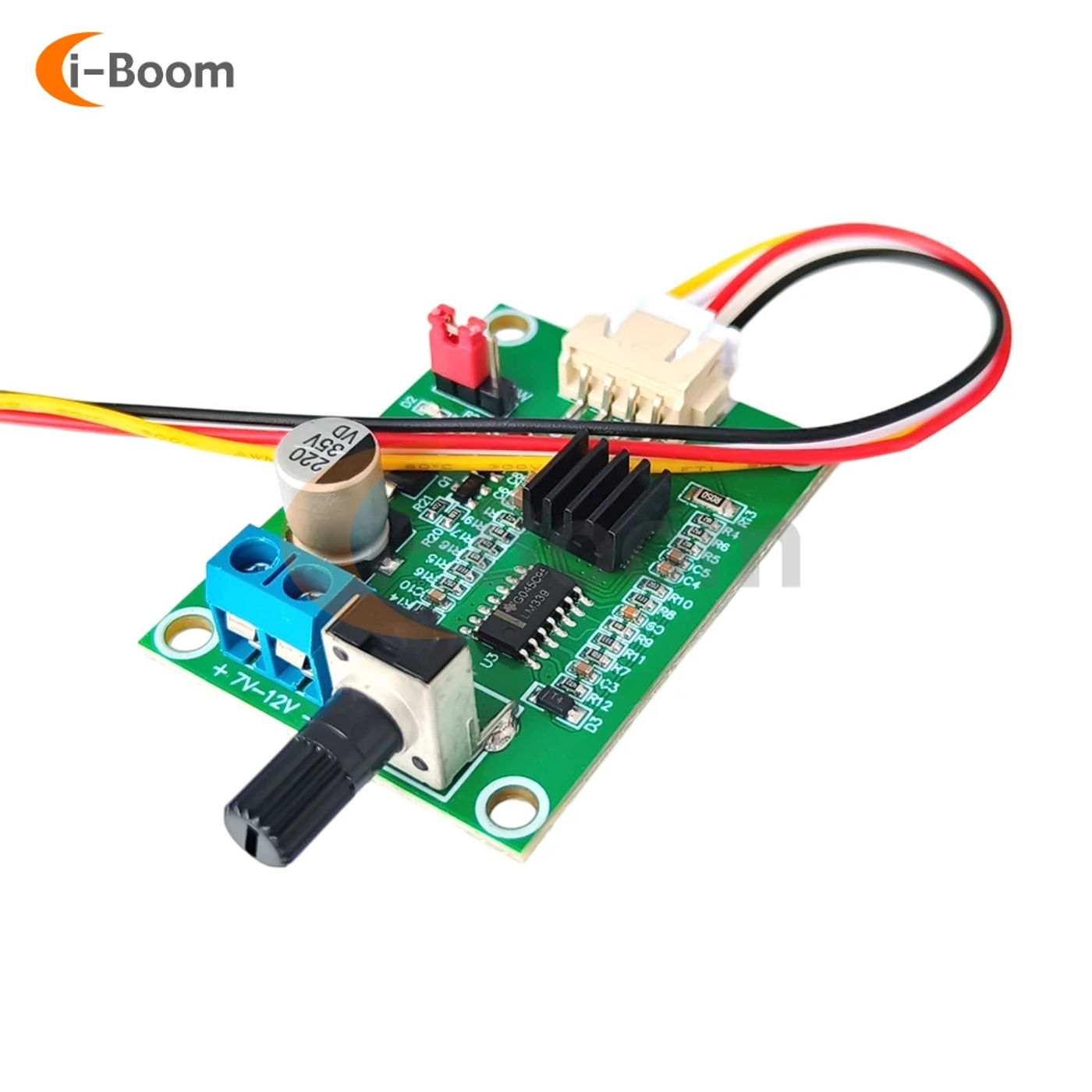

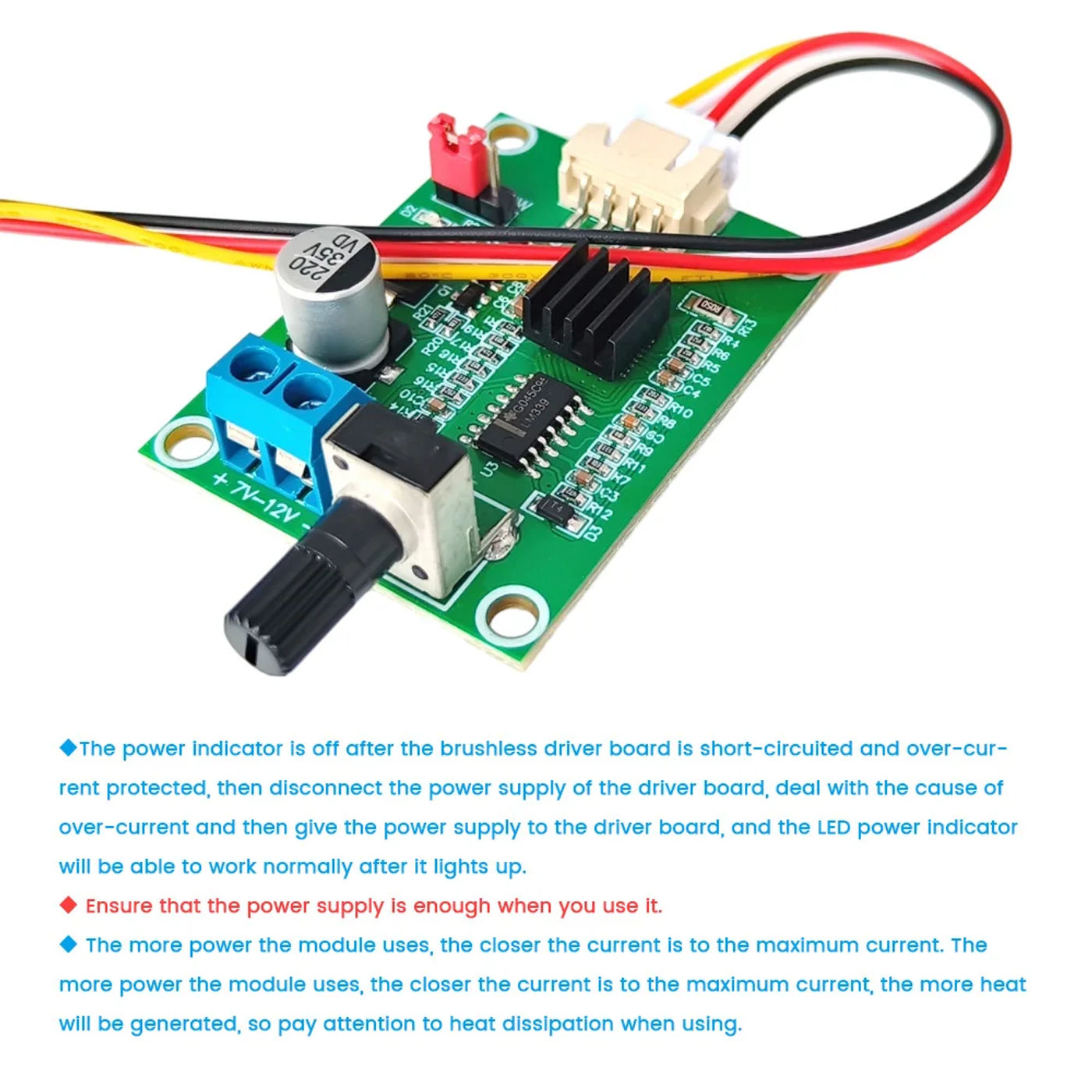

• Features: 1 Using high-quality materials, making certain product high quality 2 This motive force board can drive micro 3-wire or 4-wire Hall loose brushless motors equivalent to hard disk brushless motors and optical force brushless motors 3 Exquisite and compact appearance, with beautiful arrangement of substances 4 The product comes with voltage reverse protection, overcurrent protection, brief circuit protection, etc, making it more secure to apply five Widely used in electric cooling fans, desktop cooling fans, server cooling fans, small water pump motors, and so on Parameter: Working voltage: DC7-12V Working current ≤ 1% -100% Speed control steering control: Yes Reverse protection: Yes Overcurrent protection: Yes Overcurrent protection: Yes Module interface: +7V-12V -: Input 7-12V strength supply, high quality and unfavorable consistent with the display screen printing label on the board W1: Speed control potentiometer knob CW CCW: Motor forward and motor reverse set aspects UVW CON: Three twine brushless and 4 cord ordinary ground, delivered with 15cm wire Attention: 1 After the short circuit overcurrent protection of the brushless motive force board, the flexibility indicator gentle turns off At this time, the ability supply to the driver board ought to be bring to a halt After handling the reason for the overcurrent, the ability supply to the driving force board can be restored Once the LED power indicator mild is on, it is going to paintings usually 2 The increased the ability used by the module, the closer the current is to the maximum recent The warmth will increase, please pay attention to heat dissipation when utilizing Package include: Motor force module * 1 15CM terminal twine * 1

•
•
•
•
•
