Description

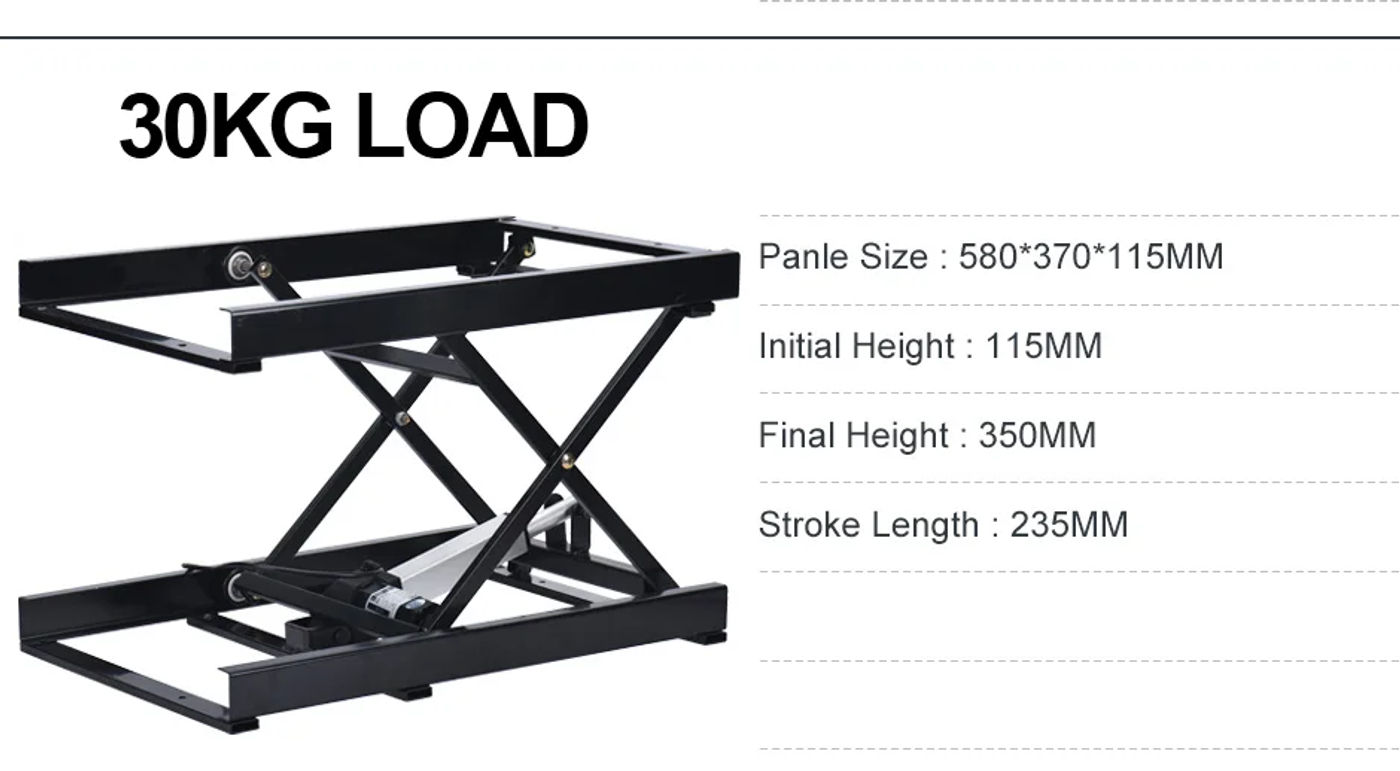

• Electric Motor Scissor Lift Mechanism Furniture Platform Table Remote Control Height Adjustable Smart WIFI eWelink APPTECHNICAL PARAMETERS: Model C1-25 60KG load C1-40 30kg load C1-120 120KG load C1-150 150KG load Load Pull Capacity 60KG/250N 30KG/400N 120KG/1200N 150KG/2000N Linear Actuator SRA3000L-127MM SRA3000L-132MM SRA6000-150MM SRA8000-150MM Min Height 100MM 115MM 210MM 195MM Max Height 370MM 350MM 580MM 680MM Size(L * W * H) 400*320*120MM 580*370*115MM 590*435*210MM 760*420*195MM Weight 6KG 8KG thirteen 16KG Surface Treatment Electrophoretic Black Speed 13/S 20MM/S 10MM/S 10MM/S Operating Temperature 0°C~+40°C IP Grade IP43 Limit Switches Built-in(Except the Hall Model) Product Description: The electrical lifting platform is especially composed of electric electrical actuators and controllers, telescopic metal frames and other elements According to diverse brackets and electrical linear actuators, diversified load capacities would be achieved It has low operating noise, wide telescopic range, stable operation, and external It has the characteristics of gorgeous appearance, easy set up and convenient operation With the controller, it can notice any height adjustment of the lifting column within the lifting role to fulfill the needs of free adjustment of the lifting height of clever furnishings products Electric lifting platform is a brand new sort of electrical lifting device developed to realize the lifting of varied clever furnishings operating platforms The broad electrical lifting platform can load 150KG, can be utilized for the lifting of the platform, cargo handling, etc, can be used for the lifting of espresso table, small load step elevator, and so on The preliminary top of the electric lifting platform is much smaller than the electrical lifting column Widely used in sensible furnishings fields equivalent to electric coffee table, sensible lifting kitchen desktop, clever lifting desk, smart lifting lecture table, sensible lifting writing desk, wheelchair lifting table, and so on Dimension:C1 1 Section C2 2 Section Motor Controller

•
•
•
•
•
