Description

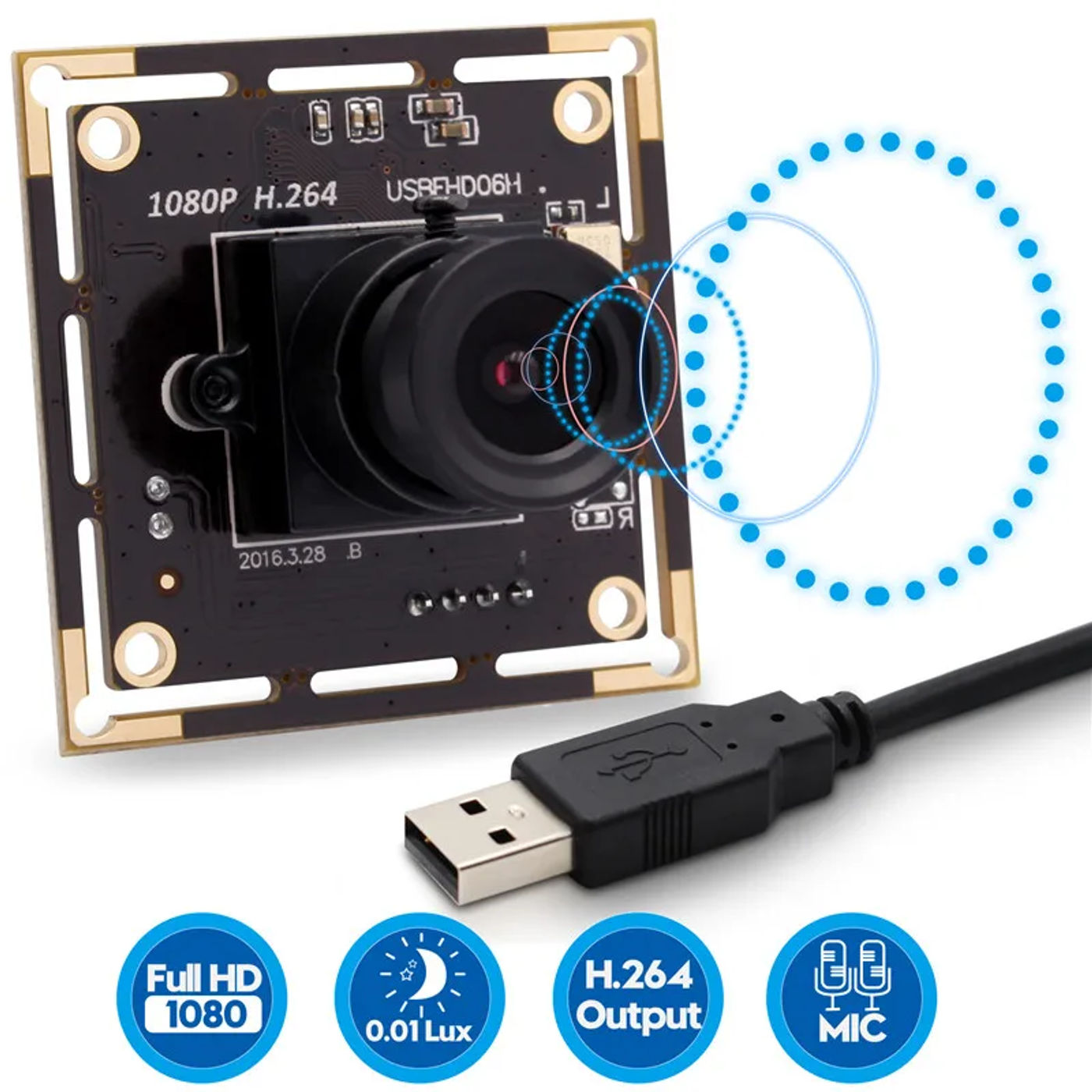

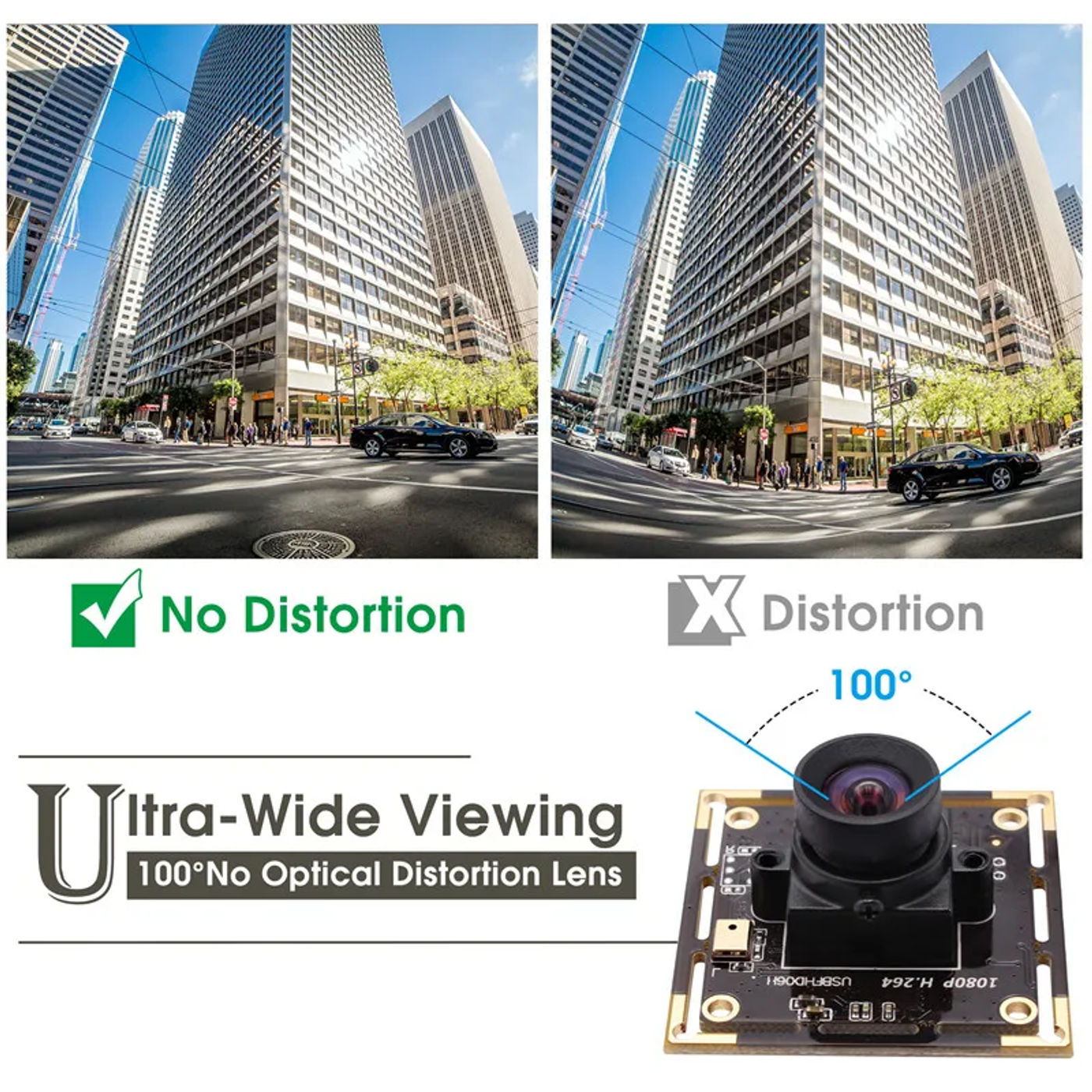

• 48MP Autofocus 16MP Autofocus 1080P 60fps Syn Dual lens Global Shutter 1080P 90FPS ELP 0 Low Illumination H complete HD 1080p usb digital camera module with sony IMX323 sensor Package Including: 1pcs usb digital camera module 1pcs 1m usb cable 1pcs consumer guide ------------------------------------------------------------------------ * Sensor: zero low illumination Sony IMX323 sensor * Full HD 1080P: Resolution 1920x1080 * Frame rate: 1080P 30FPS * H Compression: With H High profile compression Save much storage space, throughout video recording * Built-in Microphone: Come with microphone on the board, can record audio * Low illumination: 0 Lux low illumination, works welll in low gentle concern * HD Lens & Lens Changeable: HD 100 degree no distortion lens, HFOV about 81 degree (Many different lens optional) * Parameters Adjustable: Set up Exposure, White Balance, Hue, Brightness, Contrast, Saturation, Compensation as requests * USB Protocol: High velocity USB 2 * Mini Size: 38x38mm (32x32mm compatible), small size, nicely embedded in forms of sensible machines * UVC: Free driver, Plug & Play * OTG support: with OTG function, can connect wise phone, pill by way of OTG cable * Operating System: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi * Multi Software compatible: Amcap, USB Camera, iSpy, Webcam Viewer, OpenCV, VLC, V4L2, Photo Booth, Quick Time, CameraFi Why Use H camera? 1 Has increased coding performance 2 Can present fantastic video photographs on the low bit price as well as the low bandwidth 3 H can paintings in real-time communication application low-latency mode, corresponding to Video Conferencing systems, Online video storage and streaming, video game consoles, mobile video through 3G/4G Model ELP-USBFHD06H-L100 (undistort, FOV 81) Optional Models ELP-USBFHD06H-L21 (2 FOV 105) ELP-USBFHD06H-L28 (2 FOV 104) ELP-USBFHD06H-L36 (3 FOV 84) ELP-USBFHD06H-L60 (6mm FOV 51) ELP-USBFHD06H-L80 (8mm FOV 41) ELP-USBFHD06H-L12 (12mm FOV 24) ELP-USBFHD06H-L170 (fisheye, FOV a hundred thirty ) ELP-USBFHD06H-L180 (fisheye, FOV >180 ) ELP-USBFHD06H-H100 (undistort, FOV 95) ELP-USBFHD06H-H110 (undistort, FOV 109) ELP-USBFHD06H-H120 (undistort, FOV 120) Sensor Sony IMX323 Lens Size 1/2 inches Pixel Size 12 mm picture discipline 2000(H)X1121(V) approx 2 M pixels Max Resolution 1080P Compression layout H /MJPEG /YUV2（YUYV） Resolution & body rate 320X240 Mjpeg/YUV/H 30fps 352X288 Mjpeg/YUV/H 30fps 640X360 Mjpeg/YUV/H 30fps 640X480 Mjpeg/YUV/H 30fps 800X600 Mjpeg/H 30fps YUV 15fps 1280X720 Mjpeg/H 30fps 1920X1080 Mjpeg/H 30fps S/N Ratio 42dB Dynamic Range 86dB Sensitivity 5/lux-sec@550nm Mini illumination zero 01lux Shutter Type Electronic rolling shutter / Frame publicity Connecting Port kind USB2 High Speed Free Drive Protocol USB Video Class（UVC） Support OTG Protocol USB2 OTG AEC Support AEB Support AGC Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure Lens Parameter Diagonal 100 diploma no distortion lens (FOV about 81 degree, many different lens optional) Digital audio High qualitydigital MIC, support single, twin channel LED board energy connector Support 2P-2 socket Power supply USB BUS POWER 4P-2 socket Power delivery DC5V Operating Voltage 140mA~190mA Working current -10～70℃ Working temperature -20～85℃ Board size/Weight 38X38mm（Compatible 32X32mm）/ about 30g Cable Standard 1M / 2M,3M,5M optional Operating system request Win7 Win8 Win9 Win10 Win11 etc Linux 2 or above Android 4 or above Mac OS Attention !!! -Full HD 1080P USB Camera -Low light zero low illumination Camera Module -Compression: H/Mjpeg/YUY2 -UVC, Plug & Play -Wide angle Camera with 100 diploma no distortion lens, FOV about 80-85 diploma -Built-in microphone, with audio operate -Mini micro size, can effectively embedded in varieties of wise machines 38x38mm (Remove the edge, get 32x32mm) -Full HD USB Camera 1920x1080 -1080P High definition -With no distortion lens, undistorted image -Diagonal view angle: 100 degree, Horizontal view angle: 80-85 diploma -Get much genuine effect -With Low illumination IMX323 sensor, can work in low gentle problem -Low light, appropriate for particular application -With Mic, can checklist the audio -Full HD 1080P -H, better for recording video (Compare to Mjpeg, can save a lot volume, if listing the video) -H Compression -Saves up greater than 50% space for storing than Mjpeg -Support residing streaming software, Skype, Zoom, Facetime, Youtube -Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2 -Many operating techniques compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS -Can i order pattern ? Sample order is available, with out number restrict MOQ for bulk order:100pcs Will get a chit price -Any other lens non-obligatory ? Yes ,we have diverse view attitude lens non-obligatory 2/2/3/6mm/8mm/12mm 3 pinhole lens FOV=170/180 diploma fisheye lens No distortion lens 2 megapixel varifocal lens -Do you supply the software? Our engineers are mainly focus on hardware, we don&;t develop the professional multifunction application However we will supply you the easy preview application on your checking out --General application for USB Camera: Blue iris, ContaCam, Yawcam, iSpy, Motion Eye OS AMCAP, Webcam Viewer, IP Camera Viewer, ZoneMinder V4L2 video for Linux, Camerafi, VLC Player -Certificate All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL

•
•
•
•
•
