Description

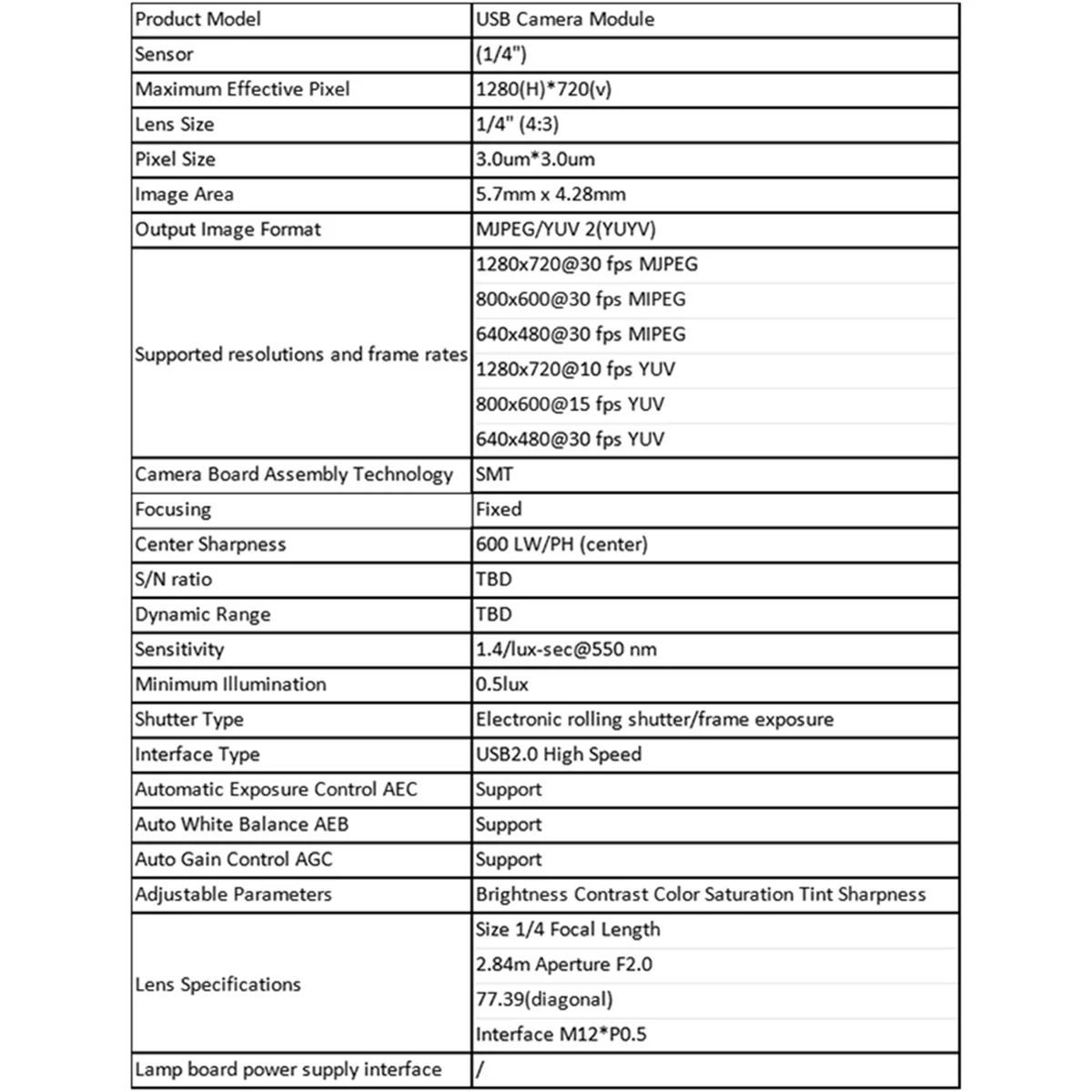

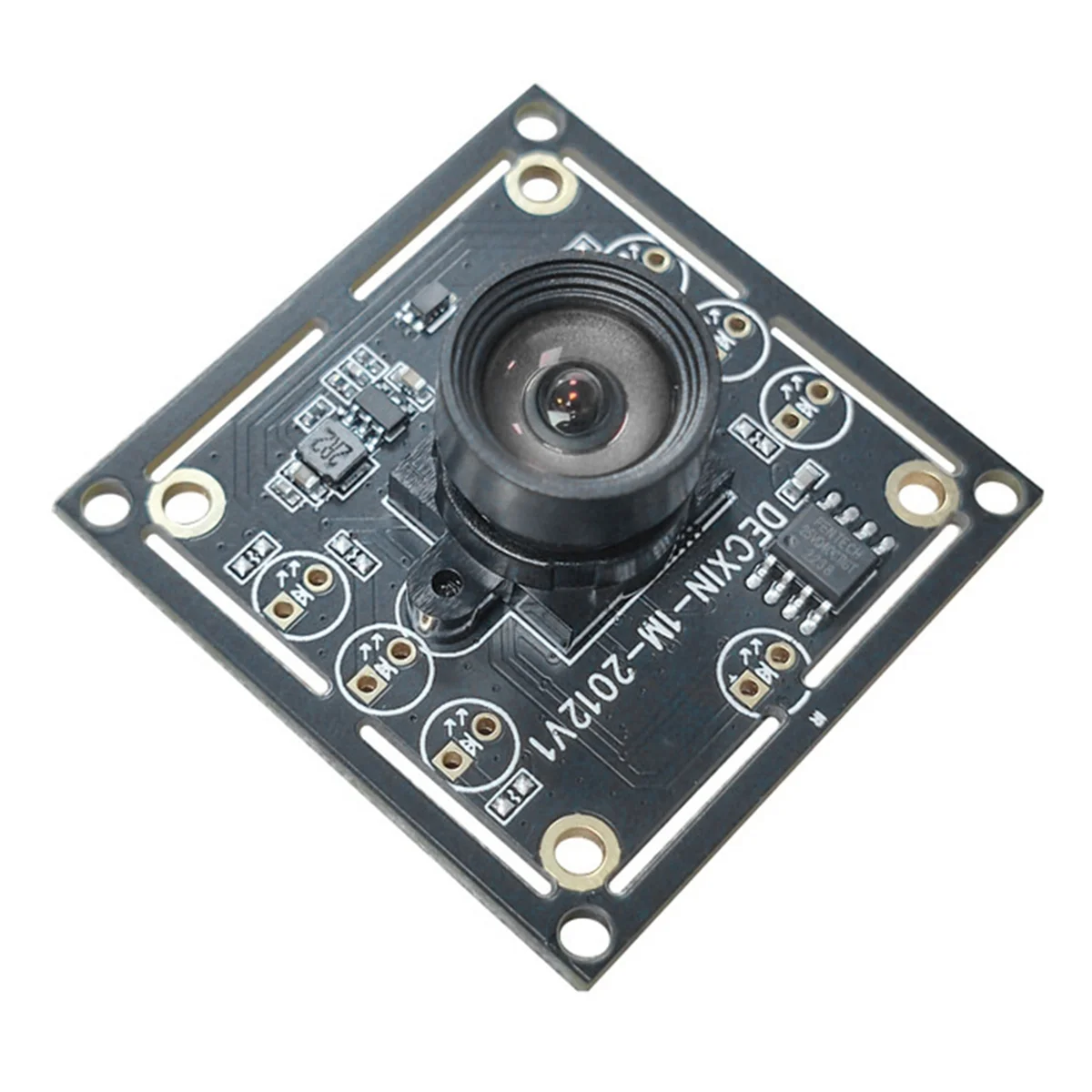

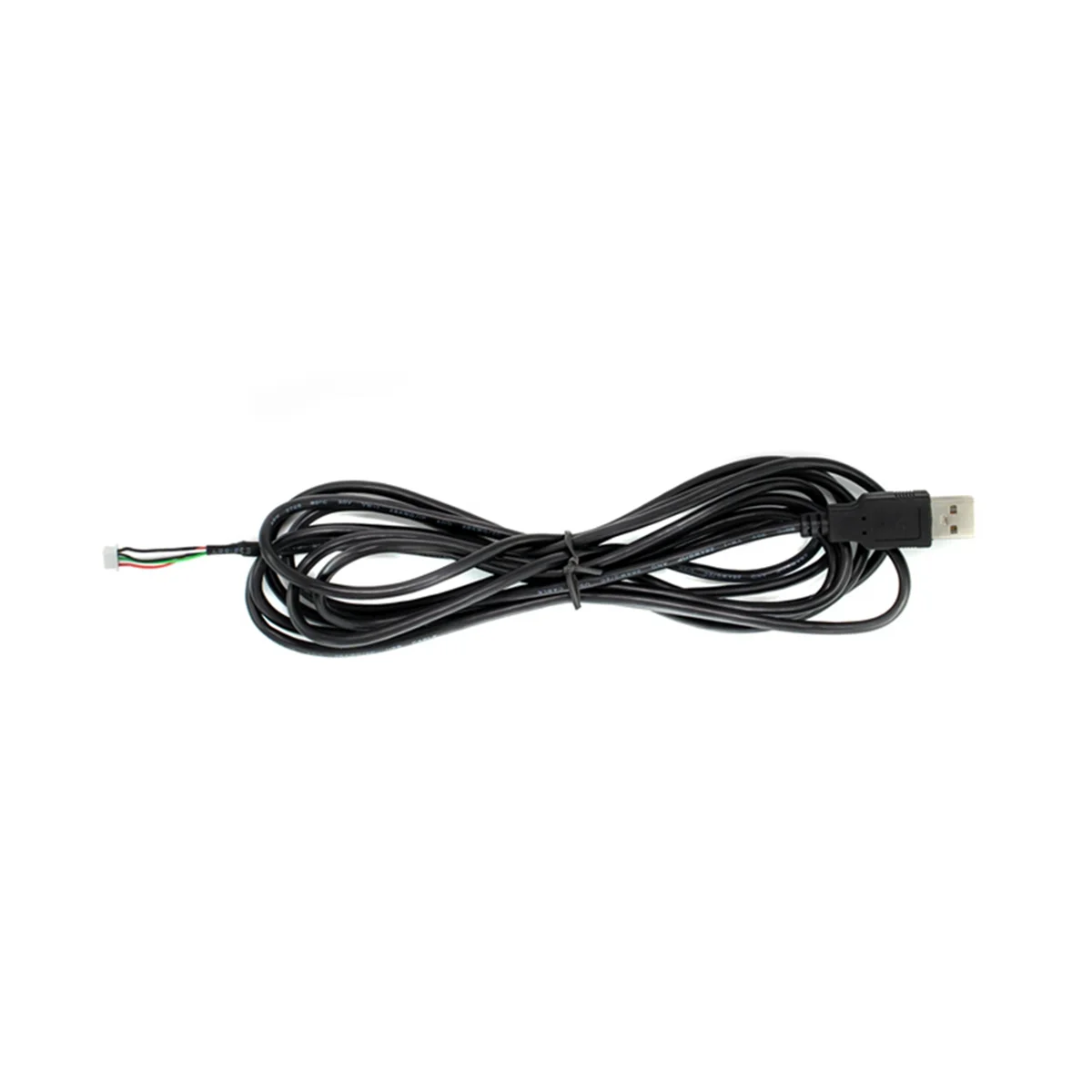

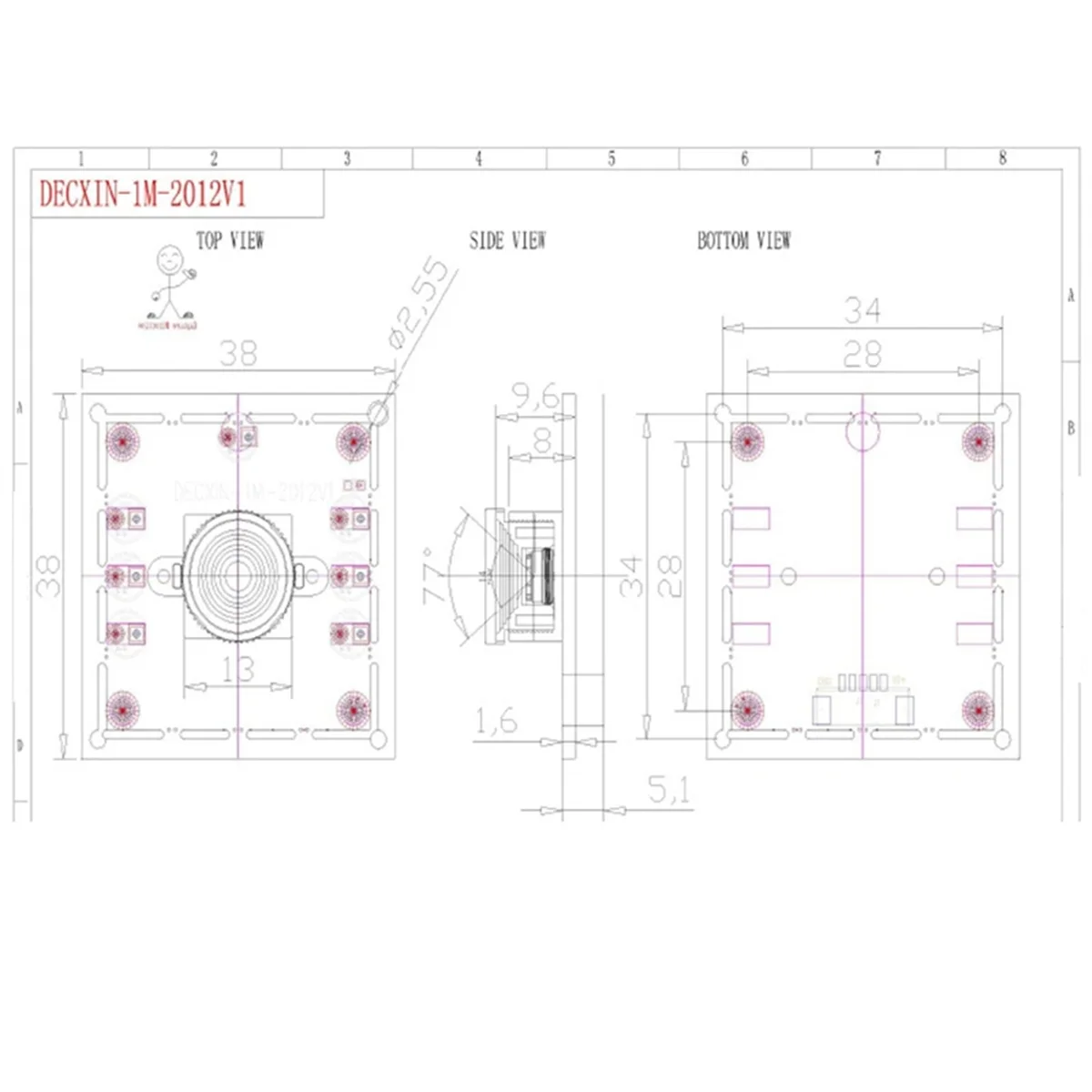

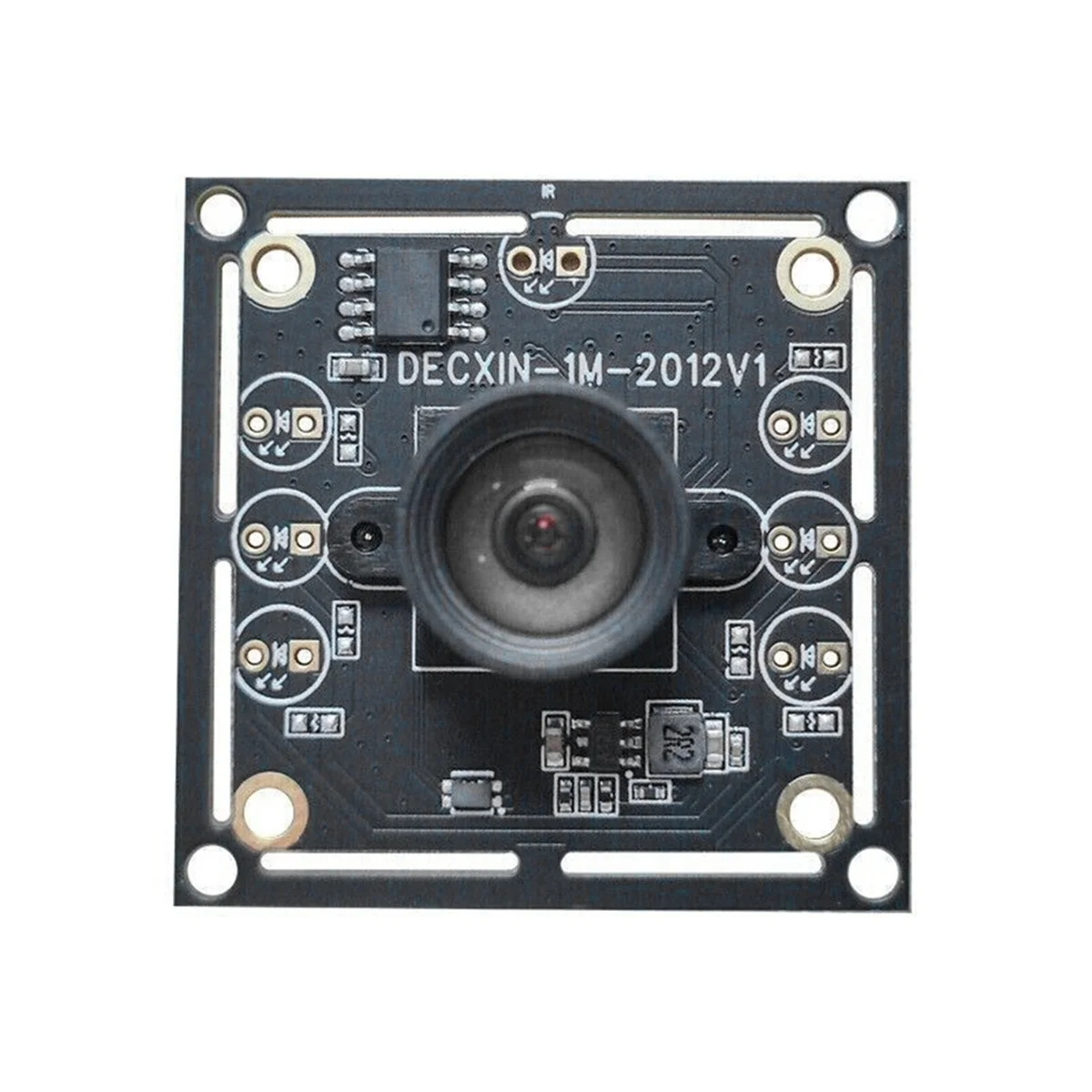

• 1 Photosensitive film: (1/4inch ) 2 The very best fine pixel: 1280(H)x720(M) three Lens Size: 1/4 inch (4: 3) four Pixel Size: three five Image area: 5 x 4 6 Output image format: MPEG/YUV2 (YUYV) 7 Supported resolutions and frame rates: 1280x720@30fps MJPEG 1280x720 @10fps Yuv 800x600 @30fps MJPEG 800x600 @15fps Yuv 640x480 @30fps MJPEG 640x480 @30fps Yuv 8 Camera board assembly technology: SMT 9 Focus: Fixed 10 Center definition: 600LW/PH (Center) 11 Signal-to-noise ratio: TBD 12 Dynamic range: TBD 13 Sensitivity: 1/lux-sec@550nm 14 Minimum illumination: 0 15 Shutter type: Electronic rolling shutter / Frame publicity 16 Interface type: USB 2 High Speed 17 Automatic exposure management AEC: supported 18 Automatic white stability AEB: supported 19 Automatic acquire control AGC: supported 20 Adjustable parameters: brightness/contrast/color saturation/hue clarity/gamma/white balance/backlight contrast/exposure 21 specifications: Size: 1/4 Focal length: 2 Aperture F2 diagonal:77° Interface M12xP0 Colour:Black Material:plastic+metal Package Contents: 3 x 100 Degrees OV9732 Camera Module three x 2m USB Cable Only the above kit content, different products are usually not integrated Note: Light mirrored image and assorted reveals could cause the colour of the article within the photograph a bit of various from the real factor The measurement allowed error is +/- 1-3cm

•
•
•
•
•
