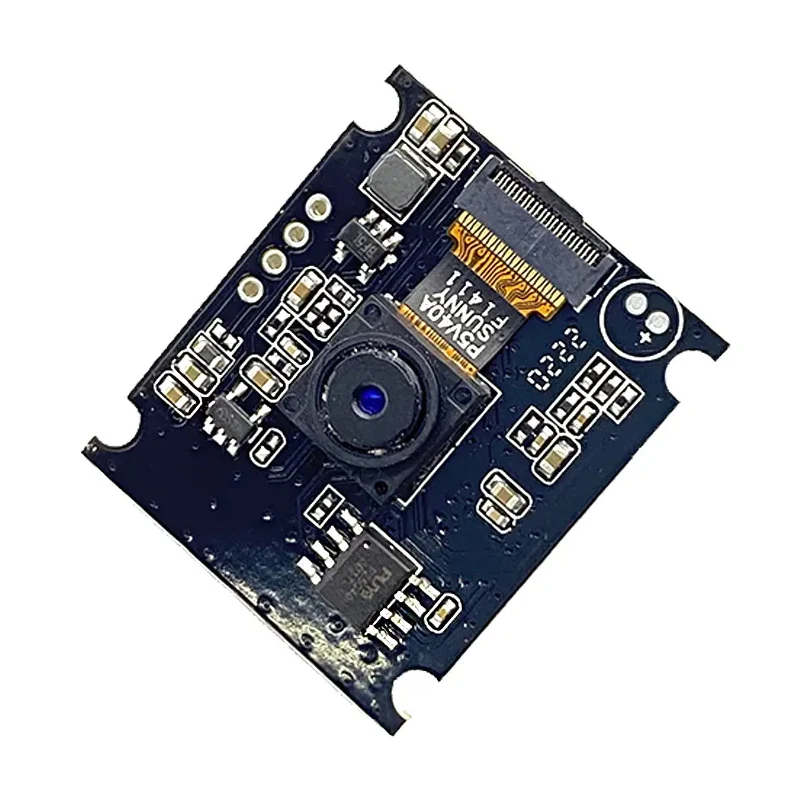

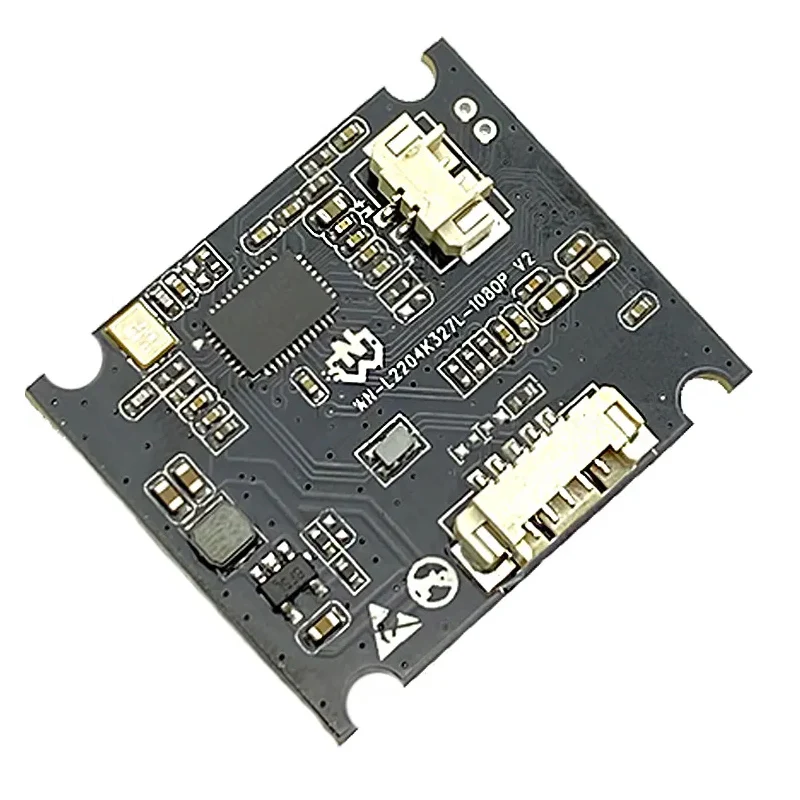

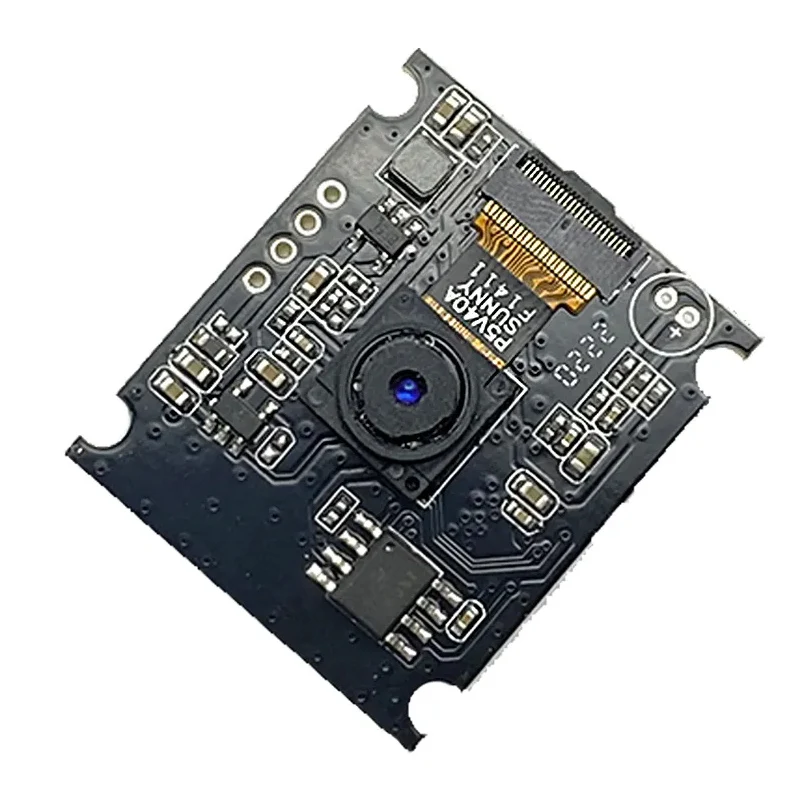

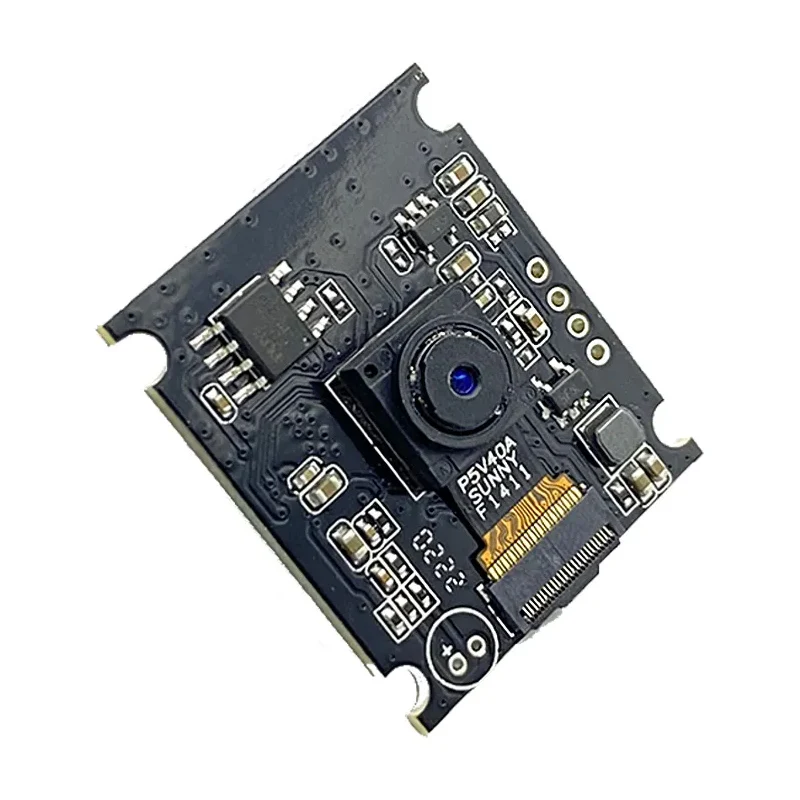

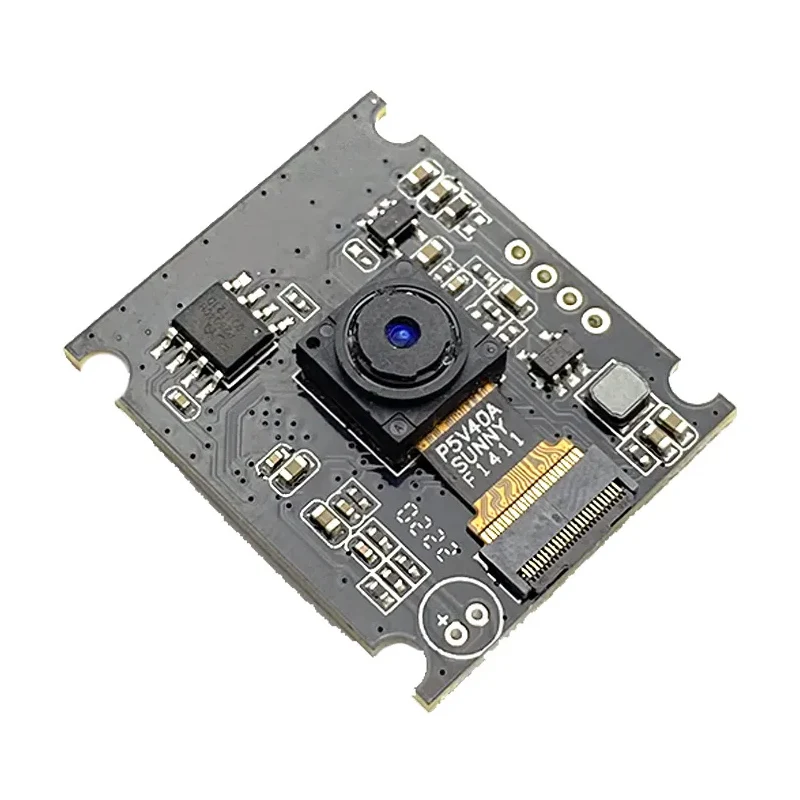

Description

• Module Size: 30*25mm·Pixel Size: 1*1μm·Max Resolutions: 1920H*1080V·Frame Rate: 30fps·Output Format: MJPEG, YUY2·Field of View: 70°·Focus Mode: Fixed Focus·Shutter Mode: Electronic Rolling Shutter·Compatibility: UVC-compliant, Plug and Play·Connection Cable: Default 1 Meter USB Cable Module Size 30mm*25mm Sensor 1/4 CMOS Sensor Pixel Size 1*1µm Resolution 1920H x 1080V Output Format MJPEG, YUY2 FOV 70° Degree (or TBD) Lens FEL:2 F/NO:2 Scanning Speed 0 Dynamic Range Up to 37 Focus Type Fixed Focus Shutter Type Electronic Rolling shutter Output and Power Supply High Speed USB2 Interface 5 PIN 1 Socket Controllable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure Supported OS Windows, Android, Linux, Wince, Mac OS Cable Length Default 1 Meter USB Cable Format Resolution Frame Rate (USB2) MJPEG 1920 x 1080 (1080P) 30FPS 1280 x 720 (720P) 30FPS 640 x 480 (VGA) 30FPS YUY2 1920 x 1080 (1080P) 5FPS 1280 x 720 (720P) 8FPS 640*480(WVGA) 30FPS

•
•
•
•
•
