Description

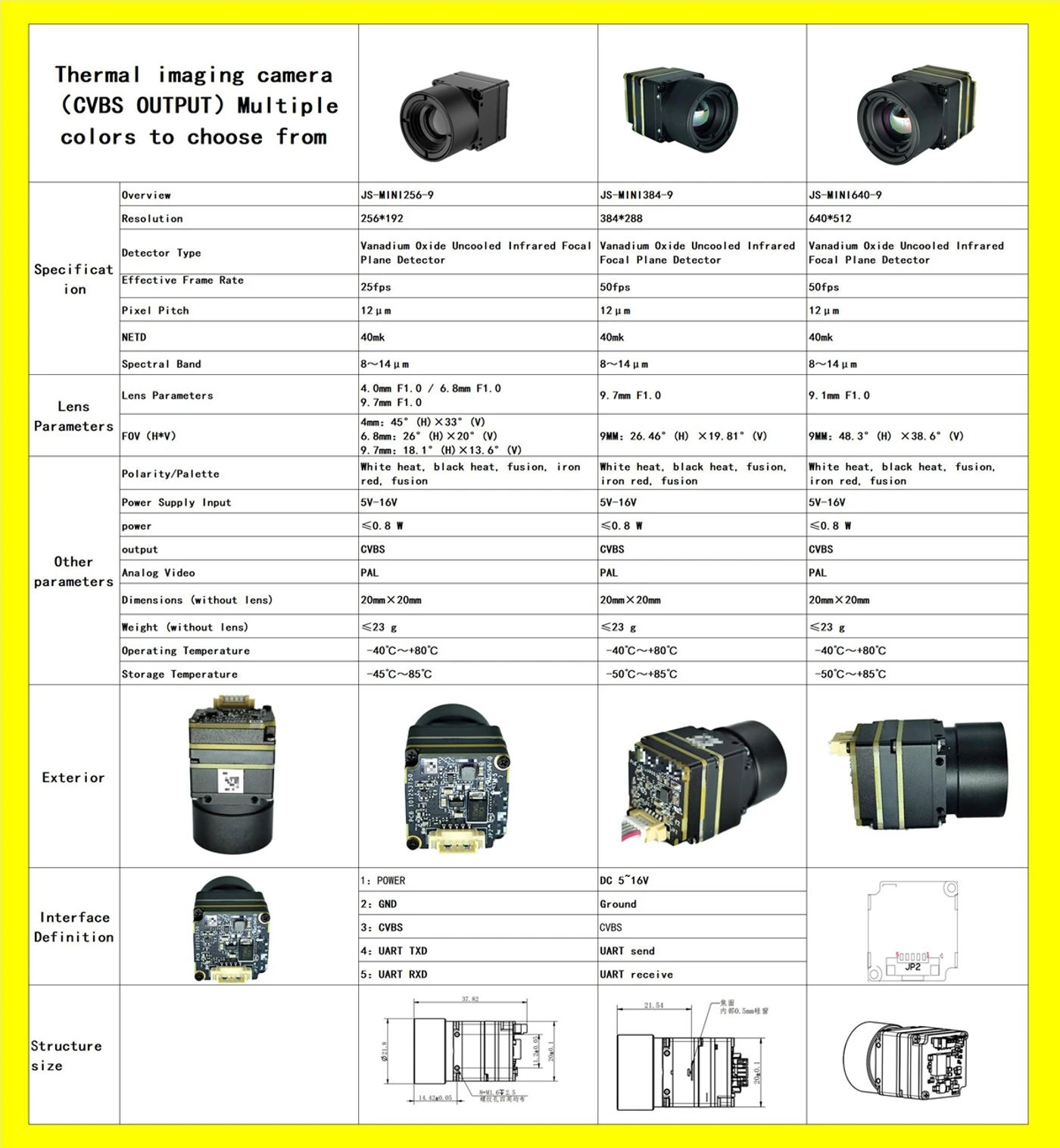

HamGeek 256X192 Thermal Imager for FPV Drones with CVBS Interface Longwave IR 12um Micro Camera Module Specification: - Resolution: 256 x 192 - Detector type: vanadium oxide uncooled infrared focal plane detector - Effective frame rate: 25fps - Pixel pitch: 12um - NETD: 40mk - Spectral band: eight - 14um - Lens parameters: 9/6/4MM F1(Choose as needed) - FOV (HxV): 9: 18°(H) x 13°(V) - Polarity/palette: white heat, black heat, fusion, iron red, fusion - Power supply input: 5V - 16V - Power: ≤0 - Output: CVBS - Analog video: PAL - Product length (without lens): 20mm x 20m - Weight (without lens): ≤23g - Operating temperature: -40℃ ~ 80℃ - Storage temperature: -45℃ ~ 85℃ Package Included: - 1 x Thermal Imager nine Lens6 Lens 4MM Lens
Review
0 people rated this product
No reviews
Provided by:Ateliers Auguste
HamGeek 256X192 Thermal Imager for FPV Drones with CVBS Interface Longwave IR 12um Micro Camera Module
-47%$ 246.26$ 462.52
VAT included
Color: 9.7MM Lens
Quantity
Only 287 left in stock
Free shipping & returns
Shipping: 5-9 business days
