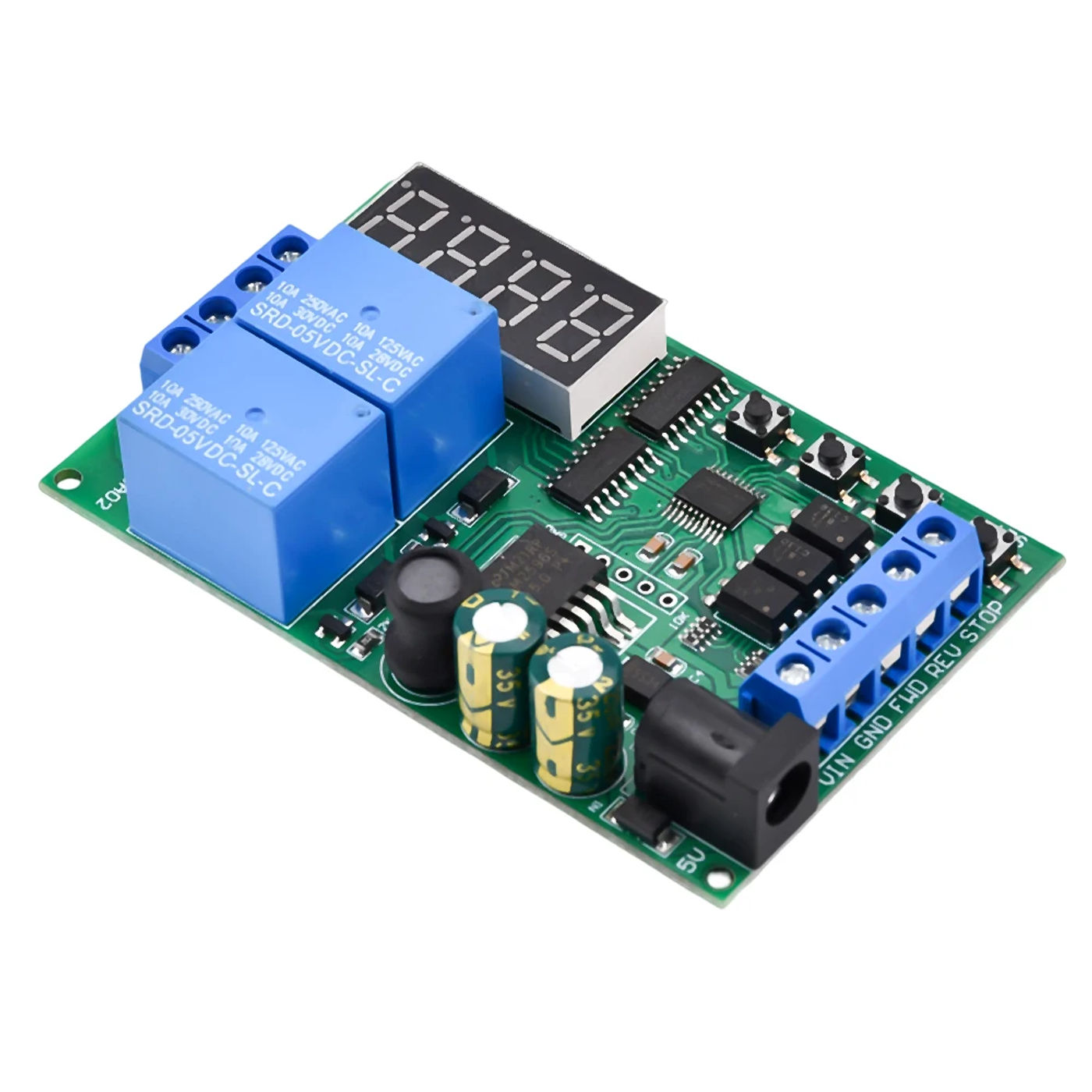

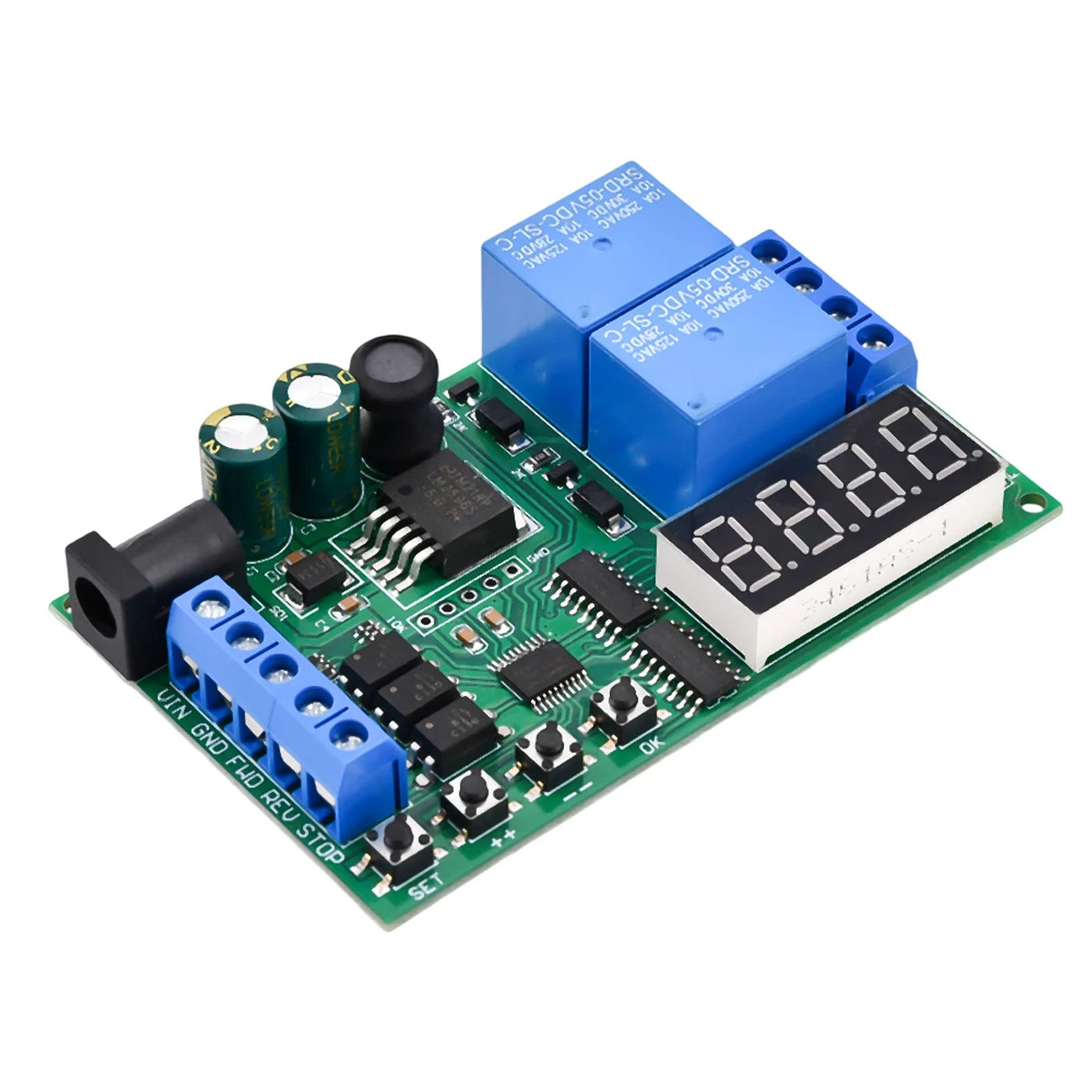

• IO53A02 5-24V IO56D02 DC12V 24V Cycle Delay Relay Module Adjustable Time Control Switch Motor Forward Reverse Controller Time Relay IO53A02 DC 5-24V Features: 1 strength supply (two power assets can't delivery energy simultaneously): Power delivery 1, DC 6; Power delivery 2, DC 5V 2 current: (normal mode) standby current 41mA, working latest 83mA; (Energy saving mode) The standby recent is 7mA, and the working latest is 44mA three are three enter management ports: ahead management (FWD), reverse management (REV), and stop management (stop) 3 are two input trigger modes, low pulse trigger mode and coffee level set off mode four time: 0 seconds, 1-9999 seconds, 1-999 mins Number of cycles: No cycles, 2-99 cycles, continually cycles five indicator lights: forward indicator mild (F LED), reverse indicator light (R LED), and forestall indicator mild (S LED) 6 load recent of the relay is suggested to be lower than 5A 7 is a multifunctional DC/AC motor forward and reverse controller with a number of control modes Many control applications could be derived via life like settings Parameter: DC five female: energy supply 1, DC 5V energy supply VIN: Power delivery 2 superb pole, DC 6 power delivery GND: Negative pole of energy delivery 2 FWD: Forward input management (some purposeful modes are invalid) REV: Reverse input management (some useful modes are invalid) STOP: Stop enter control (some practical modes are invalid) M+: Motor fine pole M -: Motor unfavorable pole P+: Positive terminal of motor strength supply P -: Negative terminal of motor strength supply Power supply: DC 5-24V, DC 5V Working current: 83mA Standby current: 41mA Relay load current:<5A Delay time: zero seconds, 1-9999 seconds, 1-999 mins Trigger mode: 1 low pulse set off (falling edge trigger) 2 low-level trigger (rising edge trigger) Timer: T1: Forward Timer T2: Reverse Timer T3: Stop Timer Time units: 0 seconds, 1 second, 1 minute Relay action: Motor forward: Relay 1 is grew to become on, relay 2 is turned off, and the F LED indicator mild flashes Motor reverse: Relay 1 is turned off, relay 2 is turned on, and the R LED indicator light flashes Motor stop: Relay 1 is off, relay 2 is off, and the S LED indicator gentle flashes Factory settings: Press the "++" and "--" buttons simultaneously for 5 seconds Energy saving mode: Press and keep the &;OK&; button for five seconds to go into the &;Energy saving mode&; Press and preserve the &;OK&; button back for 5 seconds to go out the &;Energy saving mode&; The energy-saving mode only needs to turn off the Nixie tube and LED indicator light, and different functions are standard Settings: There are three menus: paintings menu, operate menu, and parameter menu Note: When getting into the "Function Menu" or "Parameter Menu", the module nonetheless operates normally (countdown and set off function normally) The parameters set are only valid after being powered on again Package include: Electrostatic bag packaging Relay module * 1 IO56D02 DC 12V 24V Product Features: 1 Multiple working modes: 9 selectable modes, adding instantaneous, self-locking, and so forth 2 The product is small 3 Wide vary of applications: compatible for pushers, electric curtains, automated doors, and so on 4 Support forward or opposite working latest five Long carrier existence Product parameters: Working voltage: DC 12V (12V version) or 24V (24V version) (DC power ≥ motor load x3); Applicable motor: brushed DC motor; Maximum load current: 4; Signal input: lively low point (NPN); Multiple working modes: 9 selectable modes, including instantaneous, self-locking, and so on WORKING CURRENT (EXCLUDING MOTOR): QUIESCENT CURRENT: 4MA, FORWARD OR REVERSE WORKING CURRENT: 40MA Size: 75*40*19mm; Weight: 37 grams Pin Description: VCC: Power + GND: Power Supply - M+: Motor + M-:Motor- GND: Trigger Signal- K1: Forward enter management K2: Reverse enter management S1: Forward restrict signal S2: Reverse restrict sign Technical Note: The module has 4 sign input terminals, namely "K1", "K2", "S1", "S2", K1 is the forward rotation signal input terminal, K2 is the reverse rotation sign input terminal, S2 is the forward rotation restrict sign enter terminal, and S2 is the reverse limit sign enter terminal The sign enter source can be chosen from microswitch, induction, infrared, metal, remote control and different modules, or managed via a single-chip microcomputer Description of working mode: Mode 0 (default): Self-locking mode, the signal only should be caused once, and the module self-lock retains operating When encountering a reverse sign during the ahead rotation, it's going to be stopped straight for zero seconds and then enter the opposite rotation; The limit sign has priority, and when a forward rotation is encountered, the ahead restrict signal will quit immediately; Forward rotation can not begin when there's a ahead rotation limit signal, and an identical is correct for reverse rotation; When the low level, that is, the short-term 0V point (negative supply) could be started, the ahead rotation signal and the reverse rotation sign are active; The limit signal is normally open; (For example, when SW1 is closed or linked to low, forward rotation cannot begin) ) Only one limit signal is lively at a time, e entering two restrict alerts at the similar time during the reversal activity would not give up the motor from rotating Mode 1: The auto-start version of Mode zero provides a power-on auto-start operate to Mode 0, that is, every time the module is powered on, the forward rotation will be routinely started This edition is more suitable as a motion module between two points, and when the module is energized, it works mechanically Mode 2: Transient mode When there is a fine rotation signal, the motor rotates within the advantageous direction; When there is a reversal signal, the motor reverses; When there isn't any ahead rotation signal and reverse rotation signal, the motor stops; When spinning forward, give up the forward rotation if there's a forward rotation limit; During rotation, if there is a reverse rotation restrict signal, the reverse rotation will stop Removing the 2 restriction signals does not restore rotation and requires re-entering the rotation signal to begin forward and reverse rotation Mode 3: The level drive mode is functionally corresponding to an H-bridge and operates according to the following logic: When there is a high-quality rotation signal and there is not any signal on the ahead limit, it'll rotate within the advantageous direction; When there's a reverse sign and there is no signal on the opposite limit, will probably be reversed; This edition is natural common sense and is acceptable for microcontroller sign enter Note the ahead rotation priority, that is, the ahead rotation is when both the forward and opposite inputs meet the situation Pay consideration to the real-time nature of the level For example, when there are alerts at both ahead and reverse inputs, here is forward rotation At this point, if the ahead signal is removed and the opposite signal is retained, it is going to be reversed When the motor rotates, the restrict input is invalid and the motor can't be stopped Mode 4: Start/stop mode, the operate is the same as mode 0, however the following operate details are different: If the forward rotation has already started, enter the ahead rotation signal again and it will give up immediately; If the opposite rotation has already started, input the opposite rotation signal back and it'll give up straight For example: there is a forward signal >> prompt ahead rotation; At this point, the ahead rotation sign >> input directly stops the forward rotation Invert an identical Mode 5: The functionality is the same as mode 0, with the bit-only sign variations as follows: The restrict sign is only valid for the current time (leading edge valid) For example, after beginning a ahead rotation, it stops when a ahead restricting sign is encountered After stopping, even if a forward limit signal is still entered, it's still possible to start ahead rotation by means of entering a ahead rotation sign This specification is usually used when the unidirectional birth and finish facets are on the identical circle of motion, for example, pressing as soon as to kind a circle, and urgent back to form one other Mode 6: One-click swap mode, the operate is similar to mode 0, however the startup method is different, as follows: Forward rotation sign input, ahead rotation after triggering, opposite rotation after triggering, opposite rotation signal input is invalid Enter a ahead rotation sign to start forward rotation and prevent ahead rotation when there's a sign at the ahead limit; Enter the forward rotation signal again, start the reverse rotation, and prevent the reverse rotation after the reverse rotation limit has a sign Product List: Electrostatic bag packaging Relay module*1

•
•
•
•
•
