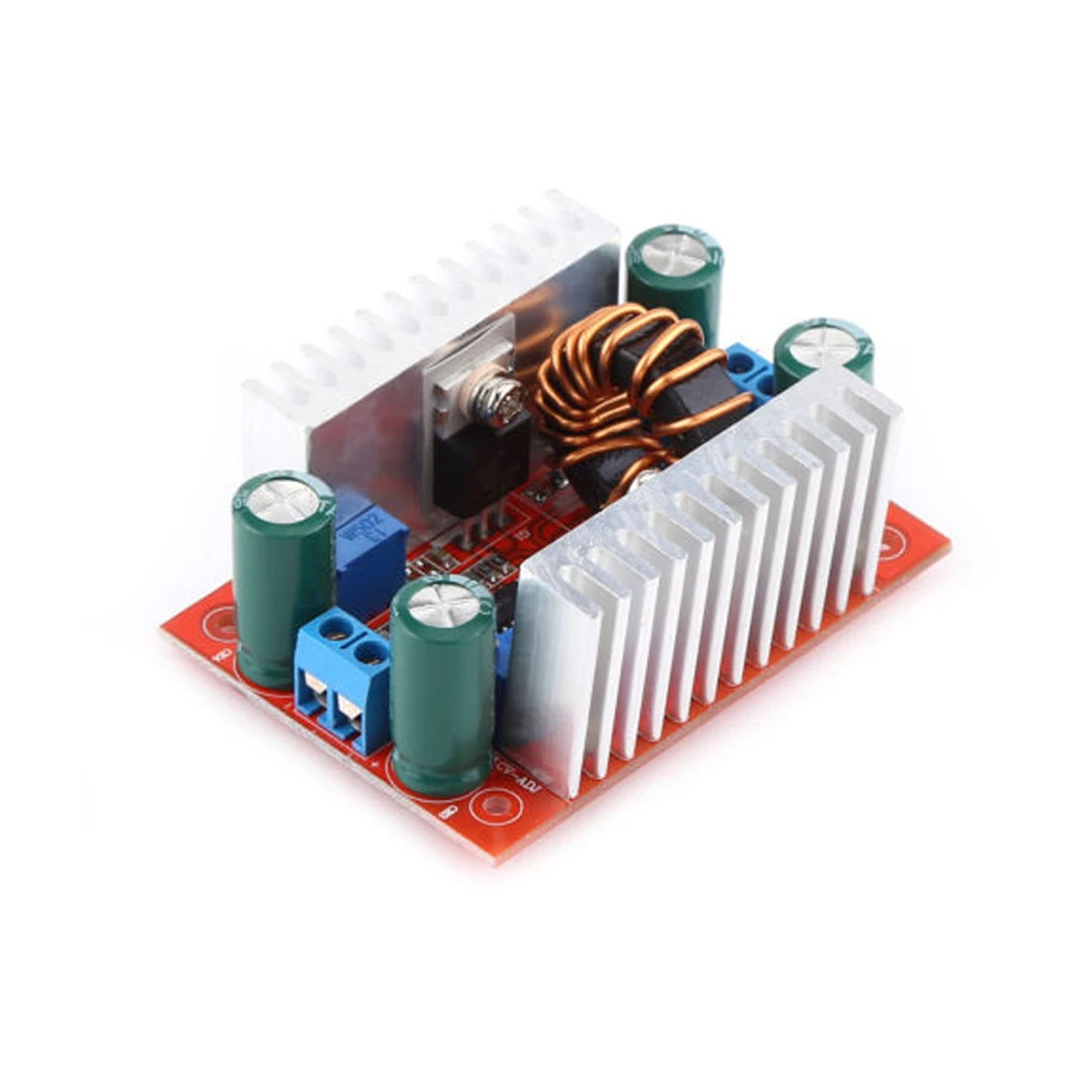

• 400W 15A DC-DC Boost Converter Step Up Power Transformer Supply Voltage Regulator Constant Power Heat Sink eight to 10-60V Features: This is a great 400W DC to DC step-up strength supply module for electrical equipment, digital products, laptop, and so forth Input and output are designed with screw terminals for convenient twine connection and disconnection High efficiency, the utmost conversion efficiency could be 96% and performance is related to input/output voltage, current and voltage distinction There are 2 heat sinks that might make certain a better heat dissipation It can be used as a driver for high power LED lights or voltage regulator for photo voltaic panels Specifications: Type: Non-isolated increase module Input Voltage: DC8 to 50V Output Voltage: DC10V to 60V (continuously adjustable, default 19V) Max Input Current: 15A (please boost warmth dissipation if greater than 8A) Max Output Current: 12A (related to the enter and output voltage difference, the larger voltage difference is, the smaller output latest can be please enhance warmth dissipation when latest is over 7A) Quiescent Current: 10mA(will increase when convert 12V to 20V) Constant Current Range: 0 to 12A Output Power = Input Voltage*Current Operating Temperature: -40° to 85°(if temperature is simply too high, please increase warmth dissipation) Frequency: 150KHz Max Conversion Efficiency: 96% (Efficiency is related to input/output voltage, current and voltage difference) Over Current Protection: Yes (if enter current is greater than 15A, it will automatic lower output voltage) Reverse Input Protection: No Size: 67 x forty eight x 28mm / 2 x 1 x 1" Output Voltage/Current Adjustment: Adjust "CV-ADJ" potentiometer clockwise to minimize voltage, counterclockwise to extend voltage Adjust "CC-ADJ" potentiometer counterclockwise about 30 circles to minimize the output latest earlier than connecting to load(clockwise to extend current, counterclockwise to minimize current) Then regulate "CC-ADJ" clockwise to the present price you wish If you use the module for battery charging, connect to output after battery is completely discharged Because if the more energy is left in battery, the fewer charging current might be Package Included: 1 x 400W 15A Power Converter

•
•
•
•
•
