CX-50S Constant Voltage Output

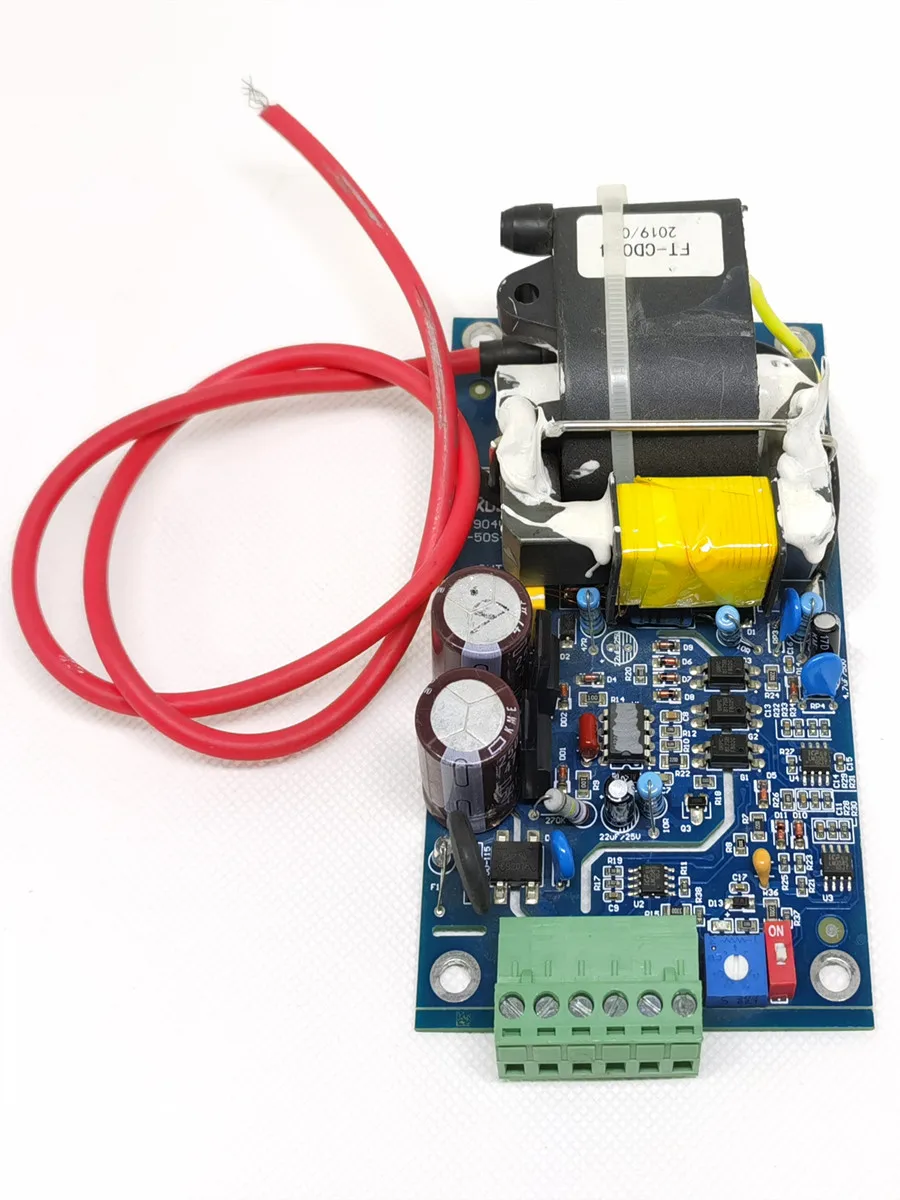

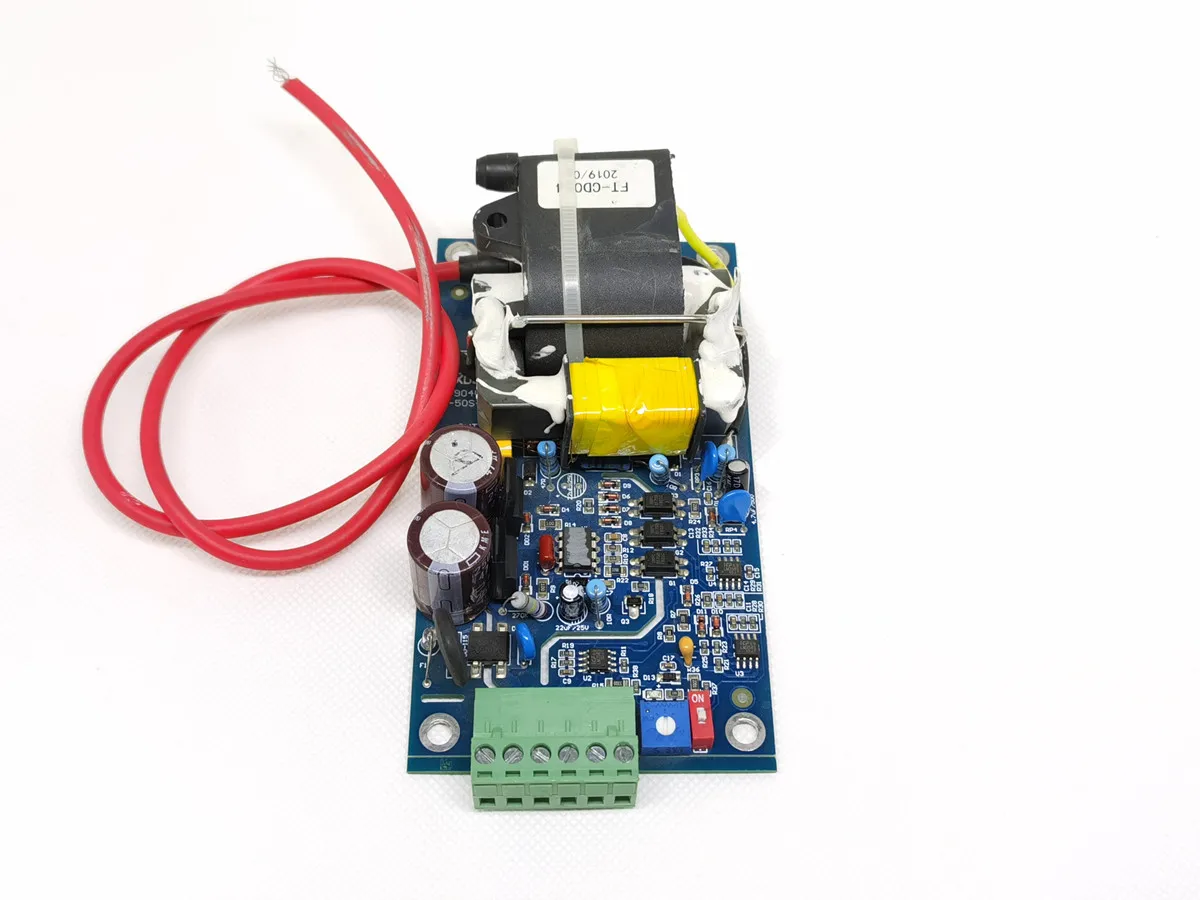

the output voltage is constant when the enter voltage become replaced or load changed, there is a blue resistor knob on the leading board , the output voltage could be adjusted

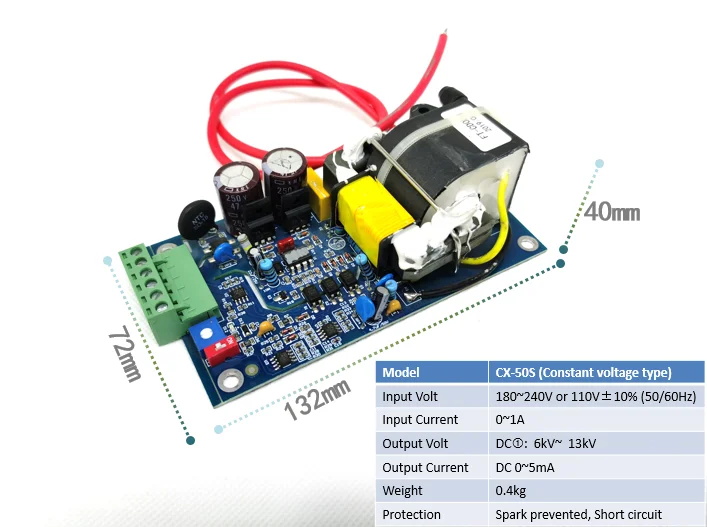

chiefly parameter:
Input Voltage:180V~260V(50hz/60hz)
Output Voltage:DC:6KV~13KV
Output Current:0-3mA
Size:132mm*72mm*40mm
Packed Weight:0
retaining applications
1 prevented
when the spark changed into generated between the high quality and destructive electrodes
the output could be cut off, the working indicator will be flashing and nil second later ,the output may be restarted,
2 circuit preserve
when the short circuit became generated between the fantastic and negative electrodes
the output may be lower off, the operating indicator can be flashing and 0 second later ,the output might be restarted,
three circuit preserve
the output wires can be removed from the weight when powered on , and the output voltage can be steady ,it is security for HV power delivery
the HV energy supply can consistently generate the excessive voltage spark between the advantageous and unfavorable cable
The output would be brief circuit , and it's going to not be broken in long time

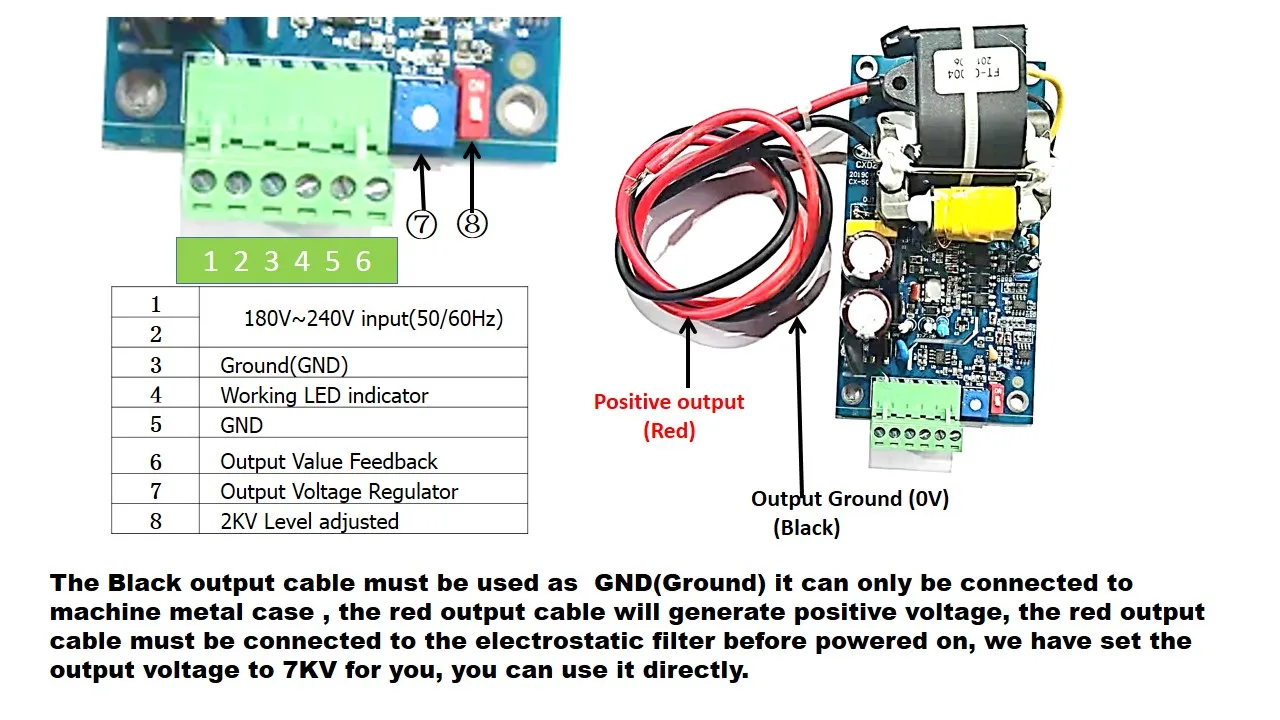

you could possibly change the output voltage always with the protentiometer on the mainboard
Application events : High voltage electric field, Electrotatic air cleaner , electrostatic field ,clean smoke, air purifiers ,air ionizer,etc

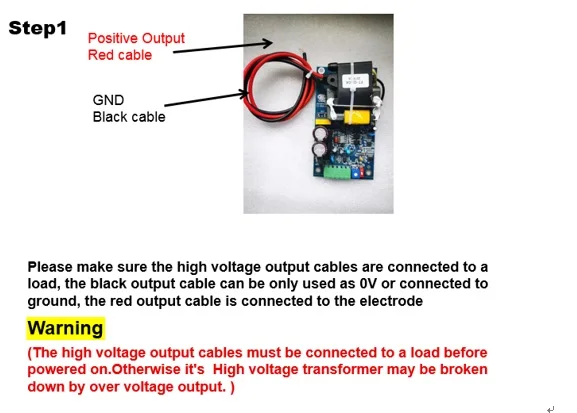

How to use the high voltage energy supply:
Warning:
1、The output cables needs to be a long way
faraway from different cables such as input cables or indicator cables,
2、If you would like the HV energy
delivery run with stable, the max output power should not over 80% for long time
3、There must be a insulated terminal if the output cables handed throw the distribution
cupboard
4、The HV power delivery should be distant from the hot and moist environment,You
should upload the cooling fans and the shutters on the distribution cabinet
If you're sad with our merchandise or some other issues please touch us
before leaving feedback and we are able to clear up the problem immediately, thank you!
