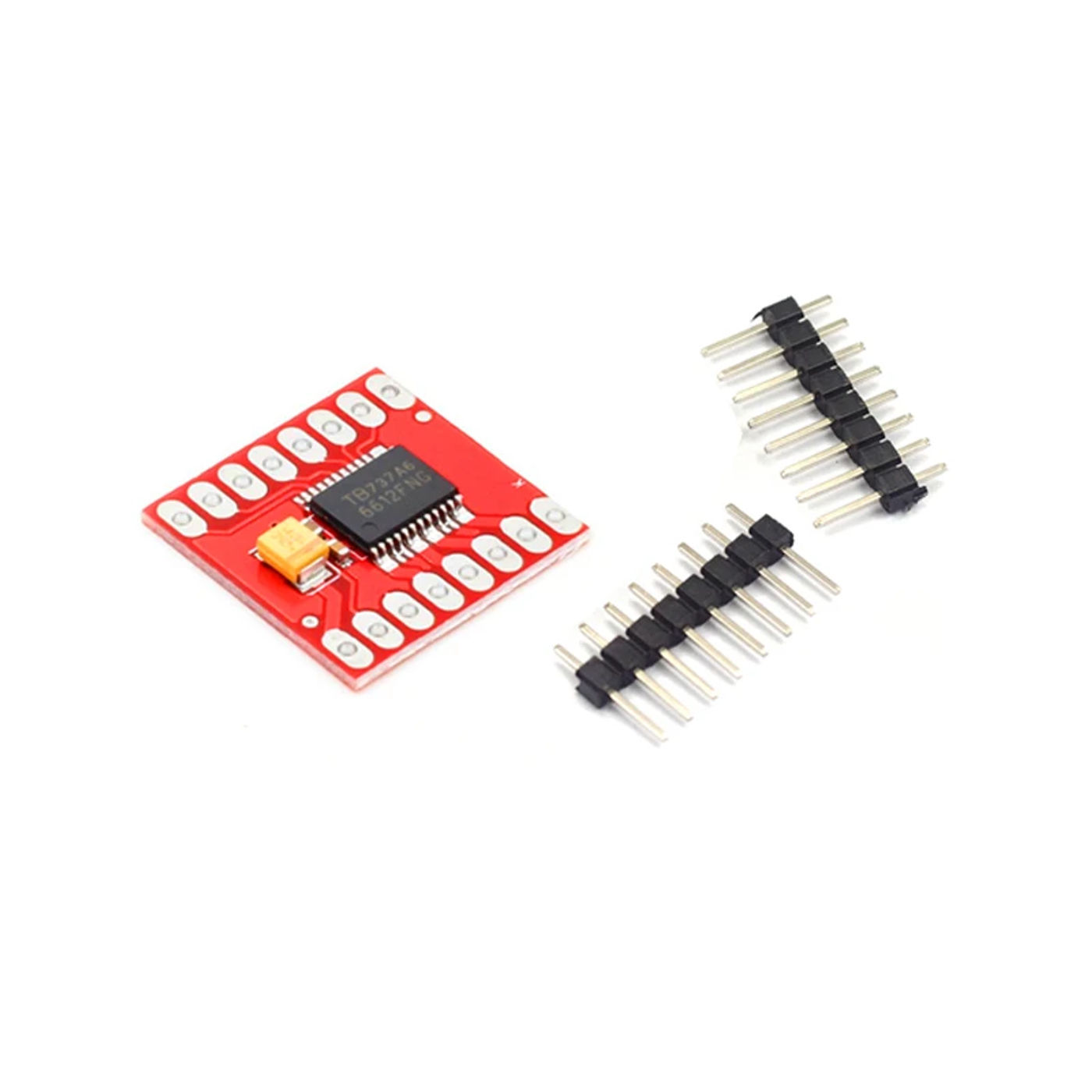

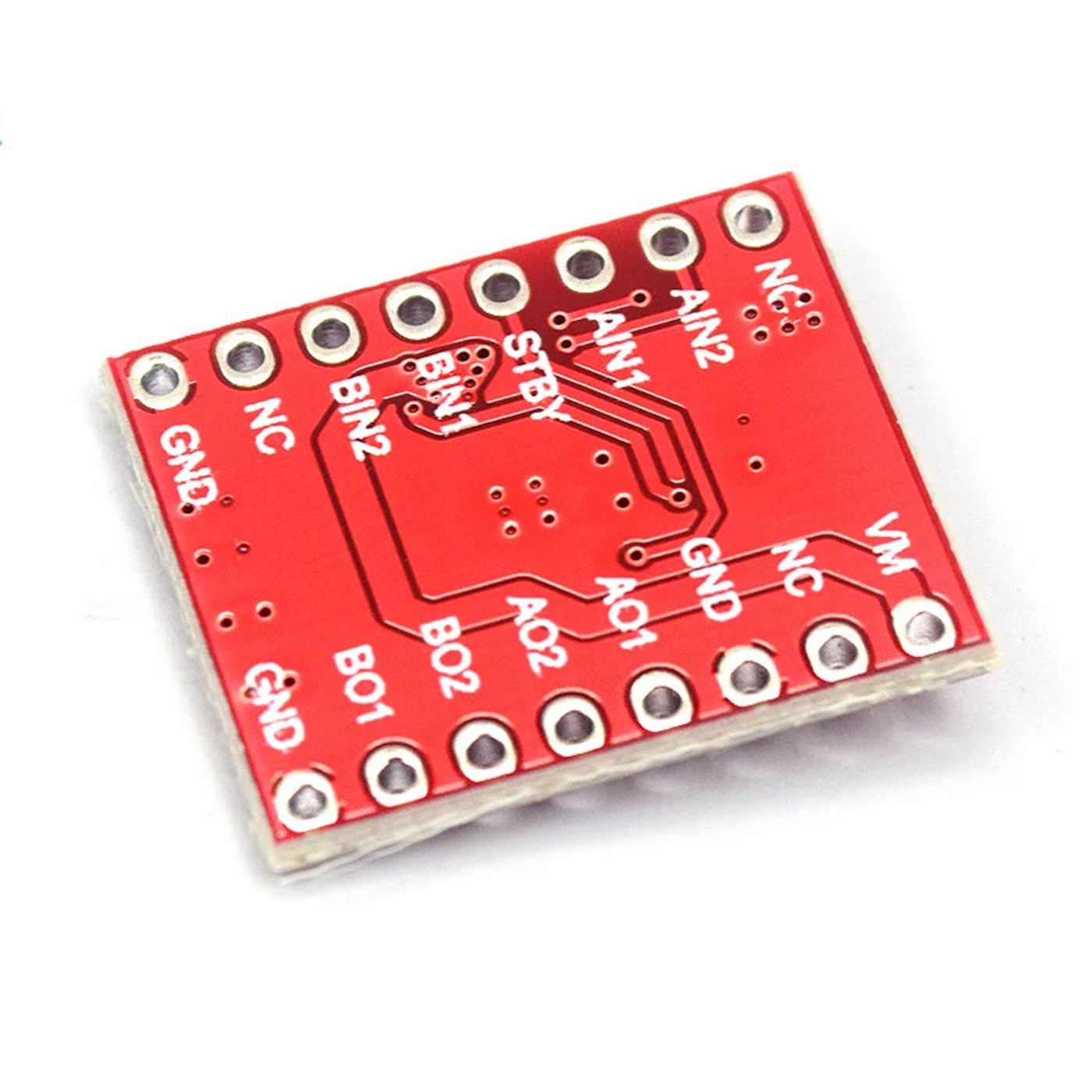

• TB6612FNG motor drive board module small length high functionality large L298N self-balancing trolley 3PI supporting DRV8833 Description: The TB6612FNG motor driving force can control up to two DC motors at a constant latest of 1 (3 peak) Two enter alerts (IN1 and IN2) can be used to regulate the motor in a single of 4 function modes - CW,CCW,short-brake,and stop The two motor outputs (A and B) can be individually controlled,the speed of each motor is managed via a PWM input sign with a frequency as much as 100kHz The STBY pin must be pulled high to take the motor out of standby mode Logic supply voltage (VCC) would be within the differ of 2,while the motor supply (VM) is proscribed to a maximum voltage of 15VDC The output recent is rated up to 1 per channel (or as much as 3 for a short,single pulse) Board comes with all ingredients installed as shown Decoupling capacitors are included on both supply lines All pins of the TB6612FNG are damaged out to two 0" pitch headers; the pins are arranged such that input pins are on one aspect and output pins are at the other Features: Power supply voltage: VM=15V max,VCC=2 Output current: Iout=1(average) / three (peak) Standby management to save power CW/CCW/short brake/stop motor management modes Built-in thermal shutdown circuit and low voltage detecting circuit All pins of the TB6612FNG broken out to 0" spaced pins Filtering capacitors on either delivery traces

•
•
•
