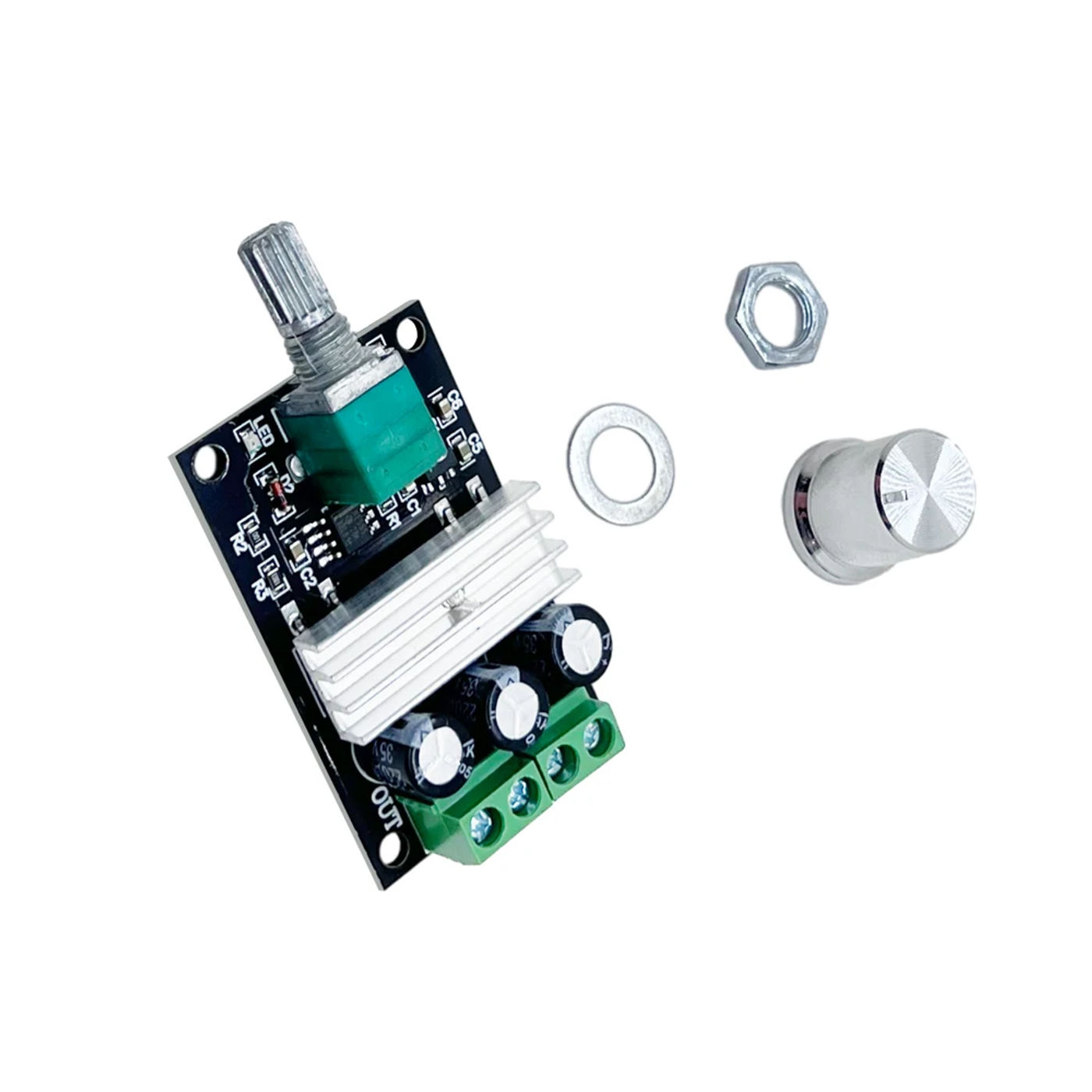

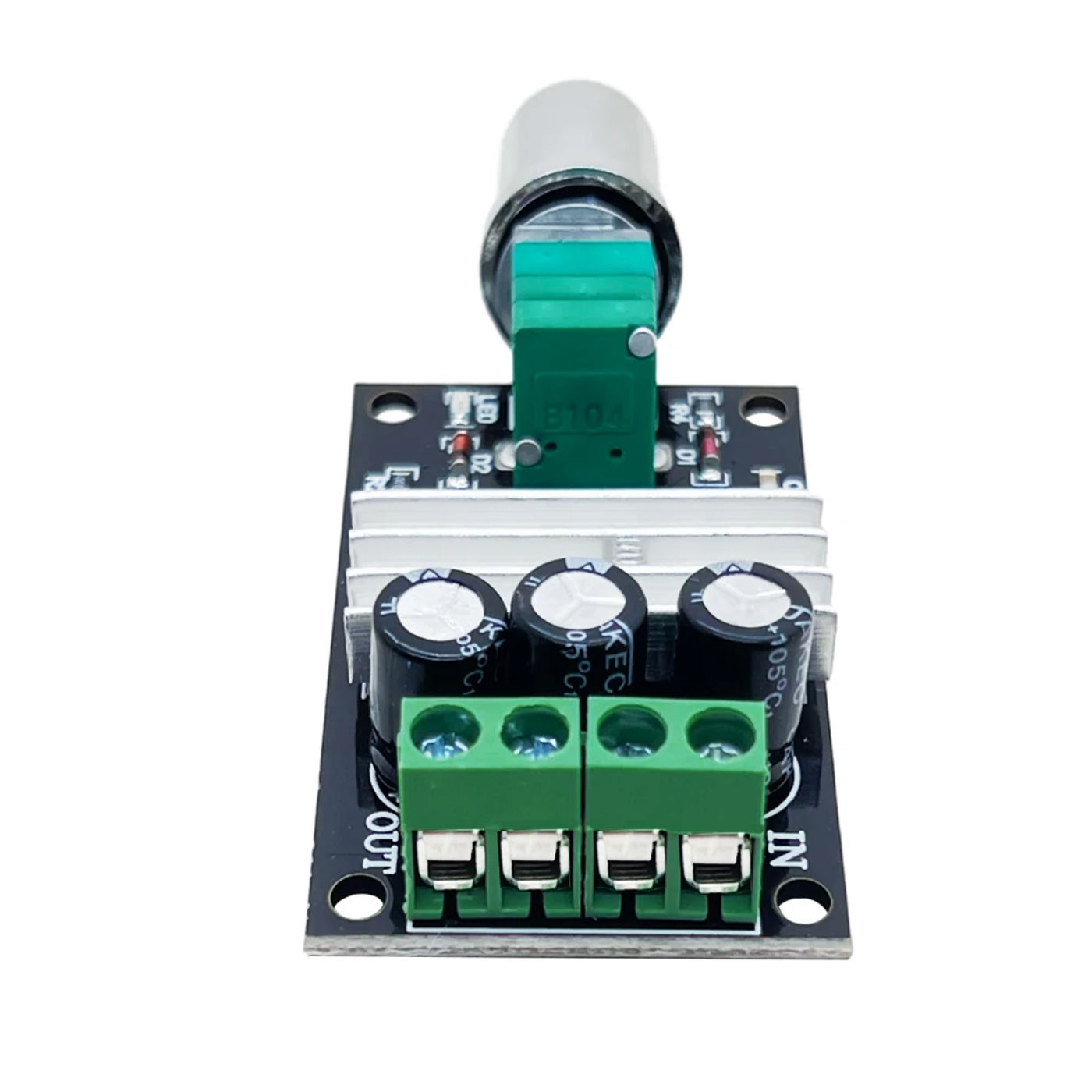

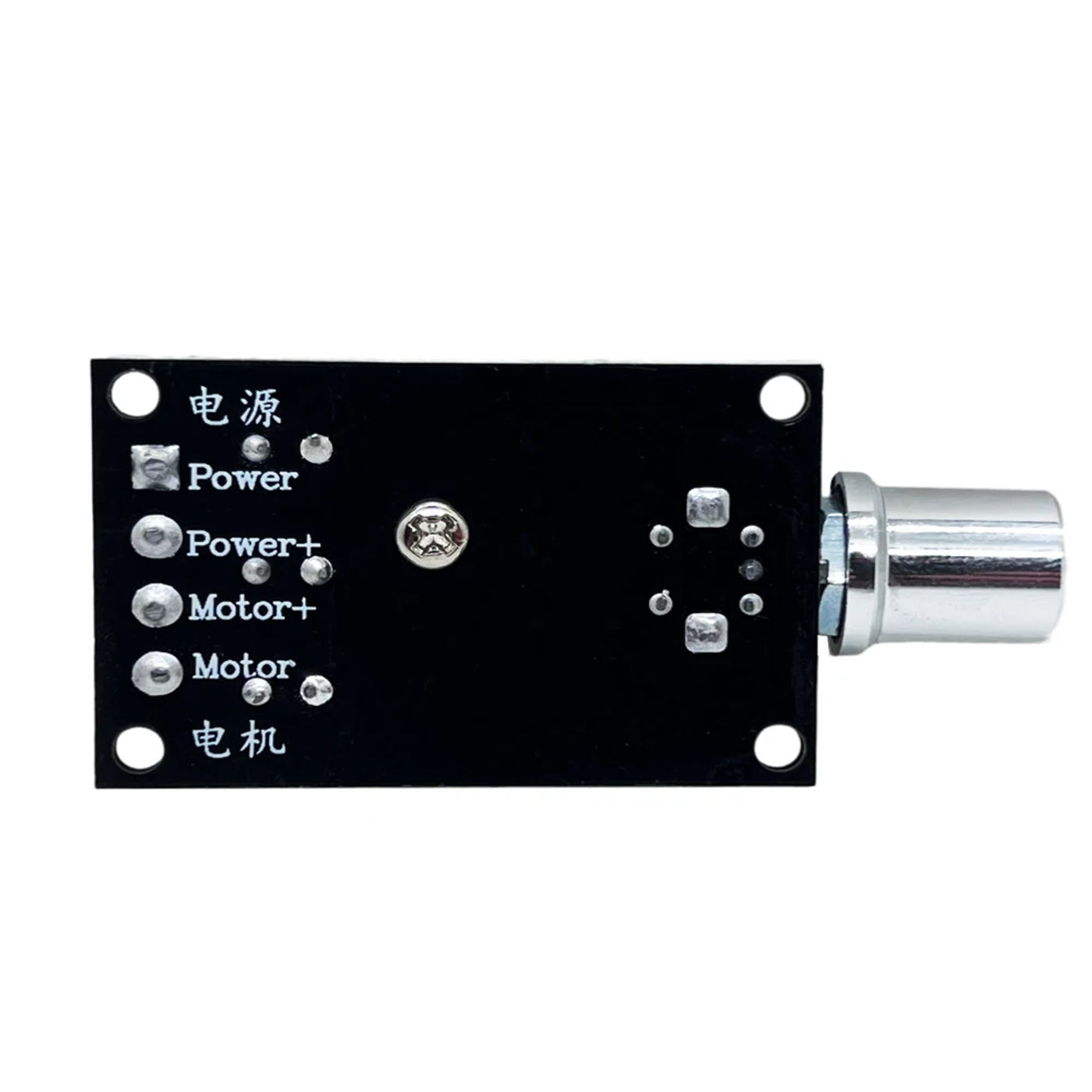

This DC Motor Speed Controller allows controlling the route of a DC motor using a Pulse-- Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%
The motor pace controller can easily present a continuing latest of3A on your DC motor or different DC load
Main technical parameters:
Input delivery voltage:6V-28VDC
The most output power: 80W
The maximum continual output current :3A
Duty Cycle adjustable:5%-100%
Size: 5cm*3 (L*W)
Operating instruction:
Before you trying to wire the controller, make certain energy is off
WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS WILL DAMAGE THE CONTROLLER
TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR

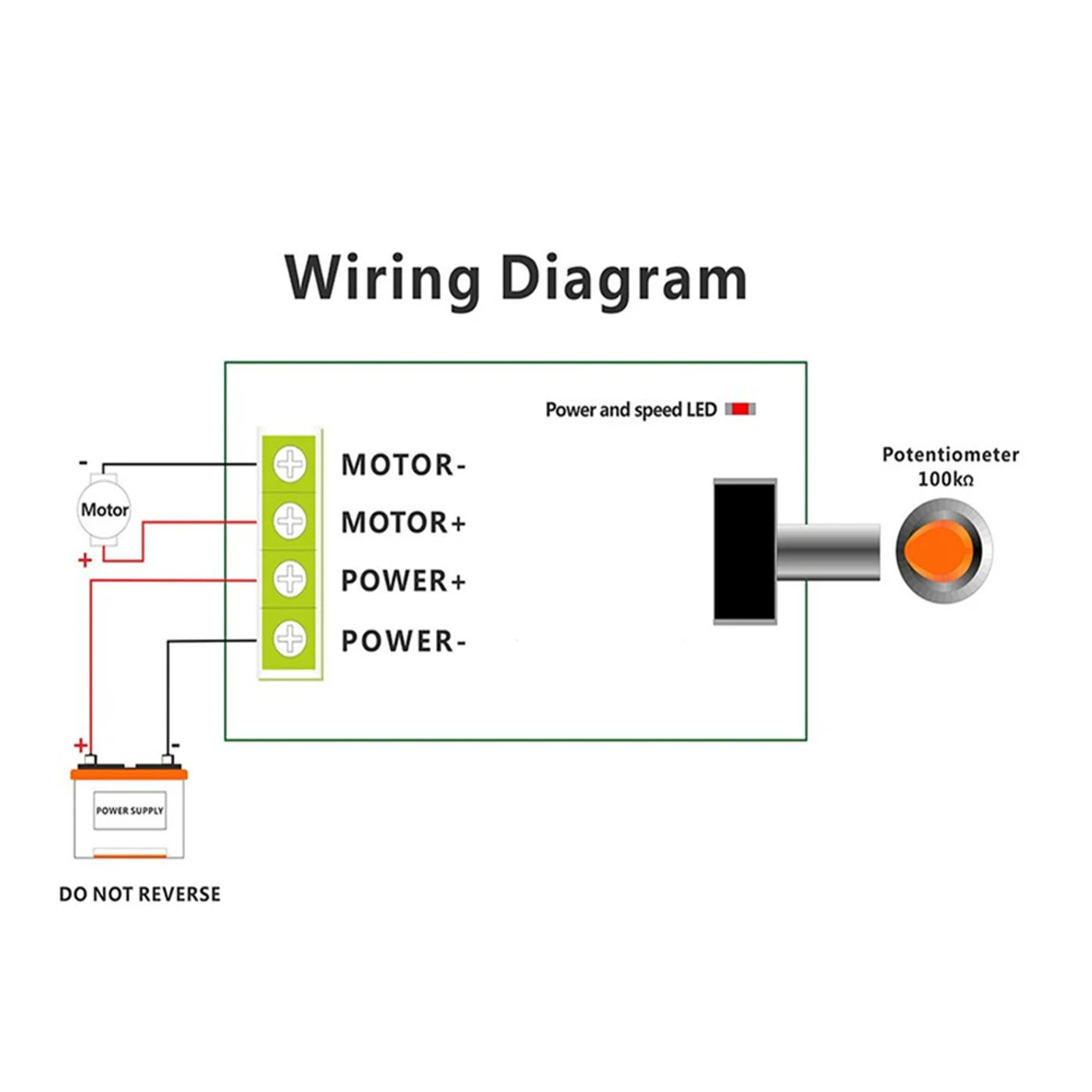

1 Connect wires refer to the “wiring diagram” (NO picture)
2 Turn at the power, and regulate the potentiometer
2 The LED indicates the power up and the rate of motor
