Description

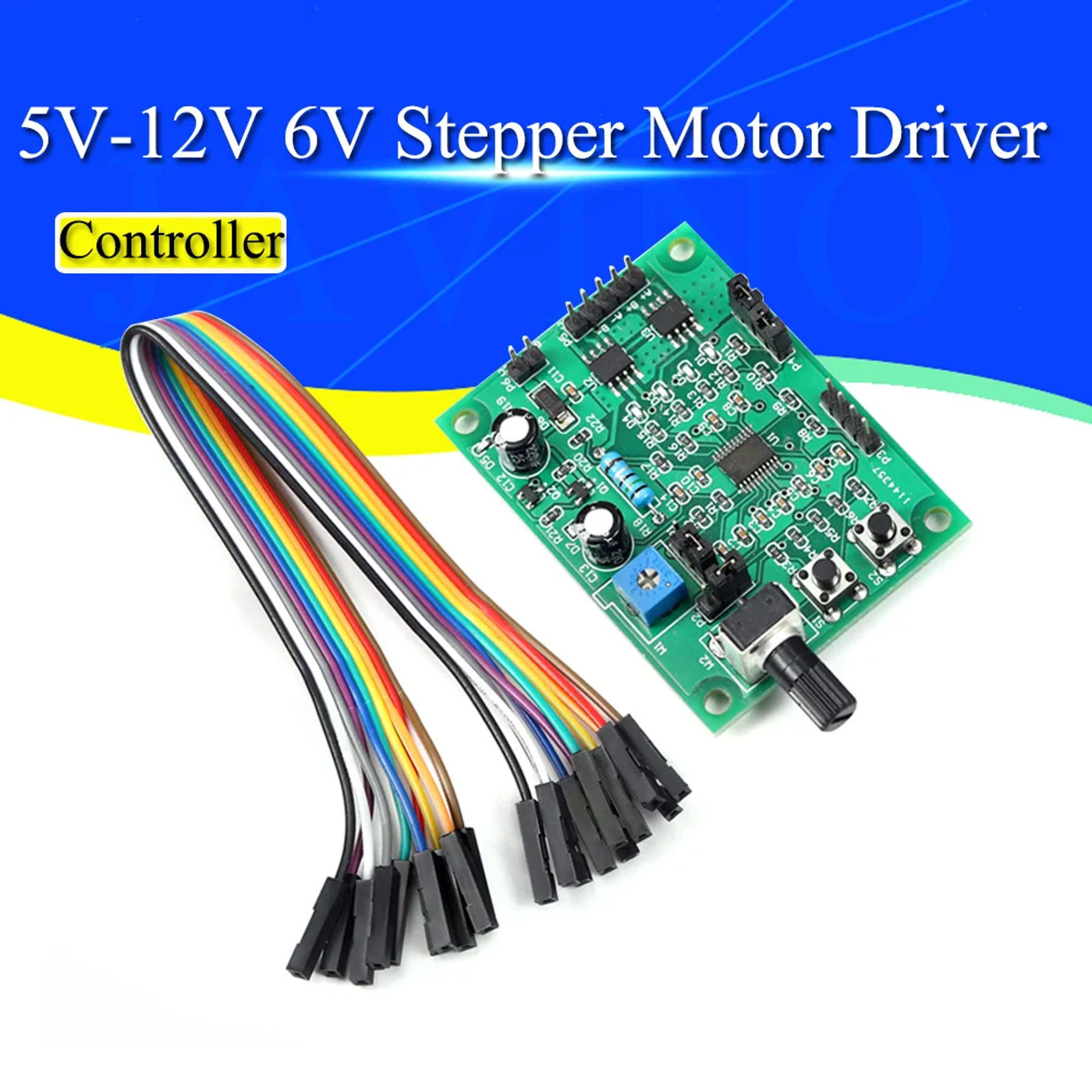

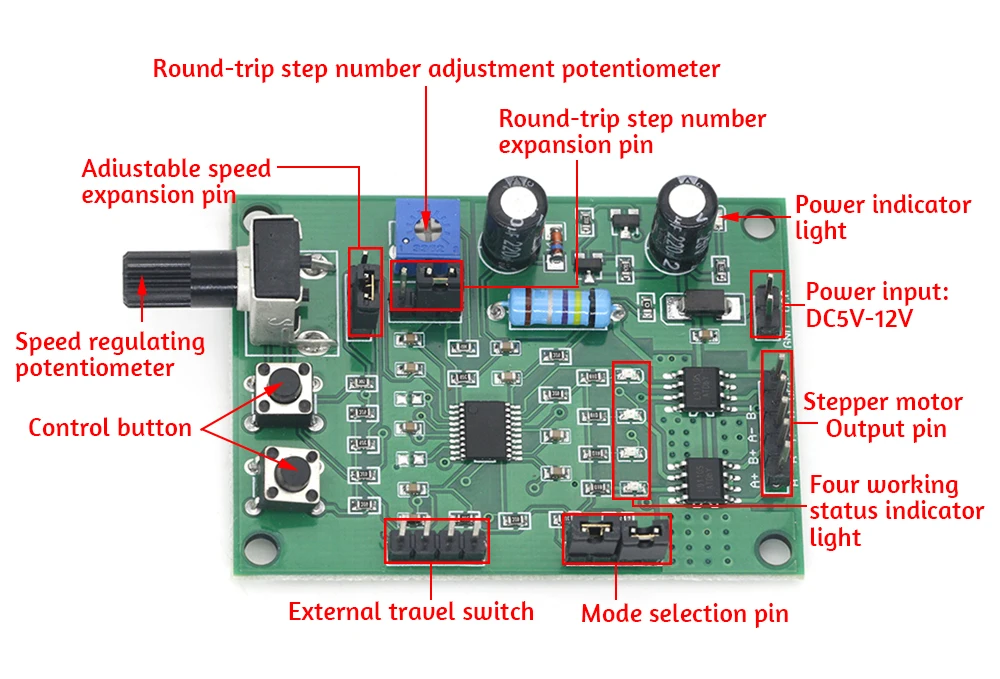

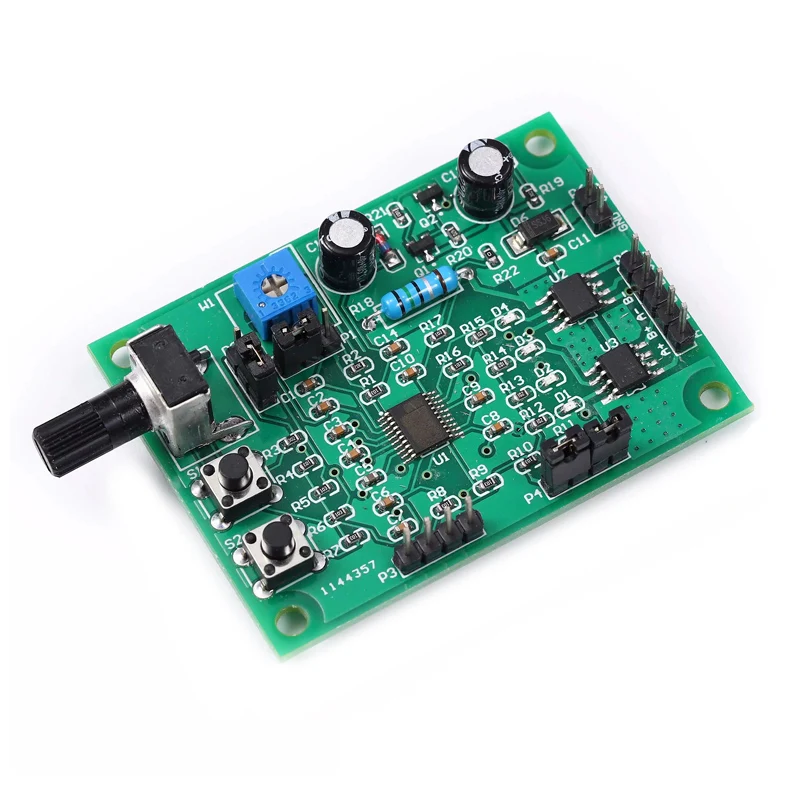

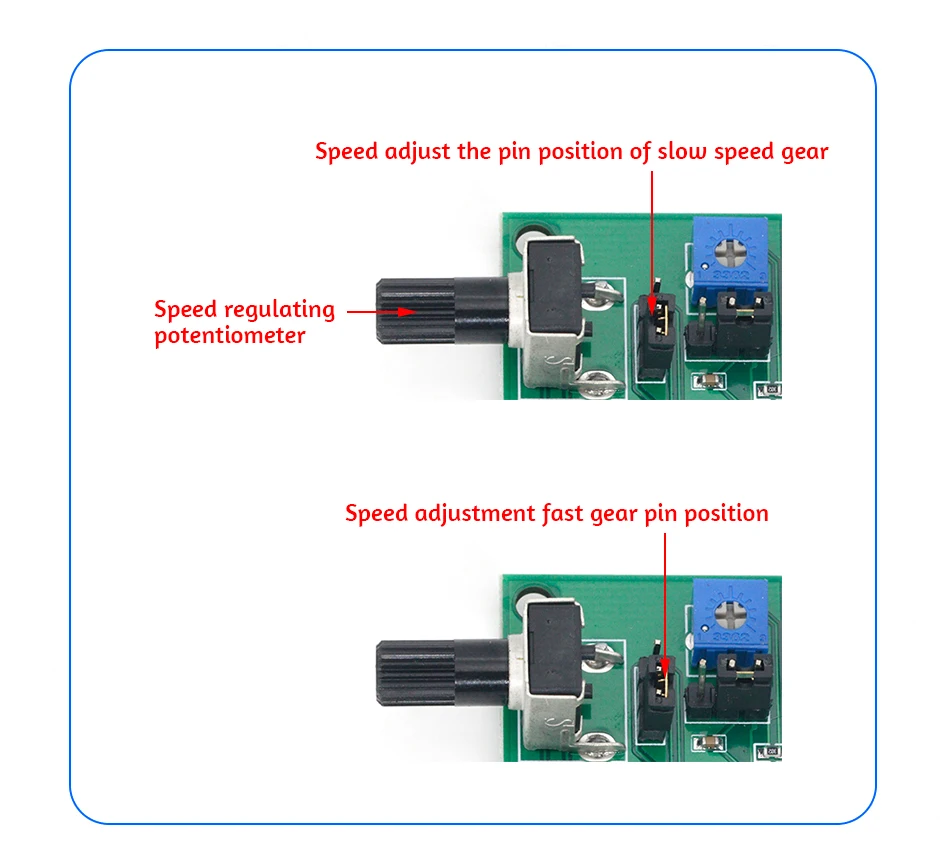

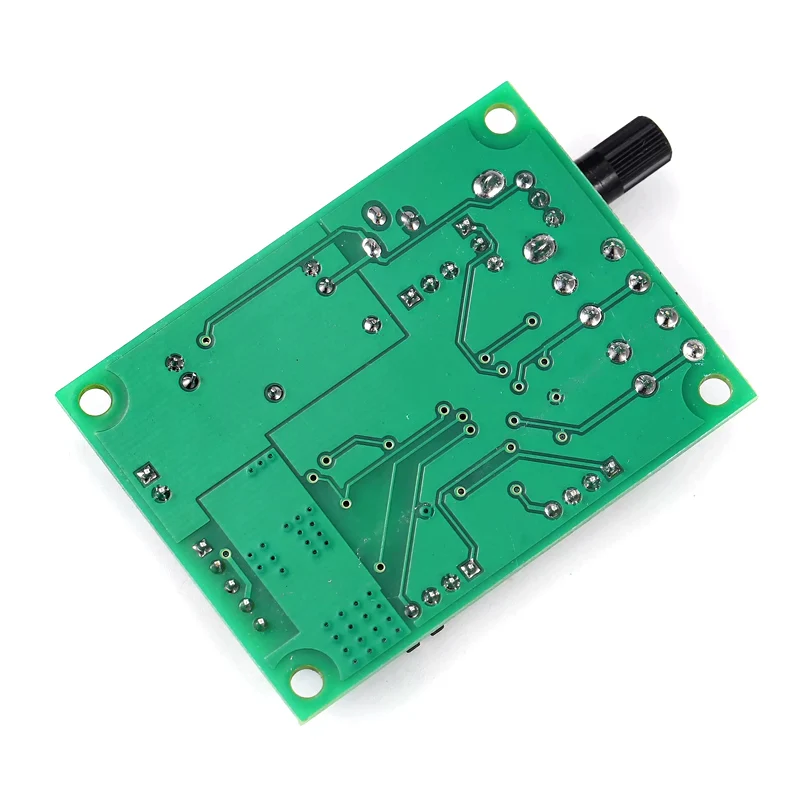

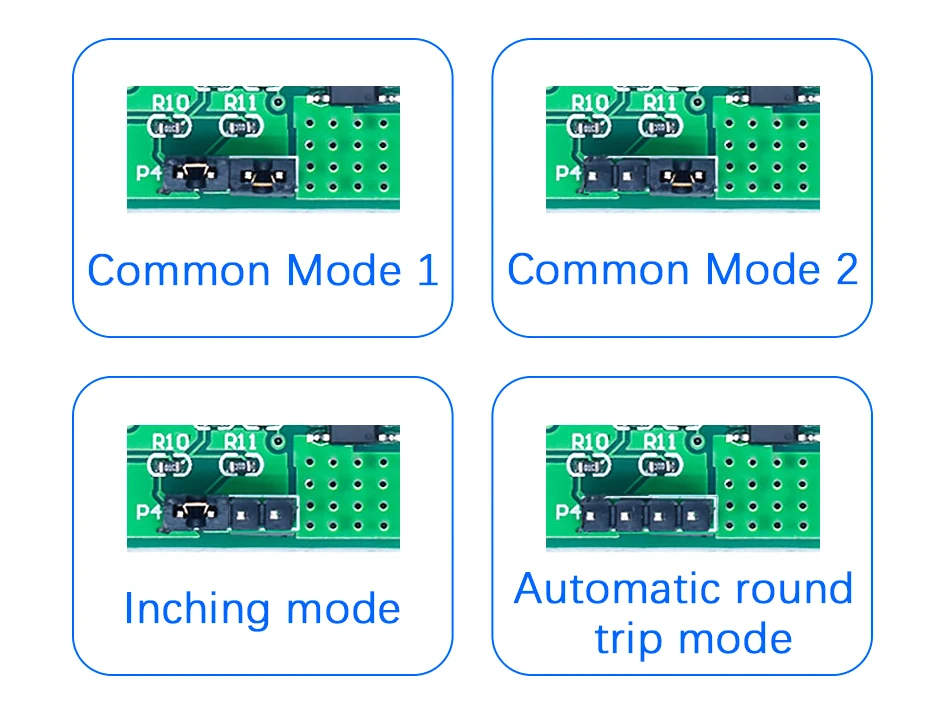

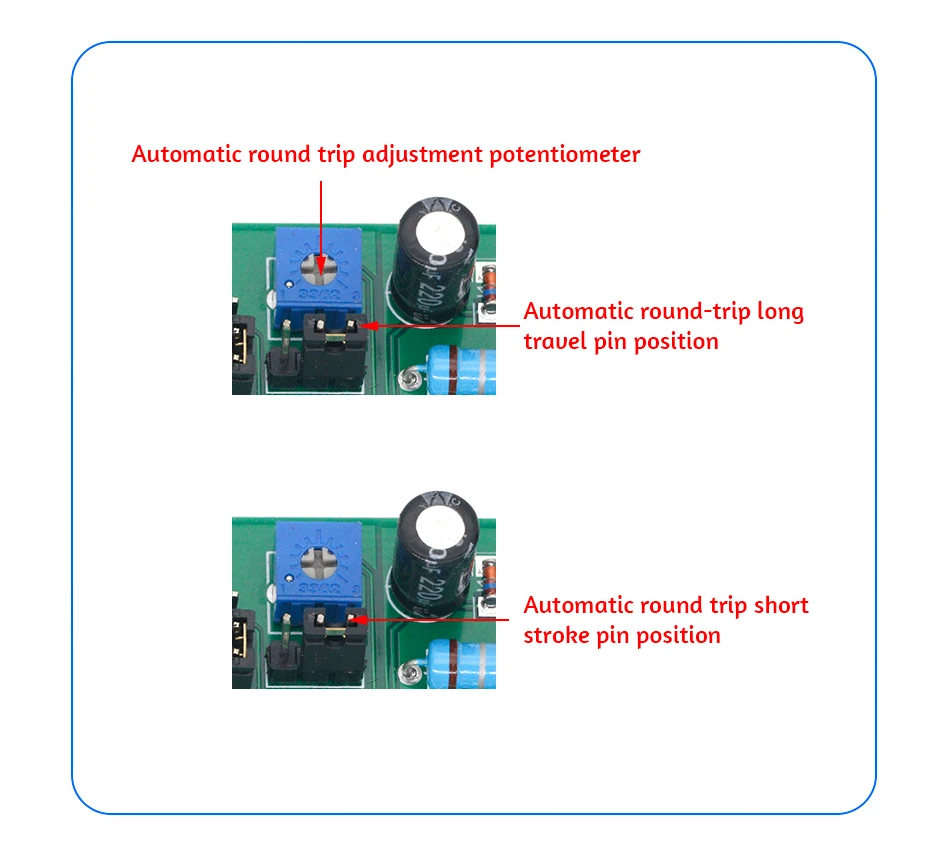

• Product Parameters Voltage Range: DC 5V-12V Rated Current: ≤800mA Over-current Protection: Yes Overheat Protection: Yes Power Reverse Connection Protection: Yes Working Mode Drive control board has four working modes to choose: regular mode 1; Normal mode 2; Dot mode; Automatic round-trip mode Normal mode 1: S1 start/stop button, S2 forward/backward button, W2 potentiometer velocity control If restrict reversal is required, two limit switches could be linked to the P3 pin, and the motor motion shaft is mounted with contacts, in order that the motor will reciprocate in the stroke between the two restrict switches Normal mode 2: Click S1 button to start forwards, S2 backwards, click on any button back to forestall W2 potentiometer velocity legislation If the limit give up is required, two limit switches can be connected to the P3 pin, so that the motor will give up shifting when it touches the limit switch, and the motor will opposite after the opposite button is clicked Jog mode: S1 presses the ahead rotation, releases the stop, S2 presses the opposite rotation, releases the stop, and the W2 potentiometer adjusts the rate If a limit quit is required, the upper restrict switch could be related to P3 Automatic round-trip mode: S1 starts and stops, S2 is reversed, W2 potentiometer speeds, and W1 potentiometer adjusts the automated round-trip steps After starting, the motor mechanically runs again and forth in the variety of steps adjusted through W1 Functional specifications Following figure shows S1 and S2 control buttons with diversified functions in numerous modes Please talk to P4 pin operate description for details Below is the description of W2 and P2 W2 motor pace adjustment potentiometer, counterclockwise adjustment becomes slow, clockwise adjustment turns into speedy P2 pace adjustment extension gear pin, W2 adjustment fluctuate is: the slowest 3 seconds consistent with step to the fastest zero seconds in keeping with step (16 steps/second) In instant mode, the W2 can be adjusted from zero seconds consistent with step (16 steps/S) to 0 seconds per step (800 steps/S) Below is the outline of W1 and P1 W1 computerized round-trip stroke adjustment potentiometer, counterclockwise adjustment stroke turns into shorter, clockwise adjustment stroke turns into longer P1 computerized round day trip adjustment growth pin In quick stroke gear, W1 can alter the number of steps from 1 to 2 hundred W1 can alter the variety of steps from two hundred to 1200 in lengthy stroke equipment Figure under is the function description of P3 pin External stroke switch is also used for high and low level signals of various sensors Low point is valuable The function varies with the mode For details, see P4 Pin operate description Following figure shows the pin functions of P5 and P6 P5 stepper motor output pin, in step with whether or not you choose 2-phase 4-wire or 4-phase 5-wire stepper motor, properly connect the twine in keeping with the characters at the board P6 strength input pin, could be connected to 5V-12V DC strength supply Note: (1) if you want to exchange any operate pins of P1, P2 and P4, you should disconnect the power supply on the board and gear on the selected operate again to take effect (2) when the weight current exceeds 800mA circuit protection, the operating indicator mild flashing every 2 seconds, then should minimize the working voltage or replace the motor can paintings usually

•
•
•
•
•
