Description

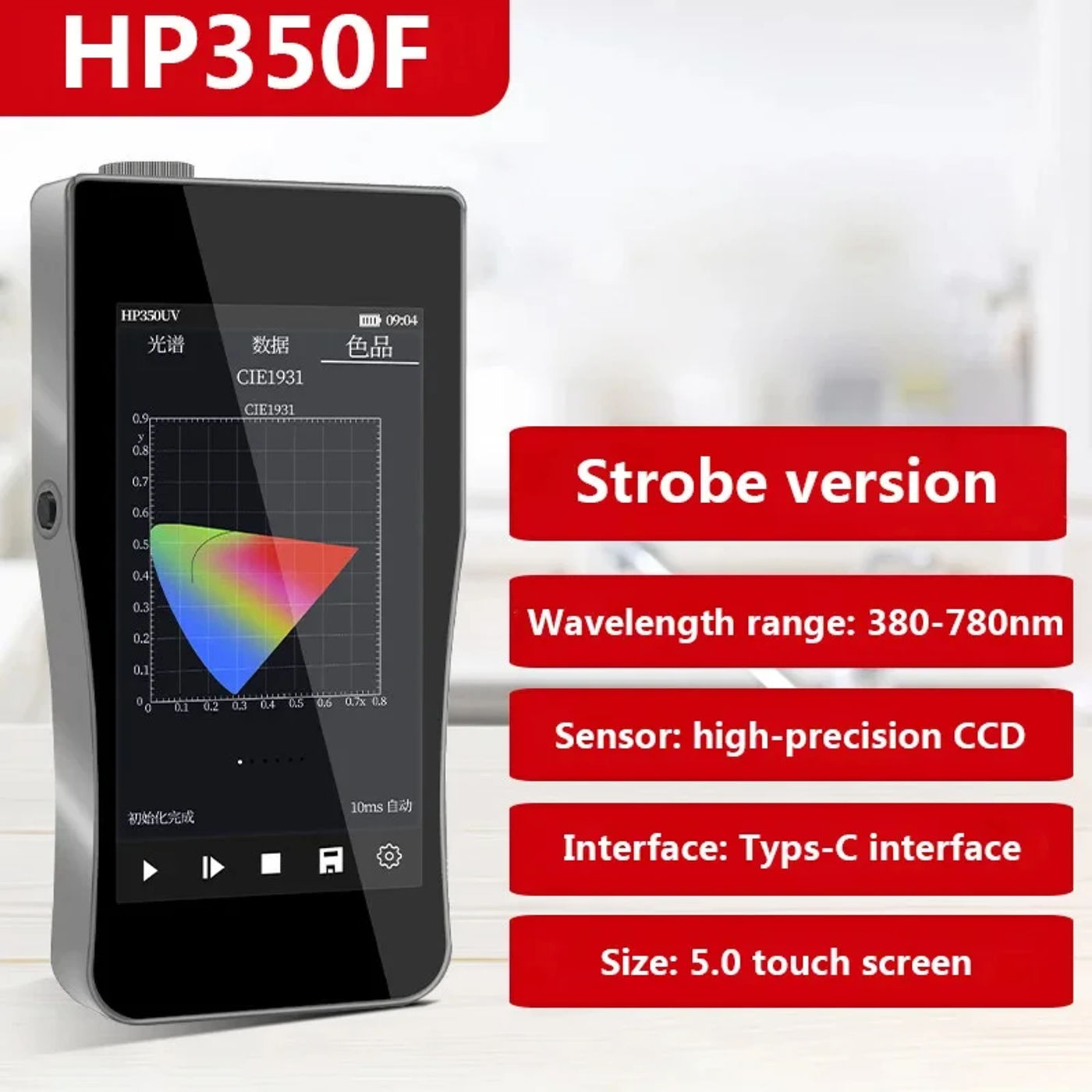

• Wavelength range: 380-780nm, 5 inch IPS high-definition touch screen, 4G memory 1200 line grating, CCD, precision circuit, high-speed AD sampling, save dossier formats: GDF, Excel, PDF Online testing, Bluetooth mini program ● Color gamut index: Rg ● Fidelity: Rf ● Color quality index CQS ● Related shade temperature Tc (K), blackbody deviation Duv ● Illuminance E (lx) Candlelight E (Fc) ● Radiant illuminance Ee (W/m ²） ● Chromaticity coordinates (x, y), (u, v), (u ′, v ′) ● Relative spectral energy distribution P（ λ） ● Color index Ra, Ri (i=1-15) ● Color index (strip diagram) ● Color index (space diagram) ● Chromaticity coordinate diagram CIE1976 CIE1960 CIE1931 ● Color tolerance diagram SDCM (MacAdam ellipse, oblong box, and CIEu&;v &;circle) Main wavelength, height wavelength, center wavelength, centroid wavelength, half of width ● Light to dark visible ratio S/P ● Color purity, crimson ratio, green ratio, blue ratio, CIE1931 three predominant color stimulus values X, Y, Z More useful parameters can be customized B Technical characteristics and signals Adopting advanced micro spectrometer technology, which has increased trying out accuracy than normal probes; Equipped with computer software that may hook up with a computer to print check reports; Computer connection method: USB ● Color LCD show with nice graphic and textual content interface, able to showing spectral waveforms and shade tolerance ellipses; ● Light splitting mode: lengthy focus bifurcated uneven CT Photosystem; ● The sensor adopts high-precision CCD; ● Spectral bandwidth (FWHM) 2nm; Screen size: five IPS high-definition colour LCD touch screen; ● Illuminance examine vary 1-2000000Lux, resolution 1Lux; ● Wavelength dimension range: 380nm-780nm; Wavelength accuracy: ± 0 ● Chromaticity traditional accuracy: ± 0, resolution: 0;; Related color temperature size range: 1000-100000K: ● Resolution: 1K; ● Measurement differ of Color index: R1 ～ R15 ● Total colour distinction accuracy: within ± zero (measurement conditions: beneath regular A gentle source); Continuous operating hours: Equipped with a 4000mA high ability lithium battery, that are continuously used for more than 20 hours in a single charge; ● Storage capacity: Standard 8G wide potential data storage card, with an information storage capacity of over 30000 pieces; Integrating measurement purposes such as spectrum, illuminance, and chromaticity; The HP330P Intelligent Wireless Spectral Power Meter is a new era hand-held light supply coloration trying out device that mixes progressed micro spectrometer, embedded working system, and microcomputer expertise The Bluetooth mini program app makes checking out more convenient and simple, with one click sharing, and parameter trying out analysis and verification that's extra in line with on-site application situations It can sample and measure light supply parameters anytime and anywhere, and might also be connected to PC software for efficient analysis and processing of verify data It has extremely excessive dimension linearity and accuracy, and is extensively utilized in on-site lighting dimension fields equivalent to homes, browsing malls, schools, factories, greenhouses, and outdoor places It can be used in the research and advancement of light source products, production line high quality monitoring, and other links Application standards: GB 40070-2021, JJG_ Various lighting fixtures criteria resembling 245-2018, GB55016-2021, GB/T 5702-2019, GB/T 5702-2019, GB/T 5699-2017, GBT 5700-2008, GBT 24824-2009, GB30734-2014, GBT 9473-2017, etc Main verify parameters: colour temperature (K), illuminance lx, coloration tolerance SDCM, colour rendering index Ra, coloration coordinate, wavelength nm, coloration purity (Purity), mild to darkish visual ratio (S/P), photosynthetic photon flux density PPFD, photosynthetic nice radiation illuminance PAR w/㎡, fine photosynthetic photon flux density YPFD, photosynthetic obtainable radiation PUR (w/m ²）、 Transmission ratio and other parameters Test function: 3A multi-point check for eye defense lamp (desk lamp), illumination test for plant development lamp, multi-point test, and illumination colour temperature uniformity check 2、 Optical direction characteristics (fiber optic spectrometer structure 1 Multiple optical inputs: direct cosine correction coming into the slit or by way of SM905 fiber (with cosine correction) 2 Wavelength range: 380-780nm 3 Spectral resolution: ± 0, wavelength resolution: 4 Photometric linearity ± 0% five Stray light:<0% 6 Photometric probe cosine correction: error ≤ 5%, nonlinearity ≤ 1% 7 Absolute value of fatigue error: ≤ 2% eight Long wave response error: ≤ 15% nine Relative indication error: ± 5% 10 Zero price error: ± 1% (FS) eleven Range: Automatic error ± 1% 12 High speed data acquisition, integration time: millisecond level thirteen Symmetrical non intersecting H-T optical route with a focal size of forty two 14 Communication methods: USB communication, Bluetooth, 485, 232 (HP250 open verbal exchange protocol) 15 External dimensions: 145mm * 58mm * 18 16 Adopting advanced micro spectrometer technology, the checking out accuracy is higher than traditional probes; 17 Can connect with mobile phones, connect with computer systems for trying out and printing reports; 18 Color LCD exhibit with good graphic and textual content interface, capable of showing spectral waveforms and color tolerance ellipses; 19 three inch IPS contact display

•
•
•
•
•
