Description

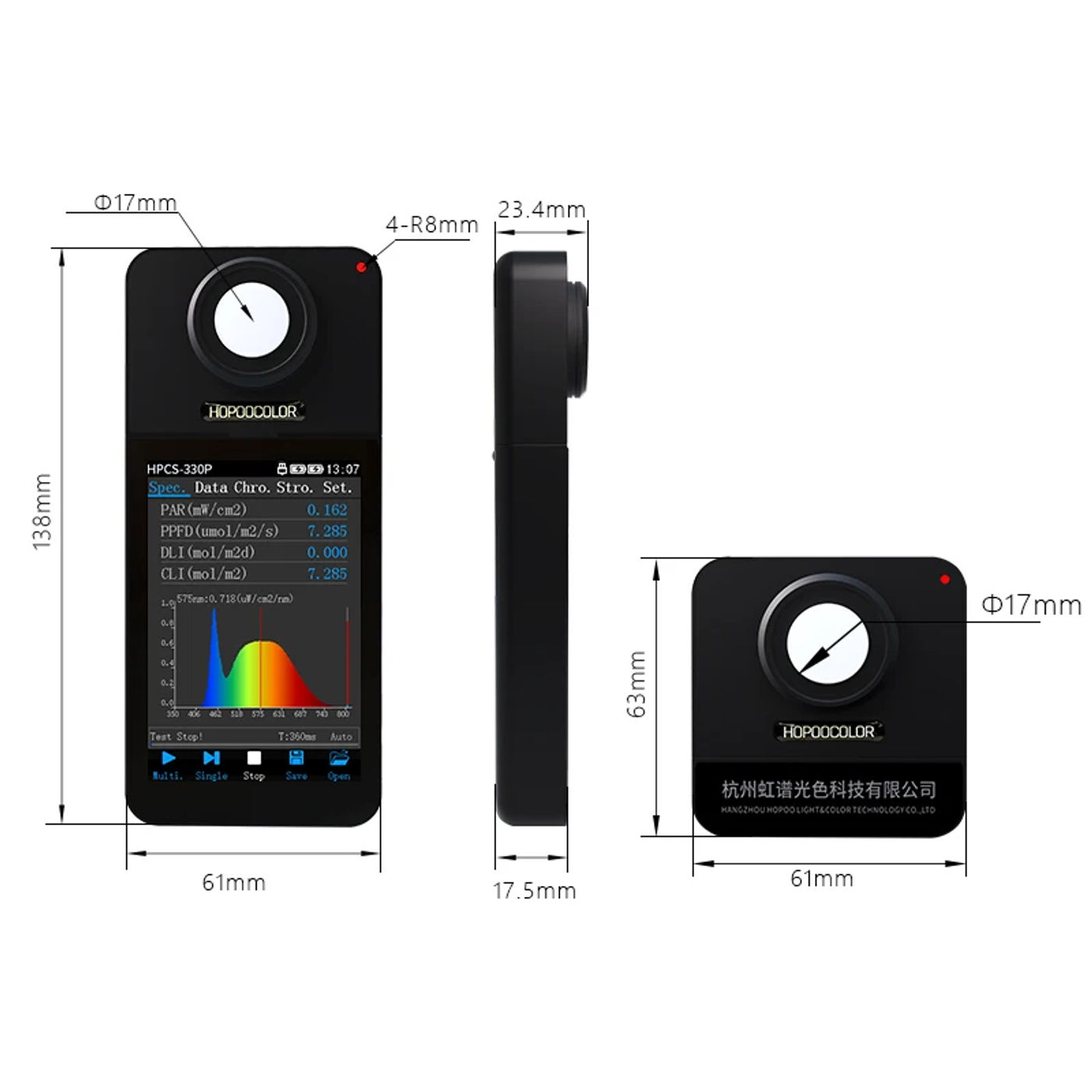

• HPCS-330 is an economical shade temperature illuminometer that integrates dimension parameters comparable to spectrum, illuminance, color temperature, colour rendering index, wavelength, colour coordinates, and colour tolerance The probe and host adopt a split kind magnetic suction design and Bluetooth communique The host adopts a 3 LCD screen, which is extensively used for lighting fixtures dimension in households, schools, supermarkets, and different events It has wi-fi Bluetooth split technology, and the probe can connect with WeChat mini packages by way of Bluetooth separately for data size viewing and garage The multi probe 485 is attached to communication technology, allowing for multi-point records size and detection Qualification HPCS-330 Wireless spectral illuminmeter Wavelength:380-780nm Light distribution platform Light distribution platform sensor high-accuracy CCD Light-receiving instruments Φ 17mm, cosine finmer The wavelength accuracy ± zero Aaccording accuracy Level 1 (± 4% reading ± 1 reading) Spectral Bandwidth(FWHM) 4nm Range of illumination measurements 5-200000Ix Color temperature dimension differ 1000-100000K integration time 50us-10000ms computer screen A three HD contact display screen information interface Bluetooth / USB Type C Bluetooth conversation distance 0~10m (no barrier) language Simplified Chinese / English Host garage potential Built-in 4G Bit Dimensions (LxWxH) 138*61*23 Measuring parameters illumination (lx) coordinate CIEx,y Color index (Ra) colour purity (%) middle wavelength (nm) integration time (ms) CIE1931 CIE1976 candlelight (Fc) coordinate u, v R1-R15 half of width (nm) pink ratio (%) CIE1931 CCT (K) coordinate u &;, v&; gentle and shade vision ratio S/P height wavelength (nm) green ratio (%) CIE1960 Duv blue ratio (%) leading wavelength (nm) central wavelength (nm) Computer software interface Mobile reveal interface Appearance dimensions

•
•
•
•
•
