Description

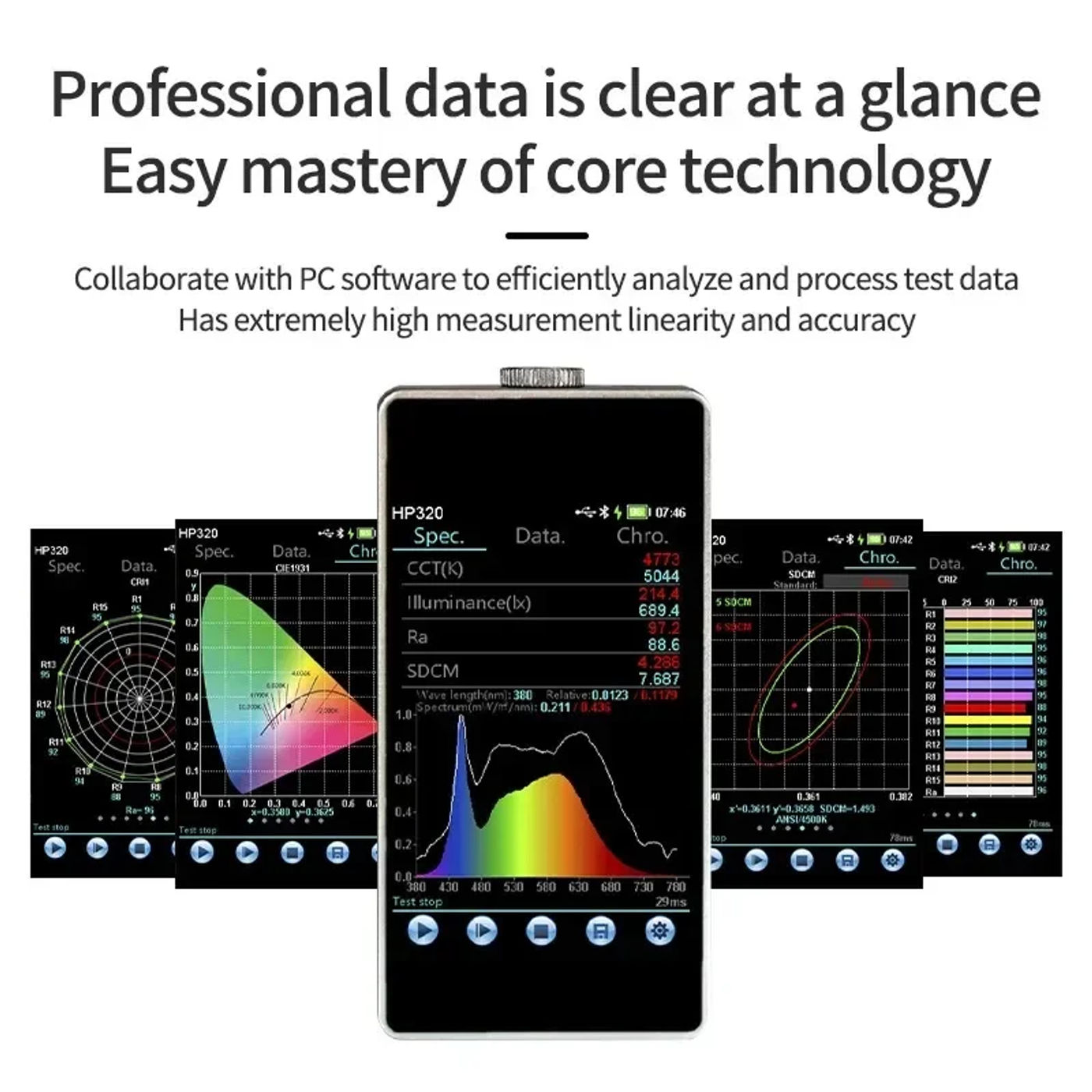

• Product Introduction 1, HP320 intelligent spectral illuminometer The HP320 clever wireless spectral strength meter is a new generation of hand held light source mild colour trying out tool It makes use of stepped forward micro spectrometer, Embedded operating formula and microcomputer technology to combine The three inch IPS touch display screen makes the sphere check utility extra convenient and simple, and extra consistent with the parameter check evaluation and verification of the sphere application situation Sampling and dimension of light supply parameters can be carried out anytime and anywhere, and PC utility would be related to the laboratory for testing Efficient evaluation and processing of verify information stored in on-site testing would be carried out, with ultra excessive size linearity and accuracy Application standards: GB 40070-2021, JJG_ Various lights criteria such as 245-2018, GB55016-2021, GB/T 5702-2019, GB/T 5702-2019, GB/T 5699-2017, GBT 5700-2008, GBT 24824-2009, GB30734-2014, GBT 9473-2017, etc Main test parameters: shade temperature (K), illuminance lx, coloration tolerance SDCM, Color index Ra, coloration coordinate, wavelength nm, shade purity, gentle and dark visible ratio (S/P), transmittance (1) Main purposes 1 On website checking out of commercial lighting, fitness lighting, domestic lighting, constructing lighting, etc; 2 Laboratory examine and development validation testing; 3 In the sector of on-site lighting fixtures measurement in homes, searching malls, schools, factories, greenhouses, outdoors areas, etc; four Research and advancement of light supply products, quality controls of production lines, and other links five Online detection, sorting, real-time monitoring, and so forth of light source merchandise (2) Product benefits 1 Communication method: USB 2 Multi platform operation: computer PC utility management operation, IPS touch display control operation (3) Core instruments 1 TCD1254 CCD detector, band response range 380-780nm 2 Enhanced coating grating: variety of lines: six hundred traces 3 Enhanced collimator, focusing lens four 16 bit high-speed AD sampling five High precision and secure computing circuit 6 High precision optical path, small stray light, removal of high-order diffraction spectrum (cloud spectrum filtering system) (3) Advantages of trying out 1 Comparative testing, transmittance testing, parameter comparison (rolling and locking modes) 2 Timing testing, timing saving (can be verified via gentle attenuation testing) three Wavelength adjustable for straightforward query (single band for simpler viewing and analysis) four Compensation for examine outcomes (coefficient compensation for verify results for different eventualities and environmental changes) 5 Online trying out 2, Optical direction characteristics (fiber optic spectrometer structure) 1 Multiple optical inputs: direct cosine correction getting into the slit or by way of SM905 fiber (with cosine correction) 2 Wavelength range: 380-780nm three Spectral resolution: ± 0, wavelength resolution: 4 Photometric linearity ± 0% five Stray light:<0% 6 Photometric probe cosine correction: error ≤ 5%, nonlinearity ≤ 1% Power requirements Charging adapter:input:AC110V~220V ±10% output:DC5V/1A ±5% Built-in Lithium Battery:Charging Voltage 4 capacity: 4000mAh size:60mm×60mm×8 Data cable:Type-C interface Carrying current≥1A Environment 1 humidity:＜70％RH;storage temperature:＜50℃; 2 faraway from water, oil, chemicals, corrosive liquid gases, hot temperature and pressure, direct sunlight, etc; 4 long-term or severe vibrations, keep away from falling from excessive places, and keep away from squeezing heavy objects Usage surroundings total machine:-10℃～+40℃ 0～70%HR(Cannot be positioned in water)Stay faraway from solid magnetic fields, electric fields, and vibrations make certain high size accuracy, optimum operating environment, and temperature of the instrument:20℃-25℃,humidity:50%RH～75%RH Quantity calibration: To ensure the long-term accuracy of the instrument, it is suggested that users frequently send the device to our company for checking out and calibration, or to a laboratory with recognized qualifi

•
•
•
•
•
