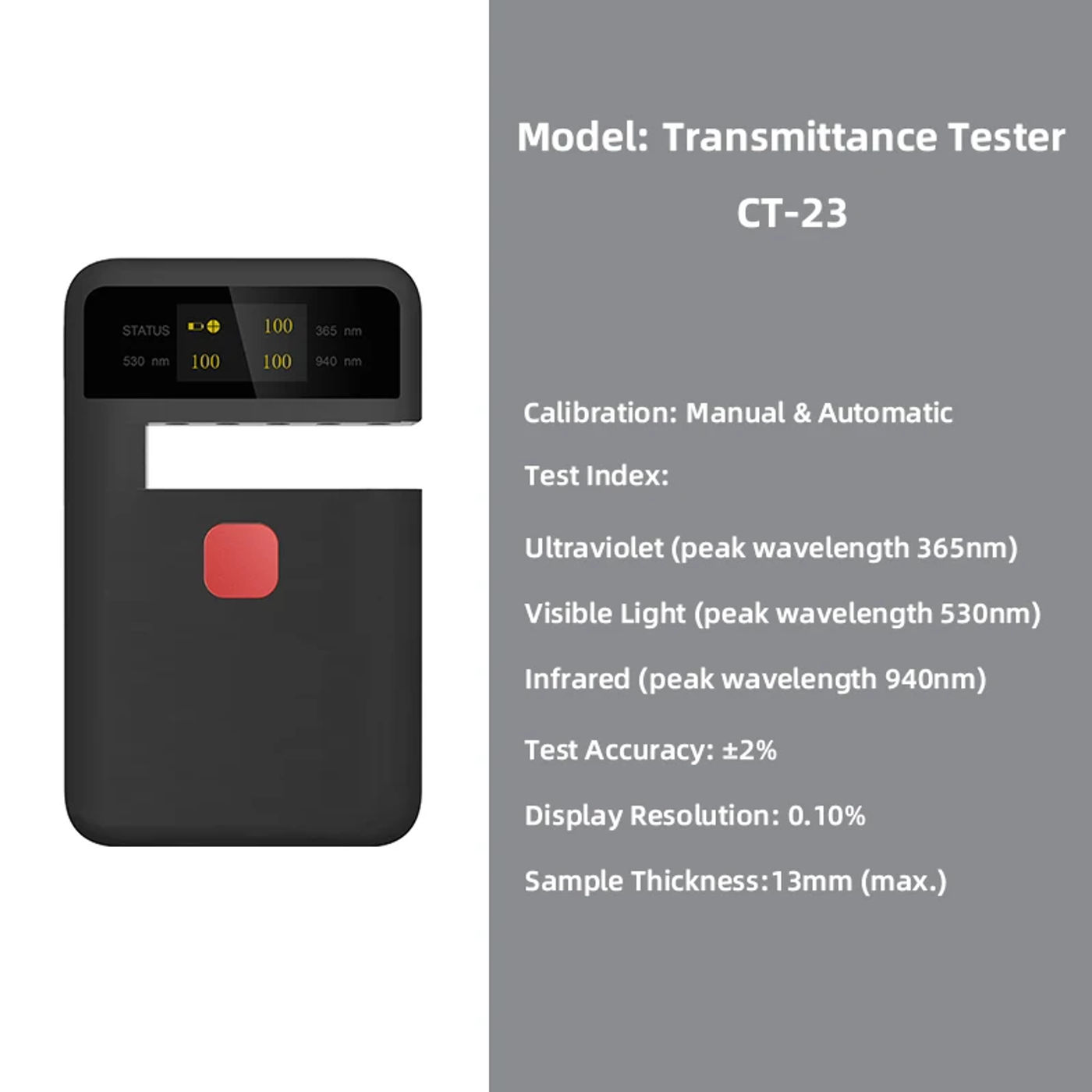

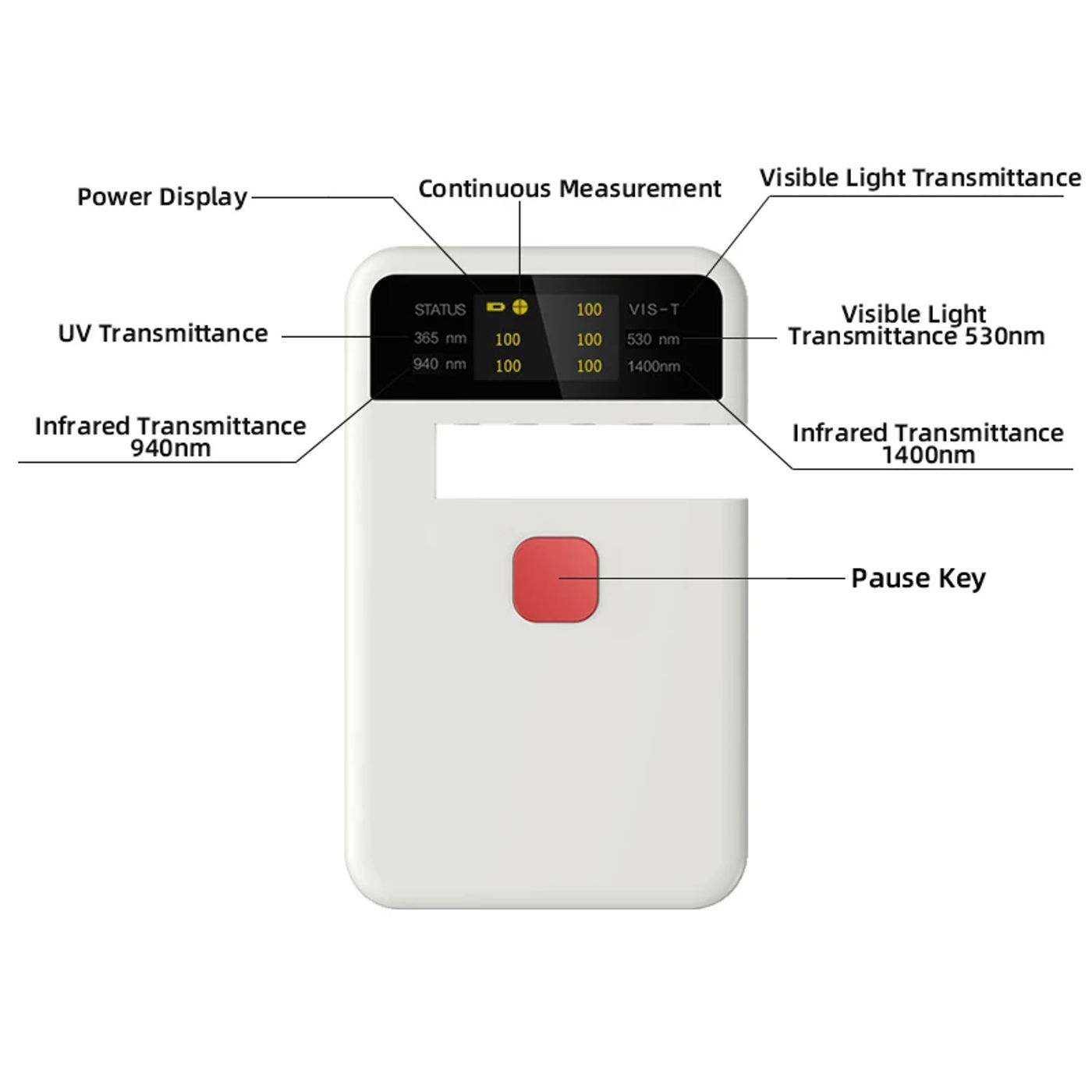

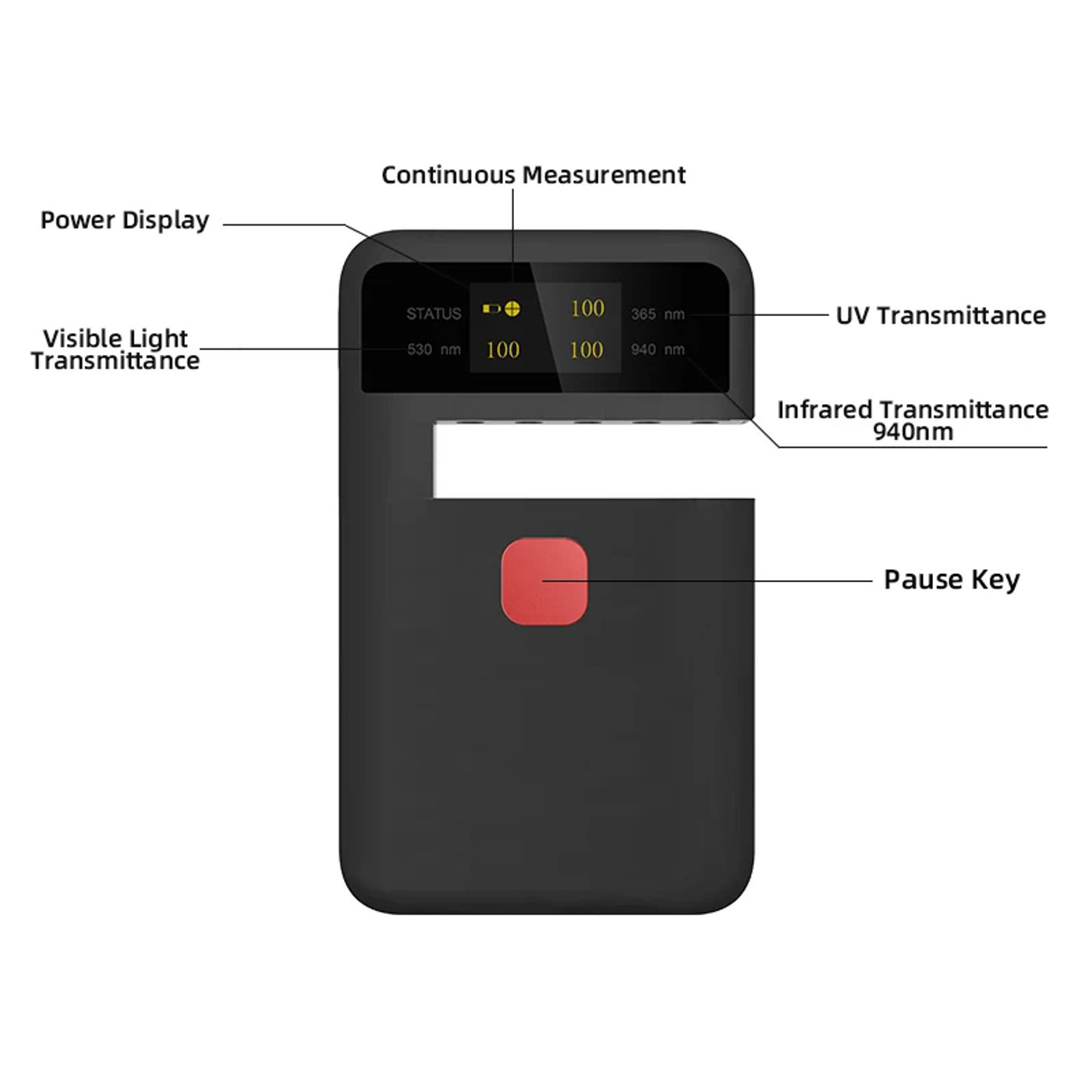

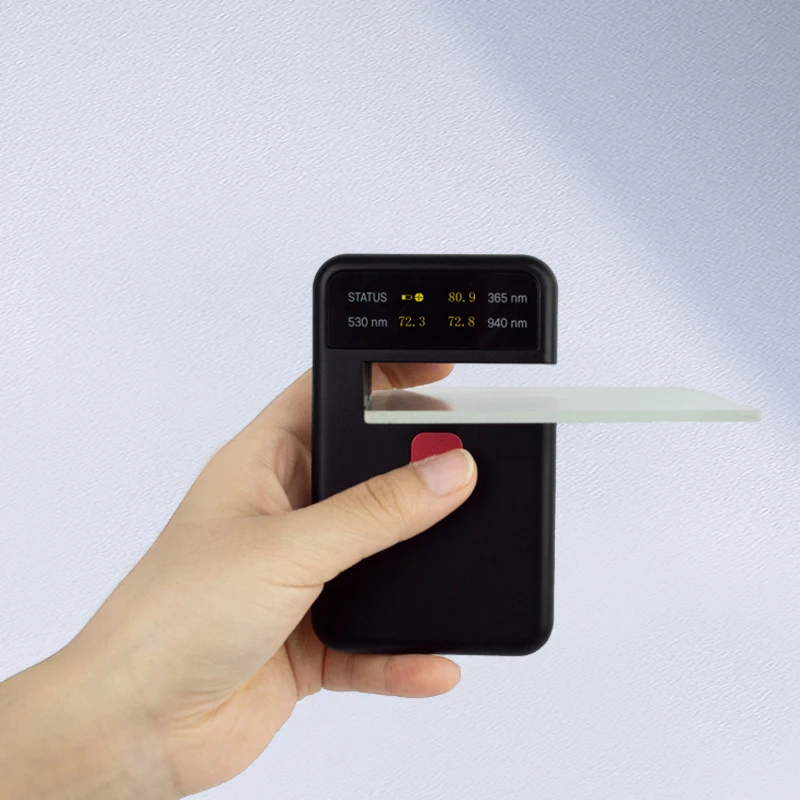

• Portable Transmittance Tester CT Series Introduction Part 1 Instrument Advantage 1 Simple operation and instant to get the result, as long because the pattern is positioned within the examine area, the verify result can be displayed 2 It can measure the transmittance of UV light, visible light, and infrared gentle three It adopts parallel light path design, pattern measurement thickness can attain 13mm 4 The instrument has an information lock function After the test, press the Pause key on the tool to lock the check data, and the test pattern records will still remain at the reveal interface after the pattern is taken away 5 Digital display, large measuring range, excessive decision 6 Two calibration modes: Manual calibration and automatic calibration for simple usage 7 Small size and non-slip design, smooth to understand and bring for out of doors check eight Rechargeable lithium battery, no need to take time to switch batteries Part 2 Technical Data Name Portable Transmittance Tester Portable Transmittance Tester Model CT-23 CT-25 Geometry Transmission Transmission Calibration Manual + Automatic Manual + Automatic Test Index Ultraviolet (peak wavelength 365nm) Visible light (peak wavelength 530nm) Infrared (peak wavelength 940nm) Ultraviolet (peak wavelength 365nm) Visible light (peak wavelength 530nm) Infrared (peak wavelength 940nm) Infrared (peak wavelength 1400nm) Visible gentle (380nm-760nm,conform toCIE photopic operate standard) Test Accuracy ±2% ±2% Display Resolution 0% 0% Sample Thickness 13mm(max) 13mm(max) Instrument Size 115* 70* 14mm 115* 70* 14mm Test Time Less than 1s Less than 1s Battery Volume 750mA 750mA Power Supply 5V/1A 5V/1A Screen Full colour display, 135*240, 1 Full shade display, 135*240, 1 Recharging Interface USB USB Working Temperature 0-40℃ 0-40℃ Humidity Less than 85%, no condensation Less than 85%, no condensation Standard Accessories USBcable, Lanyard, function manual USBcable, Lanyard, operate manual Part three Appearance Structure Part 4 Application

•
•
•
•
•
