Description

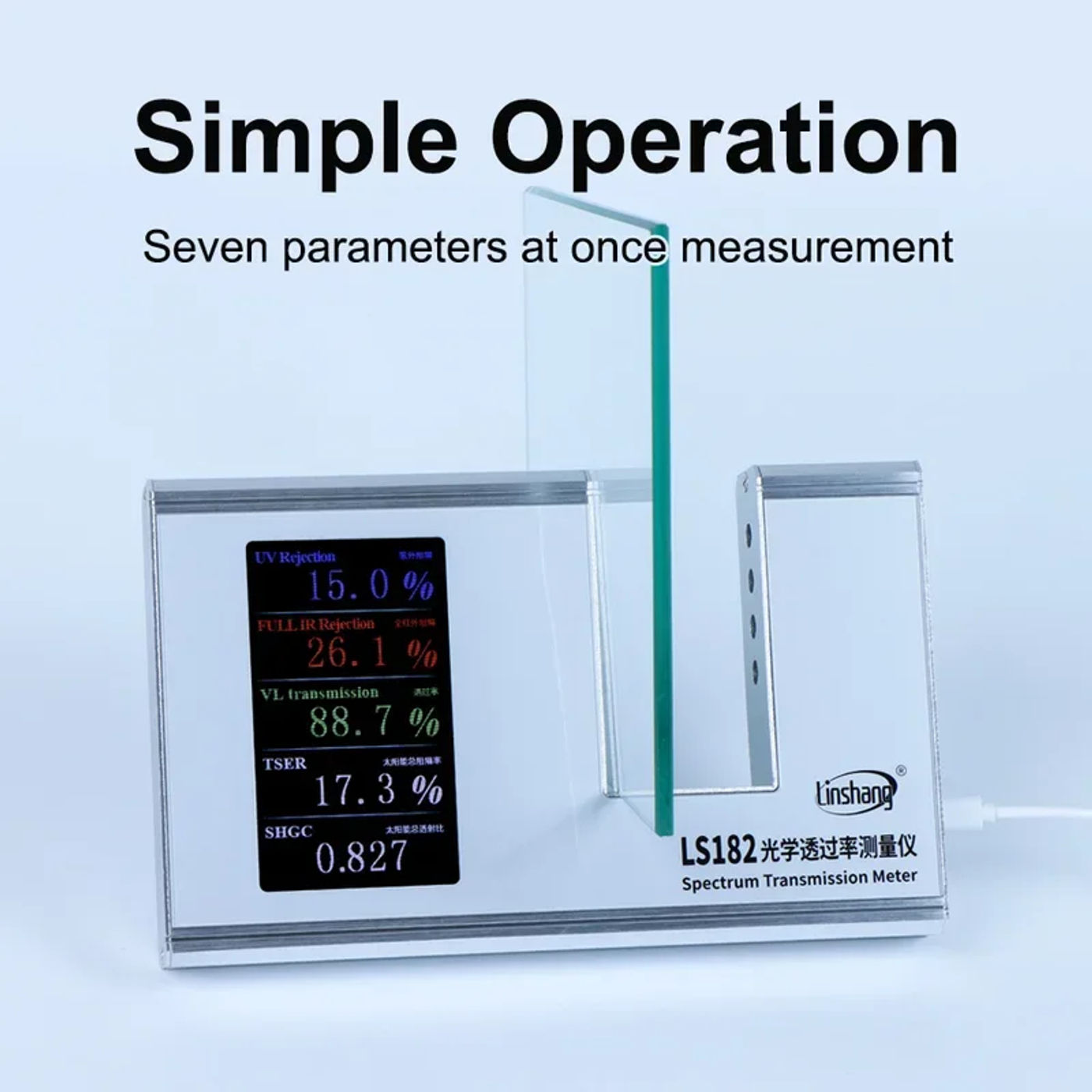

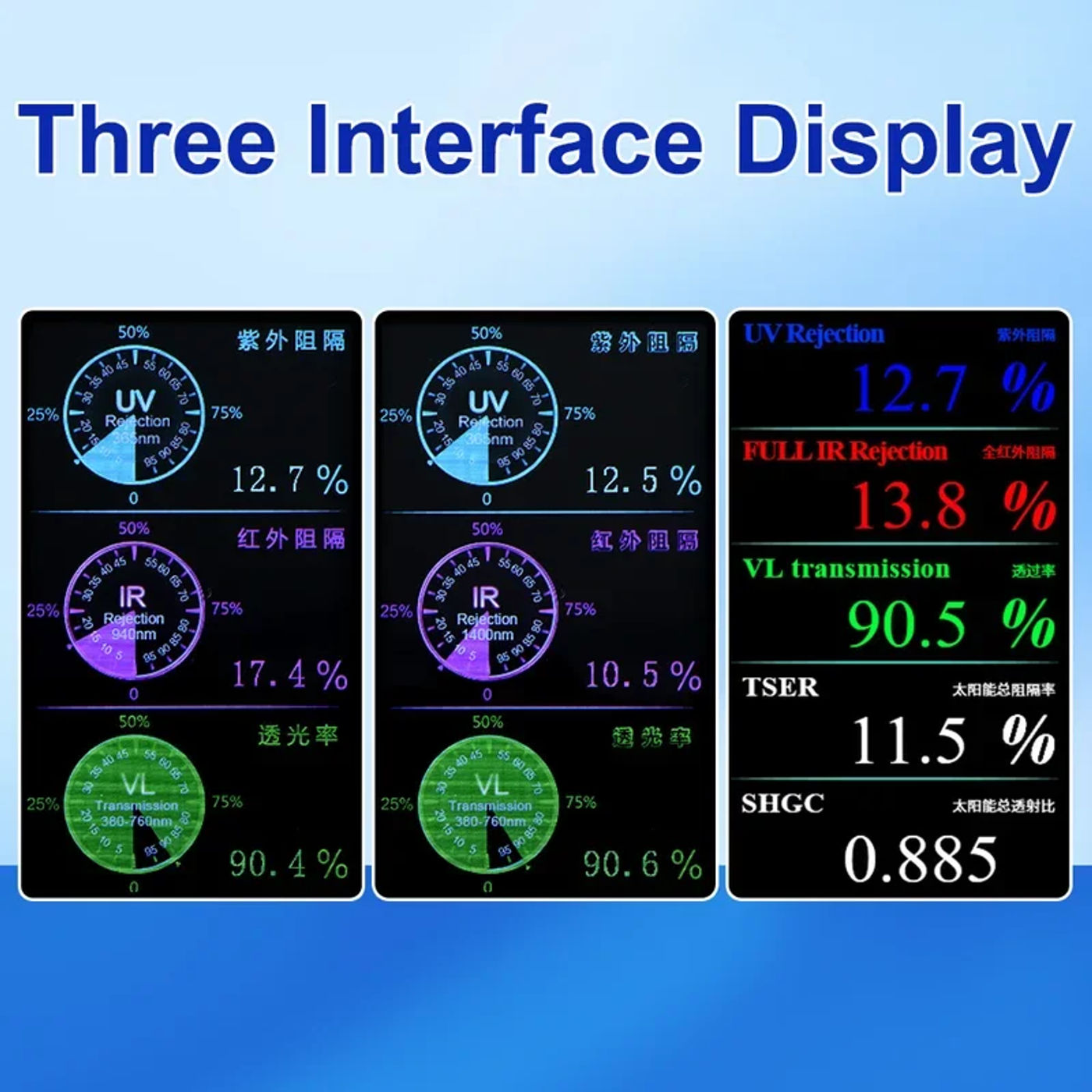

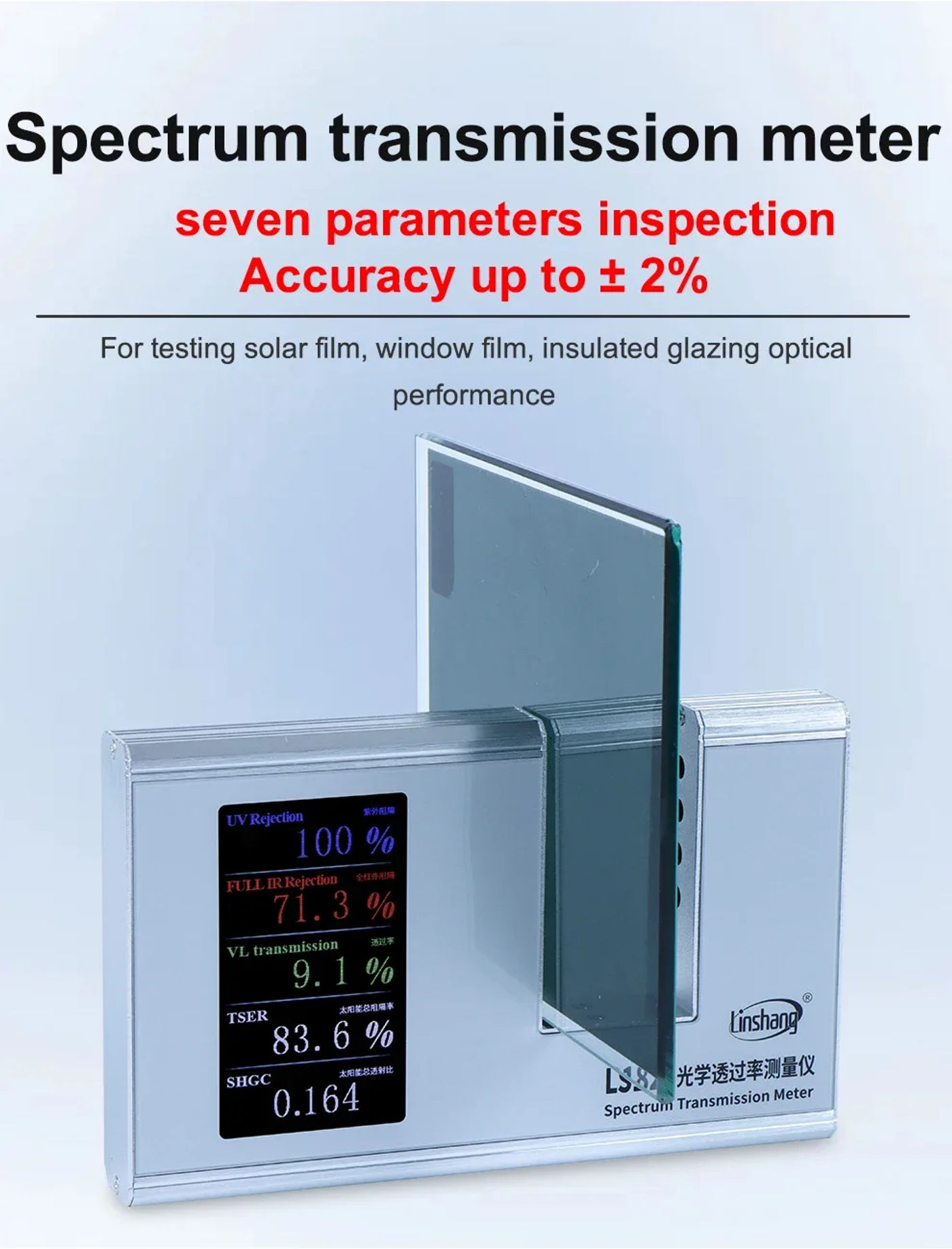

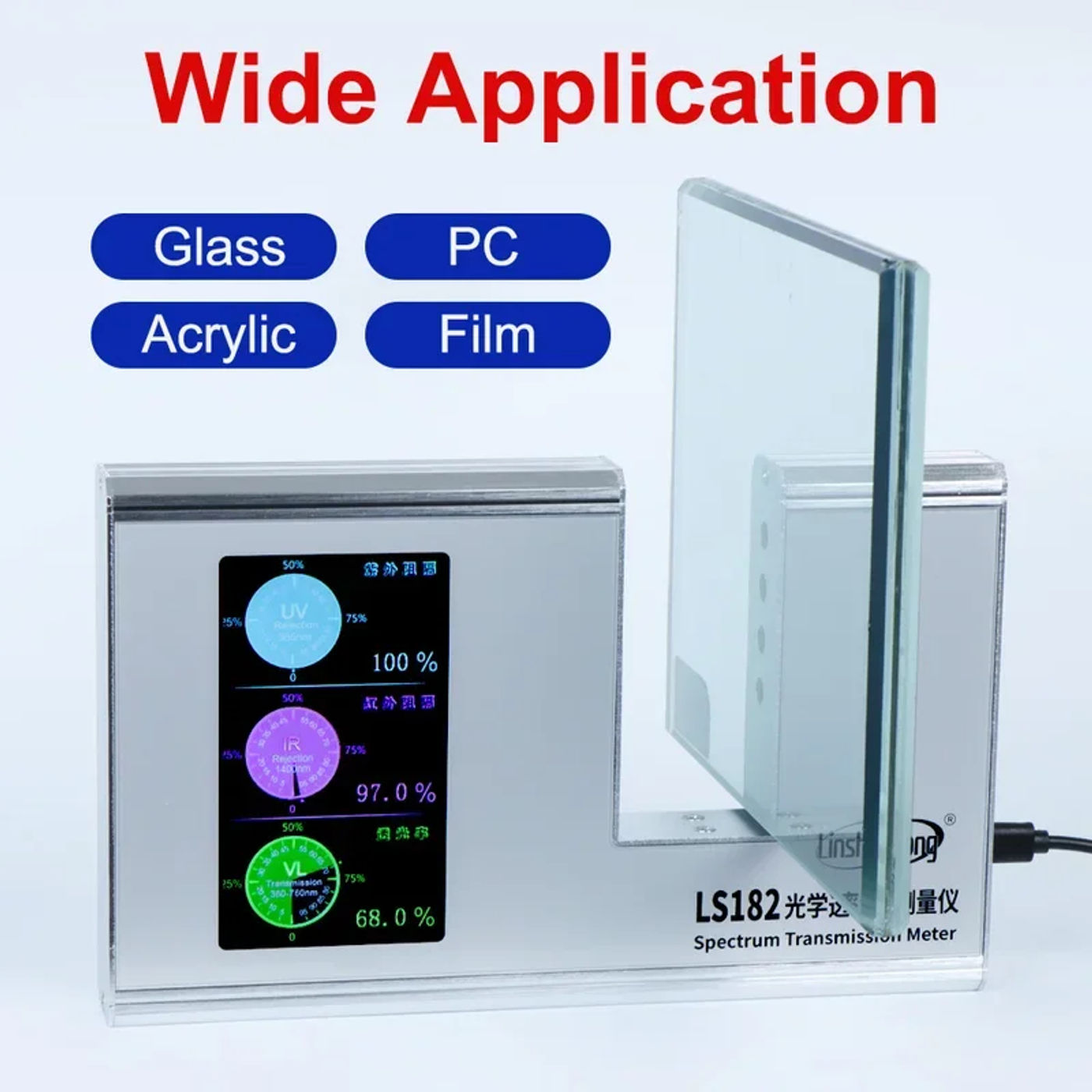

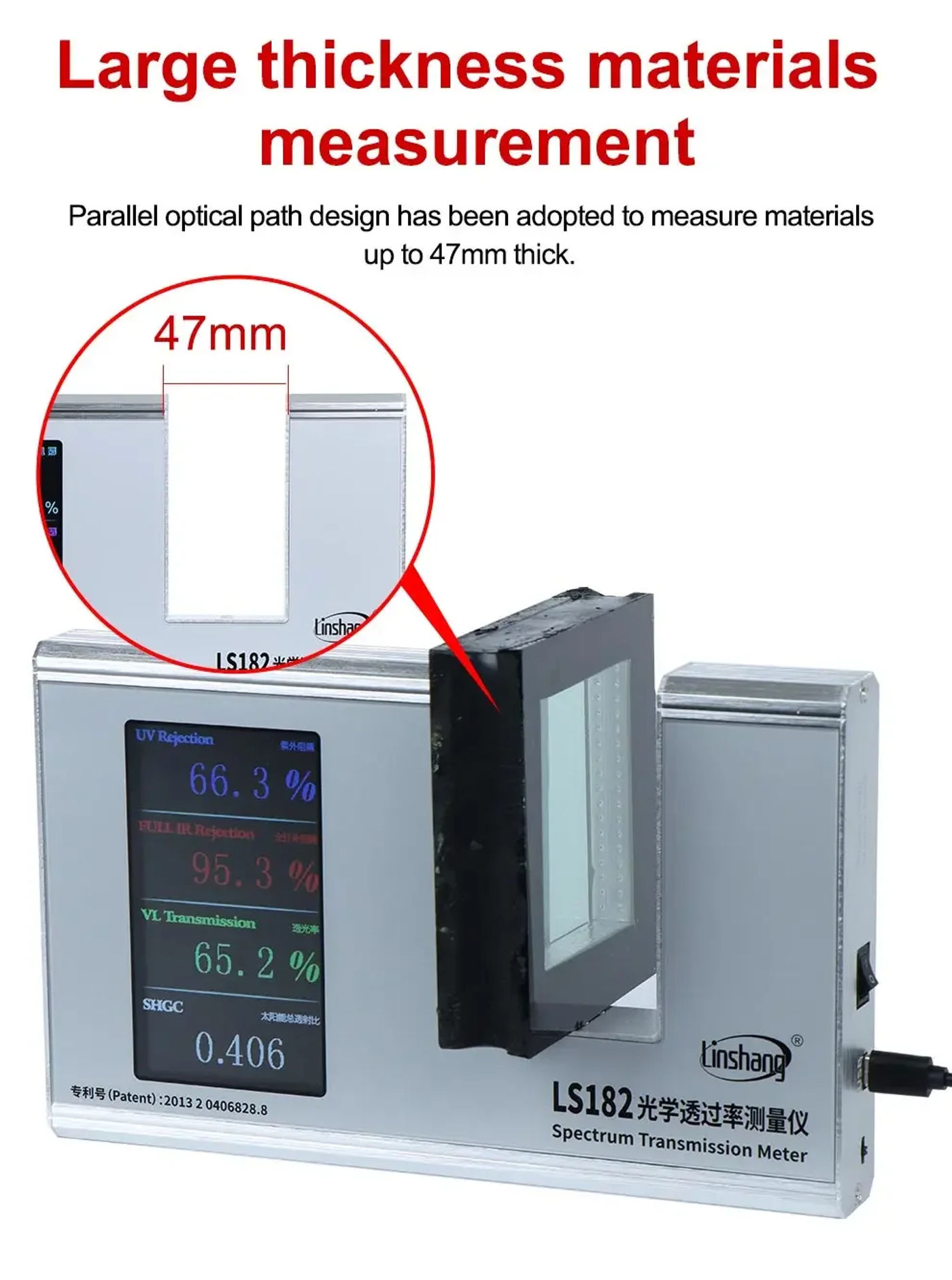

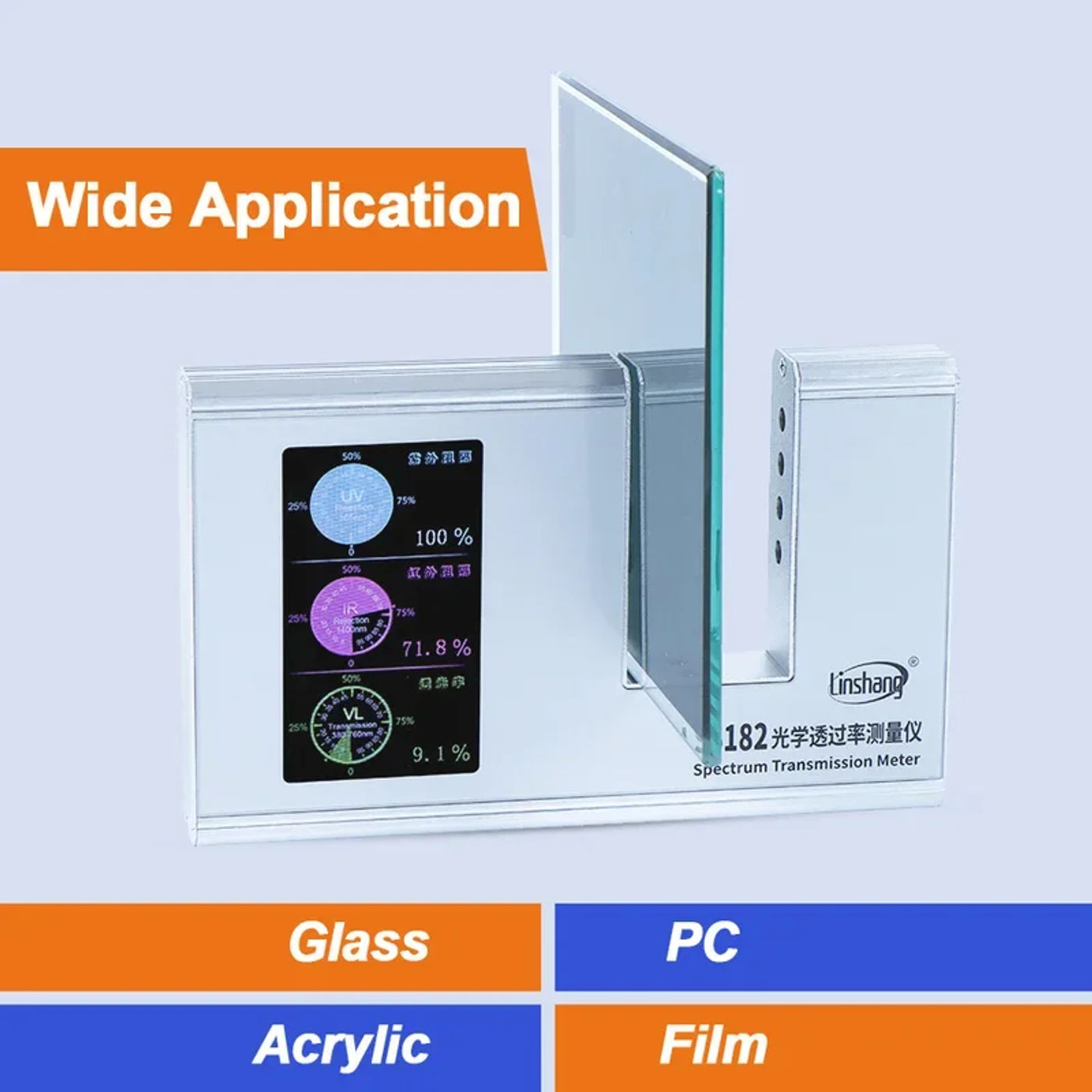

• Description LS182 spectrum transmission meter can measure SHGC (Solar Heat Gain Coefficient), 940nm, 1400nm, and full infrared rejection rate, 365nm ultraviolet rejection rate, and 380nm-760nm visible light transmittance It employs parallel mild course design and can measure materials as much as 47mm in thickness The LCD display provides handy studying with 3 selectable modes It elements real-time dynamic self-calibration, routinely calibrating upon startup It operates on 5V strength delivery and may be immediately related to a cellular power source Commonly utilized in industries akin to window film, glass, and architectural doors and home windows Specifications 1 UV height wavelength: 365nm 2 IR peak wavelength: 940nm, 1400nm, Full IR and SHGC three Visible light: 380-760nm (conform to CIE photopic luminosity function) 4 Resolution: 0% five Measurement accuracy: ± 2% (colorless and uniform transparent material) 6 Test card slot: 47mm×91mm (W*H) 7 Weight: about 590g eight Dimension: 216mm × 134mm × 29mm (L * H * W) 9 Power supply: 5V DC/1A (Type-C) Features 1 Six parameters would be measured: 365nm UV rejection rate, 940nm/1400nm/full IR rejection rate, VLT and SHGC 2 Parallel optical path design has been followed to measure materials up to 47mm thick three The LCD screen offers handy studying with three selectable modes four It has real-time dynamic self-calibration function and is mechanically calibrated after energy on five 5V strength supply, could be straight linked to the cellular power supply 6 Commonly used in industries akin to window film, glass, and architectural doorways and windows 7 High precision, to ensure that it would cross the check of the authoritative metrological institute Measuring six parametersSix parameters could be measured: 365nm UV rejection rate, 940nm/1400nm/full IR rejection rate, VLT and SHGC Parallel optical route designParallel optical path design has been followed to measure materials up to 47mm thick Color LCD displayAdopt color LCD display display, handy to read, appropriate for participating in exhibitions, and so on dynamic self-calibration functionIt has real-time dynamic self-calibration operate and is mechanically calibrated after power on 5V power supply5V strength supply with Type-C interface, can be directly connected to the mobile power delivery Wide range of applicationsCommonly used in supplies reminiscent of solar film, window film, insulated glazing, laminated glass Certified via authoritative metrology instituteHigh precision, to ensure that it's going to go the check of the authoritative metrological institute Provide a assist pillarA support pillar is included, which permits the software to be positioned diagonally throughout testing, making readings convenient 1 LS182 spectrum transmission meter*1 2 DC5V Adapter * 1 three User Manual*1 four Certificate / warranty card*1 5 Support pillar*1 6 Packing field dimension 34*29*9 cm(L * W * H)* 1 Note Due to the several display screen and light effect, the particular color of the article is probably barely assorted from the colour showed on the pictures Please allow 1-2cm measuring deviation thanks to guide size

•
•
•
•
•
