Description

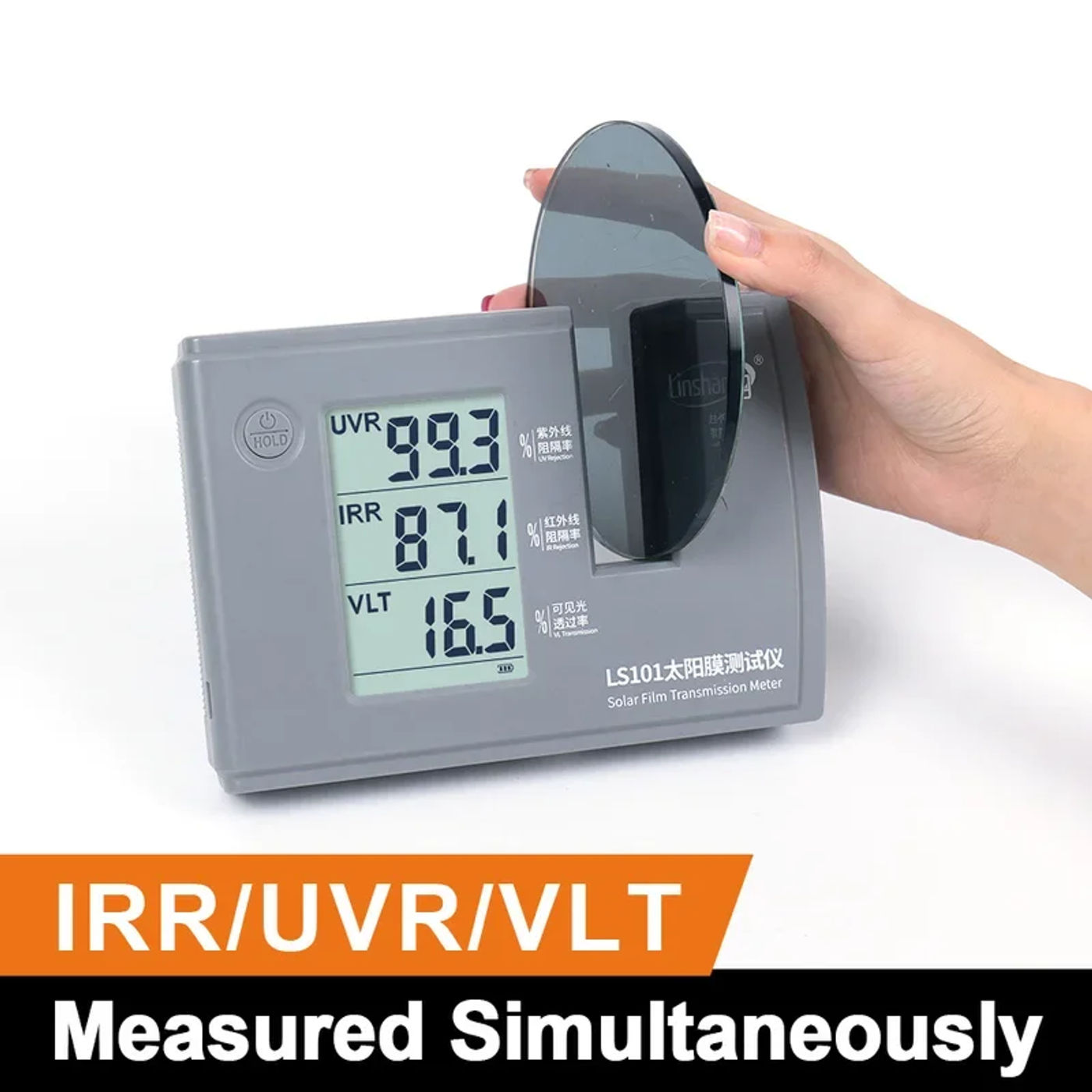

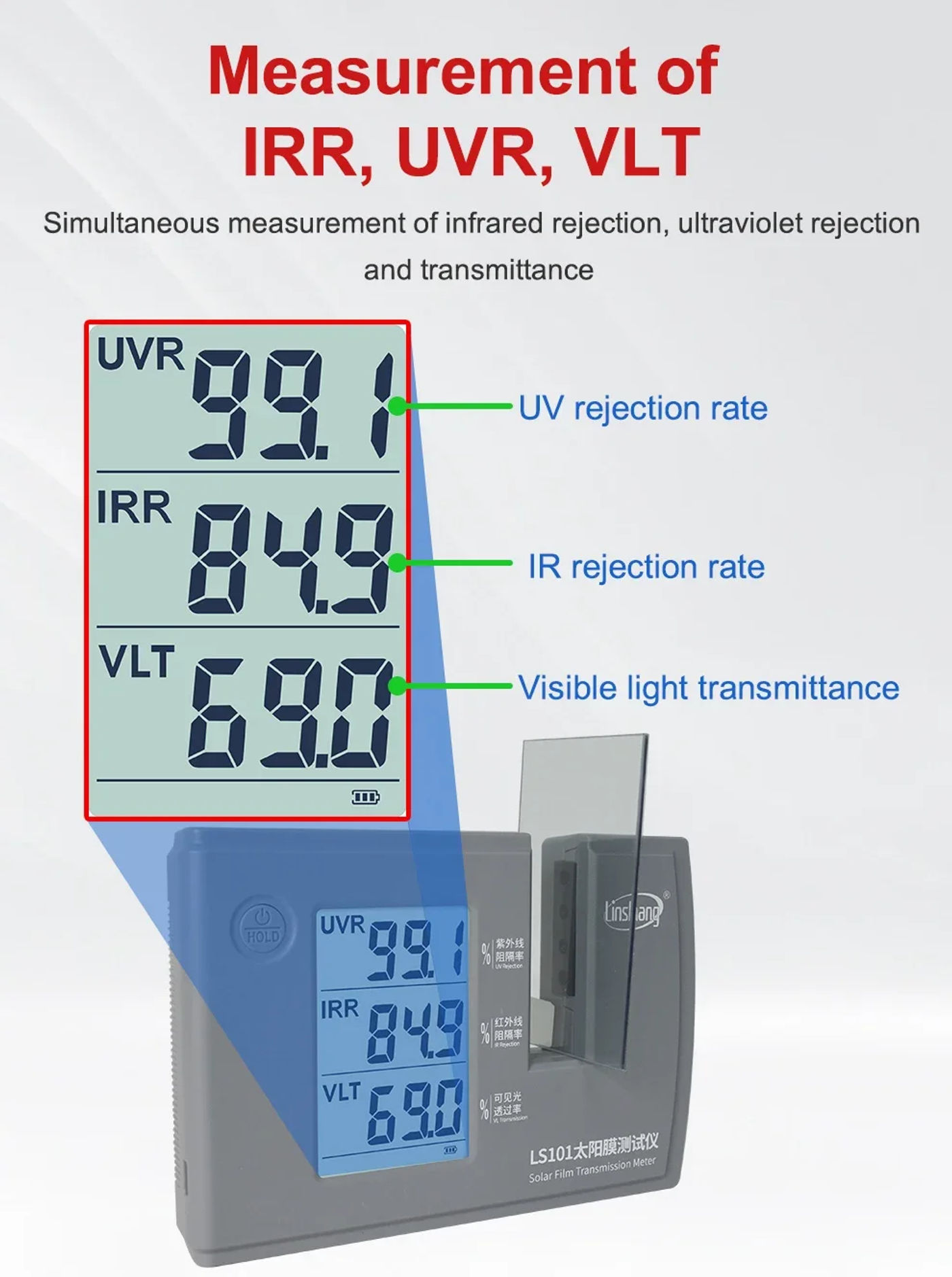

• Description LS101 solar movie transmission meter with parallel gentle route design, is awfully suitable for optical functionality checking out of car film, explosion-proof film, architectural film, heat insulation film, laminated glass and different supplies It can simultaneously measure UV rejection rate, infrared rejection rate and visible light transmittance, with a large LCD screen exhibit for easy studying It can measure wide thickness of material with 20mm test slot After HOLD is pressed, the information remains at the display screen for simple reading, even when the material is eliminated Specifications 1 Size: 175mm * 120mm * 30mm (L * W * H) 2 Test slot: 20mm * 70 mm (W * H) 3 Weight: 360g four Resolution: 0% 5 Accuracy:±2% (Colorless and transparent material) 6 UV Peak wavelength: 365nm 7 Visible light: 380-760nm, conforming to the CIE photopic luminosity operate 8 IR Peak wavelength: 940nm 9 Display: Segment LCD 10 Power Supply: 4*AA alkaline batteries or 5V AC/DC strength supply Features 1 Simultaneous measurement of infrared rejection, ultraviolet rejection and transmittance 2 It can measure huge thickness of fabric with 20mm verify slot three It is suitable for optical performance testing of photo voltaic film, explosion-proof film, laminated glass and so on four After HOLD is pressed, the data stays on the screen for easy reading, even when the cloth is eliminated 5 The software comes with a assist stand, more handy reading 6 Two strength delivery strategies are available: four AA alkaline batteries or a 5V USB strength delivery 7 Accuracy as much as ±2%, can pass the authoritative metrology institute trying out Measurement of IRR, UVR, VLT Simultaneous size of infrared rejection, ultraviolet rejection and transmittance 20mm examine slot It can measure vast thickness of cloth with 20mm verify slot Real-time dynamic calibration operate After powering on, the transmittance is mechanically calibrated to 100%, and the IR and UV rejection charges are calibrated to 0% utilizing the real-time dynamic calibration operate Data lock function After HOLD is pressed, the data stays at the screen for straightforward reading, even if the fabric is removed Self-supporting stand The tool comes with a assist stand, more handy reading Two energy supply recommendations Two power supply strategies are available: 4 AA alkaline batteries or a 5V USB energy supply High precision guaranteed Accuracy as much as ±2%, can pass the authoritative metrology institute testing 1 LS101 Solar Film Transmission Meter*1 2 User Manual*1 3 Certificate / Warranty Card*1 Note Due to the several display screen and light-weight effect, the particular colour of the item is probably slightly diverse from the color confirmed at the pictures Please enable 1-2cm measuring deviation because of guide dimension

•
•
•
•
•
