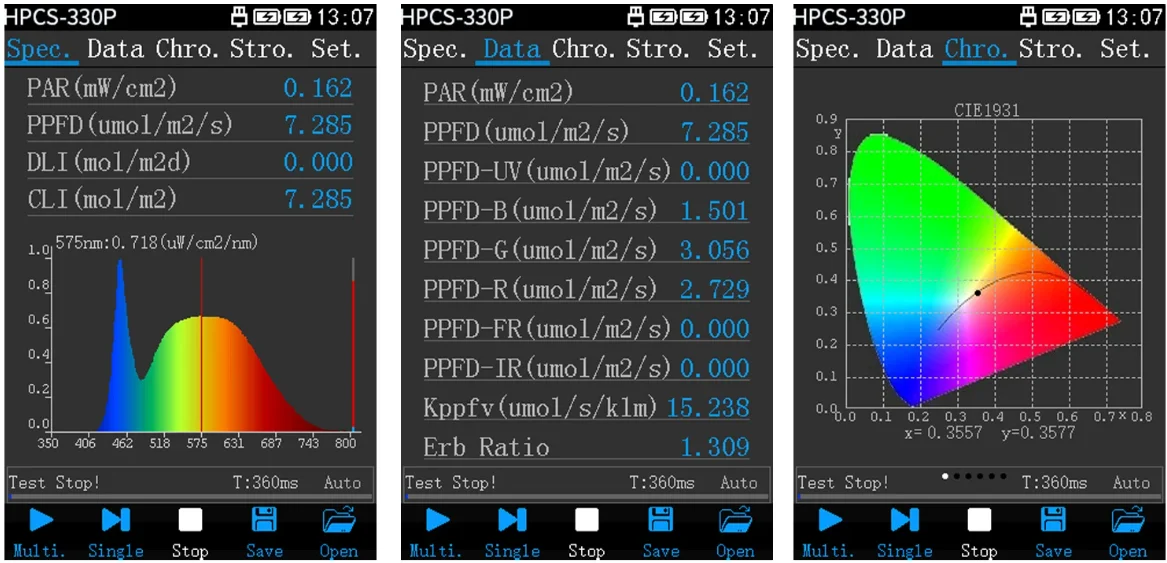

• Product Show HPCS-330P is a cheap Portable Spectrometer that integrates measurement parameters resembling spectrum, illuminance, color temperature, color rendering index, wavelength, color coordinates, and color tolerance The probe and host undertake a cut up variety magnetic suction design and Bluetooth conversation The HPCS330P mannequin with a three LCD screen, which is extensively used for lights dimension in households, schools, supermarkets, and other events It has wireless Bluetooth cut up technology, and the probe can connect to WeChat mini packages by way of Bluetooth separately for records size viewing and garage The multi probe 485 is connected to communication technology, allowing for multi-point data size and detection Characteristic：1 Speed(test)2 operation(Wireless model, bluetooth connection)3 parameters (PAR PPFD Flicker CCT CRI Lux SDCM)Specification : HPCS-330P Wireless spectral illuminmeter Wavelength:350-800nm Light distribution platform Light distribution platform sensor high-accuracy CCD Light-receiving instruments Φ 17mm, cosine finmer The wavelength accuracy ± 0 Aaccording accuracy Level 1 (± 4% reading ± 1 reading) Spectral Bandwidth(FWHM) 4nm Range of illumination measurements 5-200000Ix Measuring rang zero umol/cm2/s Color temperature dimension range 1000-100000K integration time 50us-10000ms computer screen 3 HD touch display screen (HPCS310P without) data interface Bluetooth / USB Type C Bluetooth conversation distance 0~10m (no barrier) language Simplified Chinese / English Host garage capacity Built-in 4G Bit Dimensions (LxWxH) 138*61*23 Test Parameters； illumination (lx) coordinate CIEx,y Color index (Ra) color purity (%) PPFD (umol/m2/s) PAR(umol/s) DLI(umol/m2/d) Fliker(Hz) center wavelength (nm) integration time (ms) CIE1931 CIE1976 candlelight (Fc) coordinate u, v R1-R15 half of width (nm) pink ratio (%) CIE1931 CCT (K) coordinate u &;, v&; light and coloration imaginative and prescient ratio S/P height wavelength (nm) green ratio (%) CIE1960 Duv blue ratio (%) leading wavelength (nm) central wavelength (nm) Warranty: 1 yr Display Screen--HPCS330P: Pc SoftwareAndroid Phone Application or Wechat Program:

•
•
•
•
•
