I LS162 Transmission Meter Introduction
LS162 transmission meter is a compact and small transmission meter that can simultaneously test three parameters of light transmittance, ultraviolet rejection rate and infrared rejection price It is suitable for the display, exhibition, production, high quality inspection, inspection and different events The window movie transmission meter can examine the material optical homes akin to car explosion-proof films, architectural movies and laminated glass The device has been extensively used in photo voltaic film manufacturers, automobile film distribution, automotive movie retail sales method

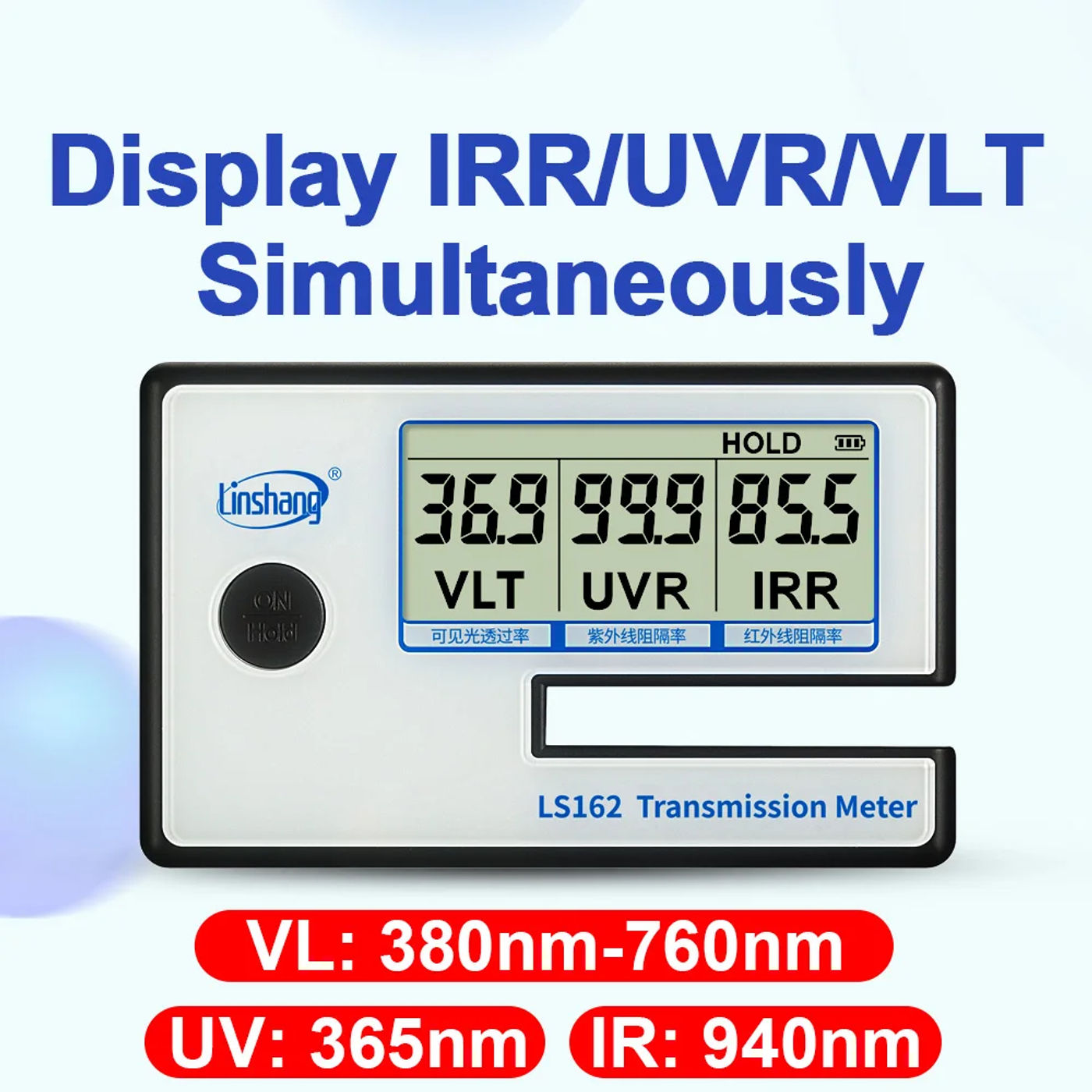

LS162 transmission meter displayII LS162 Transmission Meter ApplicationLS162 photo voltaic movie tester examine various materialsIII LS162 Transmission Meter Parameters
UV peak wavelength
365nm
IR height wavelength
940nm
Visible gentle
380nm-760nm full wavelength, in line with CIE photopic luminosity operate
Resolution
0%
Measurement accuracy
higher than ± 2% (colorless and uniform clear material)
Maximum pattern thickness
<8mm
Weight
About one hundred sixty five g (batteries excluded)
Dimension
120mm × 25mm × 75mm
Power supply
4 AAA alkaline dry batteries

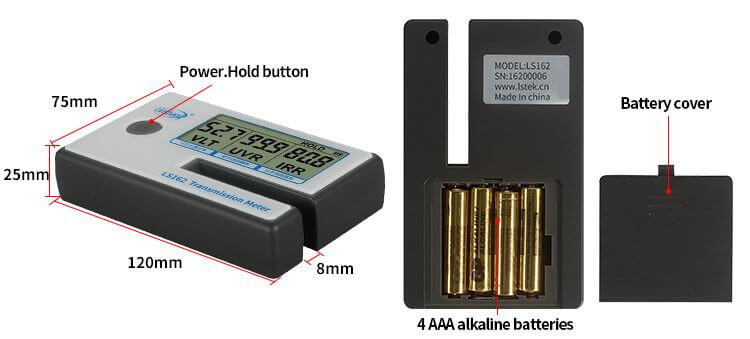

LS162 photo voltaic movie transmission meter appearanceIV LS162 Transmission Meter Characteristics

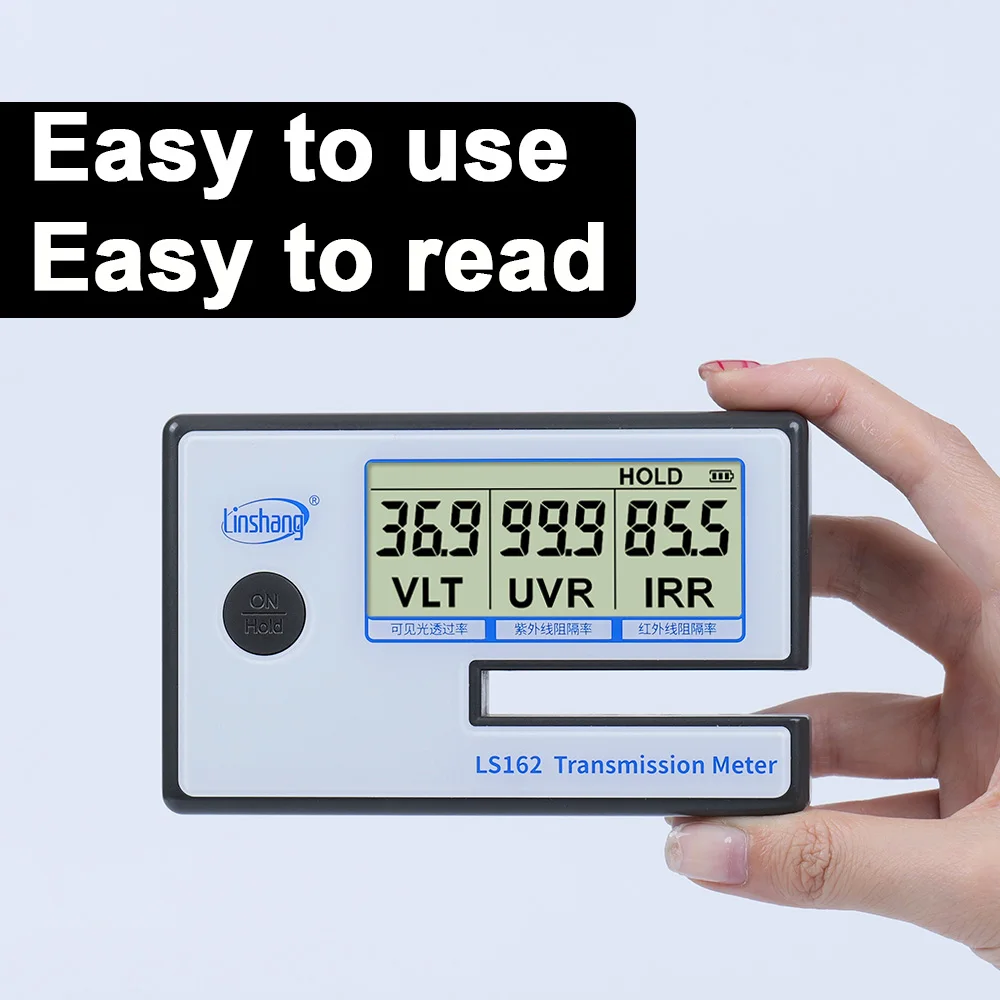

1 The window film transmission meter has uncomplicated operation and the measurement is instant Just put the measured object into the check slot then the visible gentle transmittance, ultraviolet and infrared rejection fee may be instantly displayed at the interface

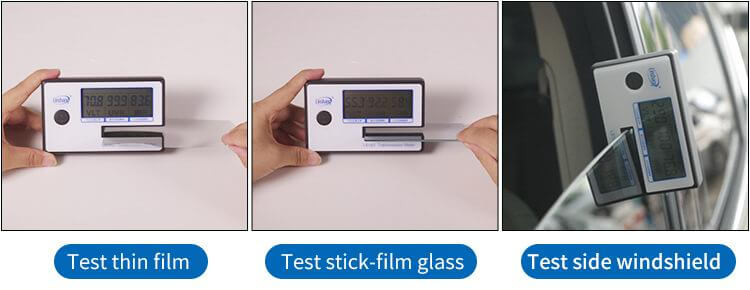

LS162 window tint meter verify stick-film glass

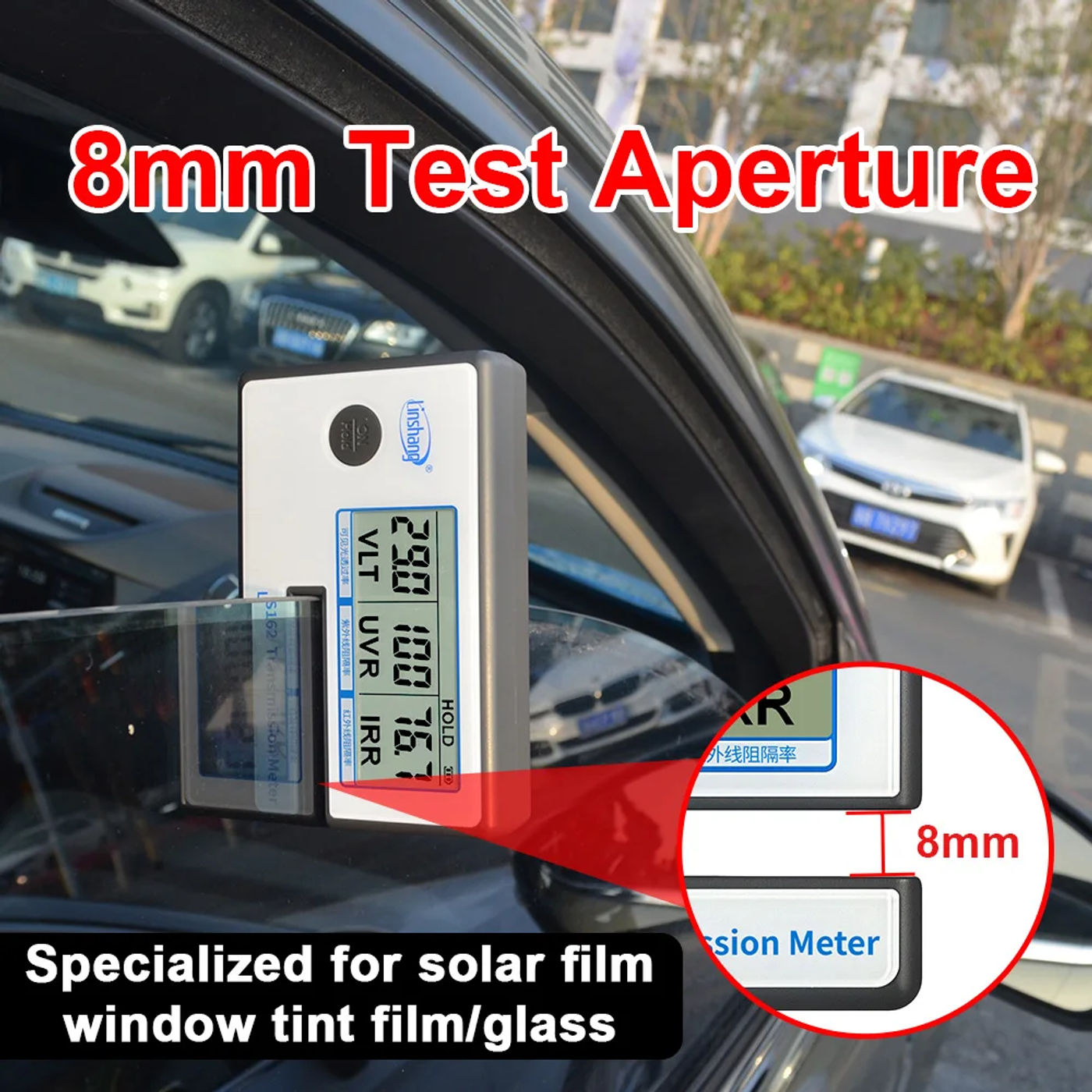

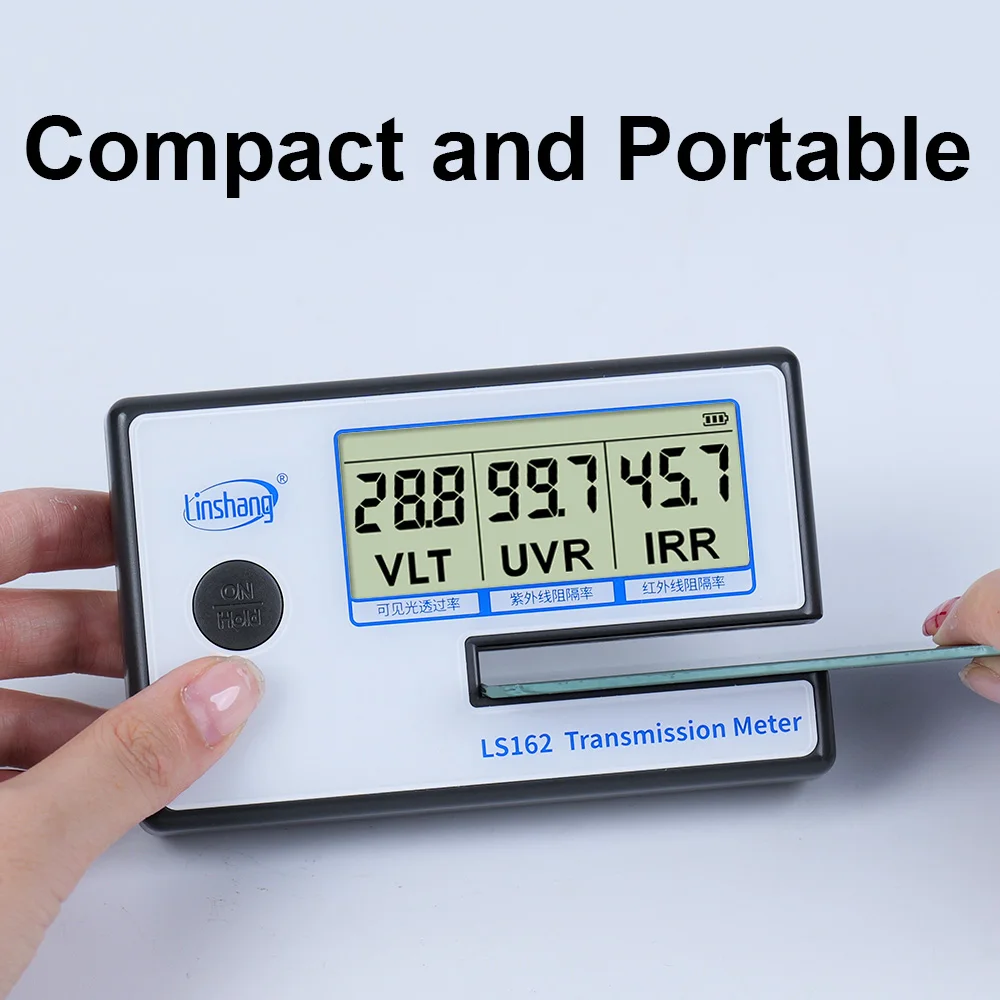

2 The instrument has small length and it is very handy to hold out; the test card slot is 8mm wide, which can instantly test the car windshield
LS162 transmission meter test automobile side windshield

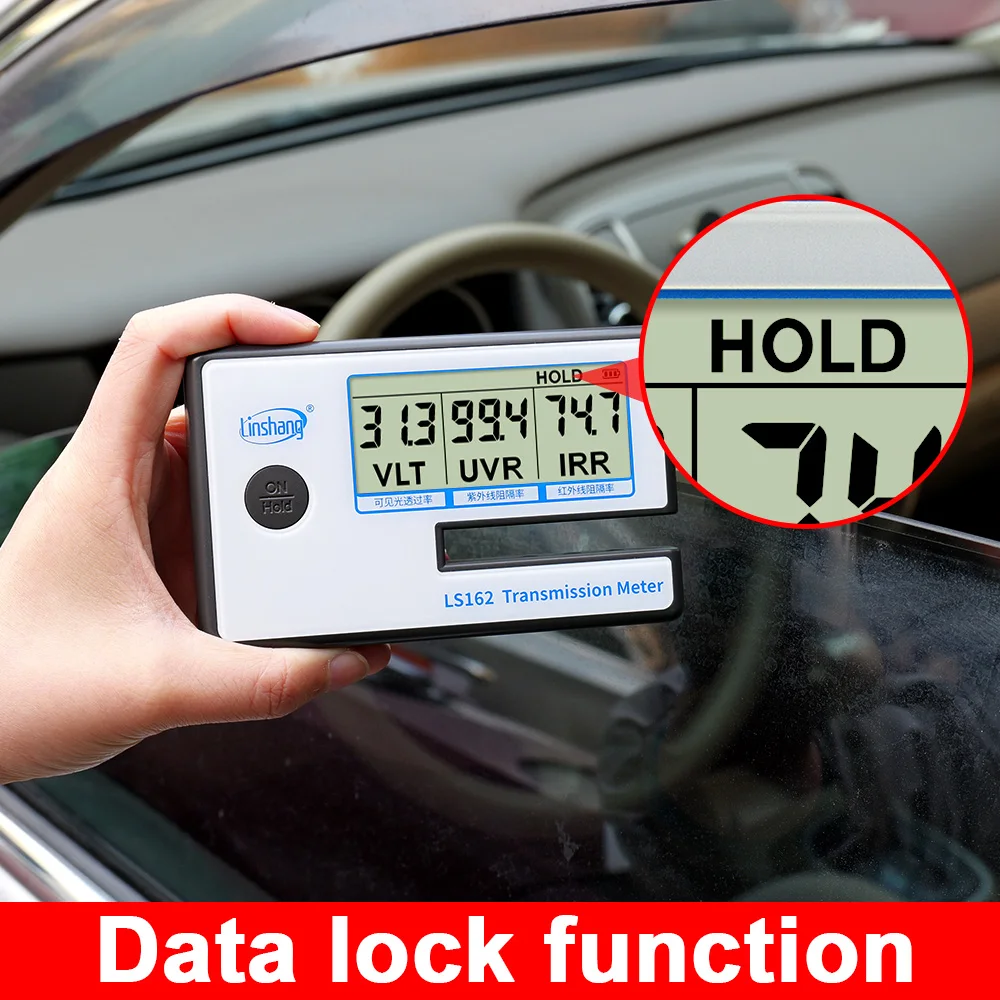

3 The instrument has a data lock operate After the verify is completed, press the HOLD button to fasten the verify data The data will remain on the show interface after taking out the tested material
4 LS162 transportable solar film transmission meter has real-time dynamic calibration operate When there is no examine object, the instrument will robotically return to the unique records state to ensure more correct test records
LS162 window tint meter normal popularity
5 The transmission meter is powered via 4 AAA alkaline dry batteries with ultra-low strength intake And the tool will automatically close down after three mins without any operation With this design, the software is extra calories effective
V LS162A Transmission Meter QualificationTransmission meter patent certificateVI LS162 Transmission Meter Operation Video
VII LS162 Transmission Meter Packaging Details
No
Description
Quantity
Unit
1
LS162 Transmission Meter
1
pcs
2
AAA battery
4
pcs
3
User Manual
1
pcs
4
Certificate/warranty card
1
pcs
five
Packing field measurement 18*11*5 cm(L*W*H)
1
pcs
LS162 transmission meter packageVIII LS162 Transmission Meter After-Sales Service
The meter has one-year warranty If the tool works abnormally, please ship the whole instrument to our company for maintenance
Provide customers with spare components and lifetime upkeep amenities
Provide the users with the meter inspection service
Free technical support for long term
Manufacturer: Shenzhen Linshang Technology Co,Ltd Website:
Service hotline: 0755-86263411 Email: sales21@linshangtech
For more information about the transmission meter selection, please click article under for particulars "Window Film Transmission Meter Selection and FAQ"
IX FAQ about LS162 Transmission Meter1 The distinction between LS162 (940nm) and LS162A (1400nm) window movie transmission meters
The leading difference between LS162 and LS162A is that the IR bands are diversified The infrared top wavelength of LS162 is 940nm and the LS162A is 1400nm These two bands are extra consultant bands The soaking up movie has a better infrared rejection impact at 940nm steel movie (Insulation by reflection) has a closer infrared rejection effect at 1400nm Please favor the acceptable tool according to your own movie
2 The distinction between LS162 and LS163 window movie transmission meters
LS162 measuring notch width is 8mm, LS163 measuring notch width is 6mm;
LS162 use point mild source, while LS163 use parallel mild direction The latter has greater data accuracy when measuring thick materials;
LS162 can solely measure seen gentle transmittance, infrared and ultraviolet rejection rate, while LS163 can measure infrared and ultraviolet transmittance moreover these three data;
LS163 has 3 reveal interfaces, the display would be turned around in 4 directions and has a display screen backlight, but LS162 doesn't
three The difference between LS162 and LS101 window film transmission meters
LS162 use point gentle source, whereas LS101 use parallel gentle path The latter has larger data accuracy for measuring thick materials;
LS162 can solely be powered by means of battery, whereas LS101 is also powered by way of USB cable moreover battery;
LS101 has display backlight, while LS162 has no screen backlight;
Except for the above differences and the differences in appearance, the alternative parameters of LS101 and LS162 are permanently an analogous
