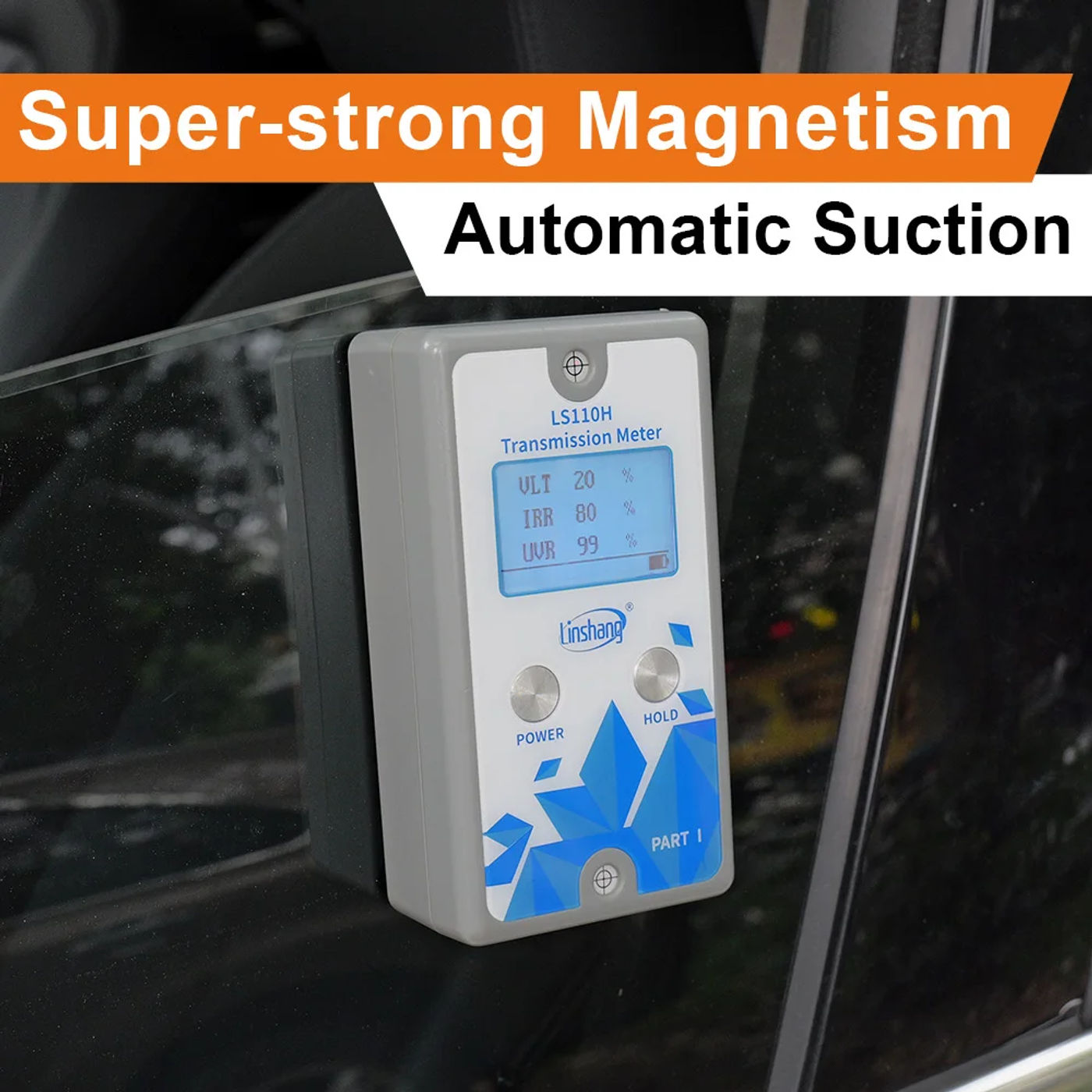

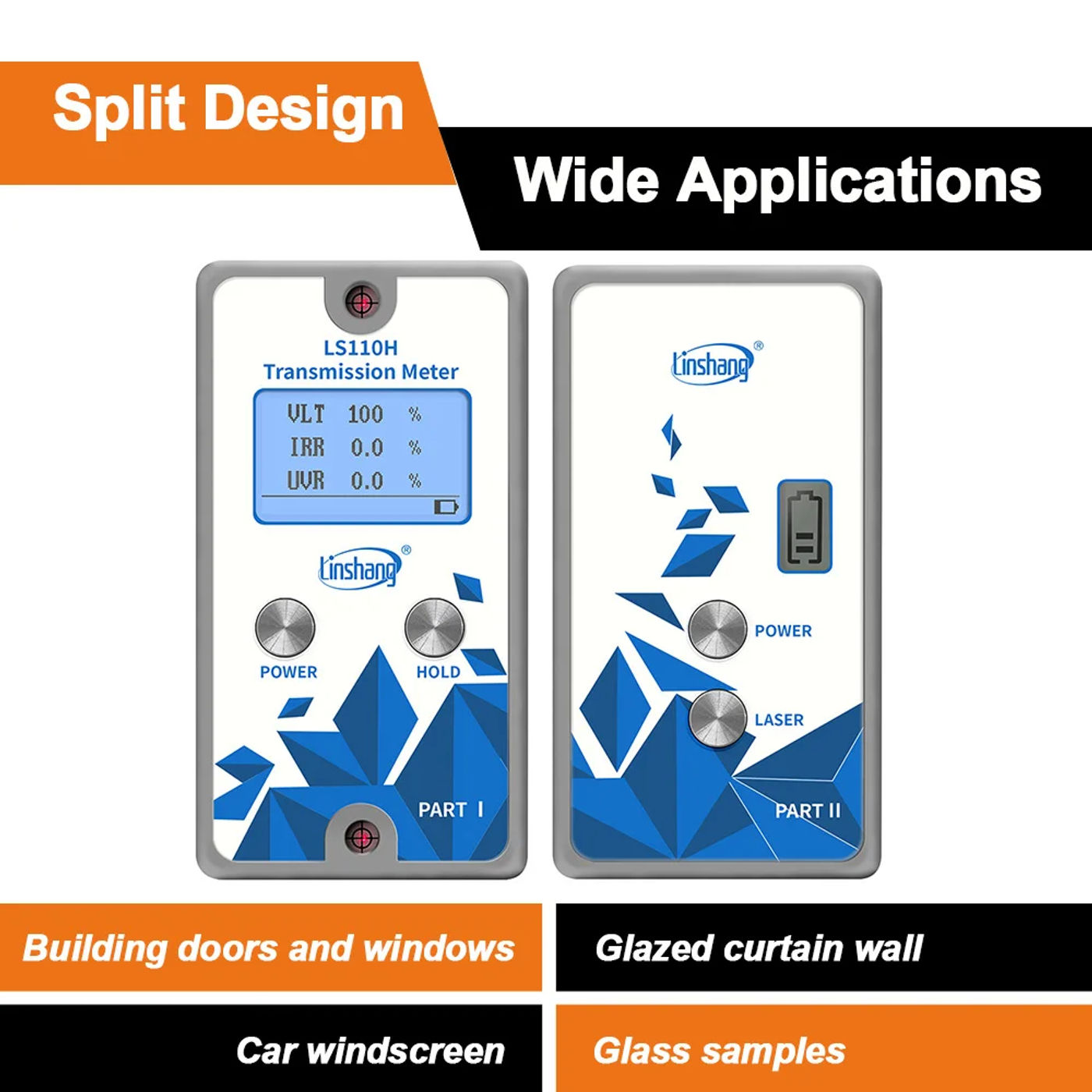

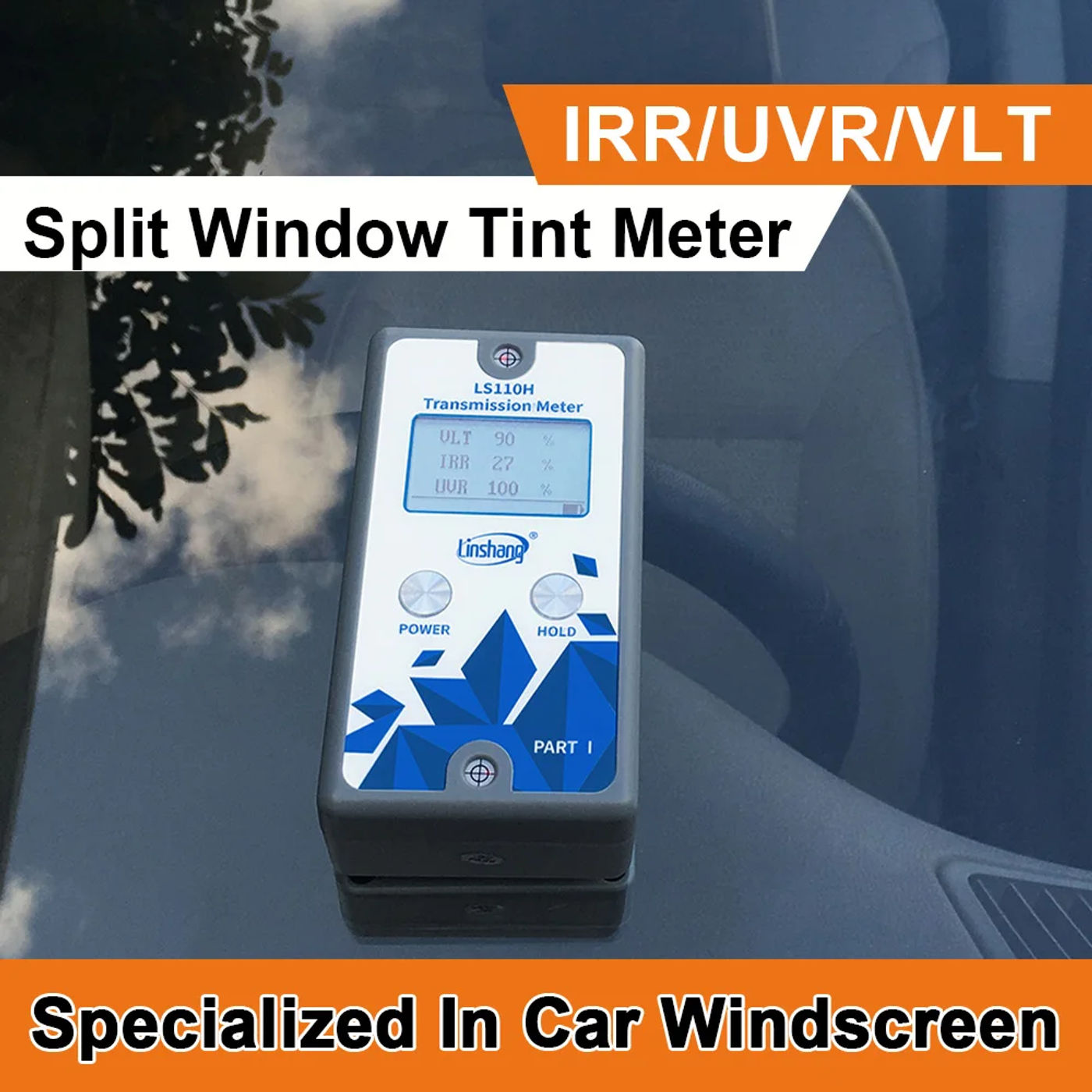

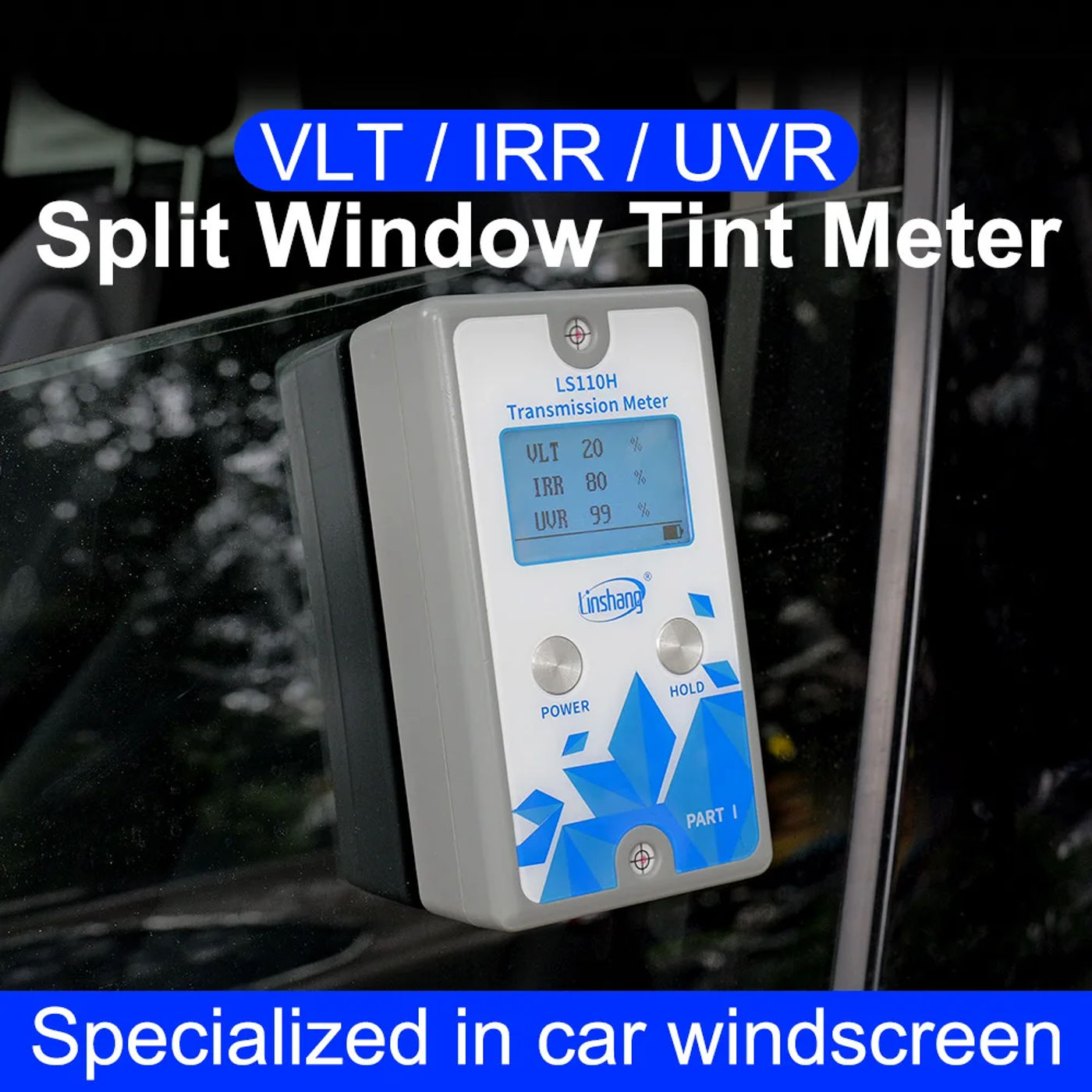

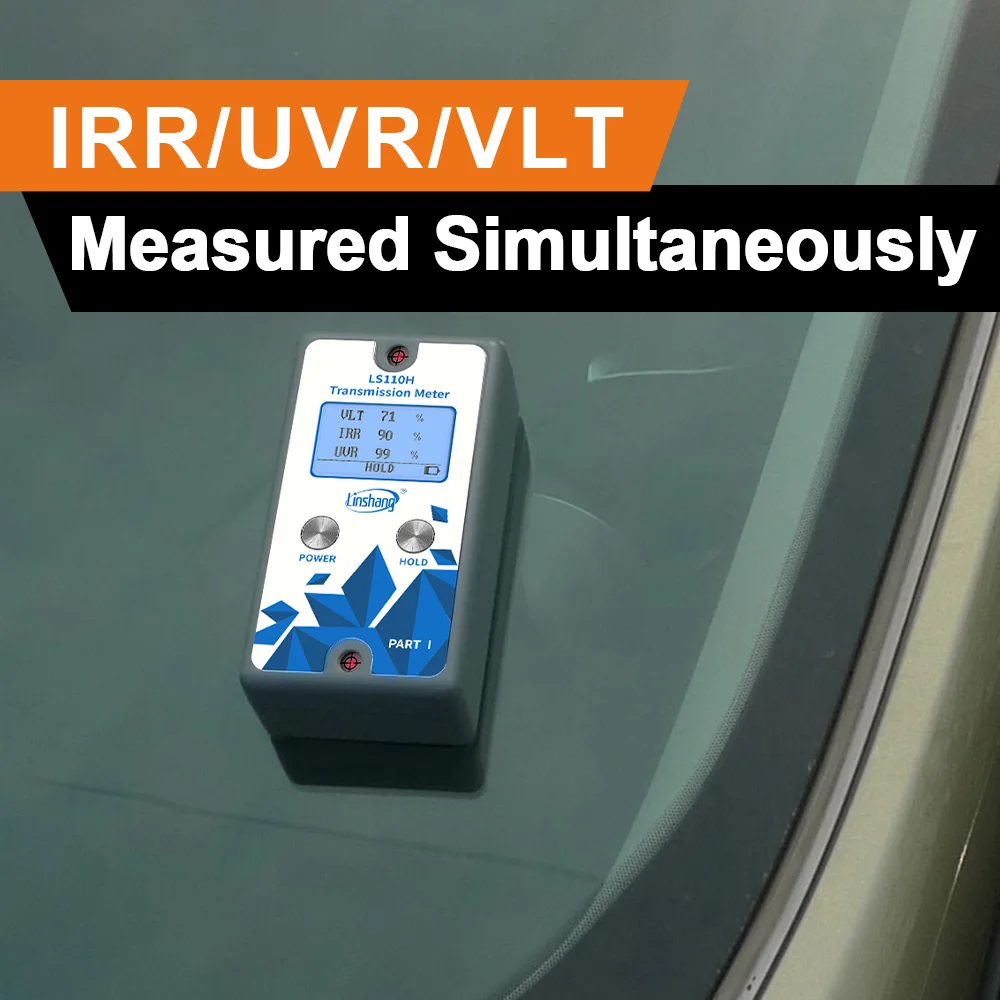

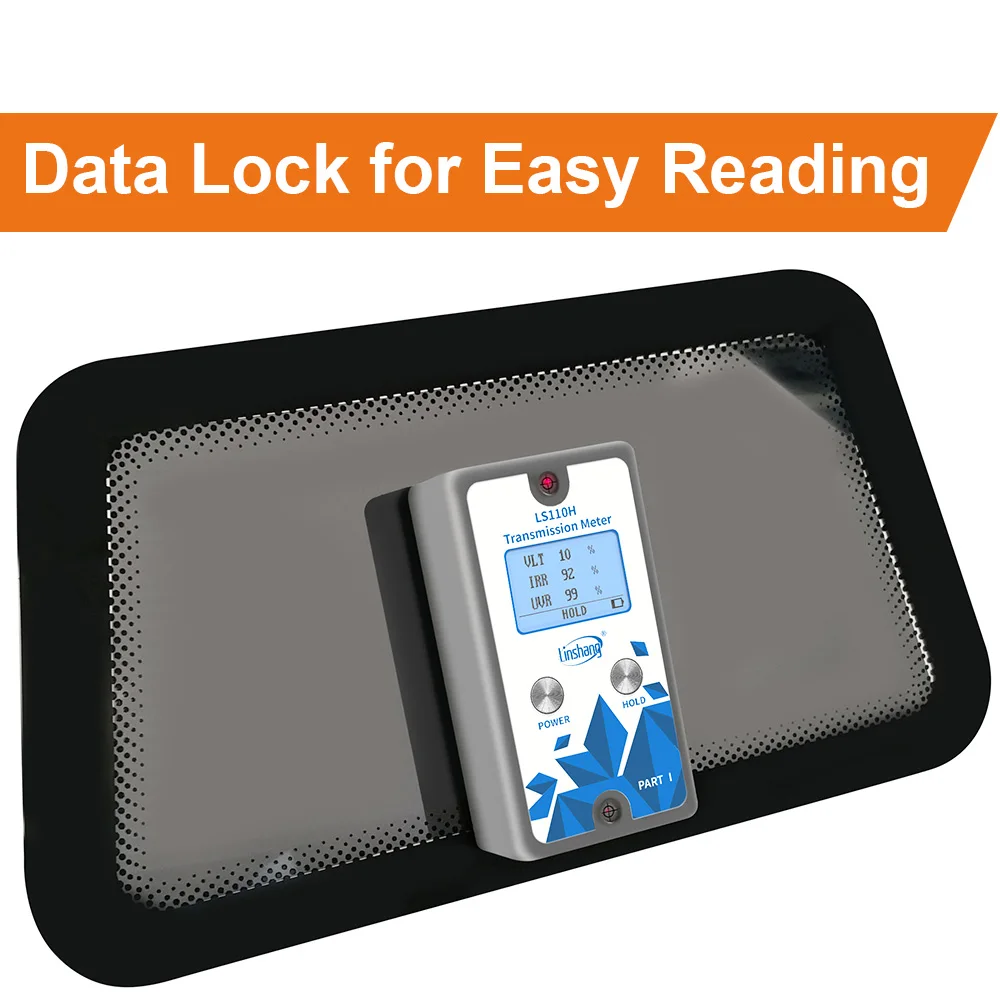

• Description LS110H split transmission meter adopts split design and is made from either the key unit and the auxiliary unit It is appropriate for checking out all kinds of photo voltaic films, car glass in addition installed door and window glass It can concurrently measure seen mild transmittance, infrared and ultraviolet rejection rate It can examine vast thicknesses of glass with a parallel gentle path design, making certain the accuracy of its examine records With information lock function, it's convenient to view the examine records Specifications 1 UV height wavelength: 365nm 2 IR peak wavelength: 1400nm 3 Visible light: 380-760nm, conform to CIE photopic luminosity function 4 Resolution: 0%-10%: 0%; 10%-100%: 1% five Measurement accuracy: ± 2% (colorless and uniform clear materials) 6 Test sample size: Great than 40mm * 40mm 7 Weight: 630 g 8 Dimension: 130mm * 70mm * 84mm 9 Power supply: Built-in lithium rechargeable battery Features 1 The cut up design features a powerful self-aligning magnetic force between the main unit and auxiliary mechanical device 2 Simultaneous testing of light transmission, UV and 1400nm infrared rejection charge three With a knowledge lock function, records would be retained at the computer screen even after elimination 4 Featuring a built-in rechargeable lithium battery, it can be charged with one to 2 USB cables five It can examine large thicknesses of glass with a parallel mild direction design, guaranteeing the accuracy of its verify data 6 Its check data accuracy is ensured via a parallel gentle course design, allowing it to test broad glass thicknesses 7 The laser alignment function guarantees leading and auxiliary machines align for measurement accuracy Split design The cut up design contains a powerful self-aligning magnetic drive between the foremost unit and auxiliary mechanical device Measure three parameters Simultaneous checking out of sunshine transmission, UV and 1400nm infrared rejection charge Data lock operate With data lock function, data can be retained on the computer screen even after removal Rechargeable lithium battery for straightforward use Featuring a integrated rechargeable lithium battery, it may be charged with one to two USB cables Parallel mild route design It can check wide thicknesses of glass with a parallel gentle path design, ensuring the accuracy of its check information Laser alignment function The laser alignment operate guarantees main and auxiliary machines align for dimension accuracy Possesses patent certificate It comes with patent certificates to ensure the instrument can go the checks of accredited metrology institutes LS110H cut up transmission meter 2 Charger 3 User Manual 4 Certificate / warranty card five Packing field dimension 25*21*7 cm（L*W*H） Note Due to the several video display and light-weight effect, the particular colour of the item might be slightly varied from the colour showed at the images Please enable 1-2cm measuring deviation because of guide size

•
•
•
•
•
