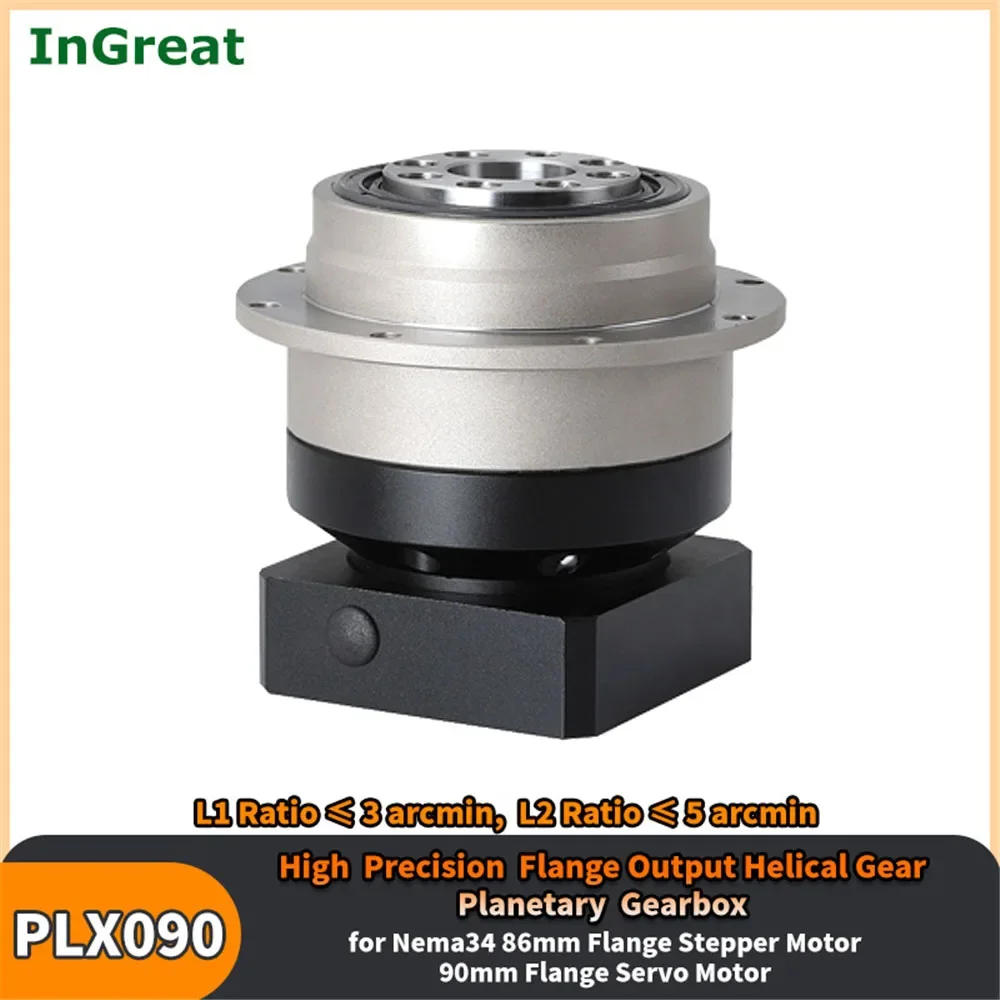

• 1* Planetary Reducer 4* Install Screws (Click at the model to jump→) PLX060 PLX090 PLX120 Max Output Torque Nm 2 Times Rated Output Torque Instant Braking Torque Nm three Times Rated Output Torque Max Radial Torque N 680 1750 3100 Max Axis Torque N 340 875 1250 Torsional Stiffness Nm/arcmin 13 31 82 Max Input Speed rpm 6000 6000 6000 Rated Input Speed rpm 3300 2600 2300 Noise dB ≤58 ≤60 ≤65 Life time h 20000 Full Load Efficiency percent L1≥95%, L2≥90% Backlash PO L1 arcmin ≤3 ≤3 ≤3 L2 arcmin ≤5 ≤5 ≤5 Moment of Inertia L1 4:1 Kg zero 0 2 5:1 Kg zero 0 2 7:1 Kg 0 zero 2 10:1 Kg 0 0 2 L2 9:1 Kg / / / 16:1 Kg 0 zero 2 20:1 Kg zero 0 2 25:1 Kg zero 0 2 28:1 Kg zero 0 2 35:1 Kg 0 0 2 40:1 Kg zero zero 2 50:1 Kg zero zero 2 70:1 Kg 0 zero 2 100:1 Kg zero 0 2 Parameter Stage Ratio PLX060 PLX090 PLX120 Rated Output Torque (Nm) L1 4:1 40 one hundred twenty 220 5:1 forty 125 260 7:1 forty 125 260 10:1 25 eighty 160 L2 9:1 / / / 16:1 50 120 three hundred 20:1 50 a hundred and twenty three hundred 25:1 50 125 350 28:1 50 a hundred twenty five 350 35:1 50 a hundred twenty five 350 40:1 50 125 350 50:1 50 125 350 70:1 50 a hundred twenty five 350 100:1 35 eighty 220 IP Degree IP65 Operating Temp -10℃~~90℃

•
•
•
•
•
