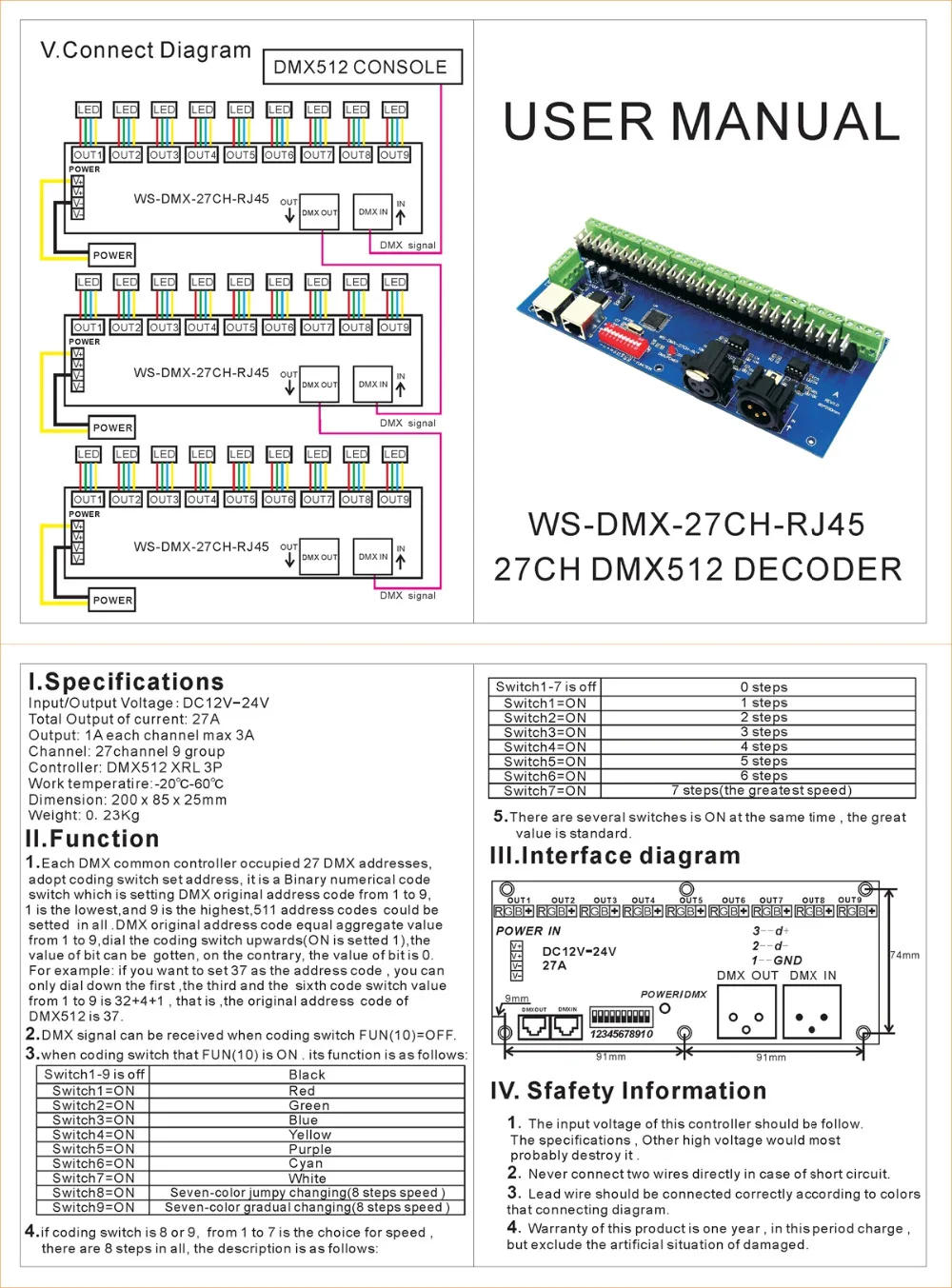

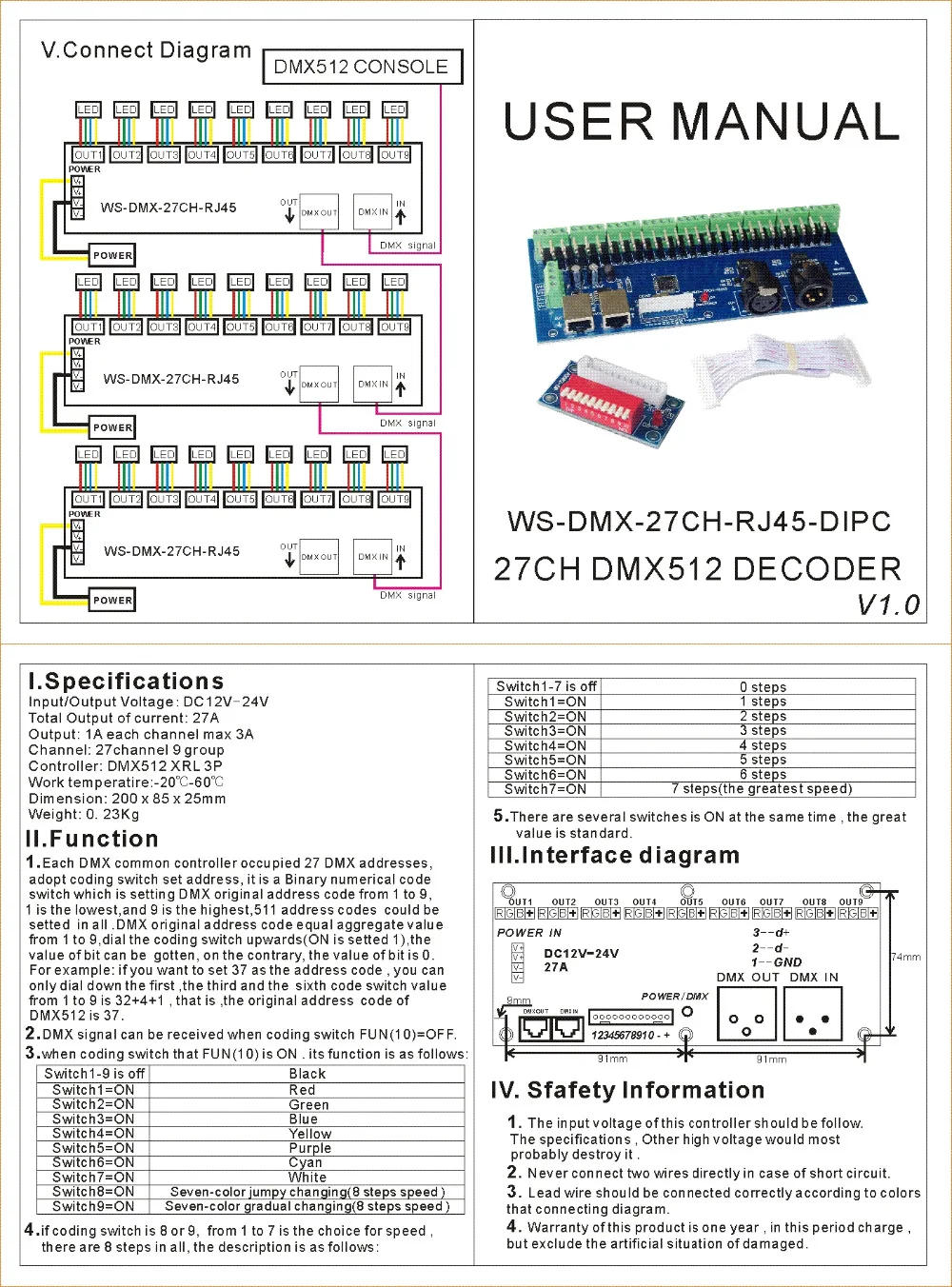

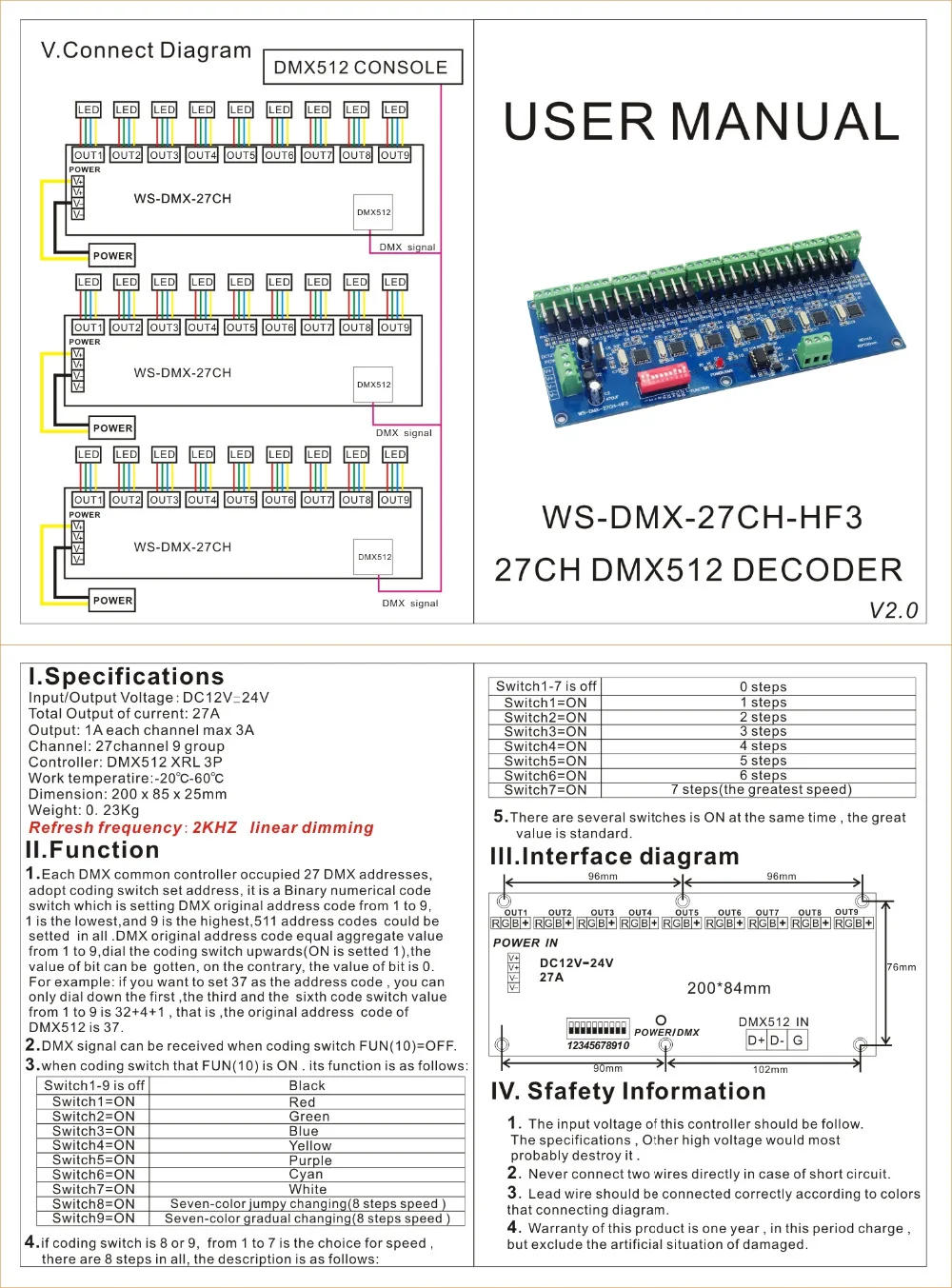

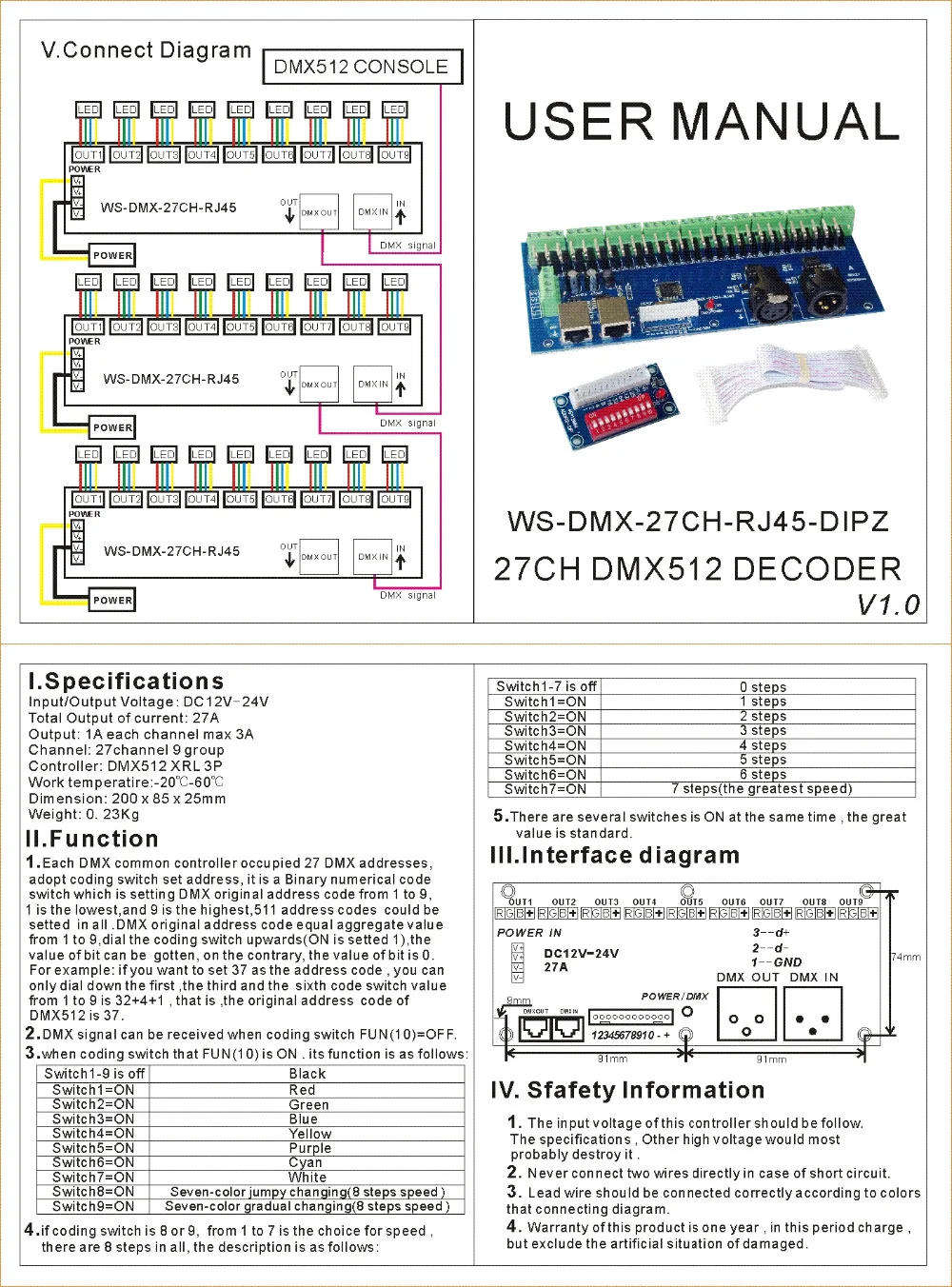

• WS-DMX-27CH-RJ45Input / Output Voltage : DC12V-24V Total Output of up to date : 27A Output : 1A each channel max 3A Channel : 27 channel nine organization Controller : DMX512 XRL 3P Working temperature : -20℃ -60℃ product Size : L200*W85*H25mm Weight : 0 WS-DMX-27CH-HF3Input / Output Voltage : DC12V-24V Total Output of recent : 27A Output : 1A each channel max 3A Channel : 27 channel nine organization Controller : DMX512 XRL 3P Working temperature : -20℃ -60℃ product Size : L200*W85*H25mm Weight : 0 Refresh frequency : 2KHZ linear dimming WS-DMX-27CH-RJ45-DIPZInput / Output Voltage : DC12V-24V Total Output of modern : 27A Output : 1A each channel max 3A Channel : 27 channel 9 group Controller : DMX512 XRL 3P Working temperature : -20℃ -60℃ product Size : L200*W85*H25mm Weight : 0 WS-DMX-27CH-RJ45-DIPCInput / Output Voltage : DC12V-24V Total Output of recent : 27A Output : 1A each channel max 3A Channel : 27 channel 9 organization Controller : DMX512 XRL 3P Working temperature : -20℃ -60℃ product Size : L200*W85*H25mm Weight : 0 WS-DMX-27CH-LEDInput / Output Voltage : DC12V-24V Total Output of contemporary : 27A Output : 1A each channel max 3A Channel : 27 channel 9 organization Controller : DMX512 XRL 3P Working temperature : -20℃ -60℃ product Size : L200*W85*H25mm Weight : zero WS-DMX-27CH-DIPCInput / Output Voltage : DC12V-24V Total Output of up to date : 27A Output : 1A each channel max 3A Channel : 27 channel 9 organization Controller : DMX512 XRL 3P Working temperature : -20℃ -60℃ product Size : L200*W85*H25mm Weight : zero Package includes: 1 piece * DMX512 Decoder(as your choose) Safety information:1 enter voltage of this controller ought to be follow. The specifications,other immoderate voltage would most likely wreck it. 2 connect two wires straight in case of brief circuit. three twine must be related properly in keeping with colors that connecting diagram. four of this product is one year,in this era charge,but exclude the bogus difficulty of damaged.

•
•
•
•
•
