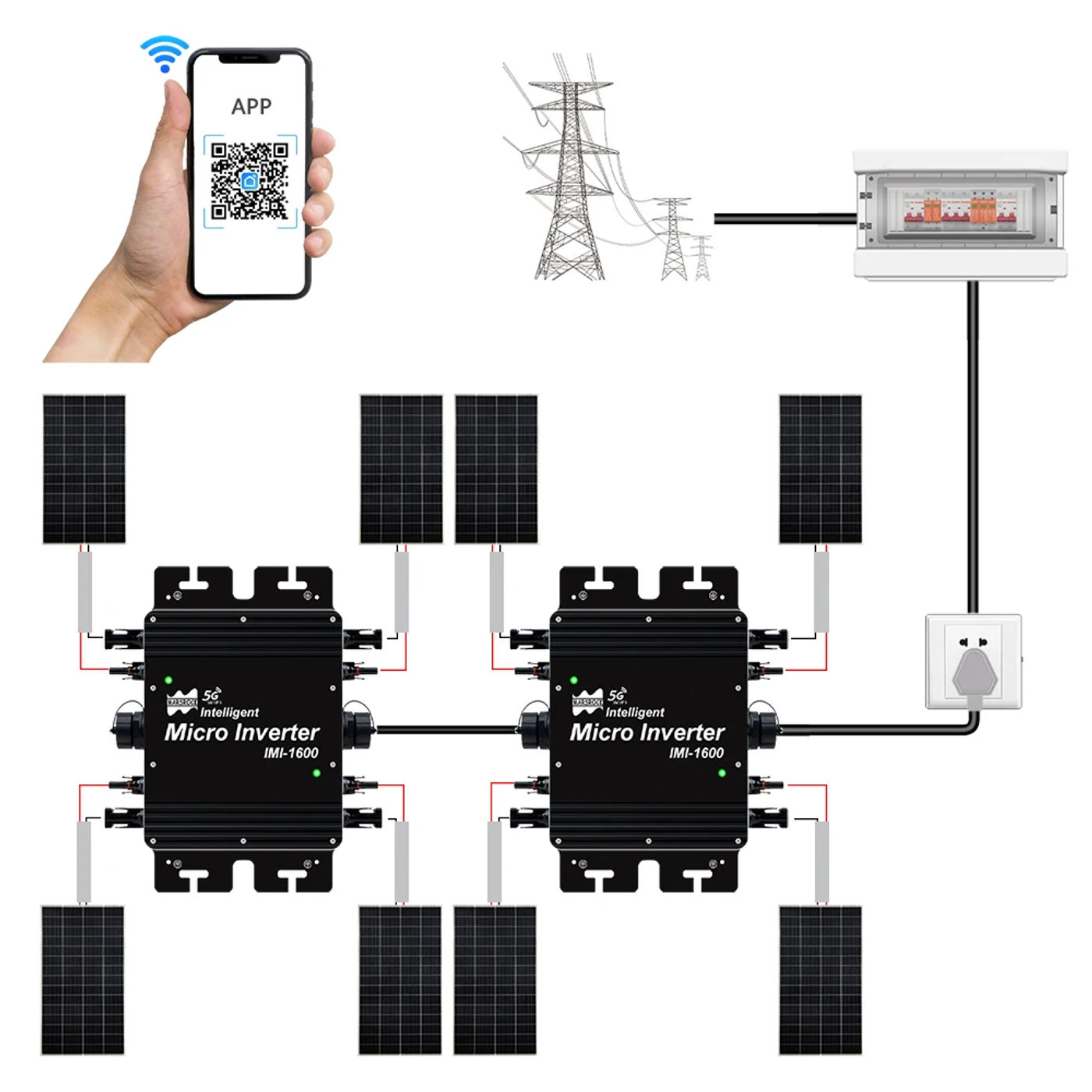

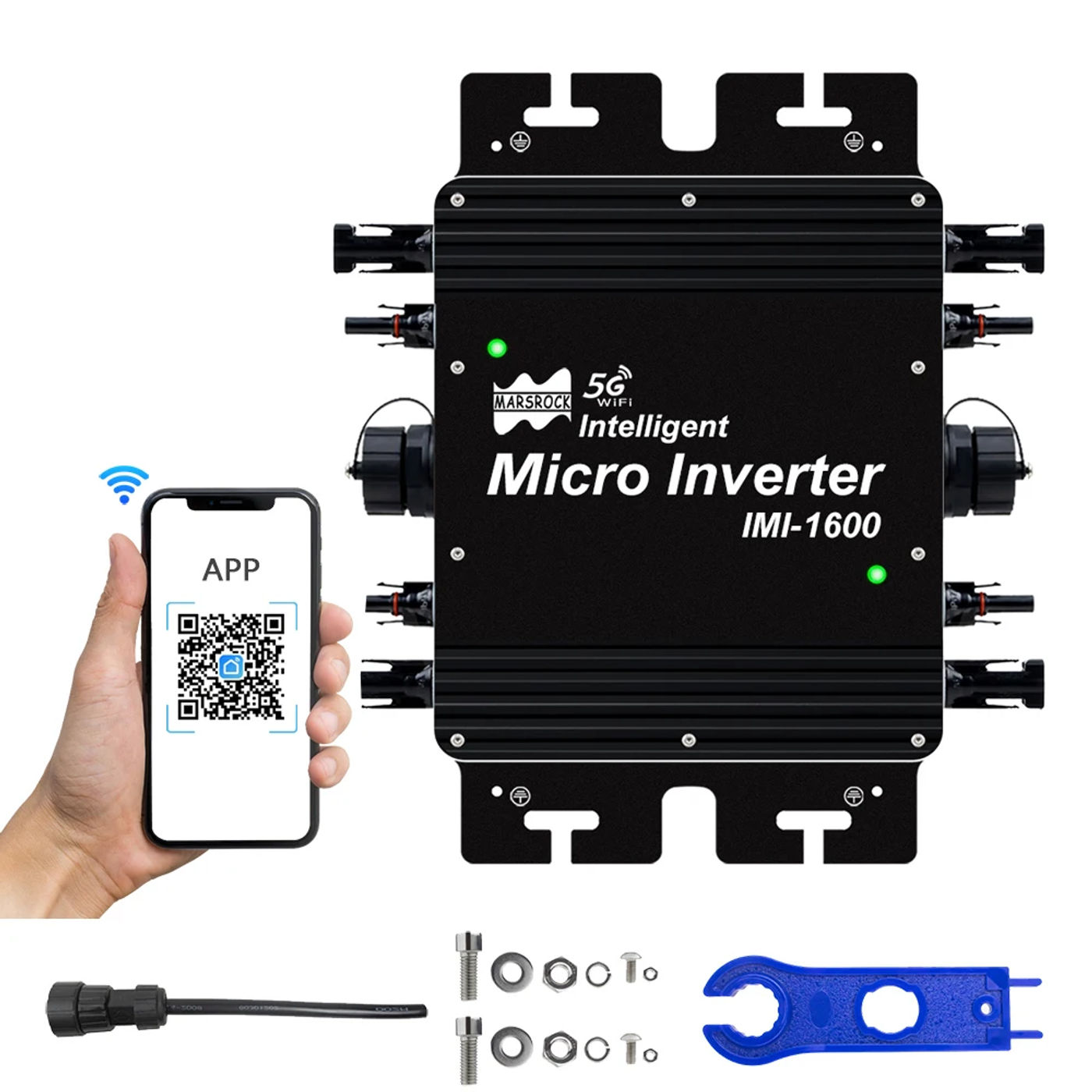

• PRODUCT INTRODUCTION IMI collection inverter Using IP65 waterproof streamline design which efficiently prevent rainwater at the surface erosion, integrated high-perfor_x001F_mance maximum energy point tracking MPPT function greater able to music chang_x001F_es in the photo voltaic luminosity and control diverse output power, effectively capture and bring together sunlight AC electrical power transmission using the reverse transmis_x001F_sion technology, The inverter output strength can provide load priority use, more electricity to the grid, efficient use of the inverter to the ability emitted, electrical energy transmission fee of as much as 99% The handy strategy to straight scan the QR code to connect to the network is a major function of it, permitting non-professional users to watch the flexibility technology formula records in real time by way of a smartphone PRODUCT FEATURES 1 Series adopt scanning the QR code to connect with cyber web which is easy to be operated through Smart Phone APP or PC to observe power method data 2 inverter utilizing IP65 water-resistant streamline design, which might effectively forestall rainwater on surface erosion 3 high performance most energy level monitoring function, can music modifications within the solar luminosity and management diversified output power, efficiently capture and collect daylight and use of the inverter to the flexibility emitted, electrical energy transmission charge of as much as 99% four precision phase detection;Over and beneath voltage protection; Over and below frequency protection; Islanding protection five installation The PV enter energy workable from 250-450W DC enter 20-50V design can appropriate for 36Cells, 60 cells, 72 cells put into in series or in parallel PRODUCT PARAMETER Model 800W 1600W Input Data Recommend PV 250~400W*2 250~400W*4 Operation voltage 20~50V(MPPT:22V~48V) 20~50V(MPPT:22V~48V) Reccommend PV Voc 33-50V 33-50V Star/Max enter voltage 18V/52V 18V/52V Max enter recent 13A*2 7*4 Output Data Max Output Power 800W 1600W Rated output current @120VAC 5A;@230VAC 2 @120VAC 5A;@230VAC 2 Rated voltage @120V(80~160VAC); @230V(180~270VAC) @120V(90~160VAC); @230V(190~270VAC) Max items according to branch @120V: 5PCS;@230V:10PCS @120V: 2PCS;@230V:4PCS Rrequency 50/60Hz(48~61Hz) 50/60Hz(48~61Hz) Output Efficiency Static MPPT zero 0 Power element >99% >99% Max output 0 0 Self consumption <1W <1W THD <5% <5% Exterior Ambient temperature - 40℃to + 85℃ - 40℃to + 85℃ Operating temperature - 40℃to + 65℃ - 40℃to + 65℃ Dimensions（L×W×H) 230x200x40mm 365x230x40mm Weight 2 3 Waterproof Rating IP65 IP65 Max recent of AC bus cable 20A 20A Cooling Self-cooling Self-cooling Feature Power transmission mode Reverse transfer, load precedence Reverse transfer, load precedence Communication WIFI(QR code scanning, computerized matching internet) WIFI(QR code scanning, automated matching internet) Design High frequency transformer, Glvanically isolated High frequency transformer, Glvanically remoted Equipment ground is equipped by the PE in the AC cable Protection Electromagnetic compatibility EN50081 EN50081 Grid disturbance EN61000-3-2 Safety EN62109 EN61000-3-2 Safety EN62109 Grid detection DIN VDE 1026 UL1741 DIN VDE 1026 UL1741 Certificate CE，RoHs, FCC CE，RoHs, FCC PRODUCT DETAILS PRODUCT LINE

•
•
•
•
•
