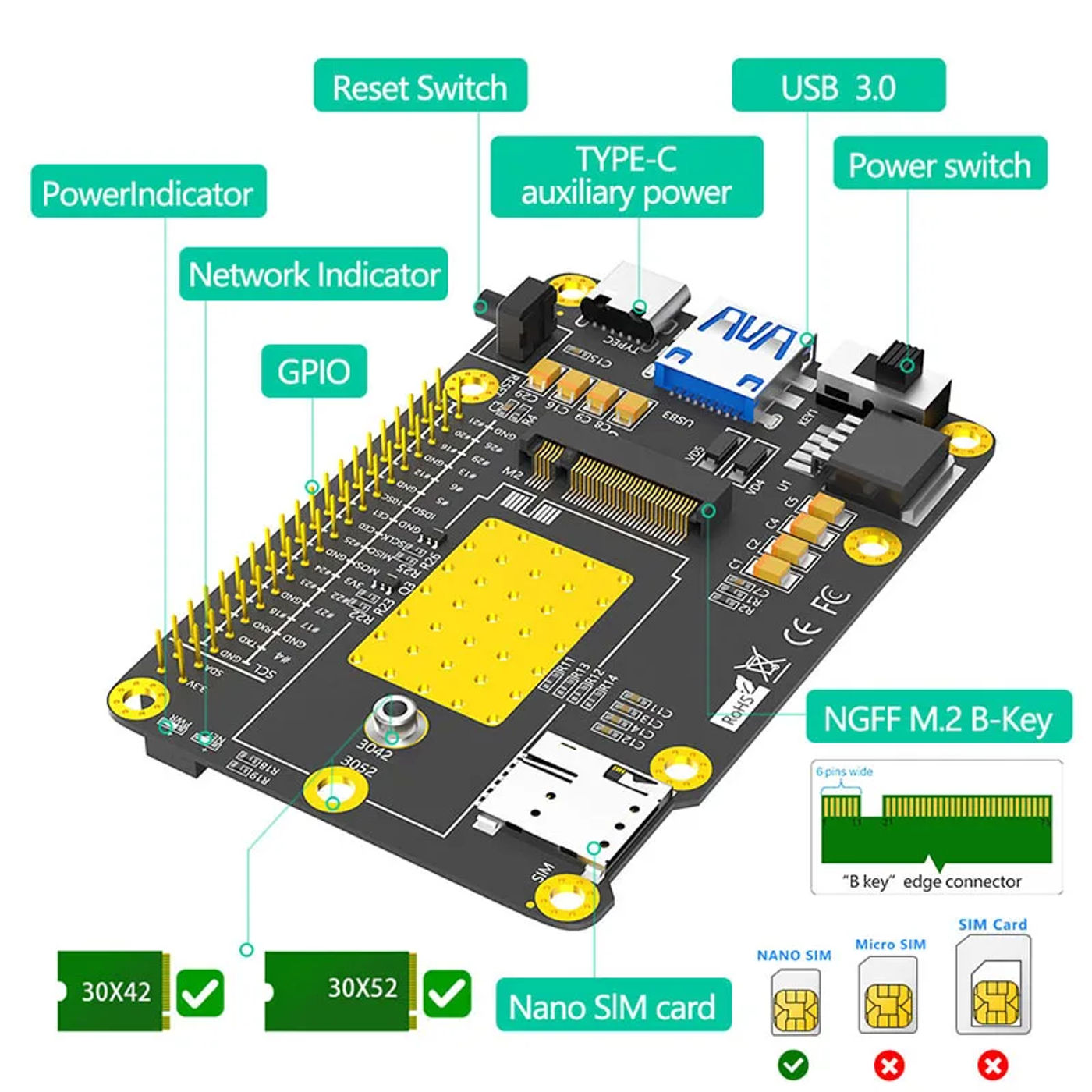

• 3G/4G/5G Base HAT M B Key to USB3 Expansion Card with SIM Slot Support Raspberry Pi 4 for RM500Q RM500U GM800 SIM8200 Module About Description: Product description 1 Fully like minded with Raspberry Pi models that have the 40-pin GPIO header (4, 3, 2, B+) 2 Supports the ensuing brand M 5G Modules Quectel: RM500Q RM500U Gosuncn: GM800 Sierra : SIM8200 three Compatible the following brand Boards 1 Raspberry Pi 4, 3, 2, B+ 2 Asus Tinker Board three Rock 64* four Samsung ARTIK’s board 5 Latte Panda four Clip-in M socket like minded with worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE policy with regional or global modules which work with assorted frequencies & carriers five MANO SIM Card socket can smoothly reachable on the upside of the HAT 6 Efficient and coffee quiescent latest energy circuit can delay to 3Amps 7 Working temperature range: -40°C ~ 80°C Note 1: The Base HAT doesn’t need driving force Rather The host computer(such as RPi, Asus Tinker Board) wishes the driver of the compatible module that will be used with the Base HAT For example, if you are using Quectel’s EC25 with the Base HAT, then your host machine should have the driving force for Quectel EC25 Nowadays, most of the Linux kernel comes with the necessary drivers installed as a result the modules are recognized Note 2: These compatibility list created via assuming you’ve linked the Base HAT to the device through USB UART verbal exchange can be paintings with every device within the list easily which have 3 point UART port You'll receive: 1 x 5G/4G&LTE Base HAT 1 x USB 2 to TYPE C Cable 1 x USB 3 to USB three Cable 1 x Screw Driver 8 x Copper Nut 8 x M2 Screw 1 x Quick Installation Guide Please test pictures for extra particulars

•
•
•
•
•
