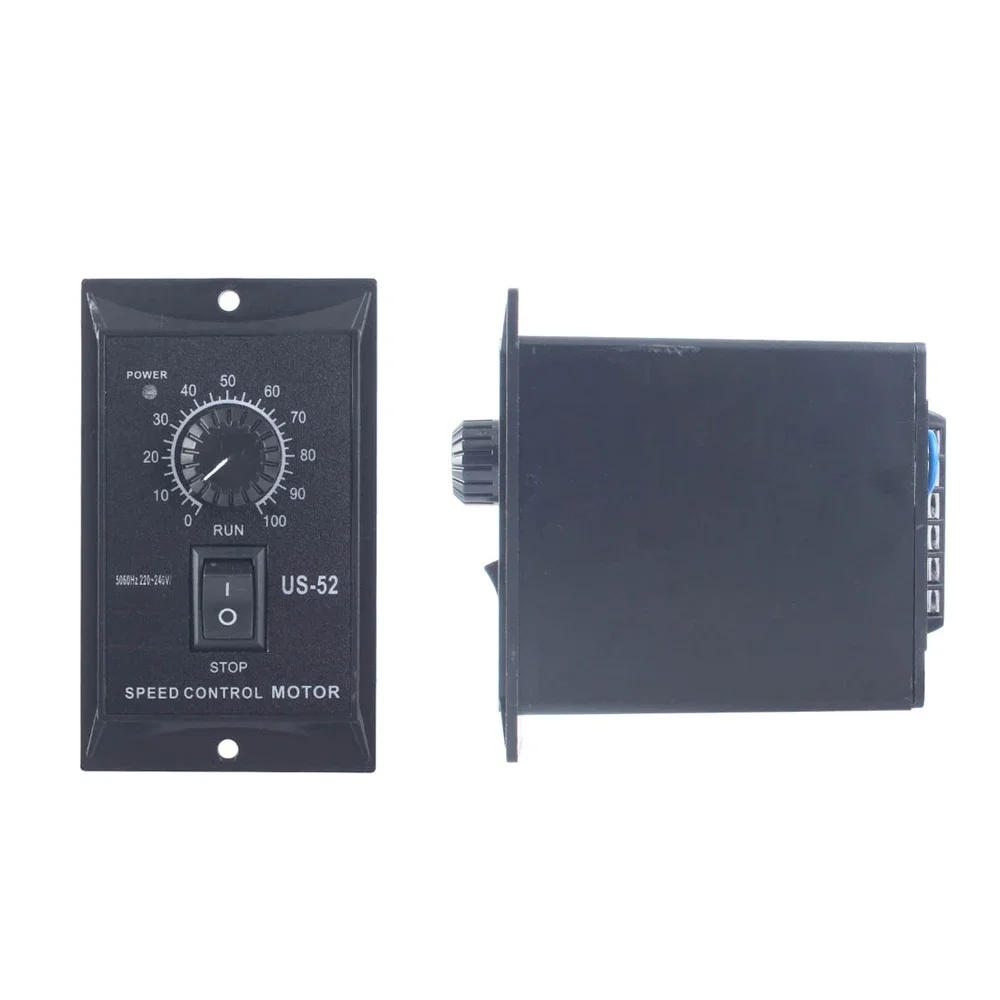

• 400W AC 220V 50/60Hz Motor Speed Pinpoint Regulator Controller US-52 Forward & Backward Motor Governor for Machine Pump DIY PS: If the motor wattage is way smaller than 400W, the motor can be very warm throughout working! Specifications Power supply: AC220V 50/60Hz Rated power: 400W Environment temperature: - 10 ~ + 50°; Relative humidity:<90%; Speed law range: 90-1400r/min 50Hz, 90-1700r/min 60Hz Weight: 295g Features This motor pace controller is appropriate for AC220V 50/60Hz motor Speed law differ is 90-1400r/min 50Hz, 90-1700r/min 60Hz Suitable for packaging, printing, food, electronics, instrumentation, clinical equipment, clothing industry production line for speed control force devicesThe controller uses superb digital circuit and integrated components for durability has small size, excessive precision, extensive speed controlling range, and long carrier existence Method of use 1 Turn off the power, connect it per the wiring diagram and ensure the connection is correct 2 Fix the controller effectively and set the rate to the bottom "0", in an effort to keep away from unexpected large current and permanent injury when starting the ability supply; three Then turn on the power and adjust the rate knob to the desired function Please turn off the ability when no longer needed; four The governor is connected to the motor If the torque or speed is found to be inconsistent with the requirements, please regulate the fine-tuning potentiometer on the side of the product 5 To substitute the running direction of the motor, easily update the jumper traces of "CCW" and "CW" at the again of the controller 6 Select COM and CW quick connection, then the motor will rotate clockwise 7 Select COM and CCW short connection, then the motor do counterclockwise rotation (when changing direction, do not exchange the course till the motor stops operating completely) Wiring components Black twine is the motor main wire, purple and white are the capacitor auxiliary wires, and a couple of blue wires are the rate control suggestions wires, the fairway twine is the floor wire Package includes 1 x Speed Controller

•
•
•
•
