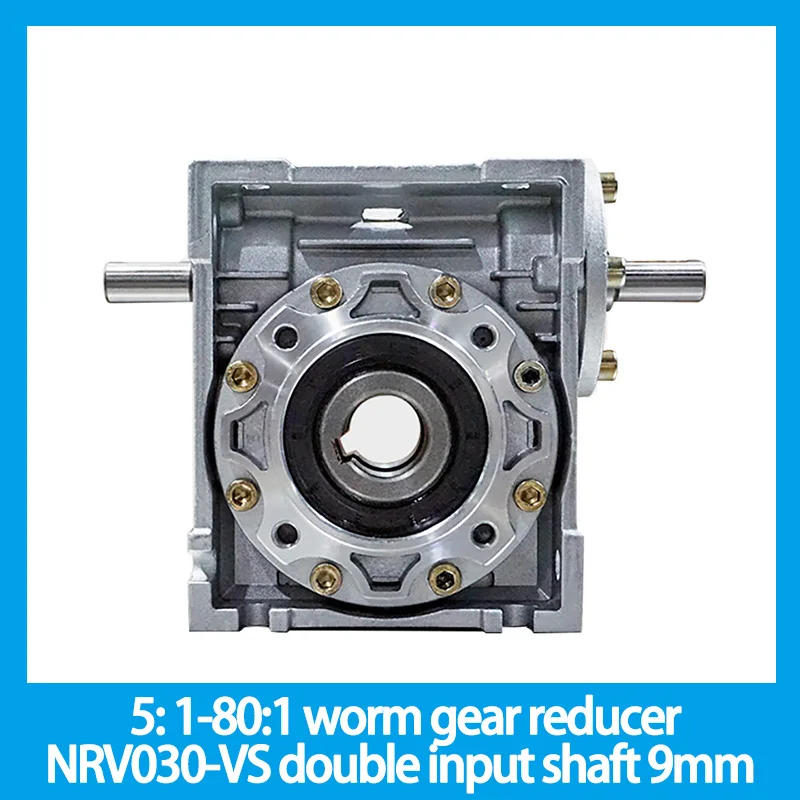

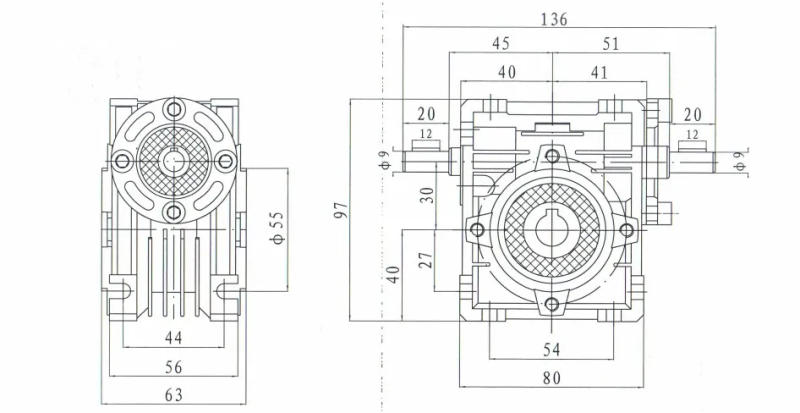

• 5: 1-80:1 worm gear reducer NRV030-VS double input shaft 9mm ninety degree Worm Gearbox Speed ReducerCertification: CCC,ceOrigin: Mainland ChinaOutput Power: 0.06-0.18 kwUsage: Home ApplianceEfficiency: IE 1Model Number: NRV030-VS Double Extension ShaftTorque: 2.6-24 N.mInput speed: about 1500rpmOutput speed: changes with the speed ratioSpeed ratio: 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1for customers.output hole diameter: 14mmNote:we have gear ratio 5:1,7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1,40:1, 50:1, 60:1, 80:1 for customers.this link trojan horse reducer with out output shaft, if necessary, please contact us .Material for trojan horse reducer gearbox:Worm wheel: Nodular forged iron and bronzeWorm shaft: 20Cr steel.The hardness of floor is 56-62HRC with carbonized layer 0.3-0.5mmHousing: aluminum with oven paintingColor: silver and blue (sometimes only 1 color)Feature of computer virus reducer gearbox:1) High high quality aluminum alloy die cast gearbox2) High accuracy bug equipment and bug shaft3) Less noise and decrease temperature increase4) Easy mounting and linking, high efficiencyDimensional drawing of worm reducer NRV030-VS:(unit:mm)We also have worm reducer components such as output shft, torque arm and output flange, if any need, Please click on the link below to order.14mm Single Output Shaft or Double Shaft Worm Output NMRV030 ,If you need to click on the link under to buy:If you wish torque arm, please click on the hyperlink beneath to order!If you wish output flange, please click on the link below to order!1pcs NMRV30 reducer

•
•
•
•
•
