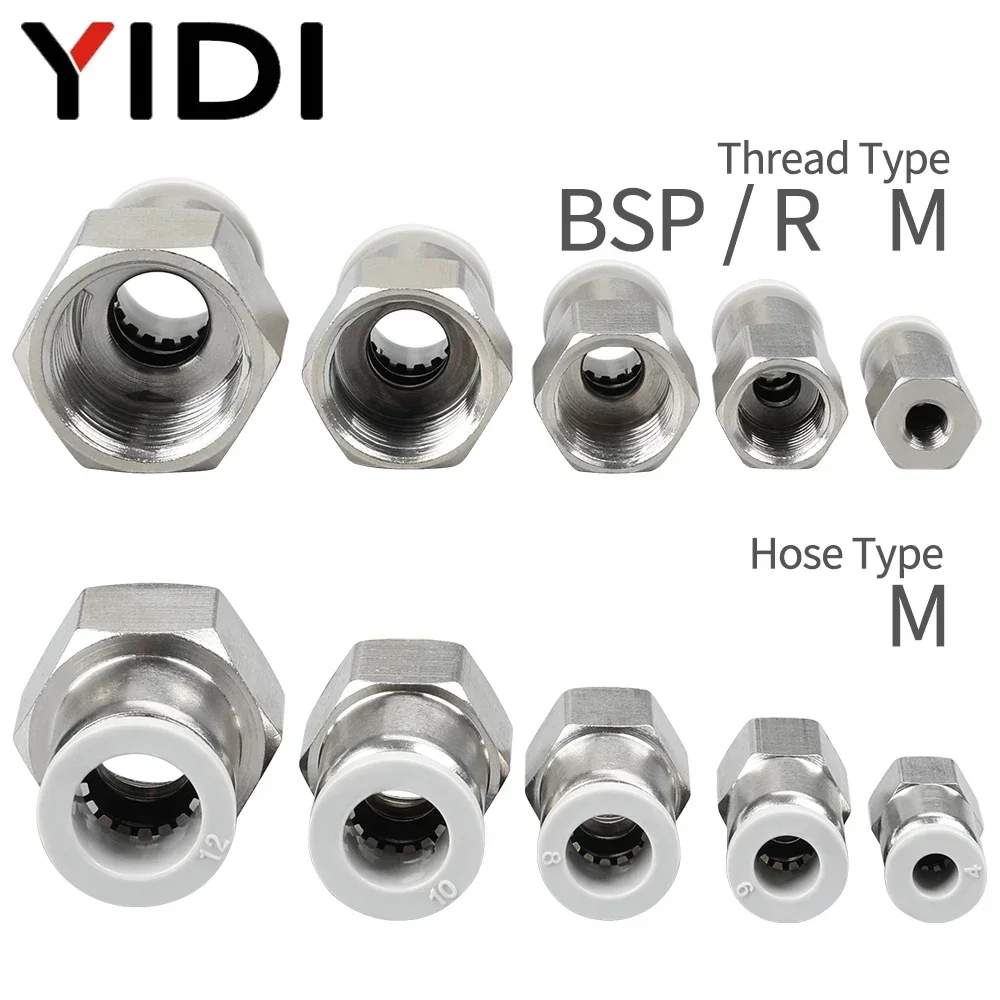

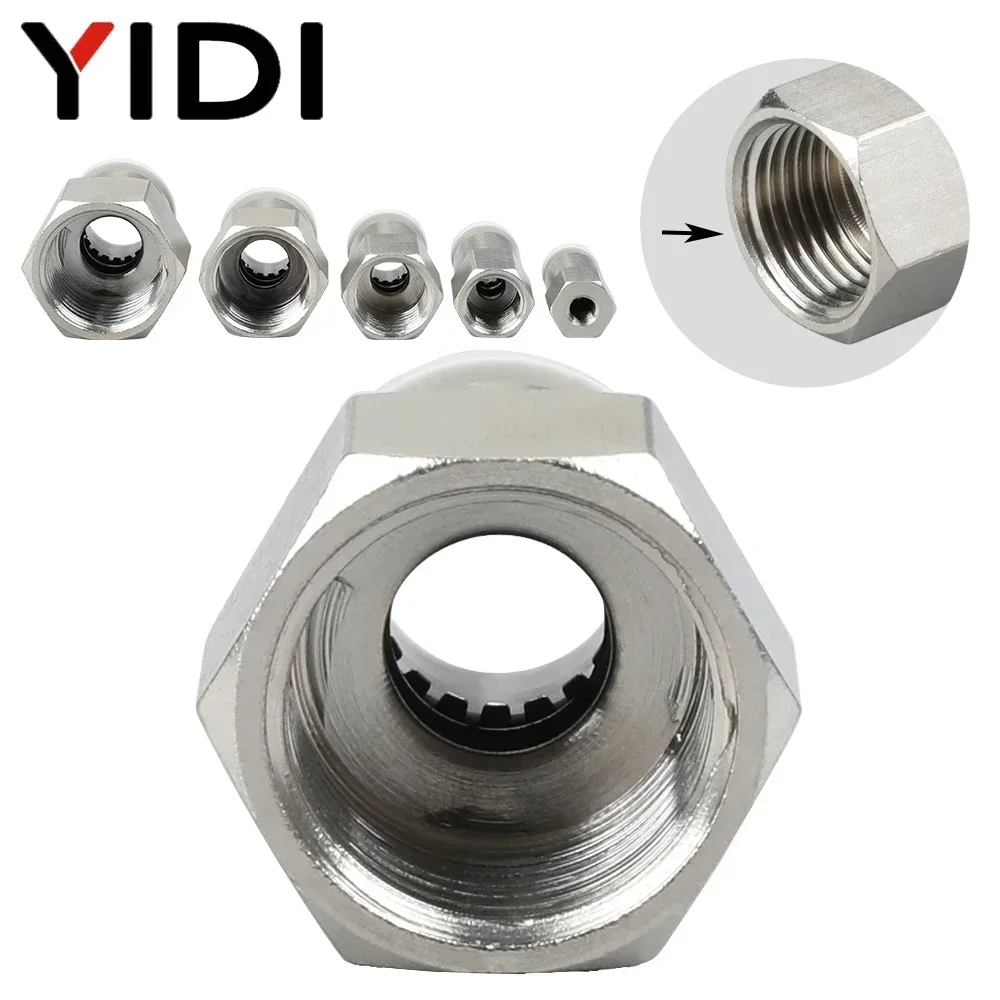

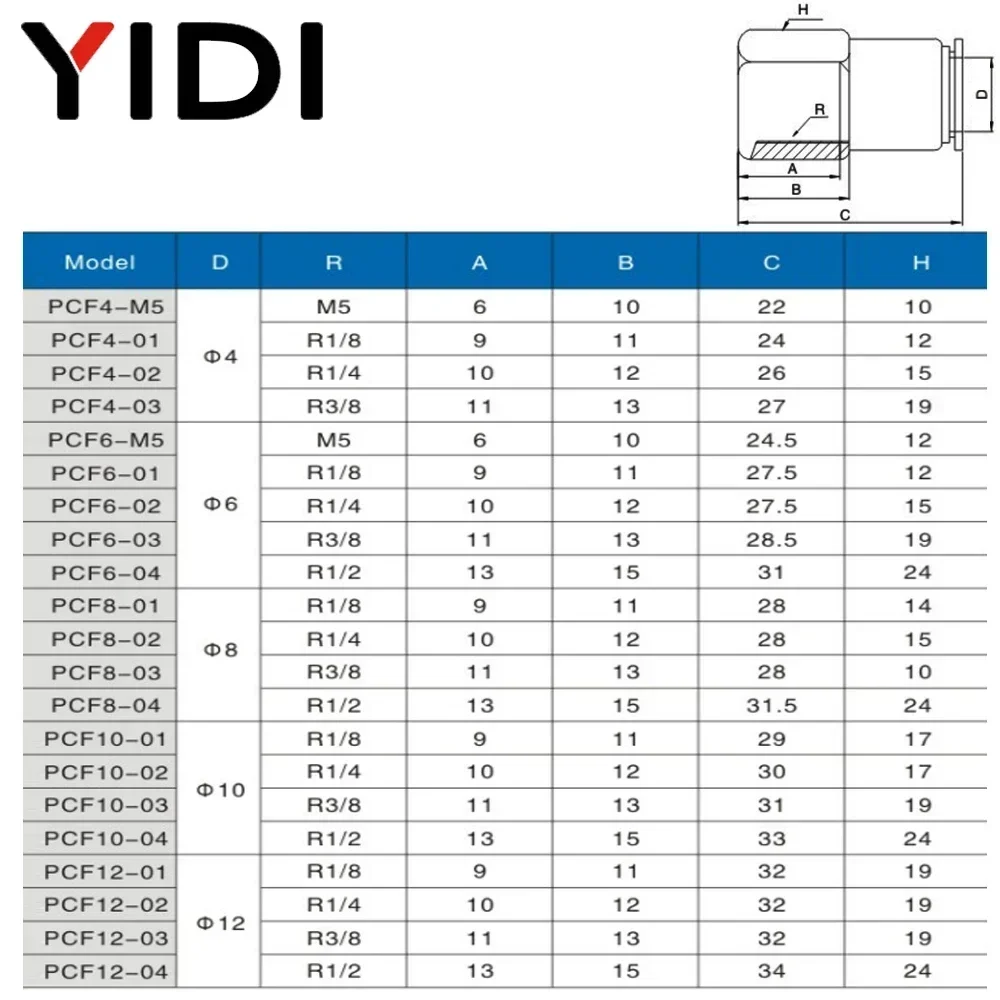

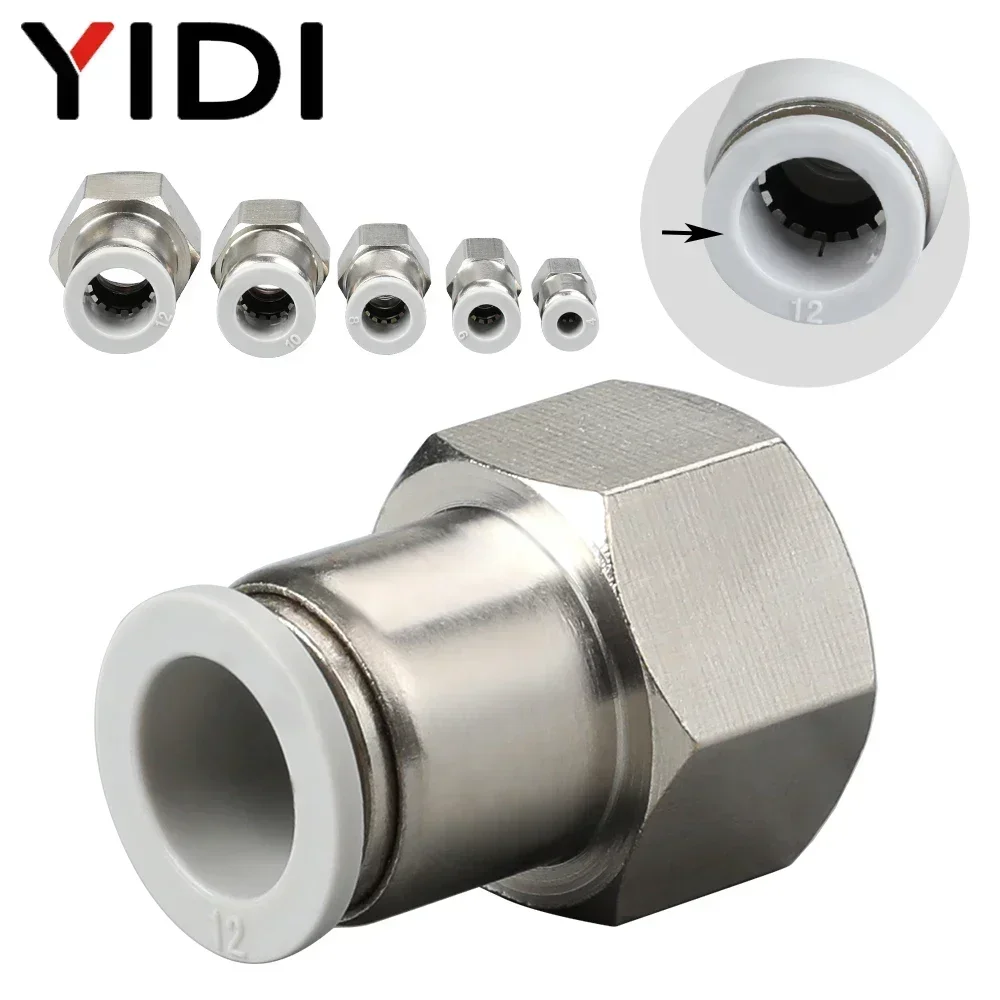

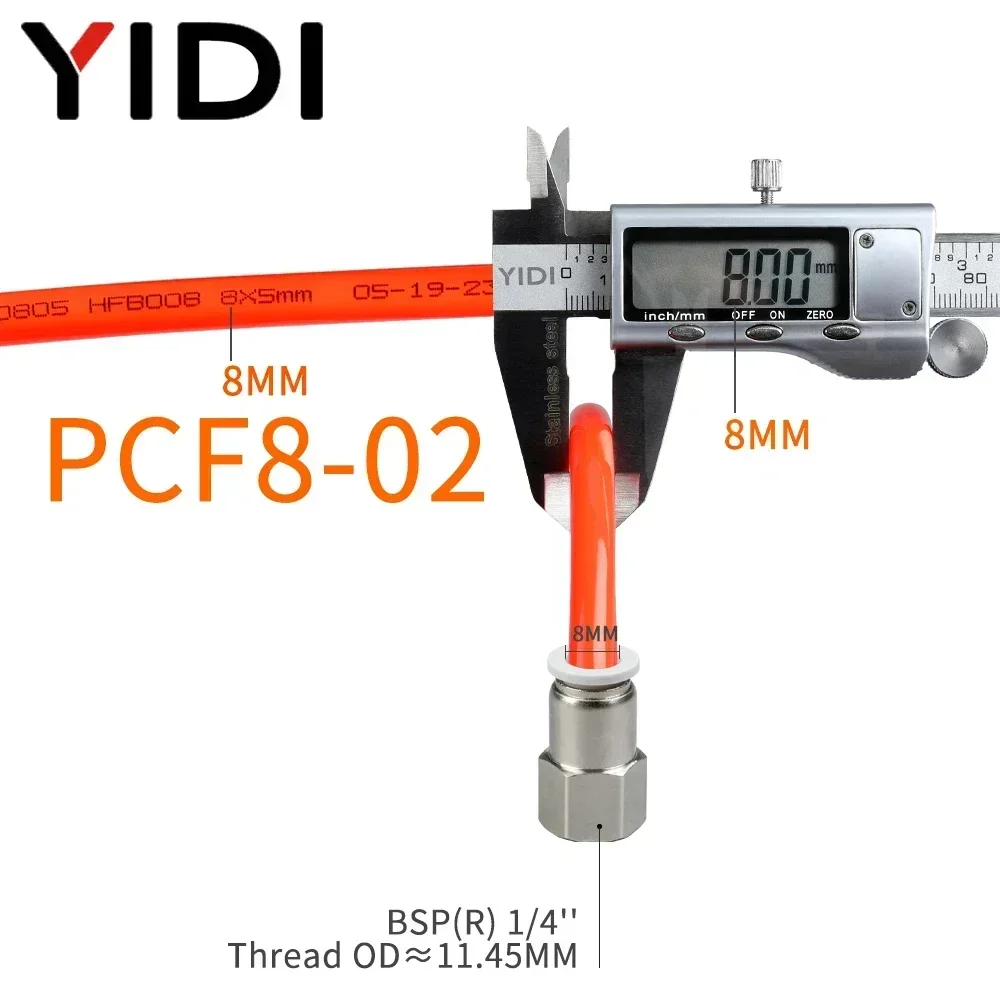

• YIDI 5/10 pcs PCF Pneumatic Air Hose Adaptors Connectors Pipes Fittings 4 6 8 10 12 4mm 6mm 8mm 10mm 12mm to Female Thread BSP R 01'' 02'' 03'' 04'' 1/8'' 1/4'' 3/8'' 1/2'' Specification: Item No.: PCF Connection Way: One-Touch Quick Connection Type: Hose to Female Thread Design: Straight Adaptor Material: Nitrile Rubber, Plasticn , Metal Fluid Type: Clean Air, Vacuum, No Toxic Gas Applicable Hose: SolfNylon, Polyurethane Normal Operating Pressure: 0~10kgf/cm² (0~1.0MPa / 0~1.0bar) Max.Operating Pressure: 15.0 bar(1.5MPa) Negative Pressure:  -750mmhg (10Torr) Ambient And Fluid Temperature: 0~60℃ (140℉) Hose Size Options Type M M5*0.8 BSP(R) 1/8'' BSP(R) 1/4'' BSP(R) 3/8'' BSP(R) 1/2'' 4MM Hose O.D. · · · · - 6MM Hose O.D. · · · · · 8MM Hose O.D. · · · · · 10MM Hose O.D. - · · · · 12MM Hose O.D. - · · · · We have one other web pages inside 14/16MM Hose O.D. Tpye for ordering. Installation Instructions: Installation Grasp the tubing and slowly push it into the correct until it comes to stop. The tubing will be locked via the spring gasket. Remove Push the discharge button to open the spring gasket so that the tubing would be released. Cautions: 1. Cleaning: Clean the piping before connection to remove debris. 2. Tubing Cut: Ensure a perpendicular cut without scratches at the tubing's outer diameter. 3. Pipe Length: Avoid excessive bending; choose a formal pipe length. 4. Connection: After connecting, pull the tubing gently to ascertain its seal. 5. Release: Push calmly on the launch button flange for proper tubing withdrawal. 6. Removal: Avoid rotating the tubing completely during removal. 7. Assembly: Ensure no debris enters when screwing pipes and fittings together. Safety Instructions: 1. Pressure: Ensure 0 pressure within the tubing before removal. 2. Spatter Zones: Avoid standard fittings in spatter-producing areas. 3. Monitor Conditions: Stay within specified pressure and temperature ranges. 4. Environment: Avoid corrosive gases, chemicals, and severe conditions. 5. Placement: Avoid places with heavy vibrations or shocks. 6. Direction: Install tubing in the right one-way direction. Dimension:

•
•
•
•
•
