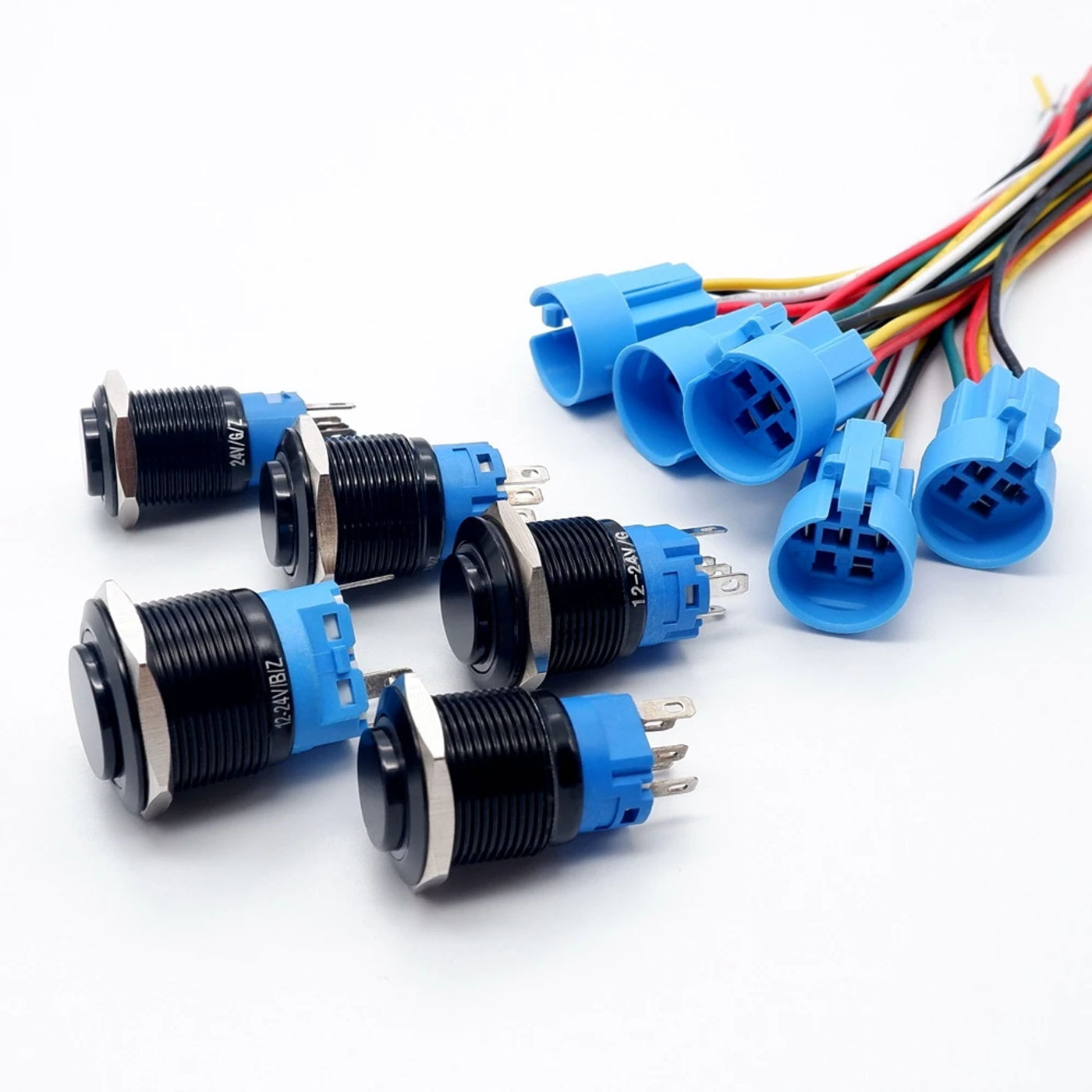

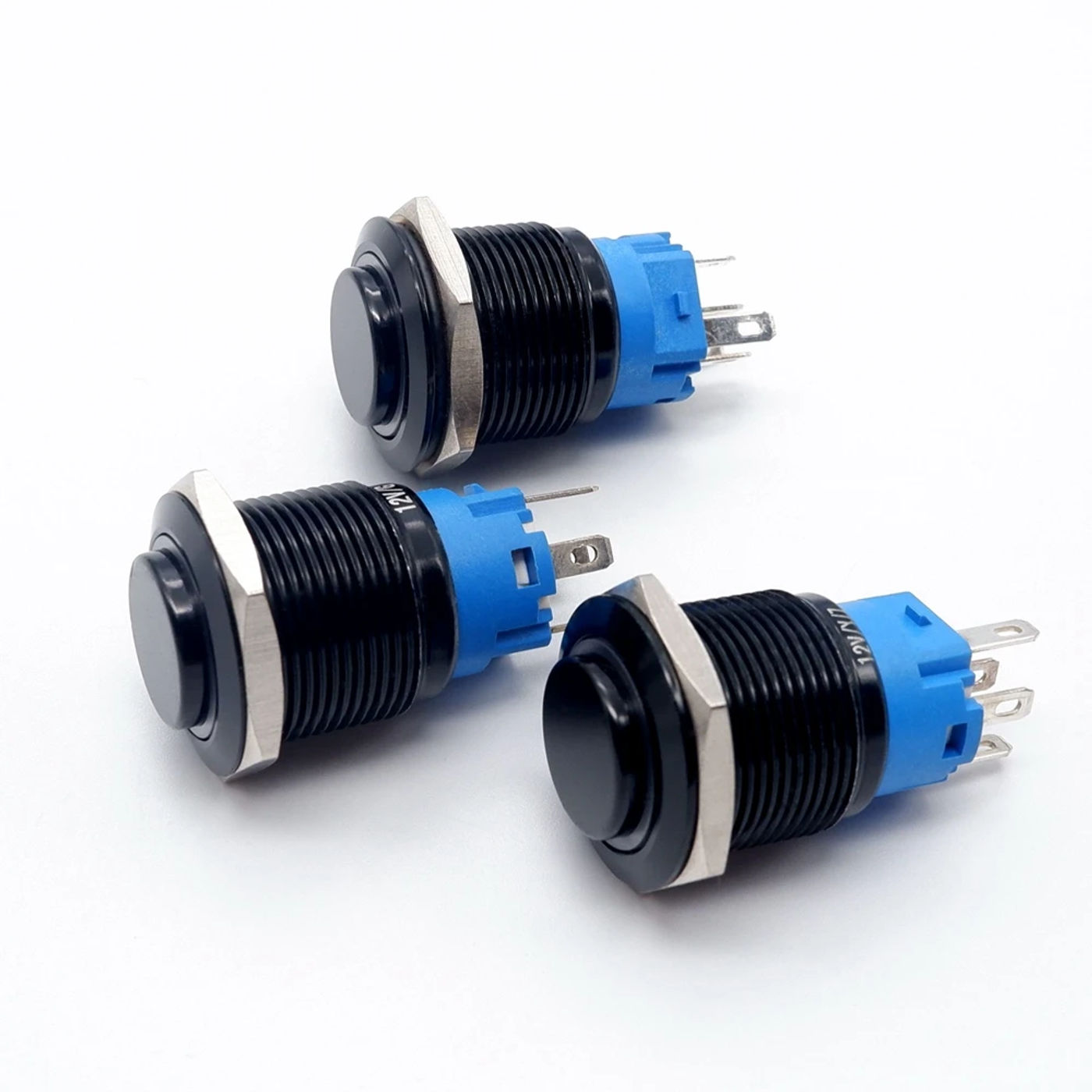

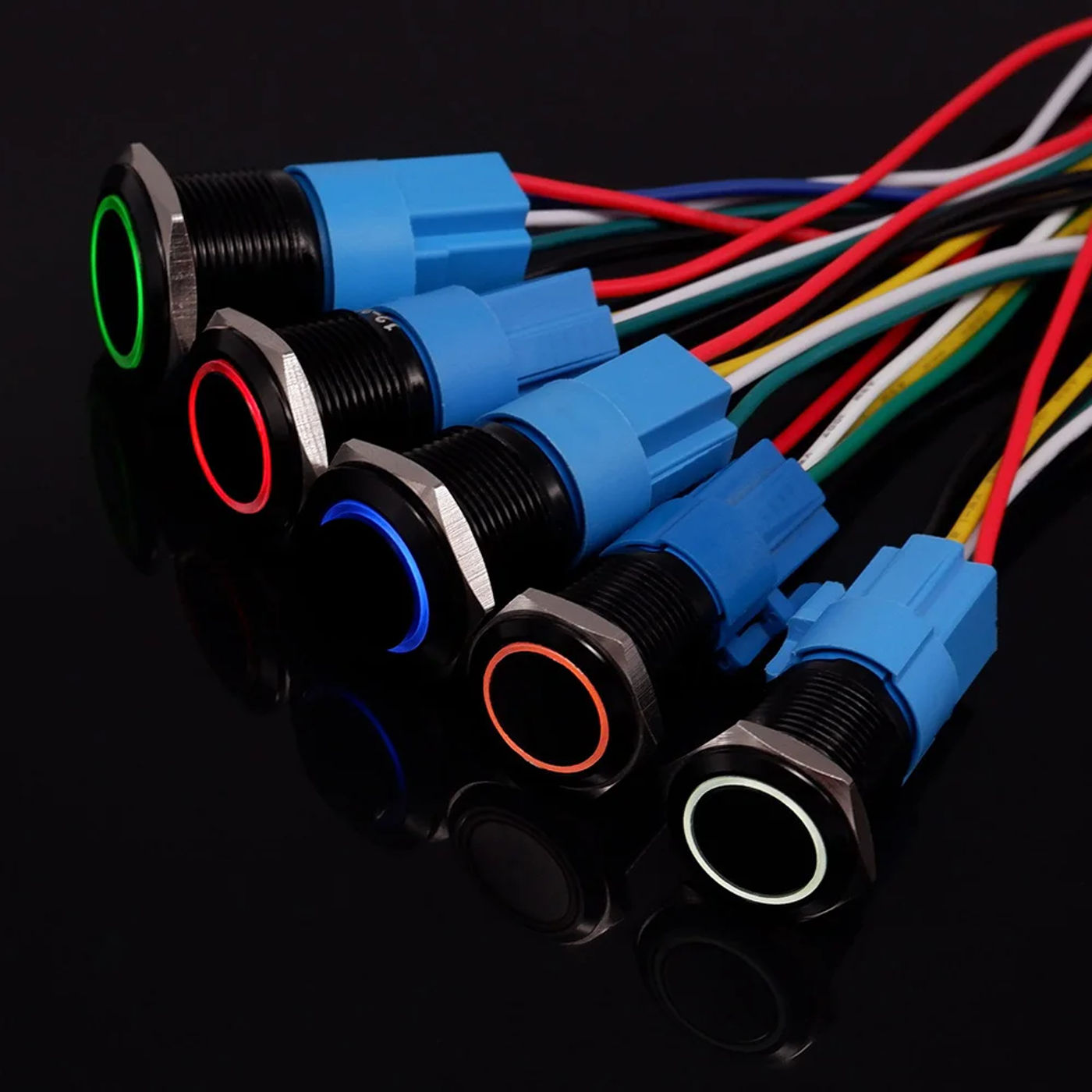

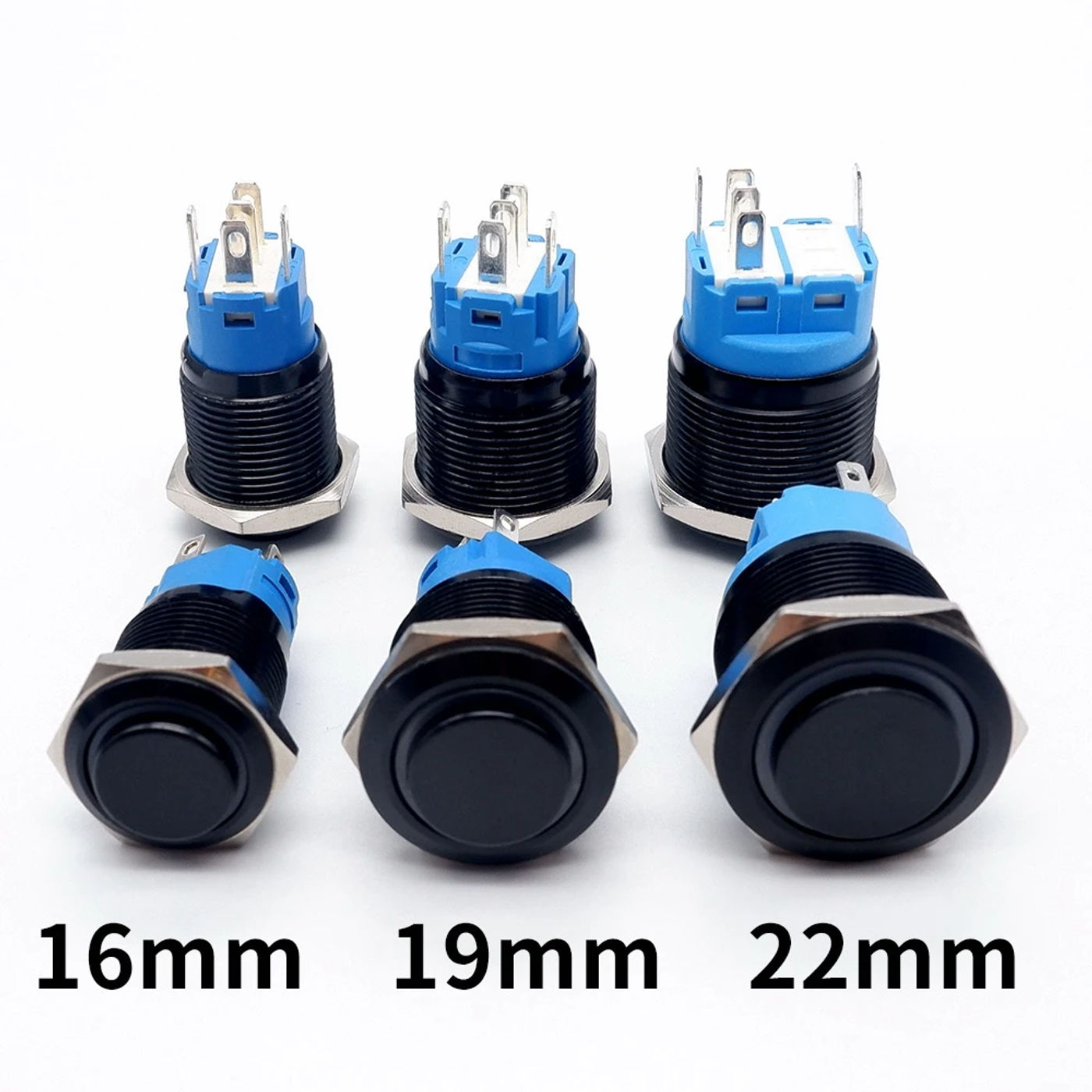

• Switch type:metal swap button Hole diameter:16/19/22mm Led color:red/orange/green/blue/white Operation method:Momentary self-reset/Latching self-locking Led Voltage:3-6V/12-24V/110-220V Maximum current:4A Waterproof level:IP66 Contact type:1NO1NCManual measurement, there may be a little error tail connector wire is determined 15cm lengthy push button with rubber sealing ring, water resistant and dustproof between Momentary self-reset and Latching self-locking:1/Self-reset: When you press the button, press-key will mechanically return.(Like a vehicle horn swap it-power on, launch it-power off.) 2/Self-locking: When you press the button, press-key will dwell in operate until you press back then the press-key return.(Like a lightweight switch it-power on, press it again-power off.)How to connect?(1) " NO " and " C " : The circuit is alway open until press the button. (2) " NC " and " C " : The circuit is alway close except press the button. -The lamp and turn have no electrode, little need to divide the wonderful and detrimental poles when wiring authenticationWiring Diagram(16/19/22mm)1、The button turns the LED mild on and off，the circuit is alway open until press the button、LED lighting fixtures are continuously on，the circuit is alway open unless press the button、 The button turns the LED mild on and off，the circuit is alway close until press the button、LED lights are constantly on，the circuit is alway close besides press the button.

•
•
•
•
•
