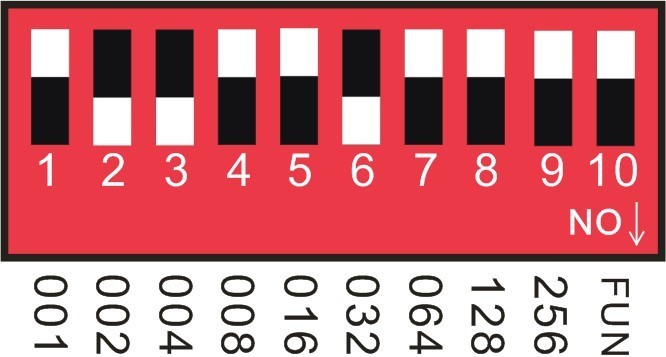

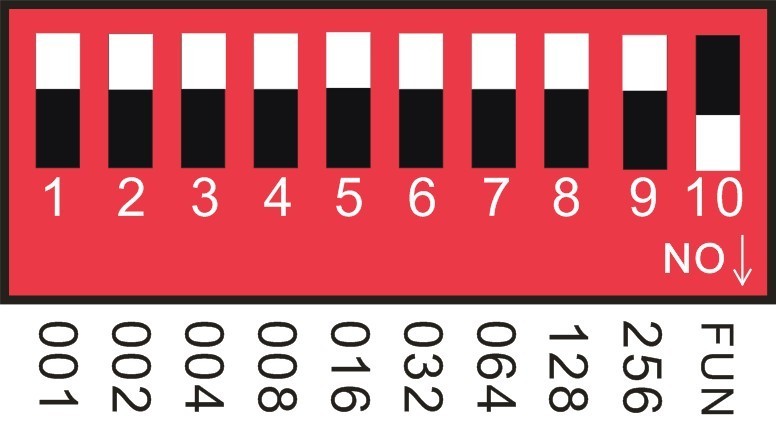

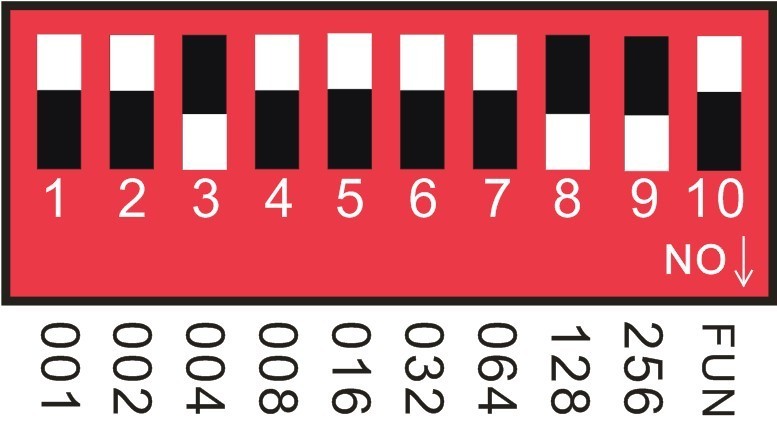

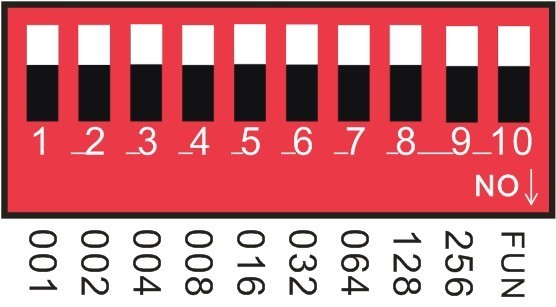

• DMX 512 90W RGB LED Fiber Optic Engine Driver +28key RF Remote controller for each sort fiber opticsTechincal SpecificationInput voltage:AC86-265V POWER: 90WCOLOR: RGB LED: RGB LEDOutput gray level: 256 Input Signal: DMX512/1990Output DMX : three channels( RGB) DMX512 socket standard XLR;Net Weight: 1 Gross Weight:2 delivery gadget size:L280mm ×W195mm×H80MM Fiber head inner diameter:29mmLight body material:Aluminum Remote: RFRemoter dimension: L85× W52 × H7mm Package Size:L325mm ×W320mm×H125MMLifetime: 50,000 hours Warranty: 2 yearsTechincal Specification Package Included 1 x 90W LED RGB Light Engine( don&;t include fiber optic cable)1 x 28Key Remote Controller1 x Power Adapter 1×User ManualWe have EU / US / UK / AU typical plug, we default to ship in line with national criteria and, if definite needs, please leave a message. MODE1:DMX MODENote: FUN = OFF (the 10th code swap up) capacity to accept DMX512 signal mode The first DMX tackle setting: The decoder set the manage bit via coding switch, of which 1-9 is for setting the beginning deal with of the Binary numeric code switch of DMX512, the 1st one is the bottom position, the 9th one is the ideally suited Bit of manage code can be set to 512 starting up manage code is the sum of switches 1-9, on the same time turn turn away of the code switch (ON set to "1"), then the price of the bit would be gotten; coding switch up (set to "0"), the value of the bit is 0 1: As the ensuing Schematic 1, DMX512 beginning handle is determined to 38,encoding the No. 6,3,2 role on switch dial to "1", others set to "0",then the sum of the substitute 1-9 code cost is 32 + 4 + 2,that is the DMX512 beginning take care of 38Schematic 1 Example 2: As the schematic 2, DMX512 starting up deal with is decided to 388,encoding the no. 2,3,6,8 swap dial to "1", others set to "0",then the sum of the switch 1-8 code value is four + 128 + 256 = 388,that is the DMX512 start handle 388 2MODE2:RF MODE Note: It may be rf mode when the No. 10 substitute is grew to become down. Remote instructions:Match Code Function (It is on the market when go away factory)1 on led engine, it works properly when pink indicated lighting fixtures the FADE3 and FADE7 at similar time within the superb remote distance, the white colour of led engine flash. The code fits success. MODE3:Built-in results Mode Effect preference (button switch No to No):12 kinds1. Push No: Seven-color sluggish cycle changing. 2 No. 2: RGB Fade in and out3. Push No 2: Severn coloration jumping 4. Push No: RGB jumping. Push No 3: RGB flash jumping. 6. Push No 3: Static red7. Push No. 1 2 3:Static green 8. Push No: Static blue9. Push No 4: Static yellow 10. Push No 4: Static purple11. Push No 2 4: Static cyan 12. Push No 4: Static whiteSpeed Choices (Button Switch No to No. 7) 8 kinds1 No: 0 second. 2. Push No: 1 second. 3. Push No,6: 1 second. 4. Push No: 2 moment No: zero second. 6. Push No: 1 second. 7. Push No,6: 1 second. 8. Push No: 2 second Connection Diagram1 MODEL2 MODEL3 MODEL Maximum fiber connection formula: Fiber head’s radius: RFiber Diameter: D1,D2,D3......... quantity:N1,N2,N3.....:Π*R*R>=N1*D1*D1+N2*D2*D2+N3*D3*D3...............:fiber head’s radius (Diameter 20mm)Fiber Diameter:0,1,1 Quantity:150mm,50mm,10mm.....:3*10*10>=150*0*0+50*1*1+10*1*1 head inside diameter:16-20MMThe sort of optical fiber could be installed:MODELPGConnector within diameter(MM)fiber diameter(MM)max fiber numberQJ-FB45RGBWRFDMX290 method between Fiber and Led engine:1 all the fiber head, fasten with tapes which might resistance temperature over 1302 throughout the fiber to connector, fastening rotary tensioner. To ensure the fiber bunch couldn't flow and each fiber should be in the identical plane. three the fiber bunch to flat surface by means of heat-knife or blade. four sure the fiber bunch head is smooth and clean. Thus every single fiber’s light may be flippantly during the complete fiber connector to repair ring of Led engine. Fasten screw at the height of the fix ring. Attention:1 yes the enter voltage is true led engine within the rain or wet place is prohibited3 don’t open led engine for inspection or replacement the digital circuits while you're not professionor engine has to be nice ventilation, please don’t put at sealed place particles on peak of led engine or round it will likely be induced poor warmth dissipation.

•
•
•
•
•
