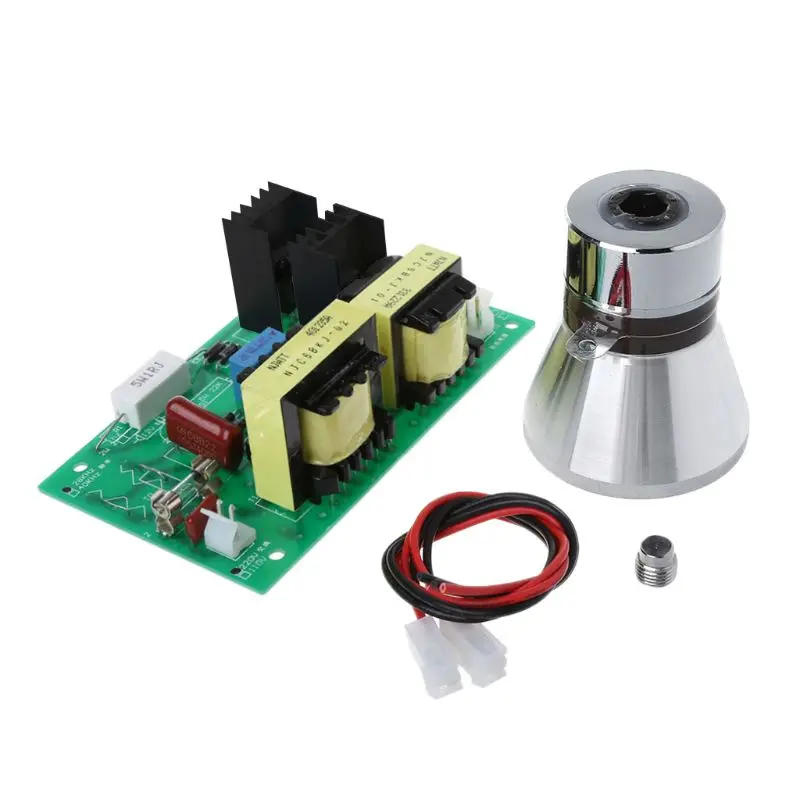

• A6HB Ultrasonic Generator Power Board And Transducer Vibrator for supersonic Cleaner OOTDTY fresh and nice Features: Board radiating surface. Homogeneous sounding board. Ultrasonic cleaning transducer Cleaner. This generator and vibrator are particular kit for ultrasonic cleansing machines, which are keen for peers who like DIY washing machines. 1 Set Power Board And Vibrator only, different package demo in the picture is never included! Specification: Transducer Power: 60W Frequency: 28KHZ Power Board Voltage: 220V AC Power Board Power: 100W Dimensions: As Shown Quantity: 1 Set Note: Please allow 0-1cm error thanks to manual measurement. pls ensure you don't intellect earlier than you bid. Package includes: 1 Set Power Board And Vibrator (without retail package) Circuit board and the first vibration (ceramic chip transducer) wiring instructions: 1. Circuit board shall not be empty power; 2. No cleaning fluid cleaning; 3. Shock the 1st two lugs, the middle of the two items of ceramic sheet for the advantageous electrode, through the upper and reduce metallic column for the negative, are usually not reversed; 4. On the other hand, the larger one of the two silver layers is the superb one and the smaller one is the adverse one. When welding the flexibility cord, it should be soldered on the facet with two silver layers , The diverse facet of the vibration surface, can be affixed to the wash basin beneath (this is acquired ceramic transducer ingredients described); ceramic sheet isn't always proof against hot temperature silver, soldering the ability wire when the temperature would not exceed 280 degrees, probably the most Good use of constant temperature iron, the iron temperature can be set to 250 degrees. 5. Shock head at the greater ingredient (with a screw hole) for the vibration surface would be stuck in the wash basin at the end of the wash basin to a reliable grounding; 6. Earthquake head or transducer ceramic tile software head adhesive firmly affixed to the lowest of the wash basin; 7. Two shock head parallel connection to the circuit board terminal, a circuit board up to two with the 1st shock, but as well with a surprise supporting the use of; 8. Circuit board wiring diagram is as follows: Positive and unfavorable output pole respectively wonderful and detrimental polar link, can not desire the wrong query in time advice, to assure safety.

•
•
•
•
•
