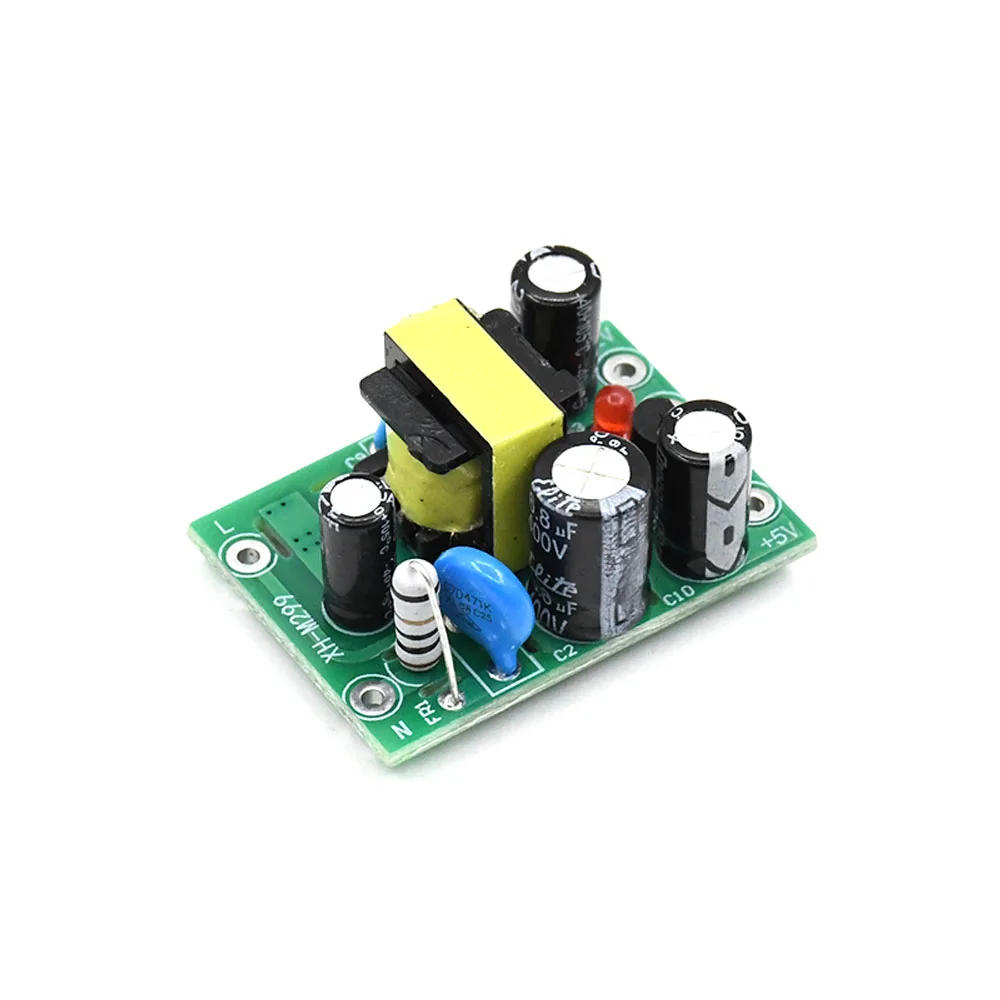

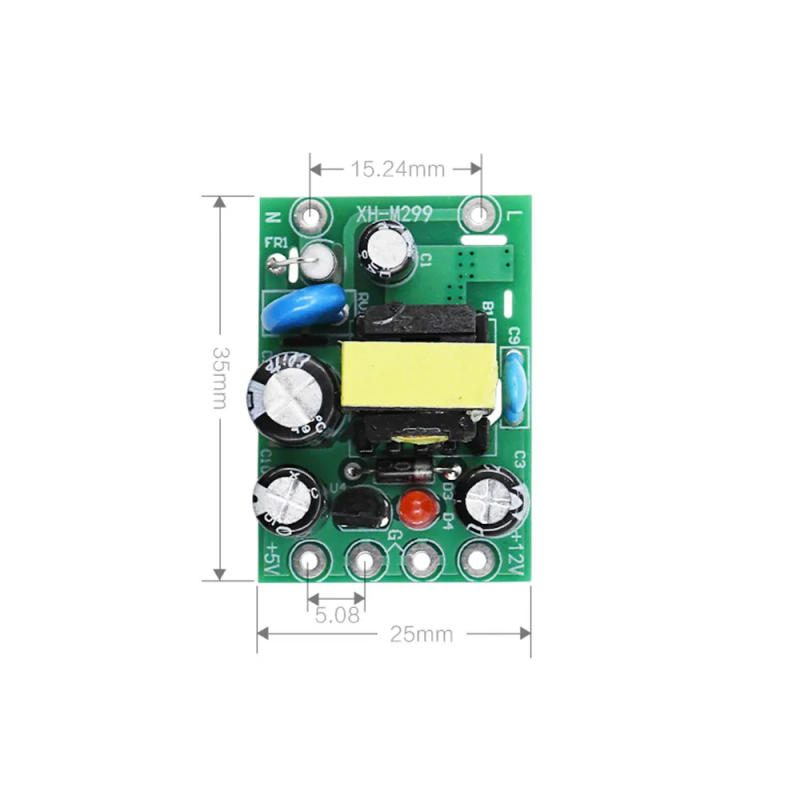

• AC-DC Switching Power Supply Module AC-DC AC 110-220V Input 5V/12V Output 100mA/500mA Dual Output Isolation Power Supply Board Specification: Input voltage: AC110-220V Output voltage: DC5V/12V Output current: 100mA/500mA Output power: 0/6W Product size: 35*25*15mm Pad pitch: enter 15 / output 5 (mm) Power input connection: AC110V-220V Dual outputs, 5V and 12V, respectively, could be connected to the output voltage matching load Note: distinguish between the fine and unfavorable poles of the ability supply (as proven in the connection diagram) Note: 1 Due to the sunshine and display difference, the item&;s shade could also be barely diverse from the pictures 2 Please enable 1-3cm differences thanks to handbook dimension Package Included: 1x Power Supply Module

•
•
•
•
•
