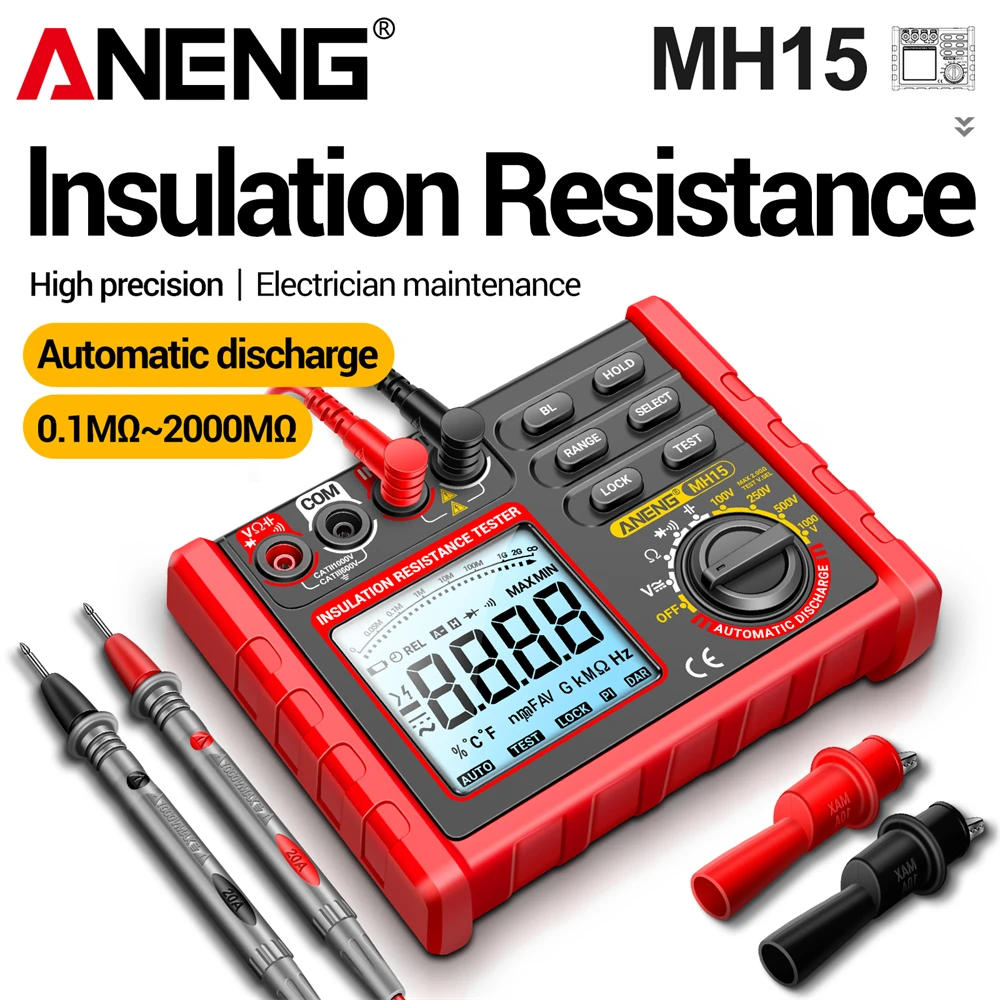

• ANENG MH15 Digital Ohmmeter Insulation Resistance Meter 6000 Count Resistor Testers Capacitor Test Megohmmeter High Voltage ToolGeneral:This software is a battery powered insulation resistance tester that may be used to measure DC voltage, AC voltage, resistance, on-off, diode and insulation resistance When measuring insulation resistance, there are four examine voltages to make your mind up from: 100V, 250V, 500V and 1000V This device has polarity indication, over fluctuate indication, information retention, automatic retention and different purposes It is easy to apply and is a precision measuring software Function Range Resolution Precision AC voltage 0V-750V 1mV-1V ±(2%+5d) DC voltage 0mV-1000V 0 ±(1%+5d) Capacitor 0nF-60mF 1pF-10uF ±(6%+20d) Resistance 0Ω-60MΩ 0Ω -10kΩ ±(1%+10d) Diode √ Automatic shutdown 15 min no operation Automatic shutdown Buzzer √ Battery mannequin 1 AA battery*6 pcs (without shipment) Weight 419g Automatic discharge √ Max depend 6000 depend Data retention √ Material ABS/Silicone Low strength immediate √ Insulation resistance purposeful vary Test voltage gear Display vary Precision 100V 0~20MΩ ±(3%+10d) 20~100MΩ ±(4%+10d) 250V 0~20MΩ ±(3%+10d) 20~200MΩ ±(4%+10d) 500V 0~20MΩ ±(3%+10d) 20~200MΩ ±(4%+10d) 200~500MΩ ±(5%+10d) 1000V 0~20MΩ ±(3%+10d) 20~200MΩ ±(4%+10d) 200~500MΩ ±(5%+10d) 500~2000MΩ ±(6%+10d) THE PARAMETERS ARE FOR REFERENCE ONLY,AND THE ACTUAL MEASUREMENT OF THE SPECIFIC EQUIPMENT SHALL The packaging includes: (Battery not included) 1 * Packing field 1 * Storage bag 1 * Insulation resistance tester 1 * Manual 1 * Alligator clipX2 1 * Pen line

•
•
•
•
•
