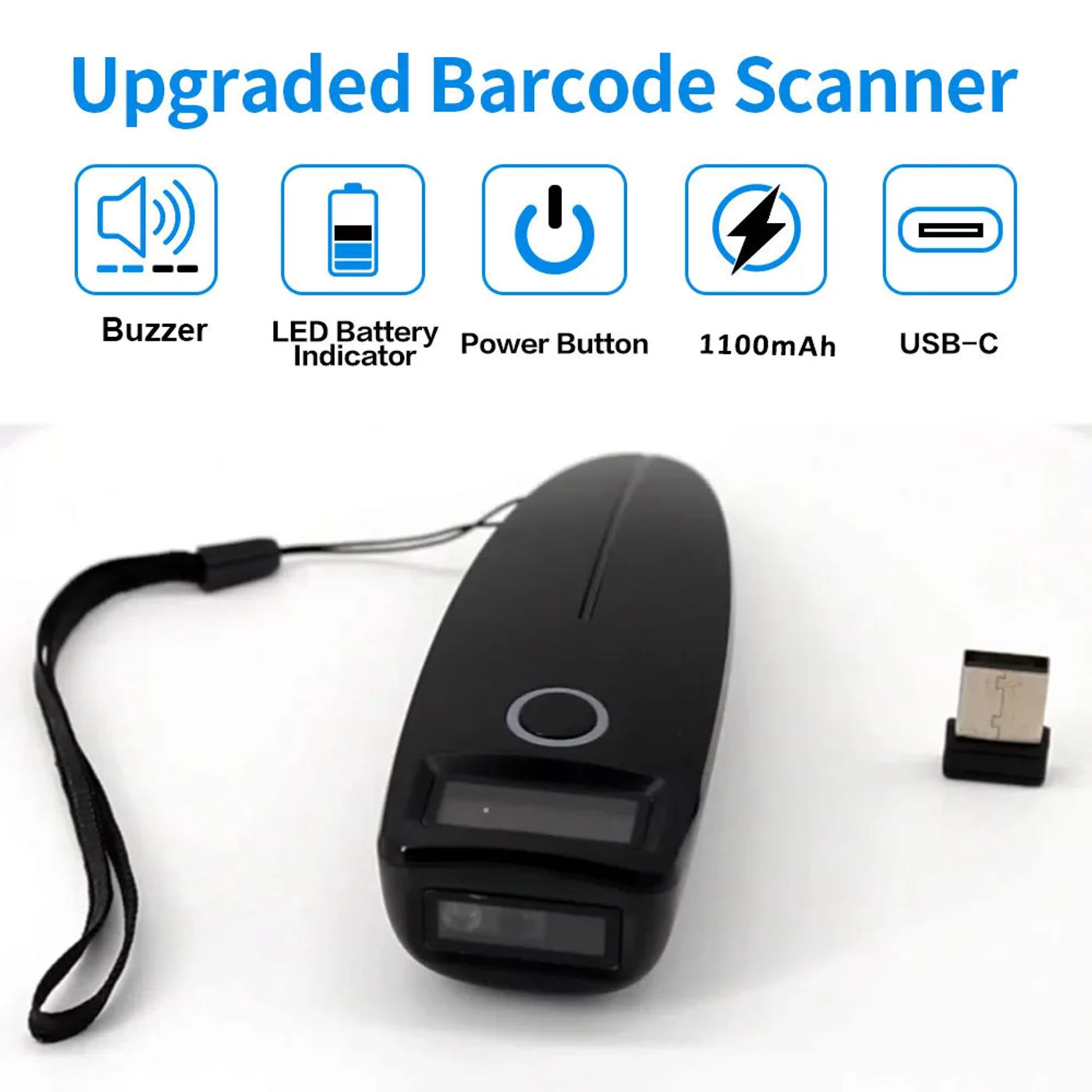

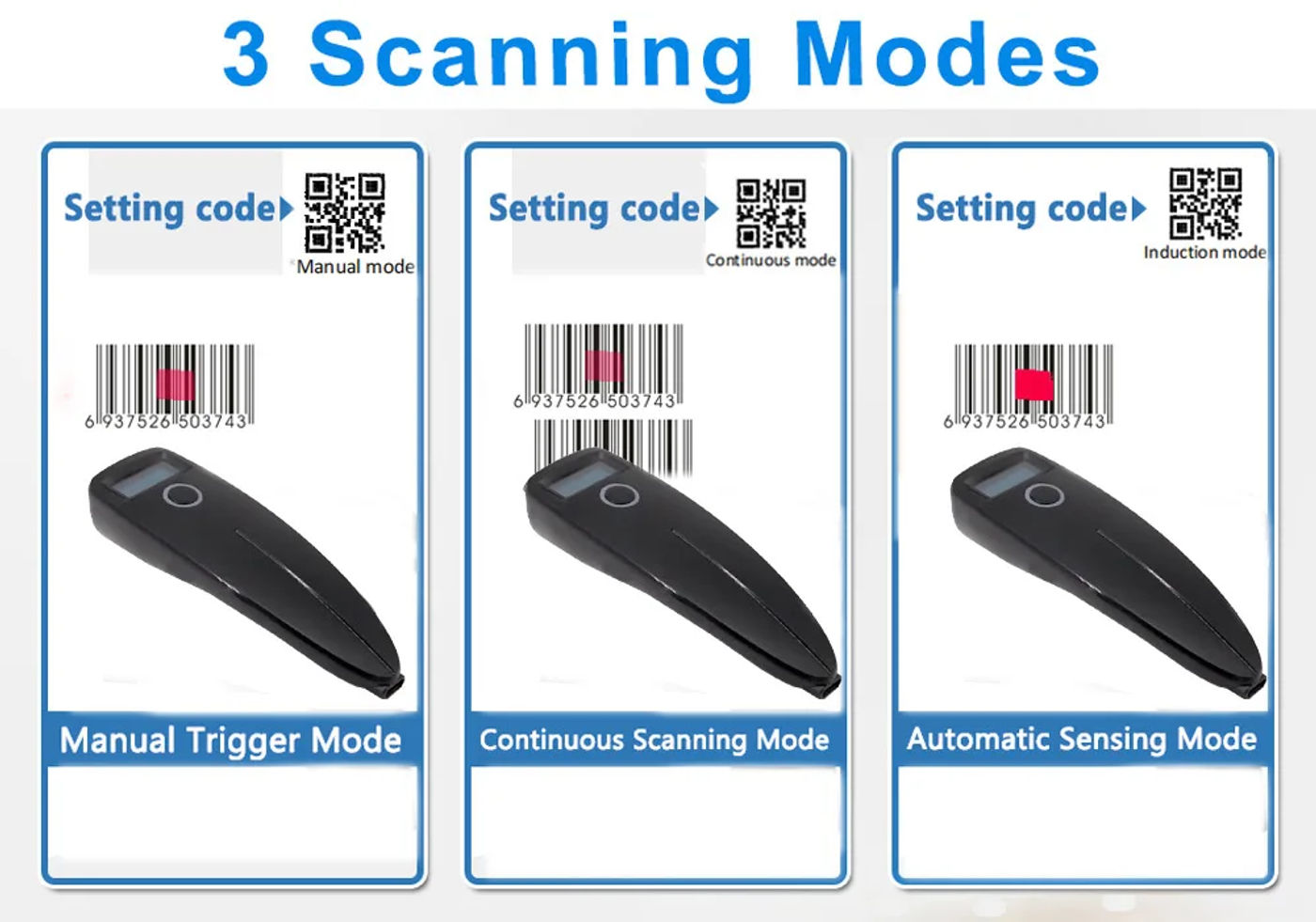

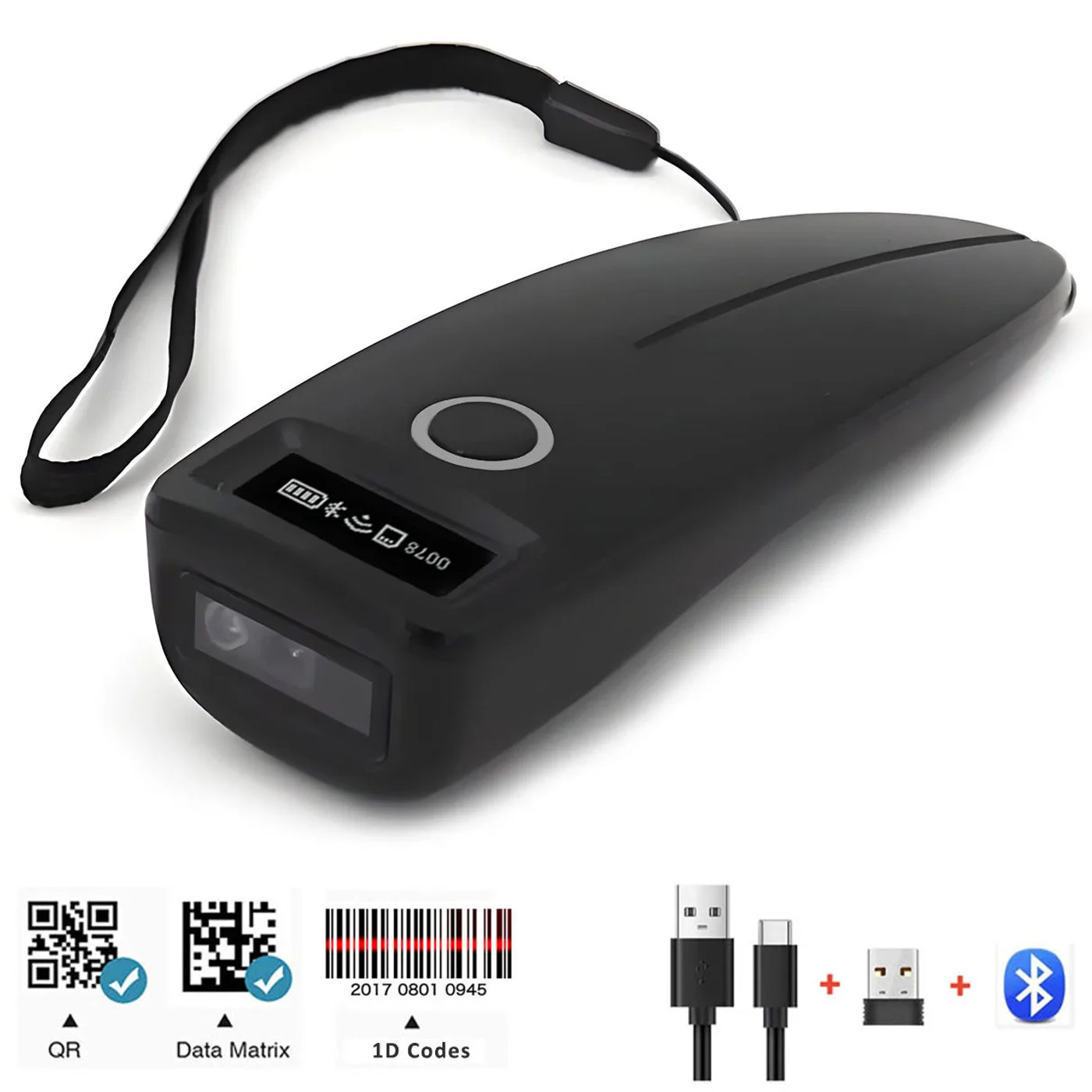

• Bluetooth 2D Barcode Scanner Pocket Wireless QR Reader Data Matrix PDF417 IOS Android Windows OPERATIONAL PARAMETER Image(Pixels):640 pixels(H)*480 pixels(v) Scan Mode: Key trigger/ auto sensing/ continuous scanning Light Source: White LED Depth of Field: QR (20mil) 10~130mm Data Matrix(10mil) 20~100mm PDF 417 (7mil) 25~105mm EAN-13 (13mil) 30~175mm Code 39 (8mil) 25~145mm Code 128 (7mil) 25~110mm Scan Angle : ±60°, ±60°,360° (Elevation angle, declination angle, corner of rotation) Field of view:48° (H) x 30° (V) Read Resolution: More than five mil Print Contrast:: More than 25% Indicator: Buzzer, LED Lights , OLED Display, Vibration motor Communication model: 2, bluetooth and USB kind C cable Communication Distance :2: 80meters (open air) ,Bluetooth: 20meters (open air) DECODE CAPABILITY 1D: EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey,etc 2D: QR Code,Data Matrix,PDF417,Micro QR, Aztec,etc,Support cellular phone display screen code studying PHYSICAL CHARACTERISTICS Dimension H x W x L:Scanner :122mm*42mm*30(L*W*H) Weight :60g (scanner web weight) Material:ABS + PC Cable:Standard 1M instantly POWER PARAMETER Input Voltage:5V DC±10% Working current:350mA, Standby: 130mAh

•
•
•
•
•
