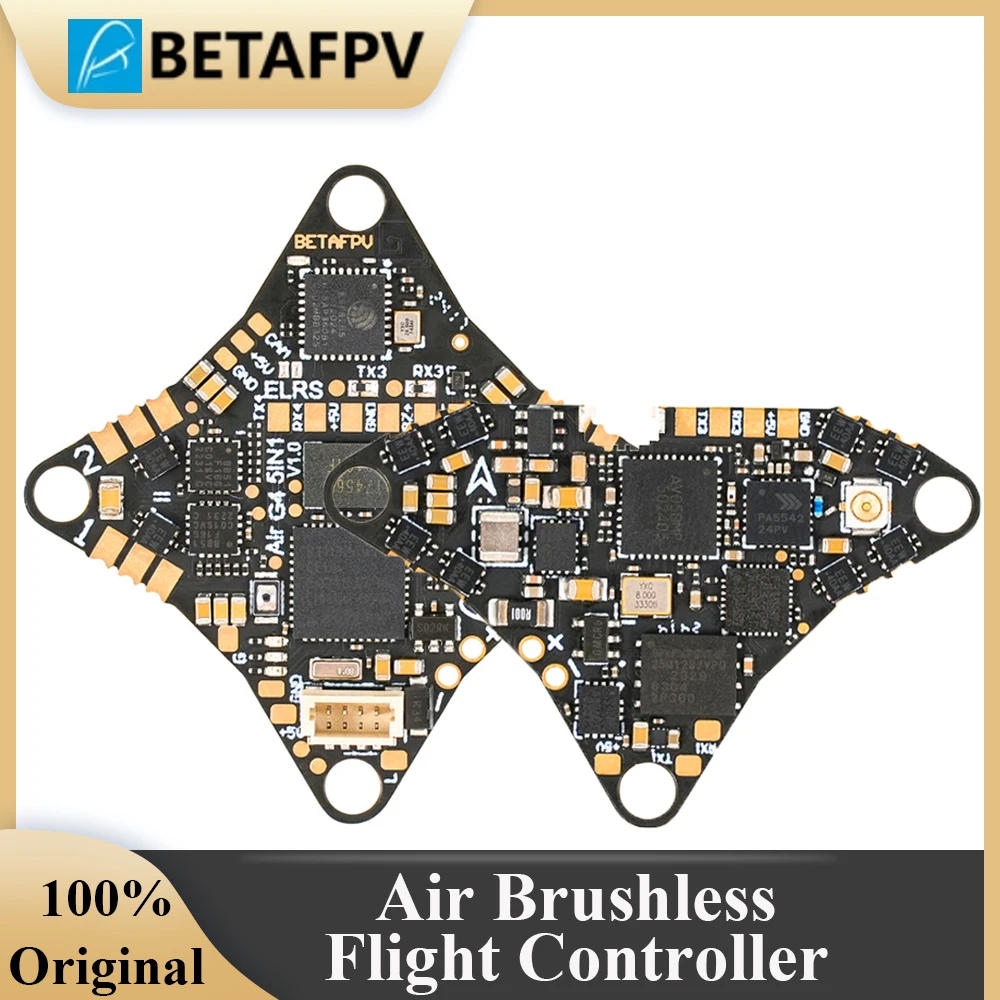

• Air Brushless Flight Controller, the 1st 1S FC that makes use of the STM32G473CEU6, skilled a remarkable 55% expand in computing velocity and lightning-fast reaction times, surpassing the F411 Equipped with the industry-leading ICM42688P gyro and onboard 5 25mw~400mw VTX, it gives both 4IN1 with 2 and 5IN1 with three Versions, which takes your drone&;s posture and motion accurately to a higher point Immerse your self easily in the drone world of Finger-Tip control Unmatched cost and undeniable superiority with it, go away most of the competition within the dirt It stands out as the improved desire for future ultralight 1S whoop drones! Bullet PointAir Brushless Flight Controller, the 1st 1S FC that utilizes the G473 processor, skilled a unparalleled 55% increase in computing speed and lightning-fast response instances for exact racing and complicated freestyle maneuvers, surpassing the F411 integration but lightweighter design, that includes a custom miniature OSD chip Weighing solely 2 (4IN1 Version) or 3 (5IN1 Version), it affords more UART port strategies for easy operate expansions, adapting flawlessly to any flight state of affairs integrated onboard 25-400mW VTX Streamlines set up saves space, reduces weight, and boosts comfort for VTX and FC adjustments The 5IN1 Version even integrates the Serial ELRS 2 RX your drone&;s precision with the industry-leading ICM42688P gyro, included accelerometer, cutting-edge sensor calibration, and filtering algorithms, and a pattern price of as much as 8K, which takes the drone&;s posture and movement accurate and exact drone to a higher level huge flight information recording and analysis with a magnificent up to 16MB skill black box Maximize performance and diagnose faults effectively, leveraging the total potential of your drone Specification of FCWeight: 2(4IN1 Version) / 3(5IN1 Version)Mounting Hole Size: 26mm x 26mmCPU*: STM32G473CEU6 (168MHz)Six-Axis: ICM42688P (SPI connection)Blackbox Memory: 16MBSensor: Voltage&Current5V BEC*: 5V 3AUSB Port: SH1 4-PinBuilt-in ESC with 5A continuousRX: Serial ELRS 2 (V3) (Only 5IN1 Version)4IN1 Version: FC+ESC+OSD+VTX5IN1 Version: FC+ESC+OSD+VTX+RX Specification of ESCInput Voltage: 1SFC Firmware Version: Betaflight_4 Firmware: A_X_5_96KHz_V0 for BB51 Bluejay hardwareSignal Support: D-shot300, D-shot600Specification of VTXOutput Power: 25/100/200/400/PITFrequency: five 48 channels, with Raceband: 5658~5917MHzChannel SEL: SmartAudio2 Type: FMFrequency Control: PLLAll Harmonic: Max -50dBmFrequency Stability: ±100KHz (Typ)Frequency Precision: ±200KHz (Typ)Channel Carrier Error: ±1 Port: 50 ΩOperating Temperature: -10℃~+80℃ Package1 * Air Brushless Flight Controller1 * 2 Antenna (Only 5IN1 Version)1 * Type-C to SH1 Adapter1 * SH1 4Pin Adapter Cable1 * 5 VTX Antenna1 * BT2 U Whoop Cable Pigtail | 40mm4 * M1*4 Self-tapping Screws4 * Shock Absorbing Ball 4IN1&5IN1Choose this higher integration Air Brushless Flight Controller, for an ultra-light 1S whoop installation, tailor-made to fulfill the purposes of discerning pilots It is default integrated onboard 25-400mW VTX, the 5IN1 Version that integrates FC+ESC+OSD+VTX+RX is going a step further via integrating the Serial ELRS 2 RX, streamlining set up to avoid wasting space and reduce weight, and adorning convenience for VTX and FC modifications The 4IN1 Version removes the RX port for added versatility, offering pilots with extra external RX strategies Serial ELRS 2 RXSerial ELRS 2 RX uses the Crossfire serial protocol (CRSF protocol) to communicate between the receiver and the flight controller board So the Serial ELRS 2 RX is offered to support upgrading to ELRS V3 while not having to flash Betaflight flight controller firmware Enter binding popularity through power on/off 3 times Plugin and unplug the flight controller 3 times;Make yes the RX LED is doing a quick double blink, which signifies the receiver is in bind mode;Make sure the RF TX module or radio transmitter enters binding status, which sends out a binding pulse;If the receiver has a stable light, it&;s bound Serial ELRS 2 RX can be up to date via Wi-Fi or Betaflight serial passthrough Here is how one can replace the Serial ELRS 2 RX firmware by way of passthrough Plug in your FC in your computer, yet do NOT connect with betaflight configurator;Choose goal "BETAFPV 2 AIO RX";Flash utilizing the BetaflightPassthrough possibility in ExpressLRS Configurator

•
•
•
•
•
