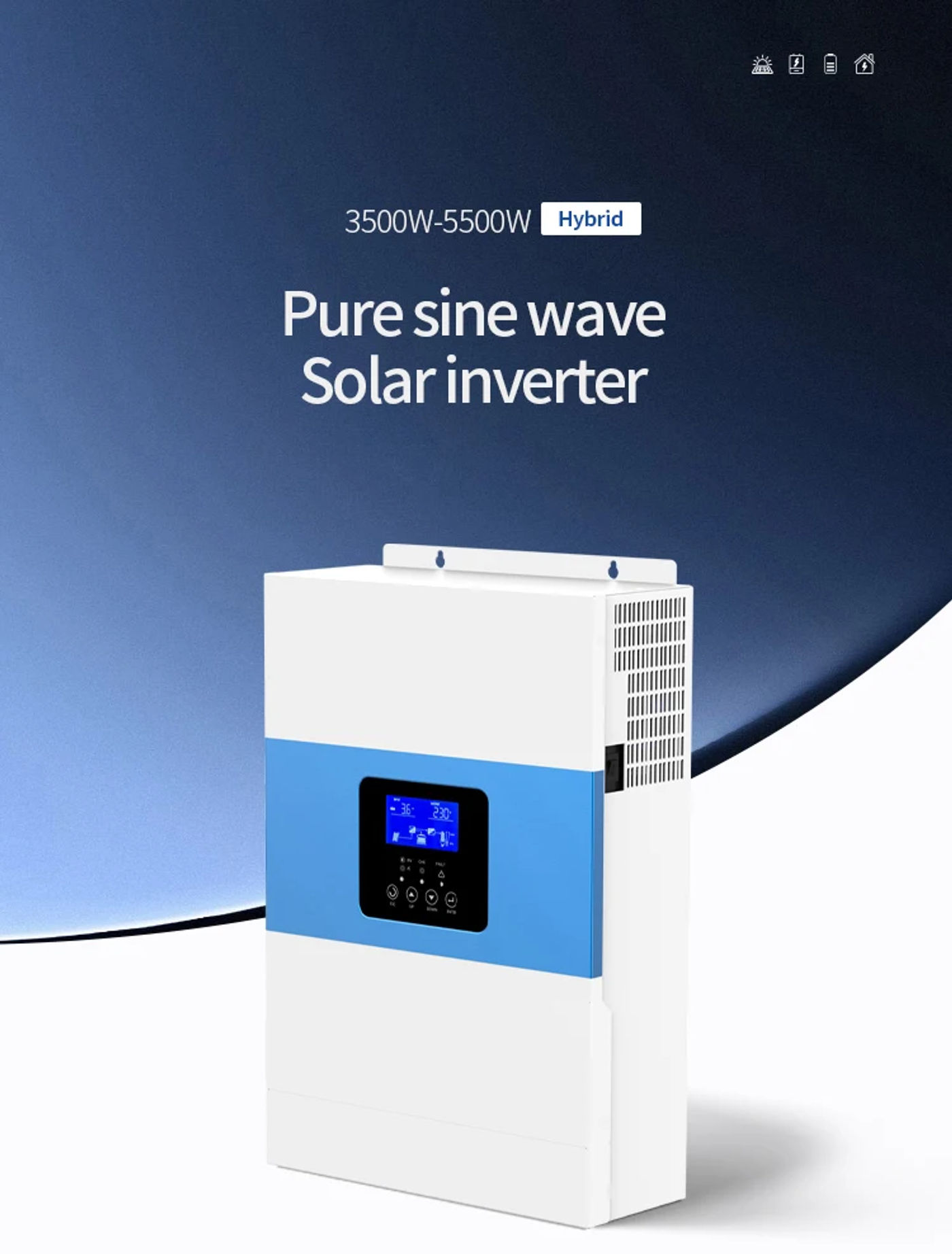

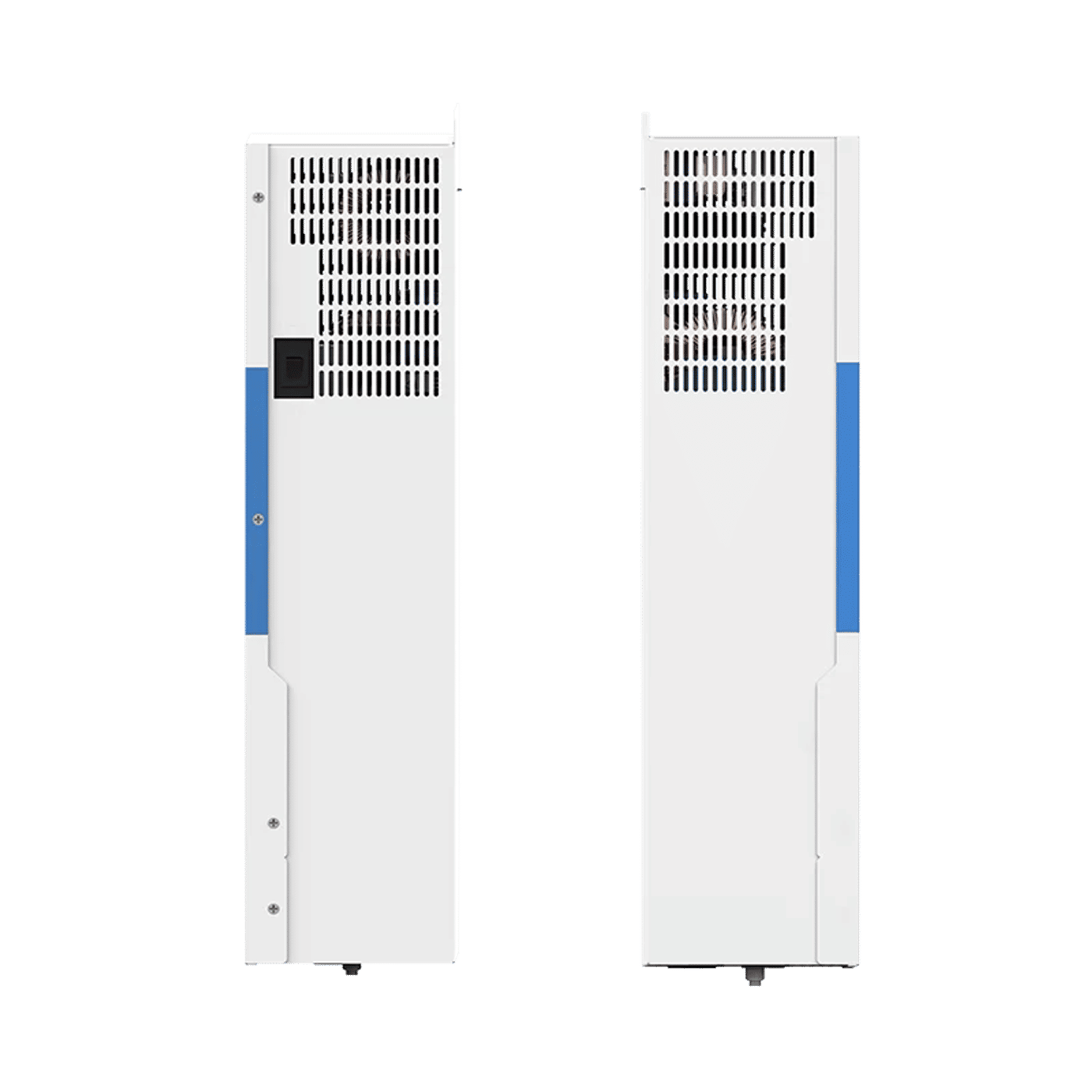

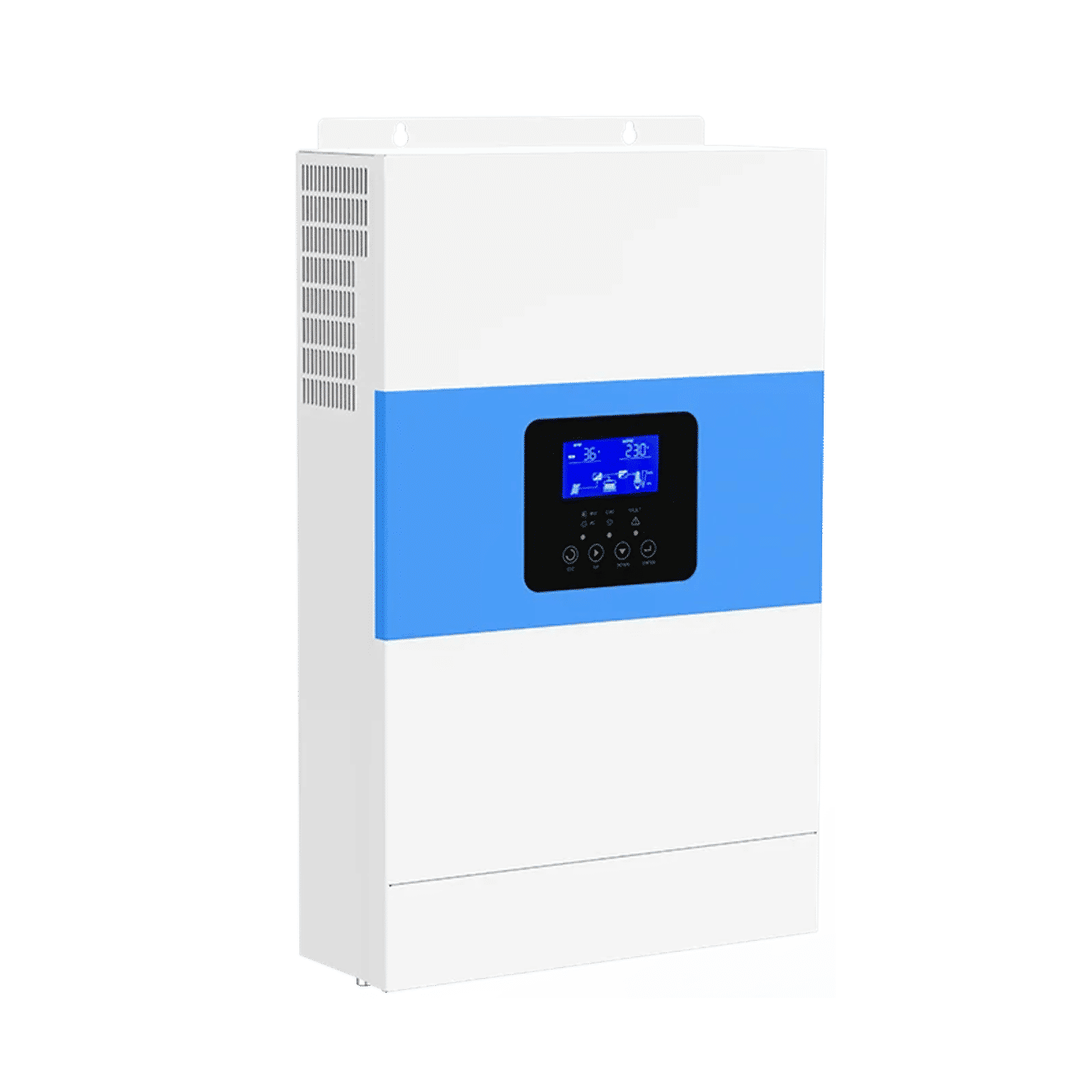

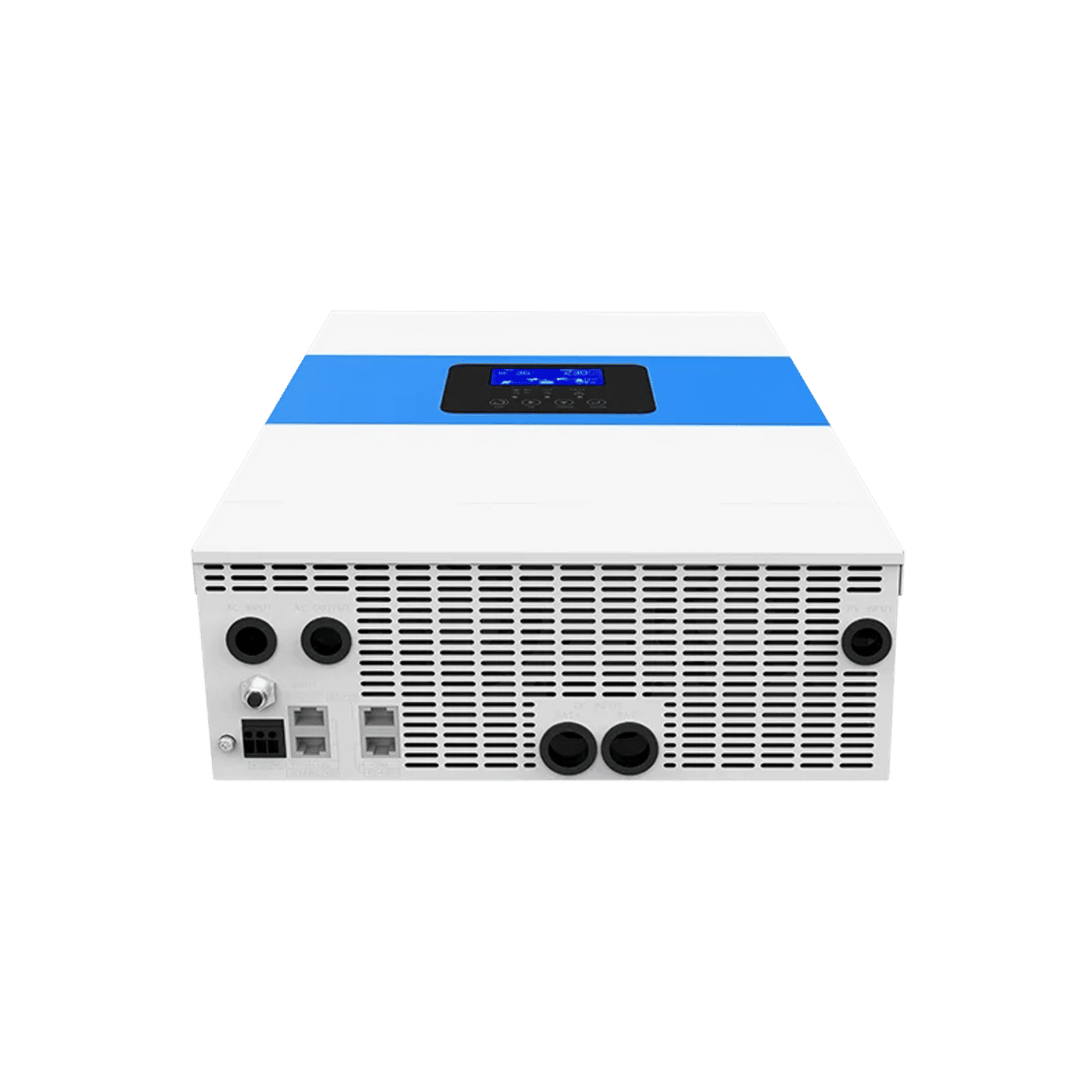

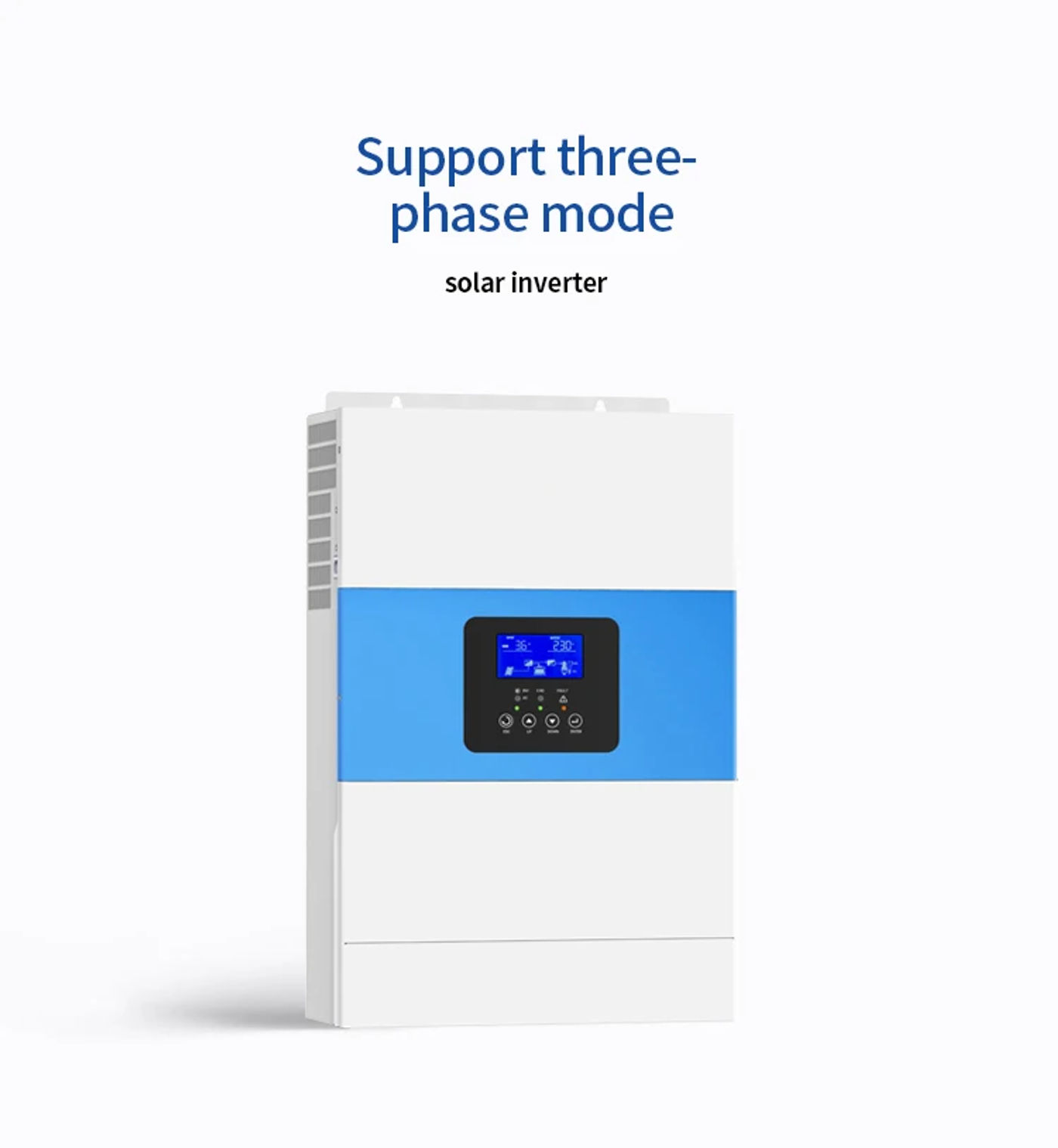

• DAXTROMN three five Solar Inverter Pure Sine Wave Hybrid Inverter 24V 48V 100A MPPT Solar Charger 500VDC solar Hybrid Inverter Feature Of GGH-3 GGH-6 Hybrid Solar Inverter 1 Sine Wave Solar Inverter 2 100A MPPT Solar Charger 3 500VDC PV Input 4 PV enter voltage range(120~450VDC) five strength element 1 6 Hybrid Solar inverter for 24V/48V components 7 paintings with or with out battery eight tracking & environment utility 9 50hz or 60hz (program adjustable) 10 to apply ac grid or generator energy 11 anti-dusk package for harsh environment 12 DC output for DC fan, LED bulb,router and so on What is the BMS model? Difference between BMS and with out BMS: If the battery has BMS, after plugging within the BMS, the inverter and the battery will converse and routinely modify the charging voltage cut-off voltage and different parameters, and assorted parameters may be adjusted at any time in keeping with the condition of the battery, that may be a higher point for the life of the battery and the safety of use The inverter and battery need to have BMS purposes on the identical time to communicate with one another Note:This is a wide voltage Hybrid Solar inverter, If Solar Inverter without exterior battery ,The voltage which starts to connect with the solar panel should be above 150V for the inverter to work normally, if with exterior battery 120V is working & AnswerQ:Whats the Rated output power ?A:Its GGH-3 3500W GGH-6 5500WQ:Whats the max fee currency for battery ?A:Its 100AQ:Whats the MAX DC PV Input?A:Its 500VDCQ:What BMS protocols are supported?A:Most of them are supported, and we even have BMS protocols that you may examine for compatibility yourself:How many volts of exterior battery use ?A:GGH-3 GGH-6 48VQ:Whats the warranty?A:1 Year Specification Of 3500W 5500W Hybrid Solar Inverter Model GGH-3 GGH-6 Phase 1-Phase Maximum PV Input Power 3500W 5500W Rated Output Power 3500W/3500VA 5500W/5500VA Maximum Solar Charging Current 100A GRID-TIE OPERATION PV Input(DC) Nominal DC Voltage/Maximum DC Voltage 360VDC/500VDC Start-up Voltage/Initial Feeding Voltage 90VDC/120VDC MPPT Voltage Range 120~450VDC Number of MPPT/Max Input Current 1/23A GRID OUTPUT(AC) Norminal Output Voltage 220/230/240VAC Output Valtage Range 195~253VAC Norminal Output Current 15 27 Power Factor >0 Feed-in Grid Frequency Range 49~51±1Hz OFF-GRID OPERATION AC Input AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC Acceptable Input Voltage Range 90-280VAC or 170-280VAC Maximum AC Input Current 60A 60A Nominal working frequency 50/60Hz Surge energy 7000VA 11000VA BATTERY MODE OUTPUT(AC) Nominal Output Voltage 220/230/240VAC Output Waveform Pure sine wave Efficiency(DC to AC) 94% BATTERY&CHARGER Nominal DC Voltage 24VDC 48VDC Maximum Solar Charging Current 100A Maximum AC Charging Current 60A PHYSICAL Dimension,D*W*H(mm) 302*490*110 Net Weight(Kgs) 8 9 INTERFACE Communication Port RS23/RS485CAN/Dry touch ENVIRONMENT Operating Temperature -10~50℃

•
•
•
•
•
