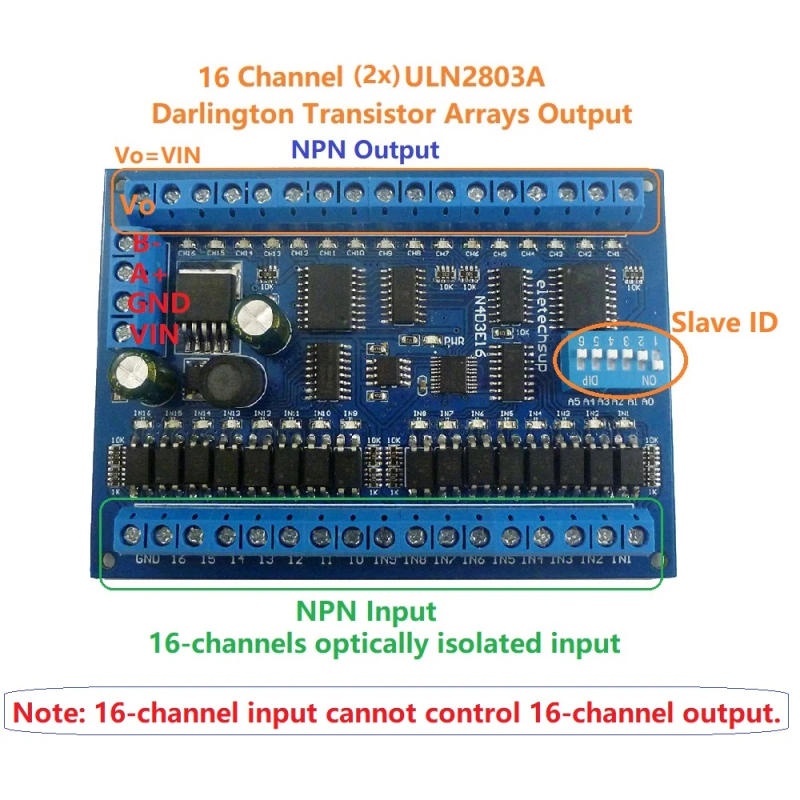

• Product Name: DC 12V 24V sixteen Input 16 Output RS485 Remote Control Switch PLC IO enlargement Board 03 06 sixteen Modbus RTU Module Package inlcuded:1PCS DC 6 16Ch Input & 16CH Output RS485 ModuleDescription: 1: Working voltage: DC 6 (9V 12V 24V) 2: Working current: 8-50MA 3: 16 channels photoelectric isolation Input ports (NPN low level energetic ) 4: sixteen channels Darlington output (ULN2803 NPN output) 5: &;&;open&;&; &;&;close&;&; &;&;Momentary&;&; &;&;Self-locking&;&; &;&;Interlock&;&; &;&;Delay&;&; 6 Commands 6: sixteen inputs can remotely management sixteen outputs of one other board by way of RS485 bus (relevant registers should be set) 7: MODBUS RTU command, Support 03 06 function code(Some registers help 16 function codes) 8: Under the &;&;Delay&;&; command ,the maximum put off is 255 seconds; 9 MODBUS instructions would be made serial HyperTerminal (serial assistant) OR &;&;Modbus Poll&;&; Enter; 10 Under the MODBUS command mode, it's going to assist as much as sixty four instruments in parallel eleven The default baud price is 9600BPS The baud price could be chosen through jumpers: 2400 4800 9600 19200BPS 12 Size: 100 * seventy two * 20mm(Only PCB Board);120 * 88* 42mm(with Din Rail Box) 13 Weight: 64g(Only PCB Board);143g(with Din Rail Box) 14 Maximum load: the utmost load recent of every channel is 300MA For extra information, please touch me DIN rail Box parameters: Product model: UM72 Color: inexperienced Width: compatible for PCB board width UM72(72mm) Insulation grade: flame-retardant VO grade Backplane length: compatible for one hundred mm PCB forums Net weight: 72g Installation: DIN35 and C45 rail ApplicationPLC IO growth board Smart Home,Home Automation ,Wiser Home; PTC Camera Security Monitoring Identification system; IP Camera LED Lamp Drivers Automatic curtain control Application 1: Control 16-channel switch output via RS485 bus Application 2: Read 16-channel change enter through RS485 bus Application 3: 16-channel enter handheld remote control 16-channel output

•
•
•
•
•
