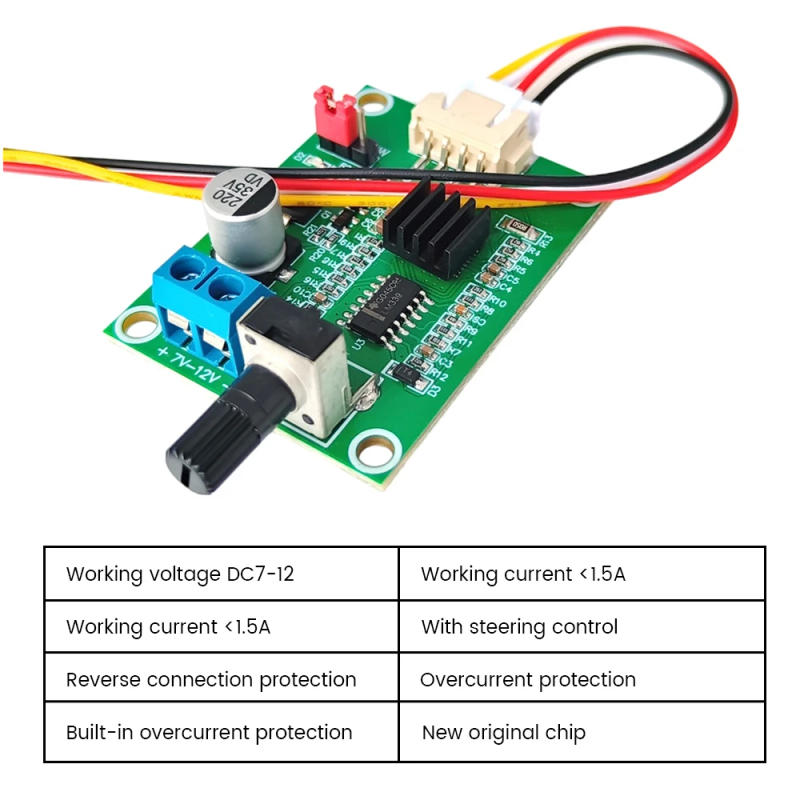

• DC 7-12V Brushless DC Motor Driver Controller Board Optical Drive Hard Disk Motor Controller Speed Control Potentiometer Knob Product selling points: 1 Using high quality materials, ensuring product high quality 2 This motive force board can pressure micro 3-wire or 4-wire Hall free brushless motors resembling harddrive brushless motors and optical force brushless motors 3 Exquisite and compact appearance, with exquisite association of elements 4 The product comes with voltage opposite protection, overcurrent protection, short circuit protection, etc, making it safer to apply five Widely used in electric cooling fans, desktop cooling fans, server cooling fans, small water pump motors, and so on Product parameters: Working voltage: DC7-12V Working recent ≤ 1 0% -100% pace legislation Steering control: Yes Reverse protection: Yes Overcurrent protection: Yes Overcurrent protection: Yes Module interface: +7V-12V -: Input 7-12V strength supply, high quality and unfavourable in step with the screen printing label at the board W1: Speed management potentiometer knob CW CCW: Motor ahead and motor reverse set aspects UVW CON: Three cord brushless and 4 cord ordinary ground, delivered with 15cm wire Attention: 1 After the quick circuit overcurrent protection of the brushless driver board, the ability indicator gentle turns off At this time, the power delivery to the driving force board should be bring to a halt After dealing with the cause of the overcurrent, the ability supply to the driving force board can be restored Once the LED energy indicator mild is on, it'll paintings normally 2 greater the power used by the module, the closer the current is to the maximum recent The heat will increase, please listen in on heat dissipation when utilizing Packaging list: Motor power module * 1 15CM terminal wire * 1

•
•
•
•
•
