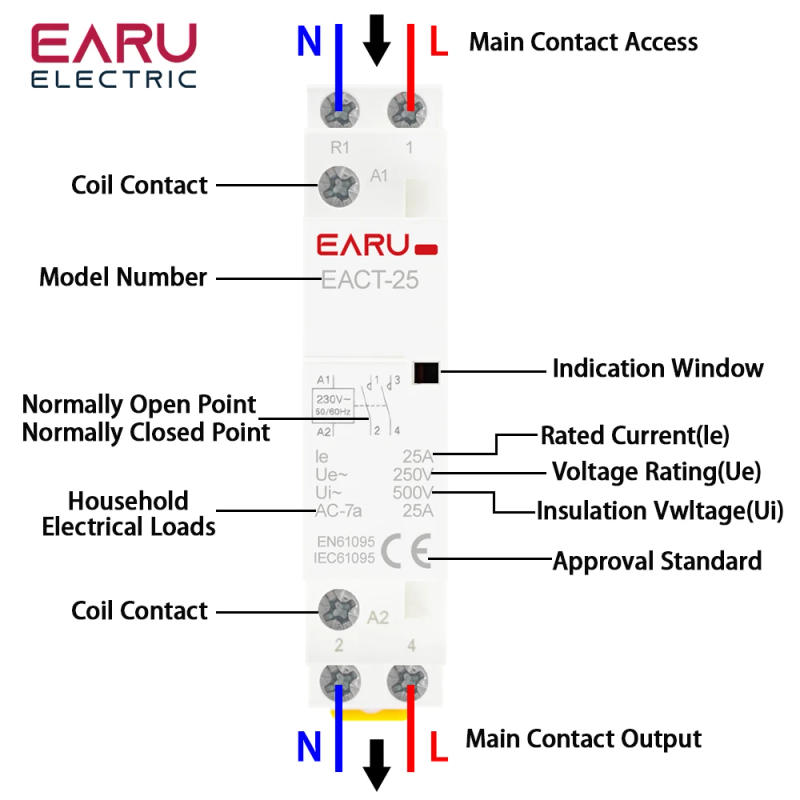

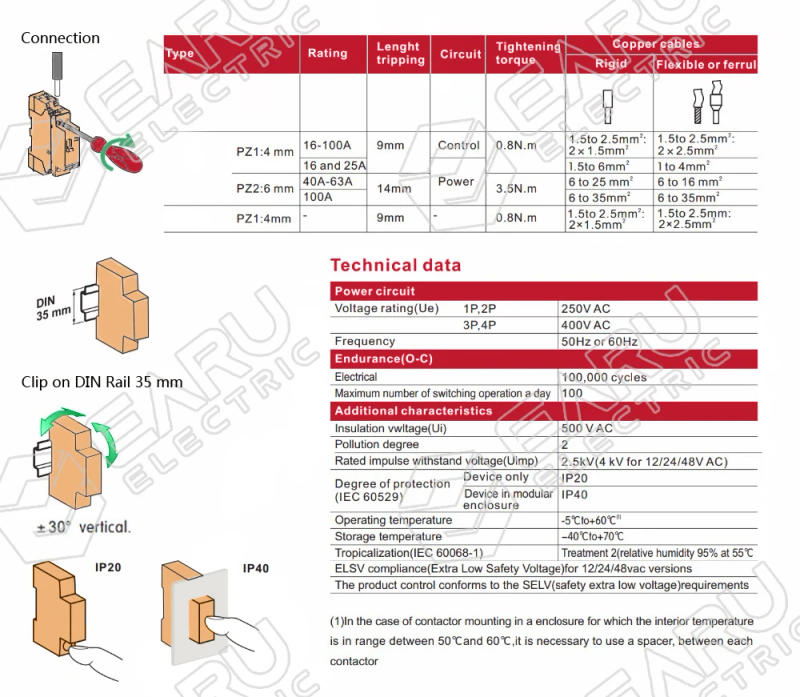

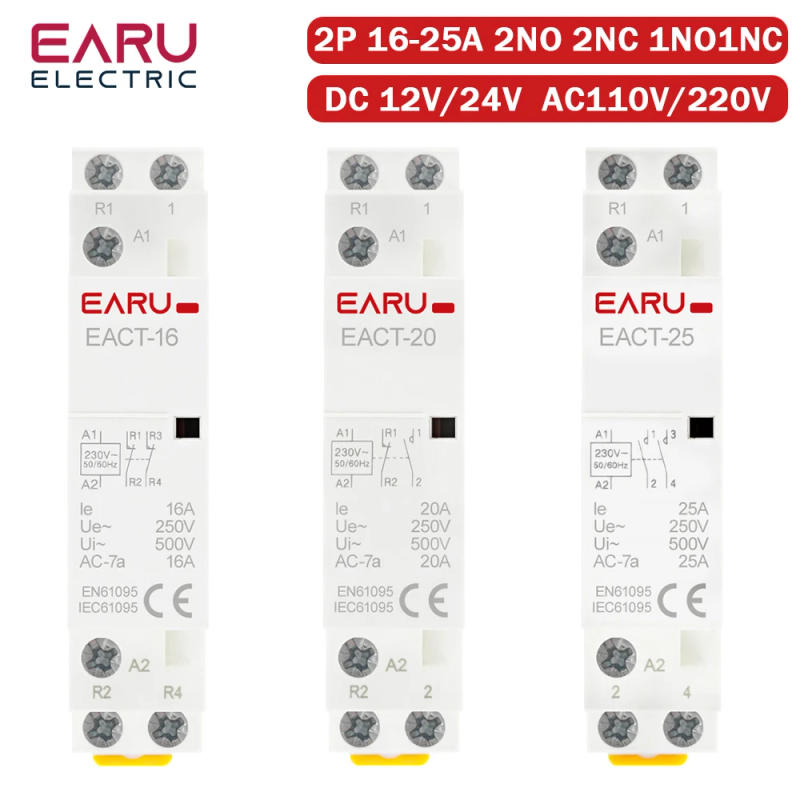

• Descriptions EACT 16A 20A 25A House preserve AC contactor is mainly designed for AC 50Hz or 60Hz circuits with 230V working voltage in AC7a utilization ,rated working voltage up to 230V, rated working current as much as 25A, Rated working voltage in AC7b usage , rated recent to 10A Using in breaking skill under 6kA circuit For distance connect or smash the circuit Normal operating and set up circumstances Ambient temperature:-5°C to +40°C,the average temperature no more than +35°C in 24 hours Altitude:no more than 2000m Atmospheric conditions: the relative humidity of the installation place must be not more than 50% when the utmost temperature is +40°C:if beneath a decrease temperature,a increased relative humidity is allowed The month-to-month common minimum temperature within the wettest month shouldn't exceed +25°C and the month-to-month average maximum relative humidity of this month no more than 90%,the dew at the floor of products attributable to temperature replace needs to be taken into account Class of pollution: category 2 Installation condition: class II Application instruction 1 Check whether the contactor concurs with the scope of application and the operating condition before installation 2 During the method of installing pull down the motion stopping component and put the contactor on the safe orbit then push up the motion,stopping component to fix the contactor on the secure orbit keep away from loosening and dropping pull down the motion,stopping element if you want to get rid of the contactor Caution a) yes the right mode of connection b) down the binding screw throughout the connection

•
•
•
•
•
