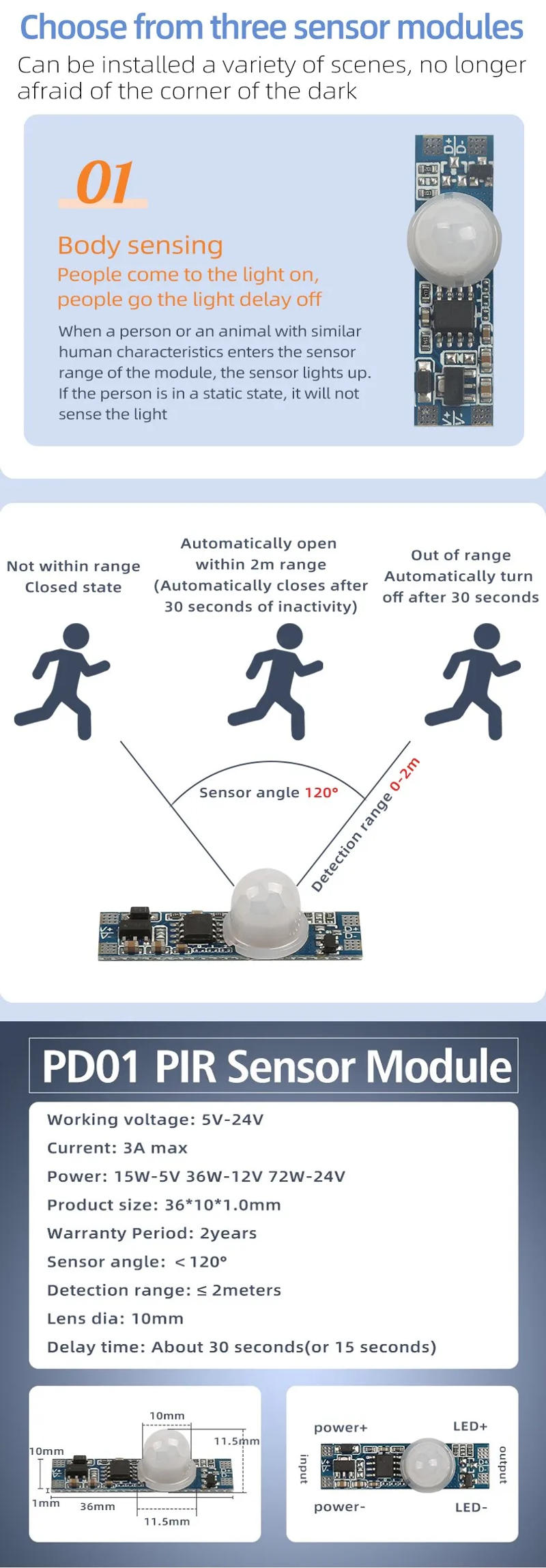

PIR Sensor ModuleThe PIR sequence substitute is designed for distant switching on / off of 12V/24V LED strips put in in an aluminum profile. When movement is detected within the discipline the place the exchange is triggered, the sunshine turns on. If no movement is detected within 30 seconds, the sunshine switches off automatically. Brief description and performance of PD01/PD2: * the small dimensions of the switch enable you installed the substitute in maximum aluminum profiles; * easy set up of the turn on an adhesive base on a profile; * huge contact pads for soldering; * challenging on(100%) / off (0%) (PD01-A1/PD02-A1); * The wide 120° movement detection attitude allows you to put in the switch within the intensity of the furniture with out bringing it to the foreground.; * detection distance 2 ±0 m. When the voltage is applied, the formula is set to standby mode. The lighting are off. When movement is detected in the detection distance, the light turns on. Scope Kitchen furniture, bedrooms, sliding wardrobes and different sorts of cabinet furniture Sensor Module*The VD01/VD02F series hand sweep contactless sensor is designed for switching on / off and dimming 12/24 V LED strips installed in an aluminum profile. The device is controlled without direct physical touch utilizing a palm movement. The show is implemented using an LED with a color temperature of 3000K within the OFF state. *To operate wisely the IR sensor ought to be open and exposed and not using a plastic cover over top. Brief description and performance of VD01/VD02F: * small dimensions, high sensitivity sensor, with steady operation in the course of the diffuser at a distance of up to 8 cm. (Need to drill the diffuser) * very easy set up of the turn on an adhesive base on a profile; * vast contact pads for soldering; * LED light indicator that indicates the mechanical device status, shade temperature no indicator-light on, 3000K-off; * dimming operate with last state memory. When the voltage is applied, the gadget is determined to standby mode. The lighting fixtures is grew to become off, and the indicator LED glows warmth white. Switching on and off is applied via way of a single raising of the hand to where of set up of the switch within the field of the indicator. Dimming of light fixtures happens when you maintain your hand in the glow area of the switch indicator. Attention! Do no longer use acidic fluxes for soldering! This puts the device out of provider and isn't a guaranty case!Touch Sensor ModuleTD01/TD02 integrated contact change with dimming function and last state reminiscence function, with a 10 mm spring on a 43x10 mm board. The touch change TD01/TD02 controls the on/off of the light resources via a short (<0 sec) contact within the spring area, the dimming operate is supplied by way of way of an extended touch (>0 sec) in the spring area. The spring subject glows with a warm white glow. The TD01/TD02 touch switch has came upon extensive utility as a incorporated change in luminaires made on the foundation of aluminum profiles with LED strip installed in them. Scope Kitchen furniture, bedrooms, sliding wardrobes and diverse kinds of cabinet furniture.





审核
0 people rated this product

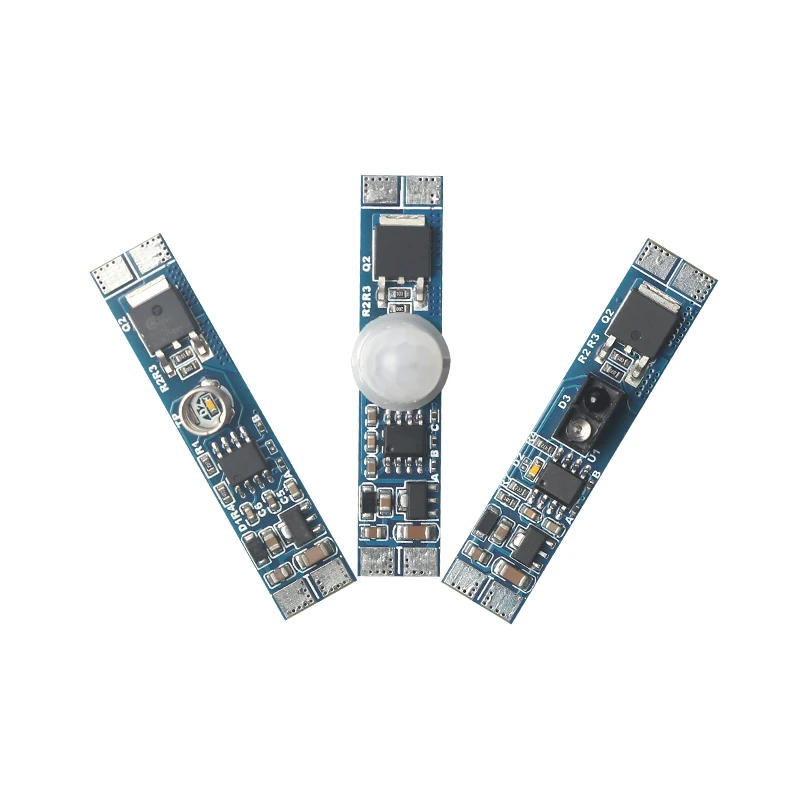

DC12V 24V sensor module 3A 8A Pir motion/infrared gesture/touch sensor module for LED cabinet light
