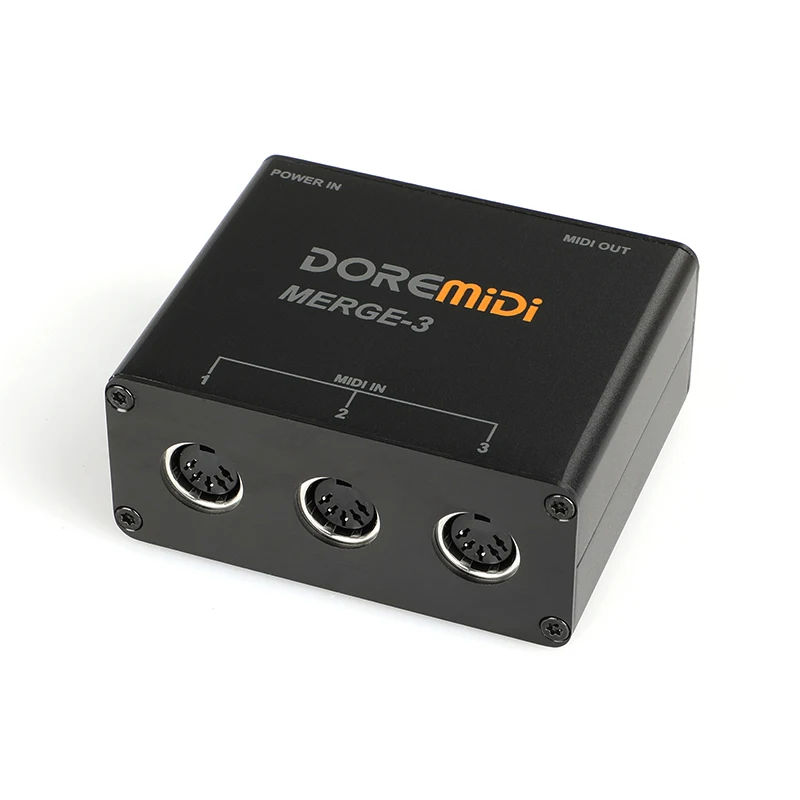

• Product Introduction MIDI MERGE-3 box (hereinafter referred to as product) can combine as much as 3 MIDI input alerts (such as MIDI keyboard or controller) into 1 MIDI data stream, which can be output via 1 MIDI interfaces Supports the merging of varied usual MIDI commands, including MIDI clock, MIDI time code and SysEx Product Parameters Model: MERGE-3 Size (L x W x H): 88*73*38mm Weight:155g MIDI Interface: three input, 1 output, common MIDI five-pin interface Power In Interface: Powered via USB-B interface, 5VDC Indicator Light: Product power indicator MIDI Compatibility: Compatible with all musical instruments with MIDI typical interface ❶ POWER IN:Product strength delivery interface, use USB-B plug to offer strength to the product, supply voltage 5V/1A, with strength indicator ❷ MIDI IN 1-3:3 MIDI input interfaces, utilizing a standard five-pin MIDI cable, connected to the output interface of the MIDI device ❸ MIDI OUT 1:1 MIDI output interfaces, utilizing typical five-pin MIDI cable, linked to the input interface of the MIDI gadget

•
•
•
•
•
